360 Vision Predator Ultra Installation & Configuration Manual page 17

Predator Installation Manual V10_1_29_00

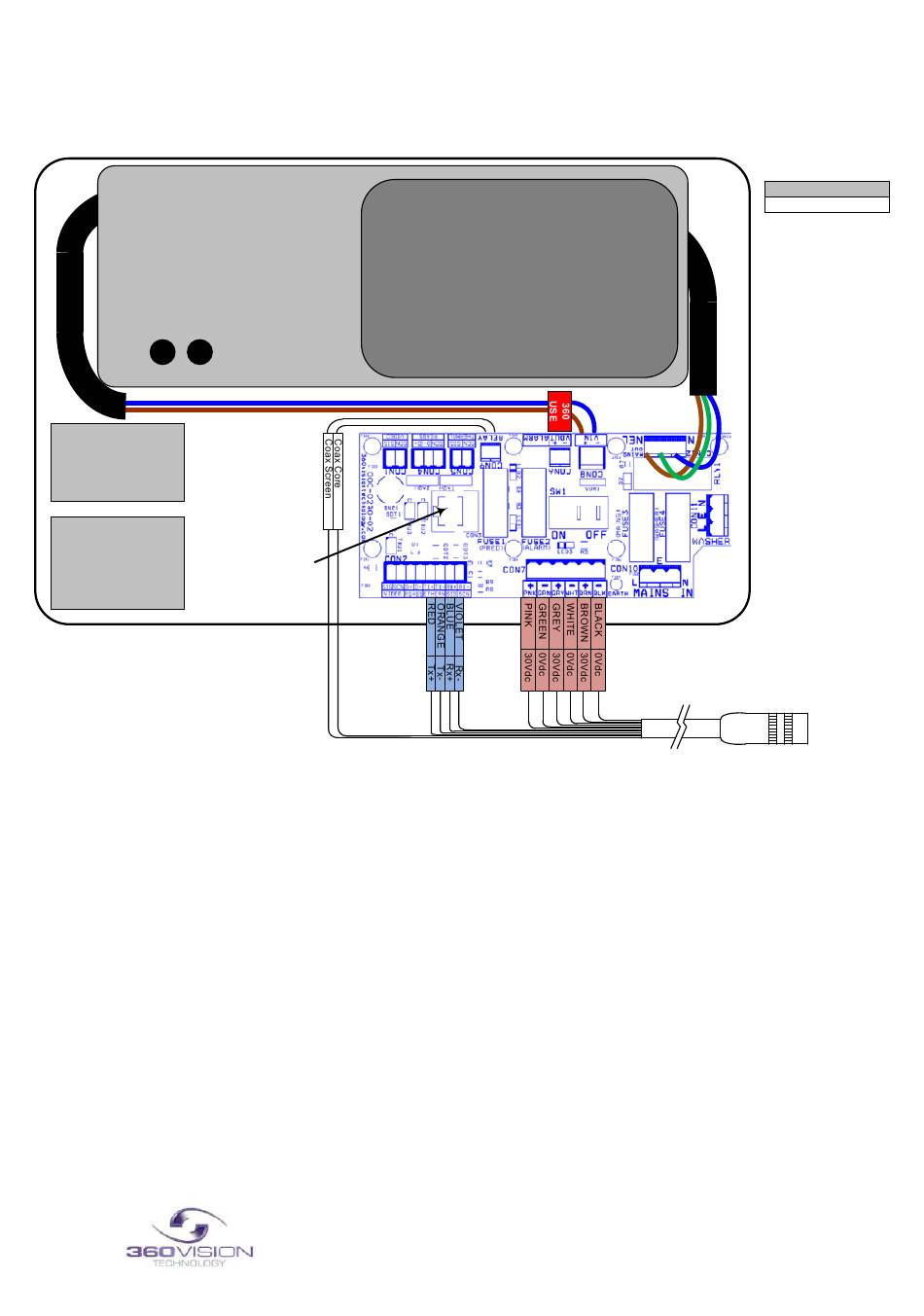

PRED-PSU-SM-WA_V2
PRED-PSU-SM-WA-HD
Io Vo
Adj Adj
MAINS FUSE
PRED-PSU-SM-WA-HD
MAINS FUSE 3 = 2AF
OUTPUT FUSE
PRED-PSU-SM-WA-HD
FUSE 1 = 6.3AT
Ethernet connection
FUSE 2 = 1AT
FUSE 4 = 1AT
Use pre-made cable
PRED-3M, PRED-10m,
PRED-25m or PRED-40m
to connect to Predator.
This PSU is compatible with the following products: HD/IP PREDATOR NON-HMA WITH WASHER
SAFETY: Isolate mains supply while installing.
FIXING: Securely fix the PSU with suitable fixings.
GLANDS: Face downwards, unused glands must be sealed.
ELECTRICAL CONNECTIONS:
MAINS INPUT 100-240Vac
L=LIVE (BROWN) 100-240Vac 50/60Hz
E=EARTH (GREEN/YELLOW)
N=NEUTRAL (BLUE)
SAFETY: ENSURE MAINS INPUT AND EARTH CONNECTIONS ARE SECURELY CONNECTED AND STRAIN
RELIEVED.
FUSE PROTECTION: Mains input fuse 2AF.
360Vision Technology, 7 Seymour Court Manor Park, Runcorn, Cheshire, WA7 1SY, Tel +44 (0)1928 570000.
PRED-PSU-SM-WA Safety and Installation Sheet
Camera Network/
Connecting the mains power.
www.360visiontechnology.com
Model Number: PRED-PSU-SM-WA
Serial Number: yymmndd-xxxx
Input Voltage: 100 – 240V AC 50/60Hz
Input Current: 2.1A
Output Voltage: 30V DC
Output Current: 6.2A
360Vision Technology, 7 Seymour Court Manor Park, Runcorn,
Cheshire, WA7 1SY, Tel +44 (0)1928 570000.
www.360visiontechnology.com
© 360 Vision Technology Ltd
Enclosure Dimensions
255 x 180 x 100mm
WASHER
Output
100 - 240Vac
MAINS input
100 - 240Vac
Page 17 of 56
