Predator Installation Manual V10_1_29_00
PRED-PSU-SM-HMA
Io
Adj
Enclosure Dimensions
255 x 180 x 100mm
PRED-PSU-SM-HMA_v3
This PSU is compatible with the following products: PREDATOR HMA
SAFETY:
Isolate mains supply while installing.
FIXING:
Securely fix the PSU with suitable fixings.
GLANDS:
Face downwards, unused glands must be sealed.

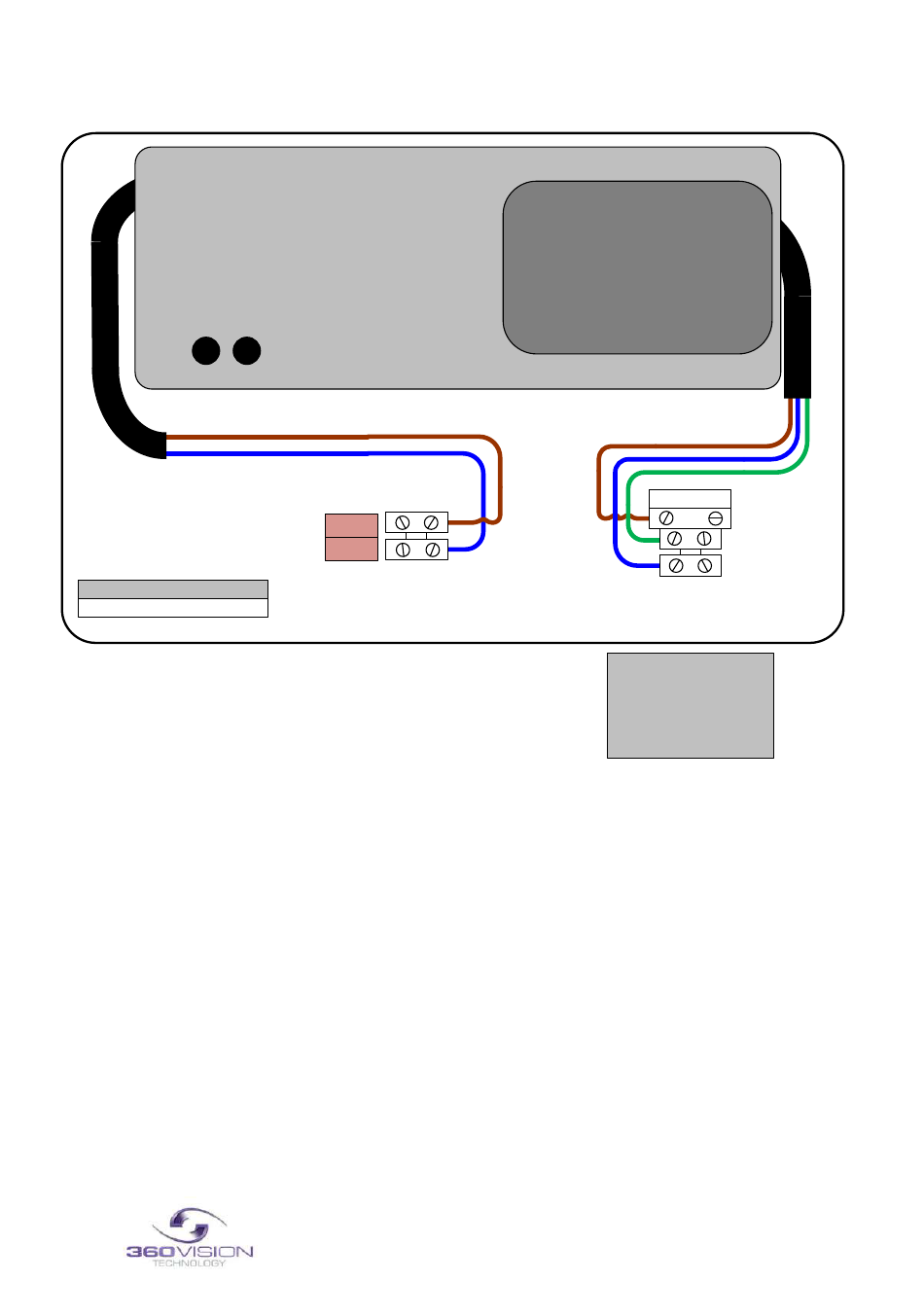

ELECTRICAL CONNECTIONS:
MAINS INPUT
100-240Vac
L=LIVE (BROWN)
E=EARTH (GREEN/YELLOW)
N=NEUTRAL (BLUE)
SAFETY: ENSURE MAINS INPUT AND EARTH CONNECTIONS ARE SECURELY CONNECTED AND STRAIN
RELIEVED.
FUSE PROTECTION: Mains input fuse 2AF.
360Vision Technology, 7 Seymour Court Manor Park, Runcorn, Cheshire, WA7 1SY, Tel +44 (0)1928 570000.
PRED-PSU-SM-HMA Safety and Installation Sheet
Vo
Adj
30Vdc
0V
Connecting the mains power.
100-240Vac 50/60Hz
www.360visiontechnology.com
© 360 Vision Technology Ltd
Model Number: PRED-PSU-SM-HMA
Serial Number: yymmndd-xxxx
Input Voltage: 100 – 240V AC 50/60Hz
Input Current: 2.1A
Output Voltage: 30V DC
Output Current: 6.2A
360Vision Technology, 7 Seymour Court Manor Park,
Runcorn, Cheshire, WA7 1SY, Tel +44 (0)1928 570000.
www.360visiontechnology.com
MAINS input
100 - 240Vac
MAINS FUSE
PRED-PSU-SM-HMA
MAINS FUSE = 2AF
Page 20 of 56
L
E
N
