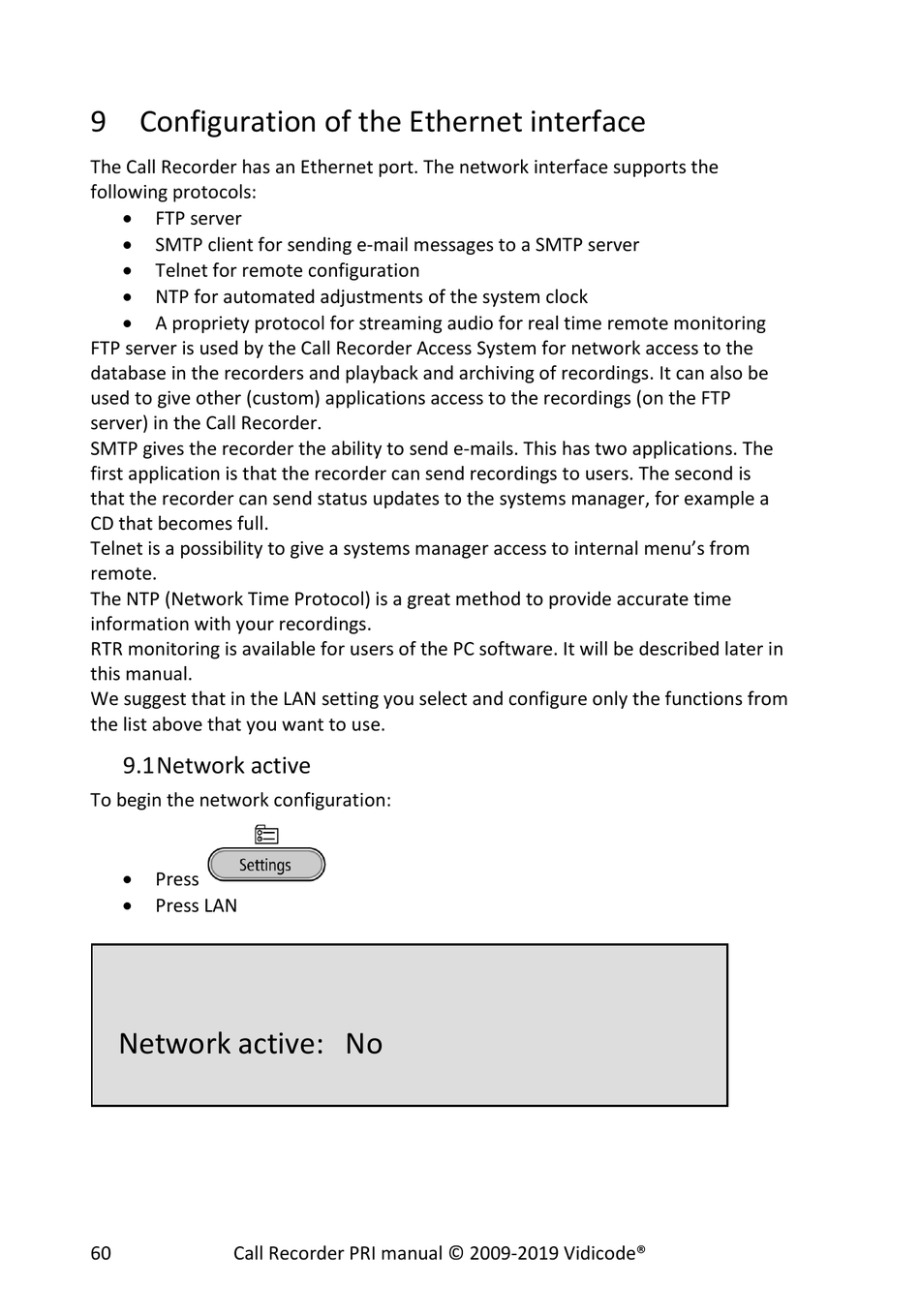

9 Configuration of the Ethernet interface

The Call Recorder has an Ethernet port. The network interface supports the
following protocols:
FTP server

SMTP client for sending e-mail messages to a SMTP server

Telnet for remote configuration

NTP for automated adjustments of the system clock

A propriety protocol for streaming audio for real time remote monitoring

FTP server is used by the Call Recorder Access System for network access to the
database in the recorders and playback and archiving of recordings. It can also be
used to give other (custom) applications access to the recordings (on the FTP
server) in the Call Recorder.
SMTP gives the recorder the ability to send e-mails. This has two applications. The
first application is that the recorder can send recordings to users. The second is
that the recorder can send status updates to the systems manager, for example a
CD that becomes full.
Telnet is a possibility to give a systems manager access to internal menu's from
remote.
The NTP (Network Time Protocol) is a great method to provide accurate time
information with your recordings.
RTR monitoring is available for users of the PC software. It will be described later in
this manual.
We suggest that in the LAN setting you select and configure only the functions from
the list above that you want to use.

9.1 Network active

To begin the network configuration:
Press

Press LAN

Network active: No
NEXT
60 Call Recorder PRI manual © 2009-2019 Vidicode®
CHANGE STOP
