3.0 How to operate the Rotator

3.3 Adjusting of stop

The forks are factory-set to stop in 45º. If another setting is required, the Rotator
can be set electronically to stop in different angles.
1) The forks are placed in horizontal position.
2) Short pressure on the switch A activates the setting
procedure. The controller gives a signal (one beep).
3) The forks are placed in the requested angle.
4) When the forks have reached the requested angle,
the controller will give signal after three seconds
(one beep), when the position has been stored.
The procedure is repeated to set stop in the opposite
side.

3.4 Setting the speed

1) The forks are placed in horizontal position.
2) The switch (A) is pressed three seconds, and two
short beeps will be given. The switch is released
and the speed is set by activating the remote
control.
Clockwise: Increasing the speed
Counter-clockwise: Reducing the speed
Note: Maximum tilt time (0-355º): 1 minute.
3) When the requested speed has been reached,
the controller will give signal after three seconds
beeps), when the position has been stored.
3.5 Reset the settings
1) The forks are placed in horizontal position.
2) Press switch A, until five beeps are given. The switch is released and the
controller is set to maximum speed and stops at 45°.

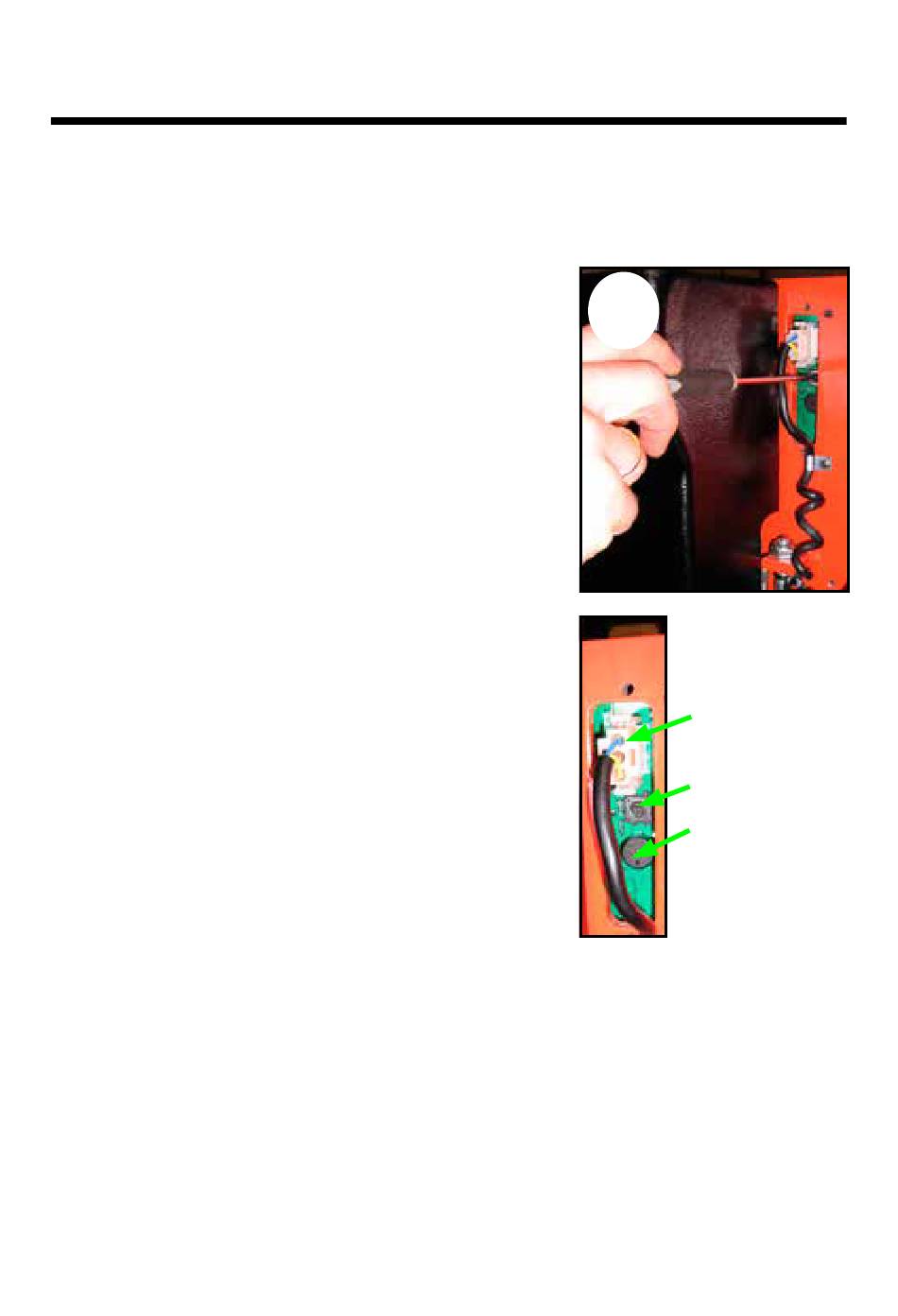

A
