- Page 1 SERVICE MANUAL - LOGIFLEX SELF 1001 - PANTHER MINI (PM 1400) - PANTHER MAXI (PM 1800) www.logitrans.com www. www.logitrans.com...
-
Page 3: Table Of Contents
Contents Logitrans controller ................. 4 Comments: ..................6 Operating messages in mini-display for Logitrans Controller ..8 Controller - error ................9 Display on Logitrans Controller ........... 10 Drive motor ..................12 Pump unit ..................13 This Service Manual consists of:... -
Page 4: Logitrans Controller
Electronic control Logitrans Controller Electric system Logitrans controller The Logitrans controller is an electronic control unit which uses microprocessor technology and has been developed specially for Logitrans. The forward/reverse function is fully electronically controlled by a Power FET system. The variable speed is controlled by the handle employing two Hall effect units and a magnet. - Page 5 Electric system Electronic control Logitrans Controller The table below shows a list of the parameters and values used by the Logitrans controller and the equipment needed to read and/or set them. The values can be read on a display/battery indicator fitted to the truck (Panther MAXI/SELF). The parameters/values can be set/read by means of a hand terminal.
-
Page 6: Comments
Electronic control - Comments Electric system Comments: 1. Maximum speed Governs the power directed to the motor in % of maximum power. This leads to a given wheel speed depending on load. 100% is 6 km/h, with no load and on a flat surface. 2. 1st reduced power Governs the reduced effect sent to the motor. - Page 7 No. 4 in the mini display and error message No. 40 in the display. Extra counter 1/extra counter 2: Not used. 26. Error messages See “Logitrans controller display.” 27. Battery meter Indicates on the display/battery indicator the charge state of the battery...
-
Page 8: Operating Messages In Mini-Display For Logitrans Controller
Electronic control - Operating messages Electric system Operating messages in mini-display for Logitrans Controller Standby PC program connected 100% FORWARD Regulated FORWARD Handle tilted. Control ready to operate. Regulated reverse 100% reverse Safety forward is activated (belly switch) Hall inputs defective : There can be a lead defect. Check that the message is displayed even when the battery current is too low. -
Page 9: Controller - Error
Electric system Electronic control - Controller-error Controller - error Error on controller: Error on the display: Cause: 10. Hall_forward input 11. Hall_forward 12. Hall_reserve input 13. Hall_reserve 14. Hall forward and reserve 20. Memory 21. Memory All faults can be caused by a 22. -

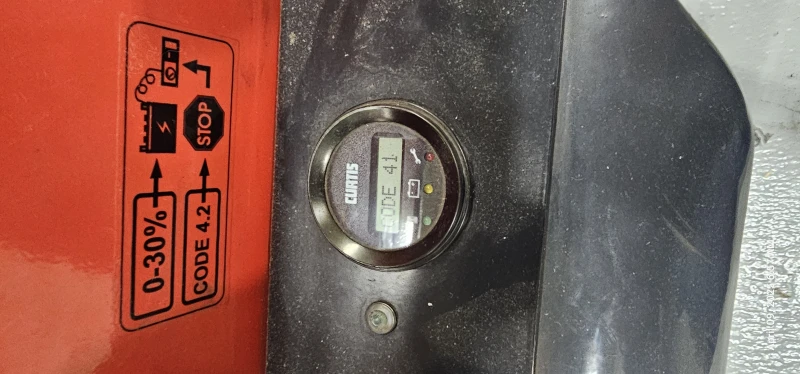

Page 10: Display On Logitrans Controller
Electronic control - Mini-dispaly on controller Electric system Display on Logitrans Controller Operating messages appear on a display that is connected to the controller (Panther MAXI, SELF). The messages are more specifically concerned with controller faults. On Panther MINI a hand terminal has to be connected to the controller to show the operating messages. The display shows Fault counter No. XX in the bottom line when a fault occurs. - Page 11 85% discharged. 30. Power system for forward This fault can also occur if more current is to be transferred to the motor than specified in the operating parameter Maximum current. If the fault repeats itself, contact Logitrans. 31. Power system for reverse As above. Please also see the error description under “error 14”. 40. Temperature error on the controller This error code should only arise, if the temperature inside the controller exceeds 74º.
-
Page 12: Drive Motor
Drive motor Maintenance Drive motor Wheel bandage It is recommended that the wheel bandage is replaced when it is worn down to less than 5 mm thickness. Wheel bandage replacement - Remove motor cables. Note their position - they must be refitted exactly the same. - Remove the M5 screws which secure the wheel bandage. - Screw 3 M6 screws into the threaded holes to extract wheel. -
Page 13: Pump Unit
Maintenance Pump unit Brake on wheel motor Pump unit Hydraulic oil Oil change Draining of oil Described in the manual Filling in oil Oil quantity Lubrication Battery Brushes in the pump motor It is not possible to change brushes in the pump motor. - Page 14 S928 10/02/2010 www.logitrans.com www. www.logitrans.com...
