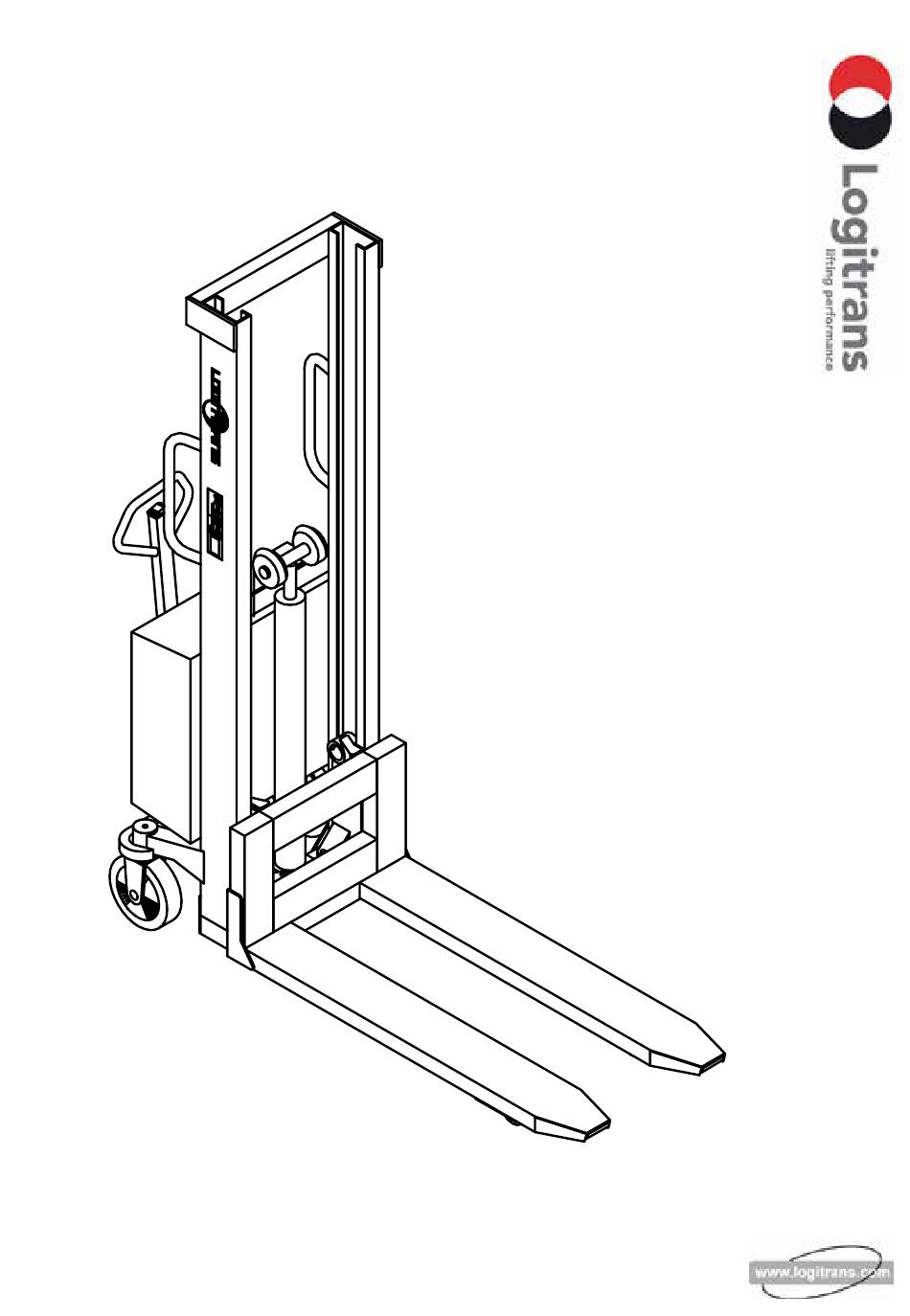

- Page 1 EHS 1000RF-SEMI...
- Page 2 EU DECLARATION OF CONFORMANCE Manufacturer: Logitrans A/S Hillerupvej 35 6760 Ribe Denmark It is hereby declared that: Machine: Product group: Stackers EHS 1000RF-SEMI Type: EHSS 1000RF-SEMI Year of manufacture/ Serial No.: a) Has been manufactured in conformance with the stipulations of the: •...
- Page 3 1.0 Before the first lift... The Logitrans Stacker is manufactured in accordance with safety directives. Among the subjects dealt with in this Instruction Manual are: • Proper application • Physical limitations of the product • Risks with improper use Therefore please read this Instruction Manual carefully!
- Page 4 2.0 Functions and identifications 2.1 Handling of pallets For proper operation, stand behind the handle! Push/pull - raise/lower EHS RF-SEMI...
-
Page 5: Optimum Safety
3.0 Optimum safety 3.1 Avoid overloads The maximum load must not be exceeded. Remember, the stacker is designed for evenly distributed load, - goods on pallets etc. If the forks are pointloaded on one side there is a risk of bending. 3.2 Avoid offset loads The load must be evenly distributed. -
Page 6: Emergency Braking
3.0 Optimum safety 3.4 Transport with load The stacker is designed for use on even and level floor. During transport the forks shall be raised as little as possible. Transport with raised forks should be made over the shortest possible distances and at low speed. 3.5 Emergency braking ... -
Page 7: Safety Regulations
3.0 Optimum safety ATTENTION Moving parts Safety regulations • Never walk under a raised load! • Before lowering the forks, make certain that no foreign elements can hinder the free lowering of the forks. • The stacker is designed for use on an even and level floor. •... - Page 8 4.0 There must be a current supply... 4.1 Fuses A: Fuses: motor protector and protection against electrical overload. B: Safety/pressure relief valve: protection against mechanical and hydraulic overload. Set by the manufacturer at the maximum design load (see product name plate). C: Hose safety valve: protection against load “falling”...
-
Page 9: Fuses - Replacement
4.0 There must be a current supply... 4.2 Fuses - replacement There are two fuses in the electrical circuit. - See illustration under point 4.1 80 amp fuse in main supply from battery (location: see A1, point 4.1) 5 amp fuse in control current circuit (location: see A2, point 4.1) Replacement: Before replacing fuse, disconnect battery + pole. -
Page 10: Oil Change
5.0 Long live the stacker Regular inspection and the replacement of worn or defective parts in good time will prolong the life of the stacker. “Prevention is better than repair”, therefore ensure: • Correct usage • Regular cleaning • Periodic safety and service inspection 5.1 Lubrication and hydraulic oil All ball bearings are lubricated with a lubricating grease for the food industry, and all moving parts are treated with a grease for the food... -
Page 11: Fork Adjustment
5.0 Long live the stacker 5.3 Fork adjustment Two of the rollers on the fork bracket are fitted on eccentric pins so that they can be adjusted. The adjustable rollers are uppermost. 1. Loosen screw (pos. 91) (key width 5 mm). 2. -
Page 12: Bleeding The Hydraulic System
5.0 Long live the stacker 5.5 Adjustment of steering wheel chain Access to the chain is gained by removing the chain guard. • Remove the two screws (pos. 111) and two screws (pos. 110) (4 mm Allen key). • Set the handle in its mid position. •... -
Page 13: Warranty
Such affected parts shall be sent to your Logitrans dealer carriage paid within the warranty period in force at the time in question, together with a copy of the documentation for the service performed (B284 - see the back page). - Page 14 7.0 Fault location key When the stacker is used every day, adjustments and the replacement of worn parts might be necessary. Adjustments and minor repairs can easily be made on the spot. Major repairs should, however, be carried through by the dealer who has a well-trained staff and the necessary special tools.
- Page 15 Cause Mending See point 5.1/5.2 Oil deficiency Battery discharged See separate in- struction manual Fuse blown See point 4.1/4.2 Pos. 4.1 pos. A1+A2 Leads defective See point 4.3 Max. load exceeded See point 3.1 Air in hydraulic system See point 5.6 Pressure relief valve incorrectly Contact the adjusted point 4.1 pos.
- Page 16 Periodic service check Service check is required once each year, or at least for every 250 hours of operation. The service check is to be performed on the basis of form no. B280 and proved on form no. B284. Forms and instructions for the service check are available at your dealer.
