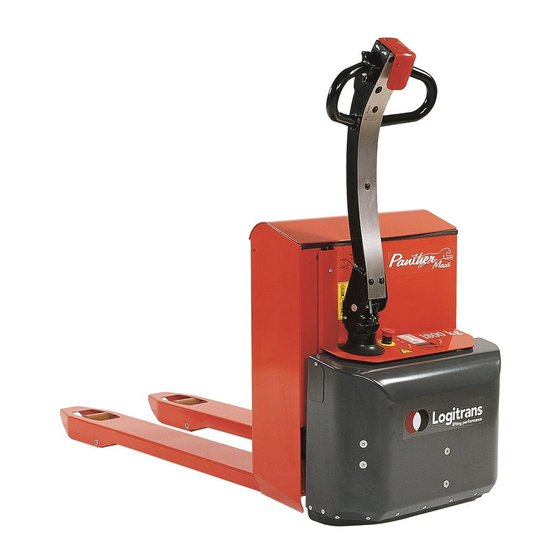

Summary of Contents for logitrans PANTHER MAXI AC

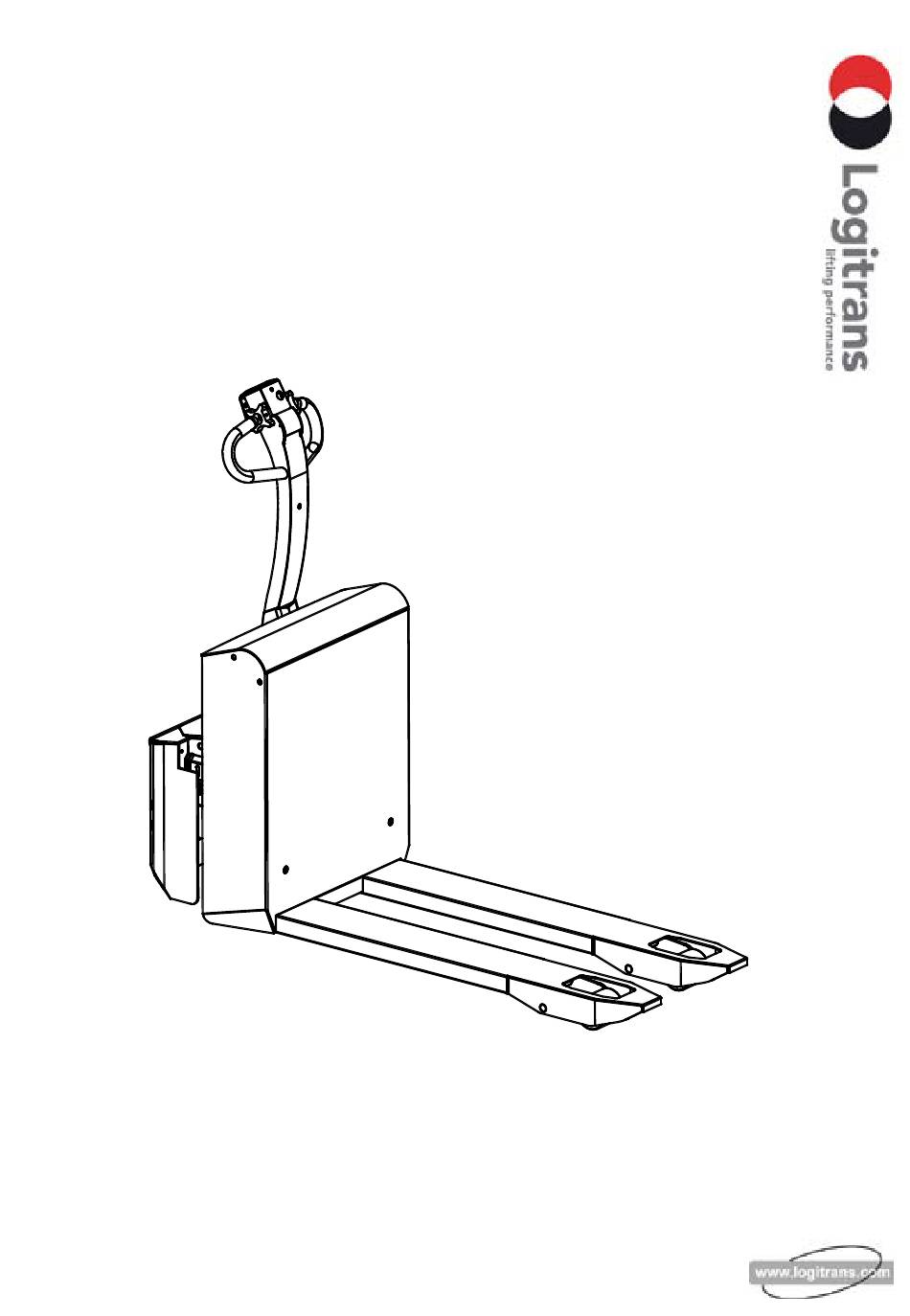

- Page 1 PANTHER MAXI AC / MINI...
- Page 2 It is hereby declared that: Machine: Productgroup: Pallet truck with electric propulsion Type: Panther Maxi AC / Mini Year of manufacture/ Serial No: a) Has been manufactured in conformance with the stipulations of the: • COUNCIL DIRECTIVE no. 98/37/EC • COUNCIL DIRECTIVE no. 89/336/ECC • COUNCIL DIRECTIVE no.
-
Page 3: Table Of Contents
Contents 1.0 Before the first lift....................4 2.0 Functions and identifications ................5 3.0 How to operate the pallet truck ..............6 3.1 Handling of pallets ....................... 7 3.2 Handle functions ........................8 3.3 Emergency stop........................9 3.4 Brake function........................10 3.5 Personal safety ........................ -
Page 4: Before The First Lift
1.0 Before the first lift... The Logitrans pallet truck is manufactured in accordance with safety directives. Among the subjects dealt with in this Instruction Manual are: • Proper application • Physical limitations of the product • Risks with improper use... -
Page 5: Functions And Identifications
2.0 Functions and identifications 1. Safety Switch 2. Horn 3. Lift/Lower 4. Forward/Reverse 5. Multiflex Function 6. Handle 7. Battery indicator / hours counter 8. Emergency Stop 9. Ignition Key 10. Charging Lamp (built-in charger) Identification Battery label, (below the battery cover) Name plate, serial number Truck number, stamped in chassis behind the rear cover. -
Page 6: How To Operate The Pallet Truck
3.0 How to operate the pallet truck Insert key (9) and turn clockwise to switch on control current ready for function activation. Note!!! Emergency stop (8) must not be activated. The control functions of the pallet truck are located in the handle (6). - The functions are dependent on the position of the handle! Position A: Drive position Drive current on... -
Page 7: Handling Of Pallets
3.0 How to operate the pallet truck 3.1 Handling of pallets For proper operation, stand behind the handle. Raise/lower - forward/reverse The pallet can be lifted and transported - either lengthwise - or crosswise... -
Page 8: Handle Functions
3.0 How to operate the pallet truck 3.2 Handle functions... -
Page 9: Emergency Stop
3.0 How to operate the pallet truck Horn Multiflex function Multiflex function • This function makes it possible to drive the pallet truck, even though the handle is in its upright, braked position • The function requires two-handed operation, i.e. it must be performed deliberately •... -
Page 10: Brake Function
3.0 How to operate the pallet truck 3.4 Brake function A: Position for driving B: Position for braking See multiflex function for driving in B-position (see paragraph 3.2) 3.5 Personal safety The safety switch on the end of the handle ensures that the operator cannot be trapped when the pallet truck is reversed. -
Page 11: Optimum Safety
Moving parts 4.1 Avoid overloads Panther Mini: Max. load 1400 kg Panther Maxi AC: Max. load 1800 kg The maximum load must not be exceeded. Remember, the pallet truck is designed for evenly distributed load; - goods on pallets etc. -
Page 12: There Must Be A Current Supply
5.0 There must be a current supply... 5.1 Battery specifications The manufacturer recommends the following battery type for Panther Maxi AC/Mini: Tubular cell Tubular cell Semi-trak 986200 986201 986034 Voltage 2x12V Capacity 120Ah/5h 160Ah/5h 60Ah/5h Capacity per cycle 100% ~ 125% ~ 50% inrelation to 986200 Approx. - Page 13 Grå 5.0 There must be a current supply... Note 1: Battery life: 1200 cycles a 80% discharge. Longest battery life obtained, when the battery is charged on being 80% discharged. 1 charge = 1 cycle. Note 2: Battery life: 300 cycles at 80% discharge = approx.
-
Page 14: Checking The Battery Conditions
5.0 There must be a current supply... 5.2 Checking the battery conditions Dry-charged batteries must be filled with battery acid 37.5% H specific gravity 1.28, before they are used for the first time. • The battery is fully charged when the battery voltage and the acid density are not changed between two measurements made with an interval of two hours. -
Page 15: Battery Indicator / Hours Counter
The battery can still be used; charging is recommended. Yellow: Charging lamp: Is alight during the last part of the charging. Panther Maxi AC The messages are shown on the LCD display. The lamps indicate the type of message shown. 8 characters LCD display... -
Page 16: Battery Charging
5.0 There must be a current supply... 5.4 Battery charging If instructions accompany the battery / charger, these are to be followed. • The Soneil charger is set for charging of both semi-track, tubular cell and maintenance free batteries. • NOTE! If another charger is used, the charging voltage has to be set correctly for the charging of semi-track, tubular cell or maintenance... - Page 17 Please note! The Soneil charger is set for charging of both semi-trak, tubular cell and maintenance-free batteries! Charging Panther Mini 10 Amp (built-in / external) Panther Maxi AC 10 Amp (built-in / external) During charging, the key must be removed!
-
Page 18: Fuses - Replacement
5.0 There must be a current supply... 5.5 Fuses - replacement There are 4 fuses in the electrical circuit, located behind the plate with this pictogram. A) 80 Amp fuse for driving motor B) 50 Amp fuse for lifting motor C) 10 Amp fuse (Soneil charger) D) 5 Amp fuse in the control current circuit Replacement:... -
Page 19: Technical Data
115/40 mm/s Gradient performance Battery 120 Ah (1x24 V) 60 Ah (2x12 V) or 160 Ah (1x24 V) Weight in kg with 1140 mm forks (without battery) * Only Panther Maxi AC. ** Tests show that 1610 mm are enough. -
Page 20: Fault Location Key
7.0 Fault location key When the pallet truck is used every day, adjustments and the replacement of worn parts might be necessary. Adjustments and minor repair can easily be made on the spot. Major repairs should, however, be carried through by the dealer who has a well-trained staff and the necessary special tools. - Page 21 Cause Mending Inadequate power supply Battery discharged (error 4.2) Fault in on/off switch Fault in control current circuit Fault in main/power current circuit Too little current on battery (error 4.2) No current on brake Brake needs adjusting Insufficient oil in tank. Load too heavy, safety valve is set wrongly No current on solenoid...
-
Page 22: Remedy
7.0 Fault location key 7.1 Remedy 1) Check that the key (1) is turned clockwise and that emergency stop (2) is not activivated. 2) Charge battery - for charging see instructions in paragraph 5.4. Access to the battery is achieved by tipping the cover (3). - If necessary, check the liquid level in battery cells. - Page 23 7.0 Fault location key...
-
Page 24: Good Service After Purchase
Such affected parts shall be sent to your Logitrans dealer carriage paid within the warranty period in force at the time in question, together with a copy of the documentation for the service performed (B284 - see the back page). - Page 28 Periodic service check Service check is required once each year, or at least for every 250 hours of operation The service check is to be performed on the basis of form no. B280 and proved on form no. B284. Forms and instructions for the service check are available at your dealer.
