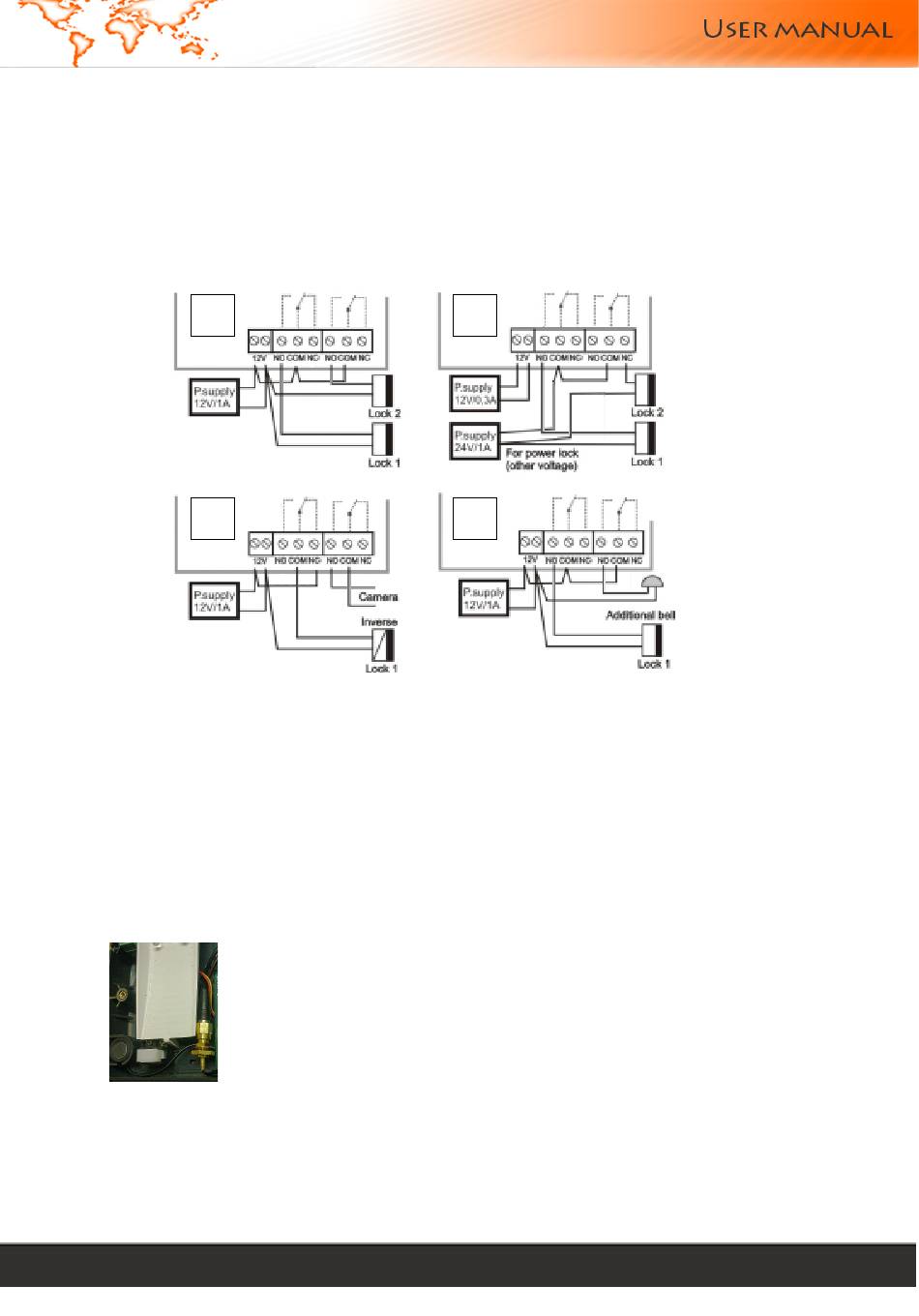

2.4. Relays connection

1.
Basic connection – 2 electrical locks and possibility control 2 doors.
2.
2x PSU – possibility to use 2x independent power supply. One for GSM DoorPhone and second for
electrical locks. The electrical lock 2 is connected inversely (fire emergency doors).
3.
External camera or lighting activation.
4.
Electrical lock and additional bell combination.
1
3

3. Start

3.1. Antenna and SIM card connection
