17. Ambient light sensor – Connector to connect 3
18. Connector to connect speaker
19. Connector to connect microphone
2.1 Power
The SLIM IP CAM V2 is equipped by circuit for powering via UTP cable – POE. When you use electrical
lock for door opening then you have to use PSU for powering door electrical lock (in relays contacts
circuit only), or use low consumption electrical lock and for electrical lock powering use output screw
"12V output" (7). When POE is used then 12V/300mA is available.
CAUTION: There must not be activated both electrical locks simultaneously.

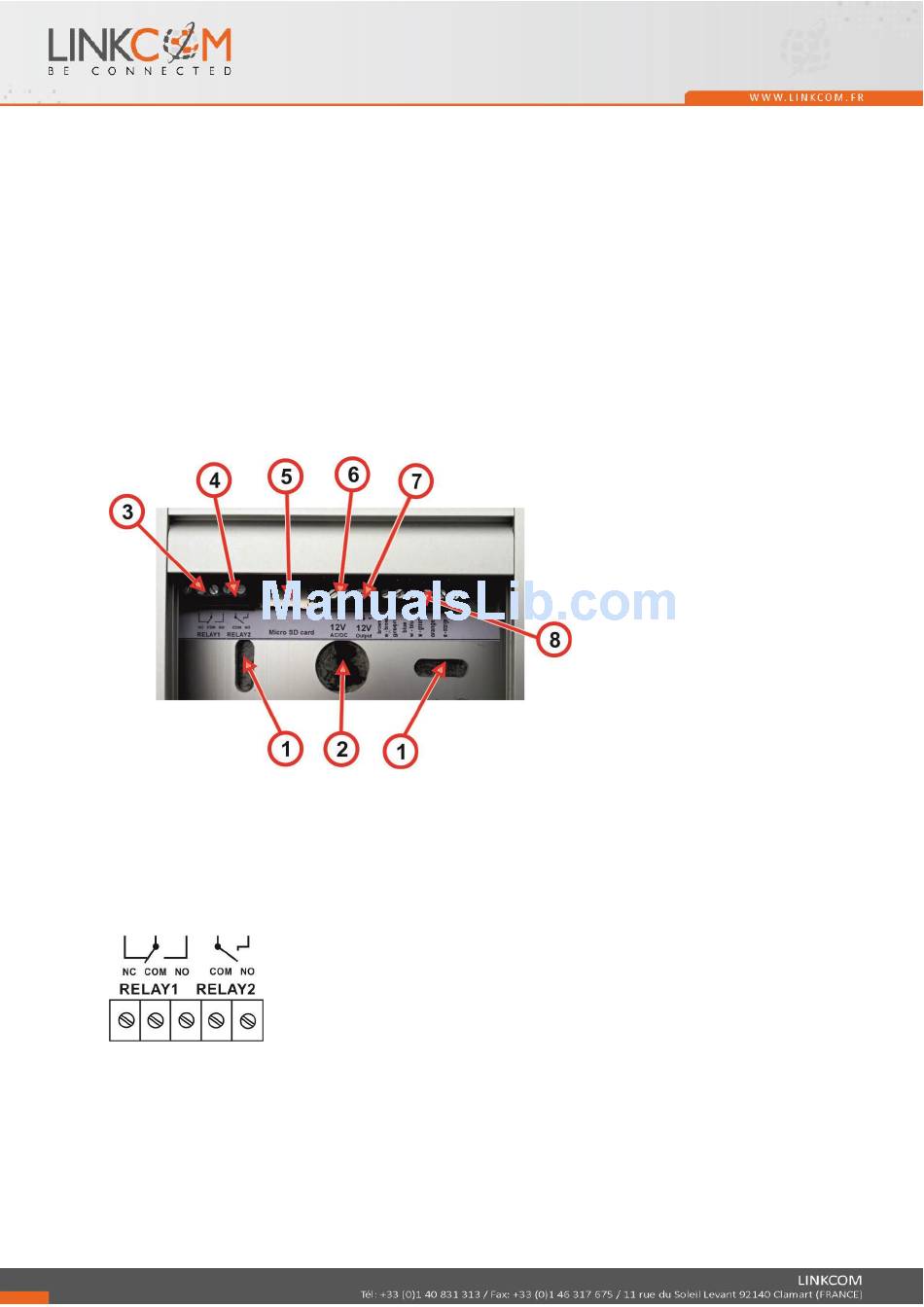

2.2 Relays Connection
Relay connection (3) and (4) :
-
NO means idle - disconnected contact,
-
COM means a pin contact (middle)
6/80
-
NC means an idle - connected contact.
rd
button
6/40
