3. Remove the two lower screws and the two upper screws that hold the
power bridge adapter in place. Save the screws.
4. Disconnect the power bridge adapter from the lower backplane.
5. Place the power bridge adapter in a safe place in the event the power
supplies are upgraded to the 6C210-1 or 6C210-2 models.
6. Using a .25-inch hex nut driver, remove the three standoffs that are
attached to the lower backplane. Refer to
7. Place the three standoffs in a safe place in the event the power supplies
are upgraded to the 6C210-1 or 6C210-2 models.
8. Locate the rectangular metal clip that is connected to the chassis card
cage. It is located directly to the right of lower backplane. Refer to
Figure 3-5.
9. Remove the support clip by lifting up on the clip. Place the support
clip, and the screw that secured it, in a safe place in the event the power
supplies are upgraded to the 6C210-1 or 6C210-2 models.
Upper Backplane
Lower Backplane

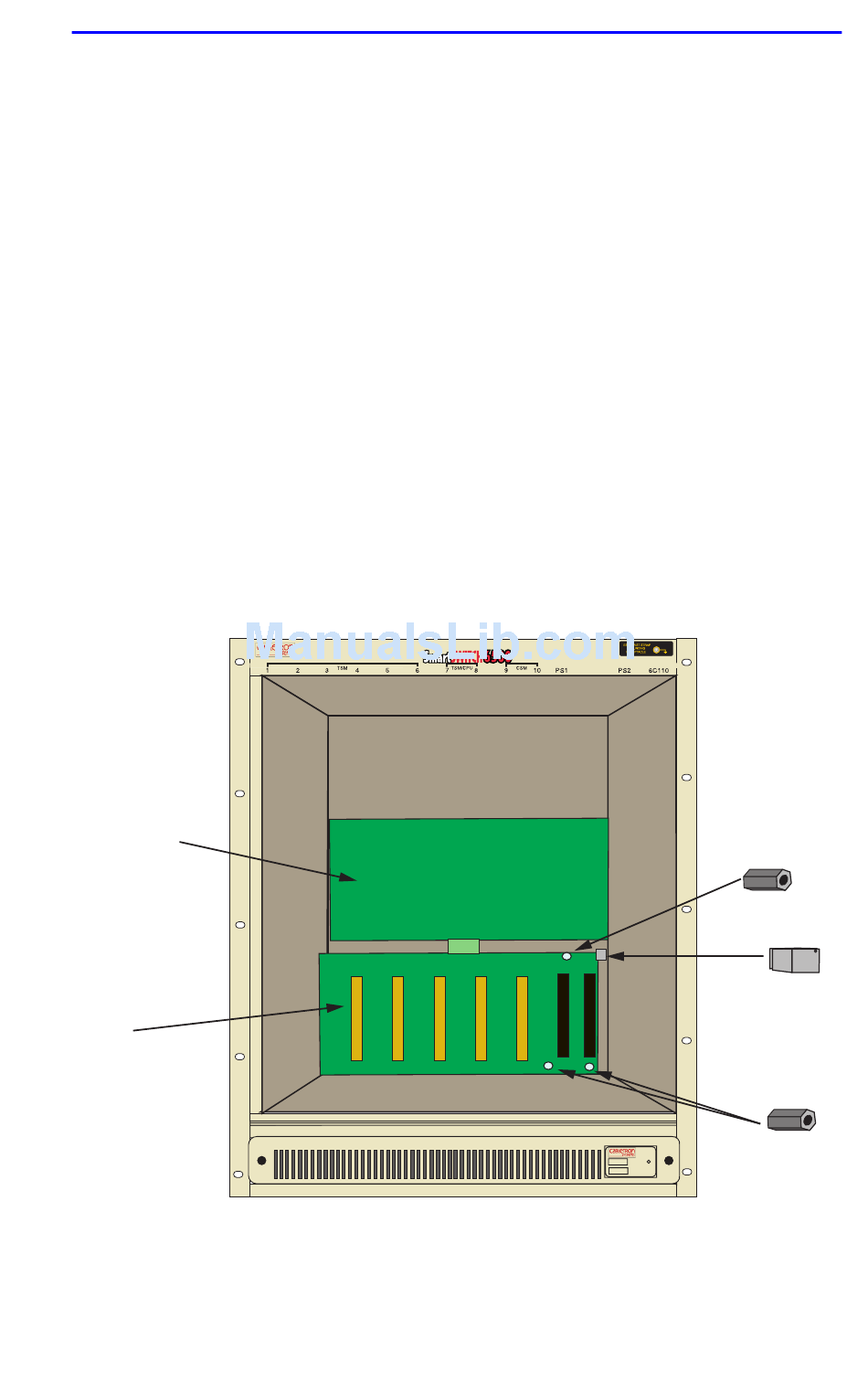

Figure 3-5 Removing the Standoffs and Support Clip
10. Reinstall the three screws removed in
that formerly held the standoffs.
6C110 Overview and Setup Guide
Removing the Power Bridge Adapter
Figure
step 3 into the three receptacles
3-5.
Standoff
Support Clip
Standoffs (2)
6C405
3-7
