Chapter 3: 6C110 Setup
3.6

REMOVING THE POWER BRIDGE ADAPTER

This section applies to users that will equip the 6C110 chassis
!
with 6C205-2 or 6C205-3 power supplies ONLY. If 6C210-1 or
CAUTION
6C210-2 power supplies will be used, DO NOT remove the
power bridge adapter.
This section provides instructions on removing the power bridge adapter
to allow the 6C110 chassis to support the legacy 6C205-2 or 6C205-3
power supplies. If the 6C210-1 or 6C210-2 power supplies will be used,
DO NOT remove the power bridge adapter.
To remove the power bridge adapter, refer to
follows:
Upper Backplane
Lower Backplane

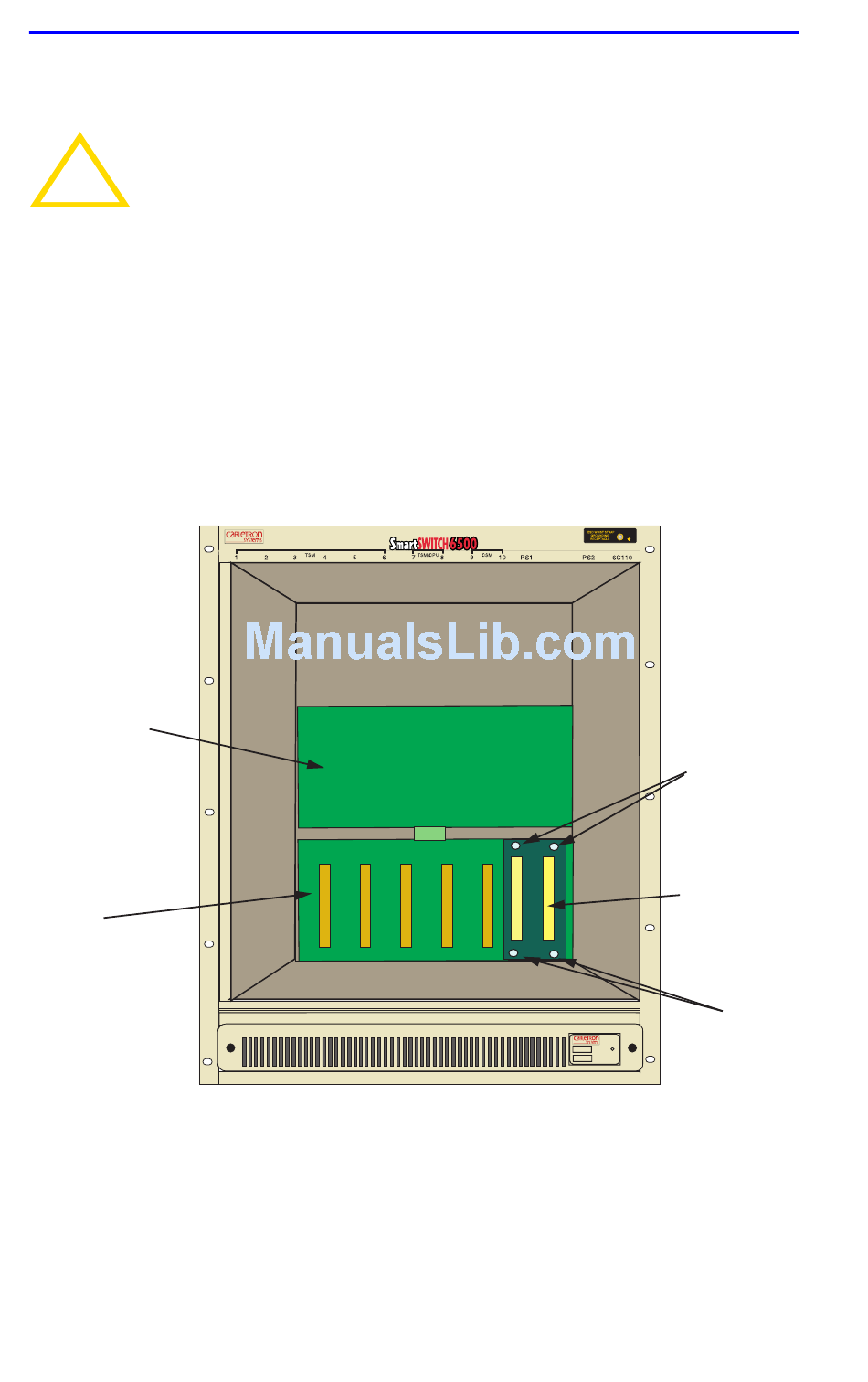

Figure 3-4 Removing the Power Bridge Adapter
1. Attach the ESD wrist strap. Refer to
2. Locate the power bridge adapter that is attached to the right hand side
of the lower backplane as shown in
3-6
Figure 3-4
6C405
Section 3.5 for details.
Figure 3-4.
6C110 Overview and Setup Guide
and proceed as
Screws (2)
Power Bridge
Adapter
Screws (2)
