MULTISPAN TC-49P Operating Manual page 2

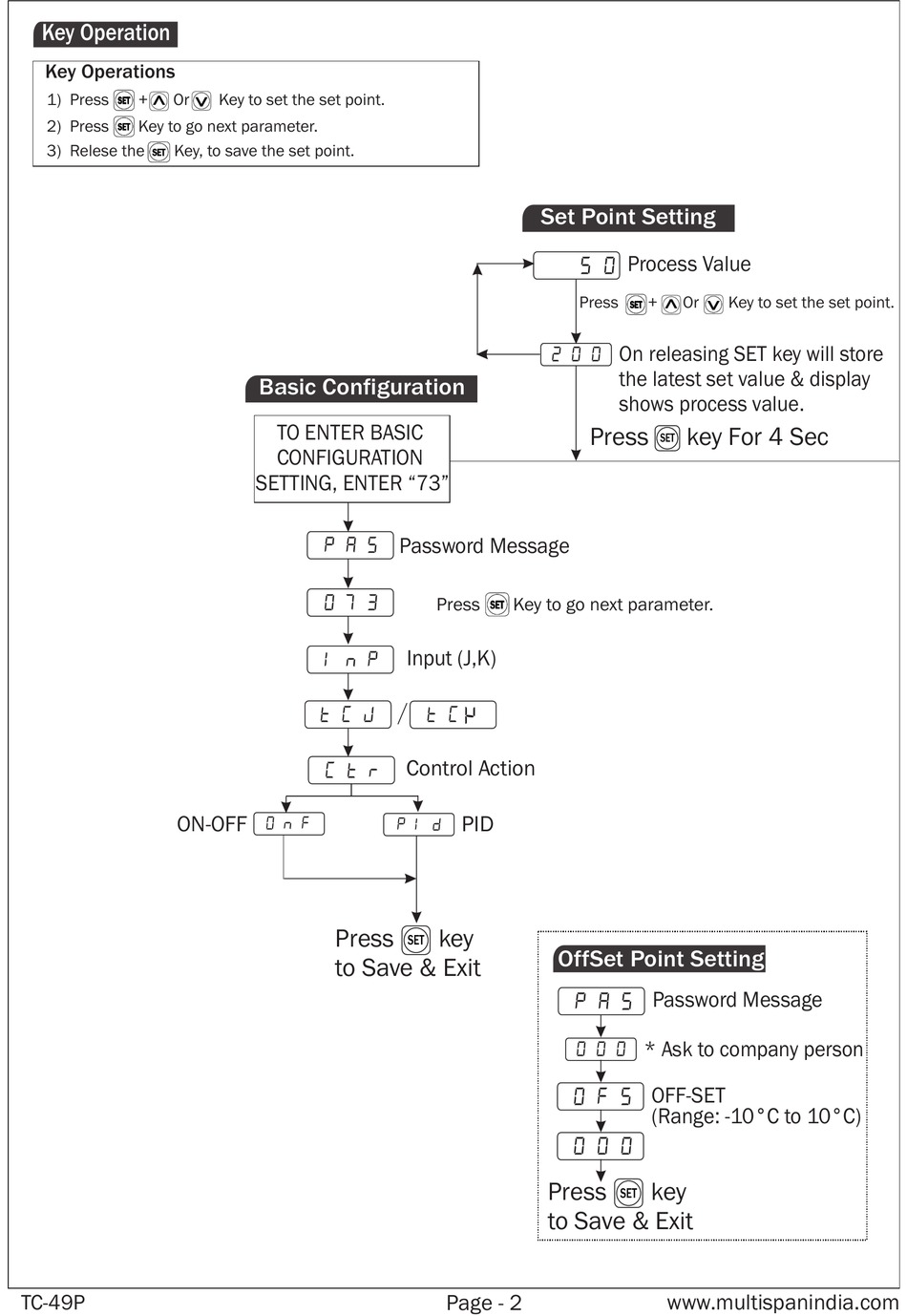

Key Operation
Key Operations
1) Press + Or
SET SET
2) Press Key to go next parameter.
SET SET
3) Relese the Key, to save the set point.
SET
ON-OFF
TC-49P
Key to set the set point.
Basic Configuration
TO ENTER BASIC
CONFIGURATION
SETTING, ENTER "73"






Press
to Save & Exit
Set Point Setting


Password Message
Press Key to go next parameter.
SET SET
Input (J,K)

Control Action
PID

key
SET
OffSet Point Setting



Press
to Save & Exit
Page - 2
Process Value
Press + Or Key to set the set point.
SET SET
On releasing SET key will store
the latest set value & display
shows process value.
Press key For 4 Sec
SET
Password Message
* Ask to company person

OFF-SET
(Range: -10°C to 10°C)
key
SET
