Skoda FABIA 2000 Workshop Manual

Hide thumbs Also See for FABIA 2000:
Table of Contents

Advertisement

Quick Links

Download this manual
Service

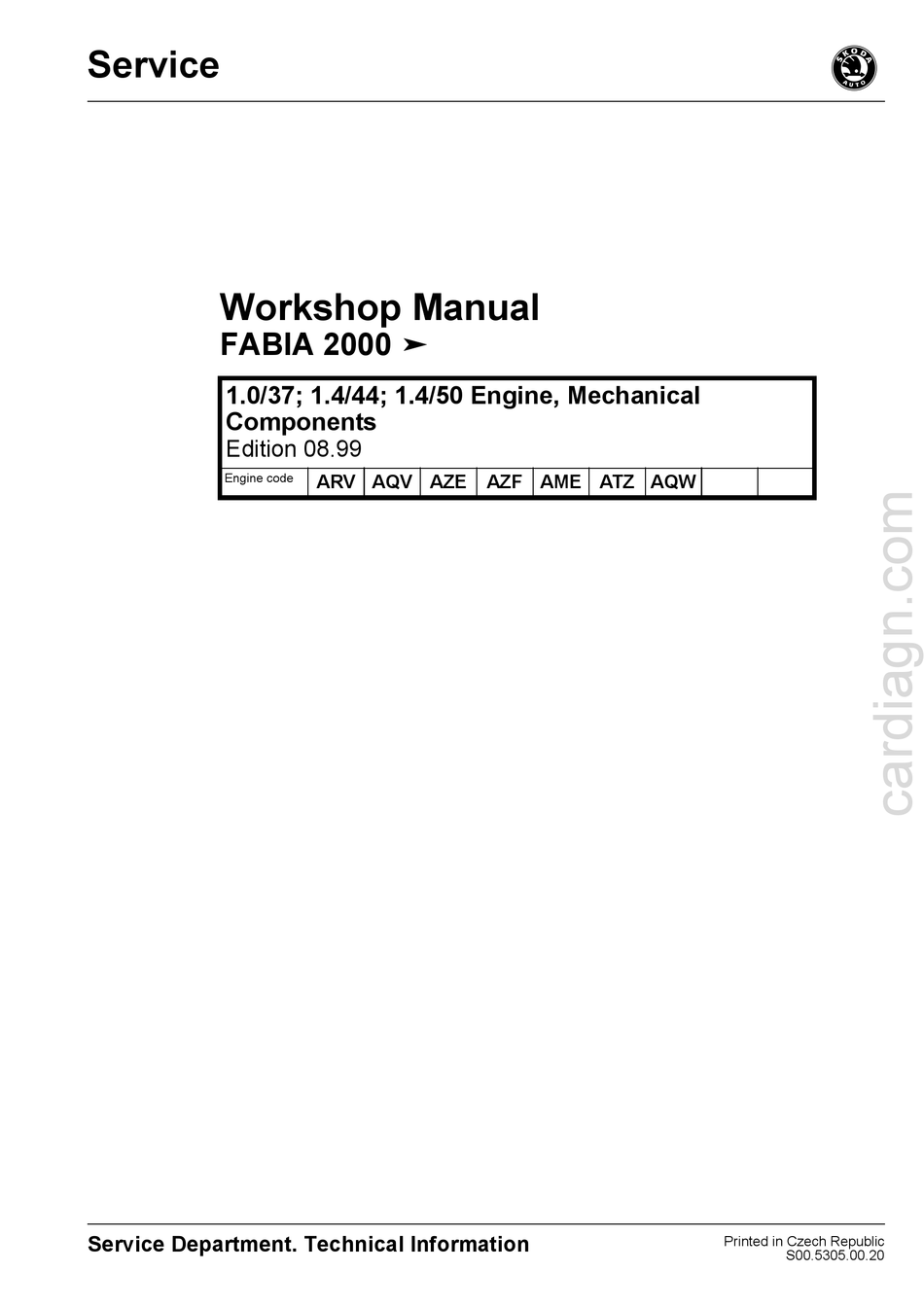

Workshop Manual
FABIA 2000
1.0/37; 1.4/44; 1.4/50 Engine, Mechanical
Components
Edition 08.99
Engine code
Service Department. Technical Information
ARV AQV AZE
AZF AME ATZ AQW
5
Printed in Czech Republic
S00.5305.00.20
