3. Click the Forward button.

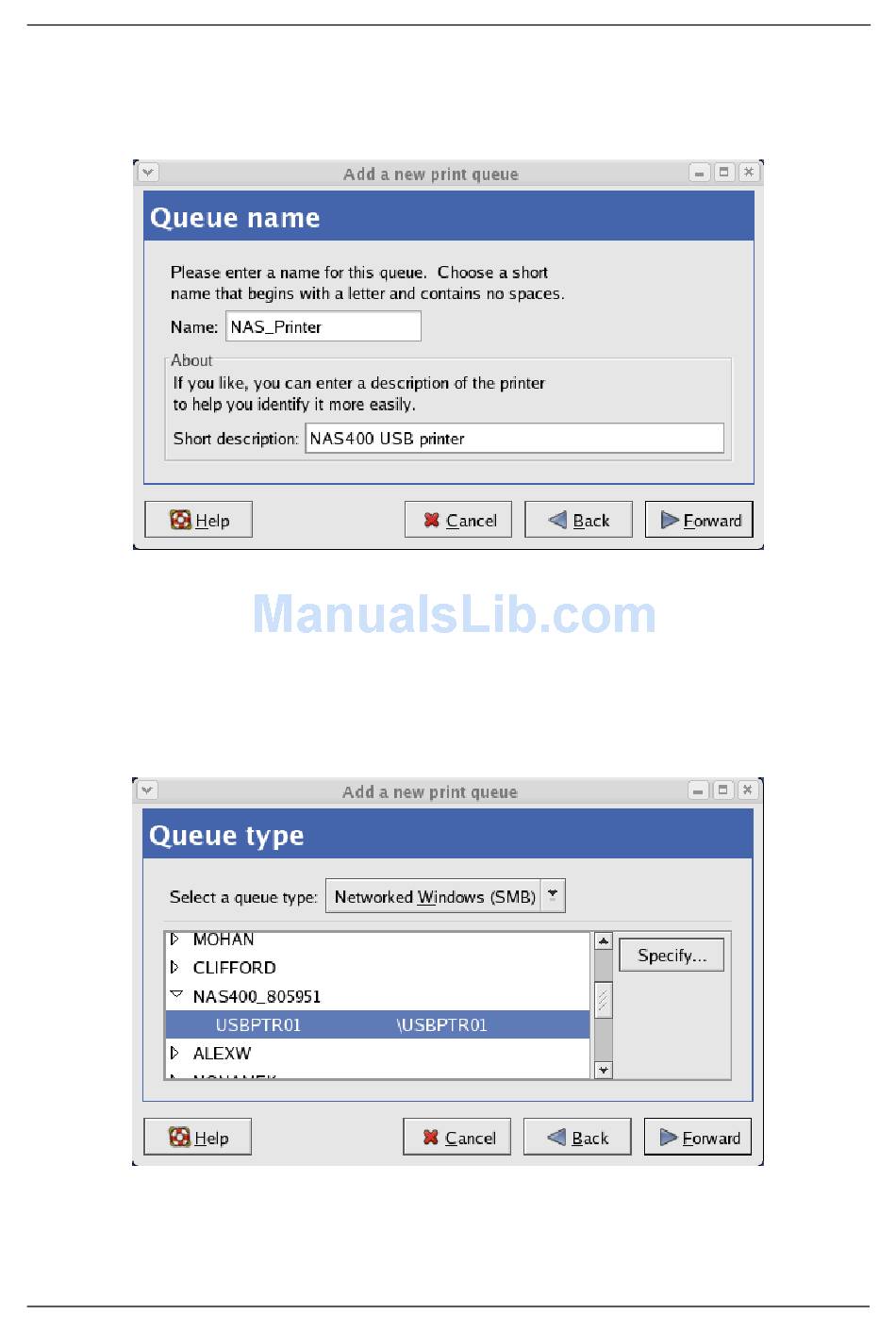

4. In the Name field, type a name for the printer, such as NAS_printer, a
description, and click the Forward button.
5. From the Select a queue type dropdown menu, choose Network Windows
(SMB).
6. Scroll the list and click the triangle icon beside EdgeStore.
Note that the EdgeStore (NAS400) is identified by its server name.
USBPTR01 appears below the EdgeStore and represents the USB printer
connected to the EdgeStore.
7. Highlight USBPTR01 and click the Forward button.
The Authentication dialog box opens.
