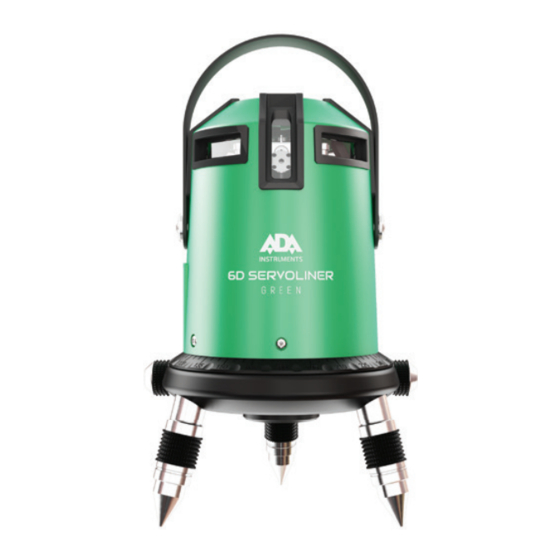

ADA INSTRUMENTS 6D SERVOLINER GREEN Operating Manual
Line laser
Hide thumbs
Also See for 6D SERVOLINER GREEN:
- Operating manual (36 pages) ,
- Operating manual (14 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for ADA INSTRUMENTS 6D SERVOLINER GREEN
Summary of Contents for ADA INSTRUMENTS 6D SERVOLINER GREEN
- Page 1 OPERATING MANUAL 6D SERVOLINER GREEN Line Laser adainstruments.com...
- Page 2 English...
-
Page 3: Specifications
COMPLETE SET WITHOUT GIVING PRIOR WARNING. APPLICATION Line laser ADA 6D SERVOLINER GREEN is designed to check the horizontal and vertical position of the surfaces of the elements of building structures and also to transfer the angle of inclination of the structural part to simi- lar parts during construction and installation works. -
Page 4: Functional Description
English FUNCTIONAL DESCRIPTION 4 vertical lines (V), 4 horizontal lines (H) (360º), plumb down; The line laser is designed for operation indoor and outdoor. Use the detector for outdoor operation with the range up to 70 m; Electronic compensator for the faster self-leveling ±3º; The line laser begins to blink automatically, if the deviation from horizontal plane is more than ±3º;... - Page 5 English It is possible to use charger to operate with the instrument. Use charger for rechargeable batteries. Connect the charger to the hole that is located on the housing of the line laser. Then connect it to the main power. The line laser is in working condition and rechargeable batteries are charging.
- Page 6 English SLOPE FINE ADJUSTMENT MODE / AUTO LEVELING SWITCH OFF 1. Switch the line laser ON. Auto leveling function is activated. Press button (9) to switch on/off the “slant / slope fine adjustment mode”. 2. It is possible to set the inclination of the horizontal plane along the axis X and Y.
-
Page 7: Product Life
English CHECK PLUMB Choose a wall and set laser 5m away from the wall. Mark point A on the wall, please note the distance from point A to ground should be 3m. Hanga plumb line from A point to ground and find a plumb point B on ground. turn on the laser and make the vertical laser line meet the point B, along the vertical laser line on the wall and measure the distance 3m from point B to another point C. -
Page 8: Laser Classification
English ELECTROMAGNETIC ACCEPTABILITY (EMC) • It cannot be completely excluded that this instrument will disturb other • instruments (e.g. navigation systems); • will be disturbed by other instruments (e.g. intensive electromagnet- ic radiation nearby industrial facilities or radio transmitters). LASER CLASS 2 WARNING LABELS ON THE LASER INSTRUMENT LASER CLASSIFICATION The instrument is a laser class 2 laser product accortding to DIN IEC 60825- 1:2014. -
Page 9: Exceptions From Responsibility
English riod, and upon proof of purchase, the product will be repaired or replaced (with the same or similar model at manufactures option), without charge for either parts of labour. In case of a defect please contact the dealer where you originally pur- chased this product. - Page 10 WARRANTY DOESN’T EXTEND TO FOLLOWING CASES: 1. If the standard or serial product number will be changed, erased, re- moved or wil be unreadable. 2. Periodic maintenance, repair or changing parts as a result of their nor- mal runout. All adaptations and modifications with the purpose of improvement and expansion of normal sphere of product application, mentioned in the service instruction, without tentative written agreement of the expert pro- vider.
-
Page 11: Warranty Card
WARRANTY CARD Name and model of the product __________________________________________ Serial number___________________________Date of sale______________________ Name of commercial organization ________________________________________ stamp of commercial organization Warranty period for the instrument explotation is 24 months after the date of original retail purchase. During this warranty period the owner of the product has the right for free repair of his instrument in case of manufacturing defects. - Page 12 ADA International Group Ltd., No.6 Building, Hanjiang West Road #128, Changzhou New District, Jiangsu, China Made In China adainstruments.com...
