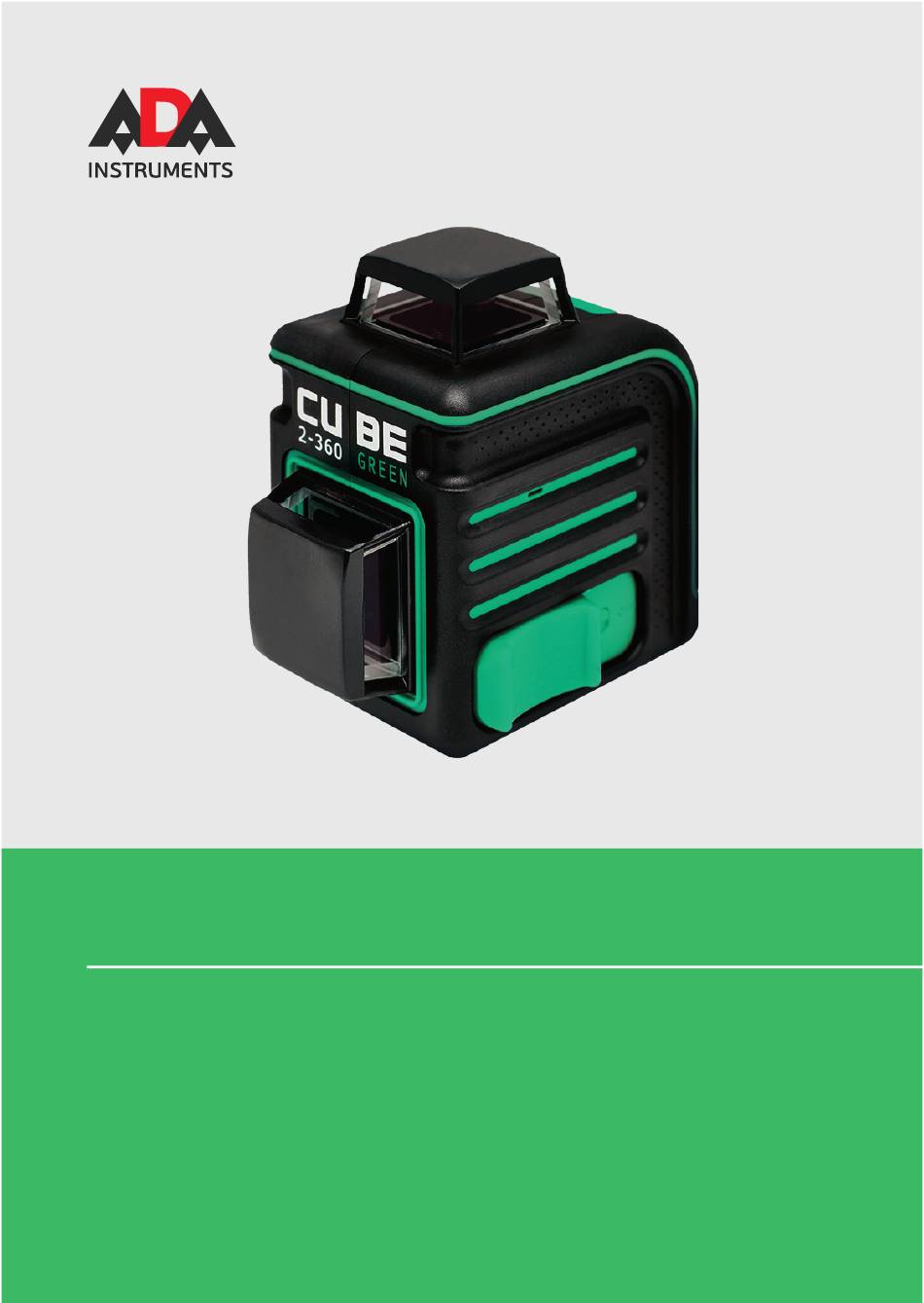

- Page 1 OPERATING MANUAL CUBE 2-360 GREEN Line Laser adainstruments.com...
- Page 2 English...
-
Page 3: Specifications
COMPLETE SET WITHOUT GIVING PRIOR WARNING. APPLICATION Line laser ADA CUBE 2-360 Green is designed to check the horizontal and vertical position of the surfaces of the elements of building structures and also to transfer the angle of inclination of the structural part to similar parts during construction and installation works. -
Page 4: Laser Lines
Keep line laser away from children. Do not use line laser in explosive environment. OPERATION Cube 2-360 Green is a reliable and convenient line laser. It will be irreplace- able instrument for many years. 1. Before use, remove battery compartment cover. Insert three batteries into battery compartment with proper polarity, then put the cover back. -
Page 5: To Check Plumb
English If the switch (5) is OFF, that means that the line laser is off, the compensator is also locked. 3. Press button (1) to switch the vertical beam on. Press button (1)once again to switch the horizontal beam on. Press button (1) to switch the horizontal and vertical beams on. - Page 6 English CARE AND CLEANING Please handle measuring line laser with care. Clean with soft cloth only after any use. If necessary damp cloth with some water. If line laser is wet clean and dry it carefully. Pack it up only if it is perfectly dry. Transport in original container/case only.
-
Page 7: Warranty
English WARRANTY This product is warranted by the manufacturer to the original purchaser to be free from defects in material and workmanship under normal use for a period of two (2) years from the date of purchase. During the warranty pe- riod, and upon proof of purchase, the product will be repaired or replaced (with the same or similar model at manufactures option), without charge for either parts of labour. - Page 8 English WARRANTY DOESN’T EXTEND TO FOLLOWING CASES: 1. If the standard or serial product number will be changed, erased, re- moved or wil be unreadable. 2. Periodic maintenance, repair or changing parts as a result of their nor- mal runout. All adaptations and modifications with the purpose of improvement and expansion of normal sphere of product application, mentioned in the service instruction, without tentative written agreement of the expert pro-...
-
Page 9: Warranty Card
English WARRANTY CARD Name and model of the product __________________________________________ Serial number___________________________Date of sale______________________ Name of commercial organization ________________________________________ stamp of commercial organization Warranty period for the instrument explotation is 24 months after the date of original retail purchase. During this warranty period the owner of the product has the right for free repair of his instrument in case of manufacturing defects. - Page 10 ADA International Group Ltd., No.6 Building, Hanjiang West Road #128, Changzhou New District, Jiangsu, China Made In China adainstruments.com...
