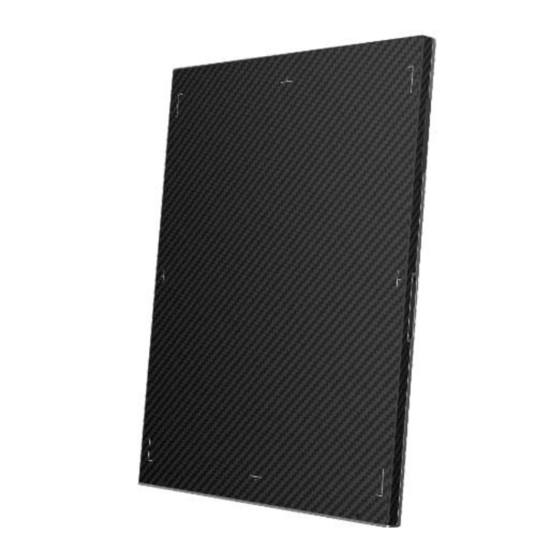

iRay Technology Luna1012X User Manual

Wireless digital flat panel detector
Hide thumbs Also See for Luna1012X:
Table of Contents

Advertisement

Quick Links

Download this manual

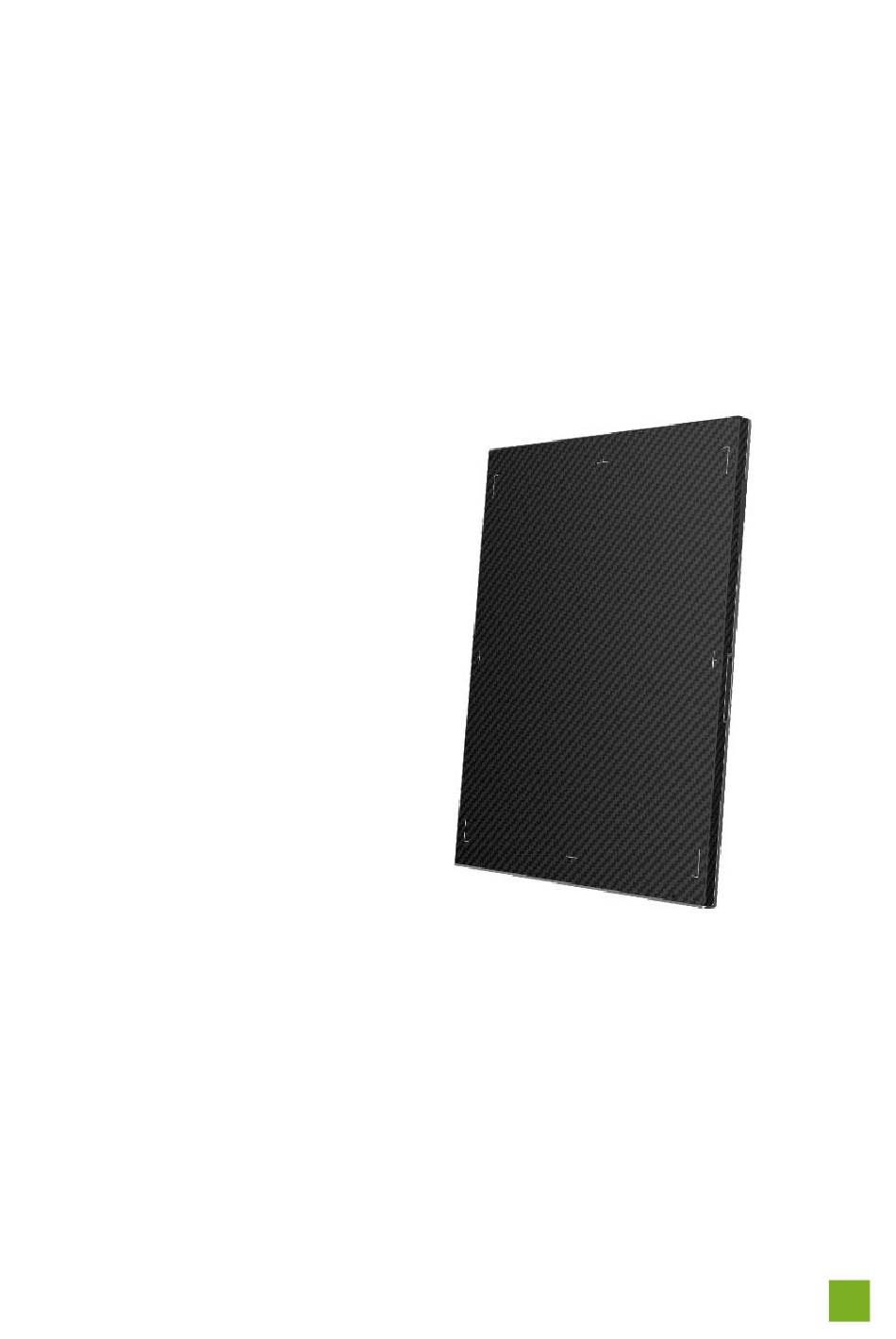

Wireless Digital Flat Panel Detector
Luna1012X
User Manual
Version ：A0
Doc ID ：166-201-02
Release Date:：2021.01.13
Before operating, please read this user manual and pay attention to all safety precautions.
Please ensure that this user manual is properly maintained so that it can be accessed at any time
(reserve).
E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Luna1012X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iRay Technology Luna1012X

Summary of Contents for iRay Technology Luna1012X

  • Page 1 Wireless Digital Flat Panel Detector Luna1012X User Manual Version ：A0 Doc ID ：166-201-02 Release Date:：2021.01.13 Before operating, please read this user manual and pay attention to all safety precautions. Please ensure that this user manual is properly maintained so that it can be accessed at any time...
  • Page 2 Please use it correctly based on full understanding of the content.
  • Page 3 To Customers Congratulations on your purchase of the Flat Panel Detector (hereinafter referred to as Luna1012X) which is manufactured by iRay Technology Company Ltd. (Hereinafter referred to as iRay). Please take time to read through this user guide in order to utilize the product effectively. We hope you enjoy the experience with iRay Luna1012X.
  • Page 4 Information regarding specification, compositions, and appearance of this product is subject to change without prior notice. Copyright User Manual of Luna1012X...
  • Page 5 All rights reserved No part of this publication may be reproduced in any form or by any means without the written permission of iRay. The information contained herein is designed only for use with iRay Luna1012X. Trademarks The iRay name and iRay logo are registered trademarks of iRay Technology Co. Ltd.
  • Page 6 Identify conditions under which improper use of the product may cause property damage. Indicate a prohibited operation. Indicate an action that must be performed Indicate important operations and restrictions. Indicate operations for reference and complementary information. User Manual of Luna1012X...
  • Page 7 To Customers Labels and markings on the equipment The contents of the label and mark on iRay Luna1012X product are indicated as below: Symbol Description Caution: please refer to the instructions in the user manual. Indicates that the equipment has passed CE testing and the CE Notified Body number follows it.
  • Page 8 Keep the equipment up right. Do not roll the transportation package. Stacking limit number. Switch to this position means power on for part of the equipment Switch to this position means power off for part of the equipment User Manual of Luna1012X...

  • Page 9: Table Of Contents

    Correction and Calibration Template Generation ........61 5.6. Local Image Check .................. 65 5.7. Firmware Upgrade ................... 67 REGULATORY INFORMATION ................ 69 TROUBLE SHOOTING ..................71 SERVICE INFORMATION ................. 72 8.1. Service Office Information ............... 72 User Manual of Luna1012X...
  • Page 10 Product Lifetime ..................72 8.3. Regular Inspection and Maintenance ............72 8.4. Repair ...................... 72 8.5. Replacement Parts Support ..............73 APPENDIX A INFORMATION OF MANUFACTURES .............. 74 APPENDIX B INFORMATION OF EUROPE REPRESENTATIVE ..........75 User Manual of Luna1012X...

  • Page 11: General Description

    AC outlet. Doing so may result in fire or electric shock. Do not turn ON the system power when condensation has formed on the equipment. Doing so may result in fire or electric shock. User Manual of Luna1012X...
  • Page 12 Never disassemble or modify the equipment. No Handling modification of this equipment is allowed. Parts of the Luna1012X that are not serviced or maintained while in use with the patient. Doing so may result in fire or electric shock. Also, since the...
  • Page 13 For safety reasons, be sure to turn OFF the power to each piece of equipment when performing inspections indicated in this manual. Otherwise, electric shocks may occur. CAUTION User Manual of Luna1012X...
  • Page 14 Wireless Digital Flat Panel Detector Luna1012X Do not install the equipment in any of the locations listed Installation and environment below. Doing so may result in failure, malfunction, of use equipment falling, fire or injury. Close to facilities where water is used...
  • Page 15 Keep the same load (same pressure) on the detector when acquiring the image. Or the image will be incorrect. CAUTION User Manual of Luna1012X...

  • Page 16: Notes For Use

    Wireless Digital Flat Panel Detector Luna1012X Do not operate close to fire, do not use in high temperatures Do not invert positive and negative poles Do not contact with metal in case of a short circuit Do not insert sharp objects into the battery...
  • Page 17 Wipe it with a cloth slightly damped with a neutral detergent. Do not use solvents such as alcohol, benzene and acid. Doing so may damage the surface of the product. ⚫ It’s recommended to use a waterproof non-woven cover as the isolated layer between product and the blooding patient. User Manual of Luna1012X...

  • Page 18: General Description

    3328×2560 with 100 um pixel pitch. The scintillator of Luna1012X is CsI(Caesium Iodide) which is direct deposit. Since Luna1012X supports multiple trigger modes, it can satisfy both of the general DR system and retrofit DR system.

  • Page 19: Characteristics

    According to the Luna1012X intended use and the result of risk management, identifying and describing the essential performance as the following: To get image of dark field, the Luna1012X shall be not influenced to the imaging acquisition. To keep the data transmission function, the Luna1012X shall be not influenced to the data and signal transmission 2.5.

  • Page 20: The Relative Position Between Newborns And Detector

    Wireless Digital Flat Panel Detector Luna1012X PATIENT population: Age: not relevant Weight: not relevant Health: not relevant Nationality: multiple Gender: except for pregnant women Intended OPERATOR: All of use, maintenance and operation steps should be carried out by the operator who has accepted the professional training offered by the company's customer service staff.

  • Page 21: Environment

    Humidity Variation Pressure Pressure Variation <10kp/min Operating 10~35℃ <1k/min 5%~90% RH 700~1060hPa (1kp=1.0197E-5Pa) Storage <10kp/min <1k/min 5%~95% RH 600~1060hPa -20~60℃ (without (1kp=1.0197E-5Pa) battery) 2.10. Components Dsecription 2.10.1. Detector 2.10.2. Indicator External Signals Input and Control Panel User Manual of Luna1012X...
  • Page 22 Wireless Digital Flat Panel Detector Luna1012X Control Panel Item Description Status indicator Detector status Link indicator Detector link status Power Indicator Detector Power indicator Power button Power button DC Input Interface 24V DC input User Manual of Luna1012X...
  • Page 23 2. General Description 2.10.3. Battery Pack Item Description Battery Label Battery Interface 7-pin battery connector Guide Block Touch Display Show battery level after touching User Manual of Luna1012X...

  • Page 24: Product Specification

    Wireless Digital Flat Panel Detector Luna1012X 2.10.4. Battery Charger Item Name Description Battery Interface A 8 Pin Battery connector Battery Interface B 5 Pin Battery connector Battery Interface C 5 Pin Battery connector Indicator The indicator definition is as follow...
  • Page 25 2. General Description Item Specification Model Luna1012X Image Sensor a-Si (Amorphous Silicon) TFT Scintillator Pixel Size 100um User Manual of Luna1012X...
  • Page 26 Wireless Digital Flat Panel Detector Luna1012X Fill Factor Effective Array 3152*2502 Effective Area (H x V) 315.2 mm*250.6mm Spatial Resolution 5 lp/mm Image Transfer WIFI Cycle Time Power Consumption 19W Max Weight 2kg(with battery) Image Transfer Wireless : IEEE802.11 a/b/g/n/ac Wireless Frequency Range 2.412~2.472GHz, 5.18~5.22GHz;...
  • Page 27 Discharged End Voltage Charging Method CC-CV Charge 0℃-+60℃, Discharge-10℃-+60℃ Operating Temperature 1 month-20℃-+50℃ 3 month -20℃-+45℃ Storage Temperature 6 month -20℃-+35℃ Relative Humidity 5%~95% Dimension (L × W × H) 210 x 105 x 8 mm Weight 0.285kg User Manual of Luna1012X...
  • Page 28 Wireless Digital Flat Panel Detector Luna1012X 2.11.3. Battery Charger Item Specifications Model Charger-Combo Simultaneous Charging 1 battery pack ≤ 3 hours Full charging time Rated power supply 90V~264V(AC) Dimension (L × W × H) 240 x 284 x 38 mm Weight 0.55 kg...
  • Page 29 A indicator on Battery charging abnormal B and C alternately blinking Two or more battery charging at the same time is prohibited, if inserted at the same time, the charger will automatically stop working. User Manual of Luna1012X...

  • Page 30: Basic Operation

    Wireless Digital Flat Panel Detector Luna1012X 3. Basic Operation 3.1. Preparation 3.1.1. Attach Battery Pack he product can be powered by both a battery pack and DC power. Once the battery pack is inserted or DC power is connected, detectors will be turned on immediately. If neither battery nor DC power is connected, panel will power off.

  • Page 31: Routine Operation

    4 seconds to turn on the detector if the battery is inserted and the capacity is not less than 7%, or DC power is connected. After booting up, users can check the indicator of the detector. Power indicator: User Manual of Luna1012X...
  • Page 32 Wireless Digital Flat Panel Detector Luna1012X Status Power Indicator Lighting Status Battery Capacity DC Input Description Detector is off Green ON Detector is on ≥7% & ＜15% Orange Blinking Detector is on ≥15% & ＜95% Green Blinking Detector is on Green&Orange...

  • Page 33: Battery Charger Installation

    3.Basic Operation 3.3. Battery Charger Installation Operation Figure ⚫ Unload Battery from battery charger. ⚫ Insert battery into battery charger. ⚫ Note the interface position as figure. ⚫ Press the battery to the bottom of battery compartment. User Manual of Luna1012X...

  • Page 34: Software Setup

    Wireless Digital Flat Panel Detector Luna1012X 4. Software Setup 4.1. System requirement iDetector is developed and deployed on Windows Operation System, it can be run on Windows XP/Windows 7/Windows 8/Windows 10, OS should install latest service pack. And requires computer memory 4 GB minimum. The firewall should be shut down to avoid commuication issue.
  • Page 35 4.Software Setup On the main window of Home page， Select the instance of “Luna1012X” and use the “Connect” button the build the connection. After finishing building the connection, click “Read Config”button on the “Wifi”tab of “Detector” pag to get the current wifi configuration.
  • Page 36 Wireless Digital Flat Panel Detector Luna1012X Change channels and frequency setting Click ”Channel” and choose a clean frequency and channel Click ”Write Network Config” User Manual of Luna1012X...
  • Page 37 4.3.2. Client Mode Add: add the information of the access point, such as SSID and password. Select: Select the Access Point that needs to be connected to. 4.3.3. Configuration of external wireless card Open local wireless signal list User Manual of Luna1012X...
  • Page 38 Wireless Digital Flat Panel Detector Luna1012X Select SSID which belongs to detectors; Input password and log into system Open wireless card configuration open IPV4 setting IP setting as follows IP address: 192.168.8.188 IP address: Subnet mask: 255.255.255.0 192.168.8.188 User Manual of Luna1012X...

  • Page 39: Software Ui

    Acquire image, select correction mode, save image and process image config.ini setting, log level setting Detector Configurate parameters for detector. Calibrate Generate calibration files and manage the calibration files Local File Open and view local images. User Manual of Luna1012X...
  • Page 40 Wireless Digital Flat Panel Detector Luna1012X 4.4.1. HomePage The main function in this page is to connect detector. Function description Item Name Display the name of detector Display the SN of detector Product Type Display the type of detector State Display the connection state (Bind，Unknown, Ready etc.)
  • Page 41 Status bar is also can be seen in other pages, and they are all the same. Item Description SN number of current connected detectors State Detectors state , eg busy, ready Task the current task of detector Message feedback information of command,eg succeed,failed User Manual of Luna1012X...
  • Page 42 Wireless Digital Flat Panel Detector Luna1012X Functions in this Page. Correction Menu Description Do hardware PostOffset correction for image if checked HWPostOffset Offset Gain HWGain Do hardware Gain correction for image if selected Defect HWDefect Do hardware defect correction for image if checked...
  • Page 43 Lateral-drag the right mouse button to adjust the window width, and vertical-drag the right mouse button to adjust the window level; F3 Key: Quickly locate the image window width and window level. F4 Key: Adjust window width and window level automatically. User Manual of Luna1012X...
  • Page 44 Wireless Digital Flat Panel Detector Luna1012X 4.4.3. SDK Pgae SDK page is used to set parameters in config.ini and log level. Different log level will show different details. It is recommended to set the log level as Debug 4.4.4. Detector Page In this page, there are Parameters, Sensor and Images tab.
  • Page 45 Version number of ARM Kernel Kernel Version Tirgger mode of the detector Trigger Mode Exposure window for AED mode Set Delay Time(ms) which use a fixed window Exposure window for getting image Acquire Delay Time(ms) which use a dynamic window User Manual of Luna1012X...
  • Page 46 Wireless Digital Flat Panel Detector Luna1012X Max exposure window for command Exp Window Time(ms) trigger which use a dynamic window Detector MAC Src MAC Button function description: Function Button Description Reset Detector Reset Detector Read Read parameters Write Write parameters...
  • Page 47 Temperature Read detector humidity Humidity Read the capacity of the battery Battery ⚫ Wifi User can config the wireless connect parameters on this tab. ⚫ Images You can Query and upload Images from detector to Workstation. User Manual of Luna1012X...
  • Page 48 Wireless Digital Flat Panel Detector Luna1012X 4.4.5. Calibrate Page Offset, Gain, Defect calibrate files can be generated and managed in this page. Click “Start Generate Templates” to enter generating templates page. User Manual of Luna1012X...
  • Page 49 Subset settings control. Click this button to upload selected template from detector into specified calibration directory. Upload Lag into SDK current directory Upload Lag Select one item in list. Click this button to activate selected Active template for hardware correction. User Manual of Luna1012X...
  • Page 50 Wireless Digital Flat Panel Detector Luna1012X Force detector update Offset template UpdateHWPreOffset Get the current state of template for hardware correction, ReadStatus enable/disable ⚫ Generate Gain Template File If the relative position between tube and detector changed or KV value changed, it suggest to create gain template file.
  • Page 51 “Cancel” button. If “Download to FPD after generation” is checked, then the download UI will appear after finishing generating. User can refer to the part of “Generate Defect Template File" User Manual of Luna1012X...
  • Page 52 Wireless Digital Flat Panel Detector Luna1012X When the generating process is finished, the UI will give the message of successful. ⚫ Generate Defect Template File The process of generate defect map is quite similar with the one of gain map.
  • Page 53 The correction map also can be managed at anytime on the page of “Mode&Files”. Choose the item of “Default” in the Subset settings part and click “Download to FPD” to finish downloading the maps into the detector. User Manual of Luna1012X...
  • Page 54 Wireless Digital Flat Panel Detector Luna1012X ⚫ Upload the correction files The correction maps can be uploaded to the workstation too. Choose the gain or defect in the “Fpd template files”and the “Default” directory in the “Subset settings”, then click the “Upload to workdir”.
  • Page 55 Active area : 4267*4267 What needs to be notice is only the active area pixels will be displayed when use load file funtion, the value of dummy pixels and empty channels will be filled by 65535. User Manual of Luna1012X...
  • Page 56 Wireless Digital Flat Panel Detector Luna1012X This page provides ROI tool, which can see the AVG, SNR, and other properties of the choosen image area by right mouse button. This page provides WW/WL tool as Acquire page . Click this button to auto adjust WW/WL based on selected area by right button of mouse.

  • Page 57: List Of The Hazardous Situations Resulting From A Failure Of The It- Network

    The operating system is not compatibility; Change or update the software failed; The compatibility of the interface; The data transfer protocol error; The inconsistent of interface or format leads to data distortion; The data output failed; User Manual of Luna1012X...
  • Page 58 6.Regulatory Information User Manual of Luna1012X...

  • Page 59: Operation Instructions For Image Acquisition

    6.Regulatory Information 5. Operation Instructions for Image Acquisition Luna1012X provides SDK for users to integrate detector into their DR system. Additionally, it also provides an application for demonstration, i.e. IDetector. User can use IDetector to control detector without DR system.
  • Page 60 Flat Panel Detector Luna1012X X-Tube Work Station 5.2.2. Work Flow(PrepAcq) Select HWPostOffset、HWGain、HWDefect. If user need the raw image, please de-select all these correction options. Also, the software correction is supported. RAW X-Ray image RAW offset(Or corrected) Cmd_PrepAcq Ack_Prohibit Ack_Enable RAW Preview...

  • Page 61: Aed Mode

    The detector is in low power state, user needs to send Cmd “Prep” to make the detector exit to idle state which indicated by the acknowledge to Cmd “Prep”. When the detector is in idle state, user can start the X-Ray any time. User Manual of Luna1012X...

  • Page 62: After Use

    Flat Panel Detector Luna1012X When the X-Ray starts, the detector will sense the X-Ray automaticlly, the XWIN is configured by parameter “Set Delay Time” on “Detector” page “Parameter” tab, the unit is “ms”, user needs to make sure that the XWIN is larger than the X-Ray time.

  • Page 63: Correction And Calibration Template Generation

    Enter Calibrate interface, click UpdateHWPreOffset button. Waiting until status bar displayed: "Task succeed: HwGeneratePreOffsetTemplate” 5.5.2. Gain Calibration Template Generation If the relative position between tube and detector changed or KV value changed, it suggest to create gain template file. User Manual of Luna1012X...
  • Page 64 Flat Panel Detector Luna1012X Enter Create Gain page Click "Start" button to start process. Click PREP button, acquire image. Please exposure after Acquire button enable. And click Acquire button to acquire image after exposure end. Click Accept button after acquired image. If Current Value textbox is yellow, click PREP button.
  • Page 65 Click Download button to download the template into the detector. Select Mode&Files tab. Click Read Status button to check whether just downloaded gain template is enable. If not, please click Active button to enable. 5.5.3. Defect Correction Template Generation User Manual of Luna1012X...
  • Page 66 Flat Panel Detector Luna1012X Enter Acquire UI. Choose HWPostOffset. Enter Calibrate UI. Select Create Defect tab. Click "Start" button to start process. Click PREP button, acquire image. Please exposure after Acquire button enable. And click Acquire button to acquire image after exposure end.

  • Page 67: Local Image Check

    “OPEN” provides two features for image check and uploading. Local Image Check, Panel Image Upload. Local Image Check defines function to check image saved in Workstation. Panel Image Upload defines function to upload images stored in panel. User Manual of Luna1012X...
  • Page 68 Flat Panel Detector Luna1012X Click “Local File” button in “Local File” UI, choose the specified file In this page user can open the image files saved in local, the file formate can be raw, tiff, dft. When the software is disconnected to detector, the file still can be opened.

  • Page 69: Firmware Upgrade

    On “Detector” Page，“Parameter” Tab，user can upgrade firmware by entrance button “Upgrade Firmware”. The firmware upgrade package may contain firmware of several units: ARM, FPGA, MCU. Luna1012X_IMAGE_44_ALL_20XX_XX_XX.ifrm User Manual of Luna1012X...
  • Page 70 Flat Panel Detector Luna1012X Word “ALL” indicates the file contains the firmware upgrade file for all units. Luna1012X_IMAGE_44_ARM_20XX_XX_XX.ifrm Word “ARM” indicates the file is only for ARM. Luna1012X_IMAGE_44_FPGA_20XX_XX_XX.ifrm Word “FPGA” indicates the file is only for FPGA. Luna1012X_IMAGE_44_MCU_20XX_XX_XX.ifrm Word “MCU” indicates the file is only for MCU.

  • Page 71: Regulatory Information

    The equipment can be used in close proximity to the human body without any restrictions.  Note: the grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user’s authority to operate the equipment User Manual of Luna1012X...
  • Page 72 6.Regulatory Information User Manual of Luna1012X...

  • Page 73: Trouble Shooting

    7.Trouble Shooting 7. Trouble Shooting Please refer to service manual. If the problem persists, turn off the panel and contact iRay service department ( ). We would provide the best service service@iraygroup.com User Manual of Luna1012X...

  • Page 74: Service Information

    Flat Panel Detector Luna1012X 8. Service Information 8.1. Service Office Information 8.2. Product Lifetime The estimated product lifetime is up to 5 years under appropriate regular inspection and maintenance. 8.3. Regular Inspection and Maintenance In order to ensure the safety of patients and operator, to maintain the performance and reliability of the panel, be sure to perform regular inspection at least once a year.

  • Page 75: Replacement Parts Support

    8.Service Information 8.5. Replacement Parts Support Main parts (parts required to maintain the function of the product) of this product will be stocked for 5 years after discontinuance of production for repairing. User Manual of Luna1012X...

  • Page 76: Appendix A Information Of Manufactures

    Flat Panel Detector Luna1012X Appendix A Information of Manufactures COMPANY: iRay Technology Taicang Ltd. ADDRESS: No.33 Xinggang Road, Taicang Port Economic and Technological Development Zone, Jiangsu, China ZIP CODE: 215434 TELEPHONE: +86 0512-53690872 FAX: +86 0512-53690872 HOMEPAGE: WWW.IRAYGROUP.COM User Manual of Luna1012X...

  • Page 77: Appendix B Information Of Europe Representative

    APPENDIX Appendix B Information of Europe Representative COMPANY: iRay Europe GmbH ADDRESS: IN DEN DORFWIESEN 14, 71720 OBERSTENFELD GERMANY ZIP CODE: TELEPHONE: +49-7062-977 88 00 FAX: +49-7062-976 0571 HOMEPAGE: WWW.IRAYEUROPE.COM User Manual of Luna1012X...
