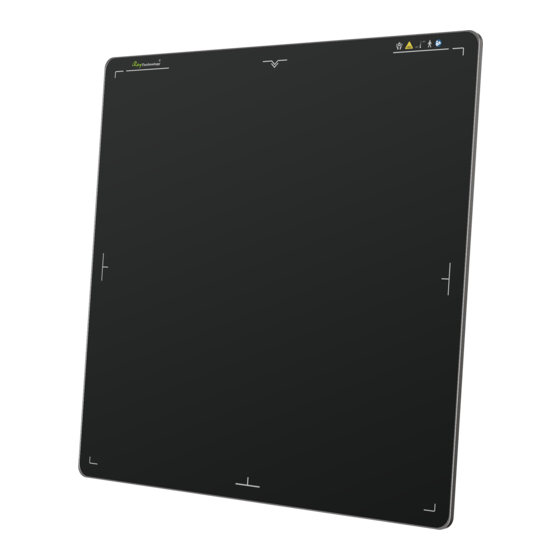

Flat Panel Detector
Mars1717X
User Manual
Version ：A1
Doc ID ：053-201-02
Release Date:：2020.10.16
Before operating, please read this user manual and pay attention to all safety precautions.
Please ensure that this user manual is properly maintained so that it can be accessed at any time
(reserve).
E
Please use it correctly based on full understanding of the content.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mars1717X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iRay Technology Mars1717X

Summary of Contents for iRay Technology Mars1717X

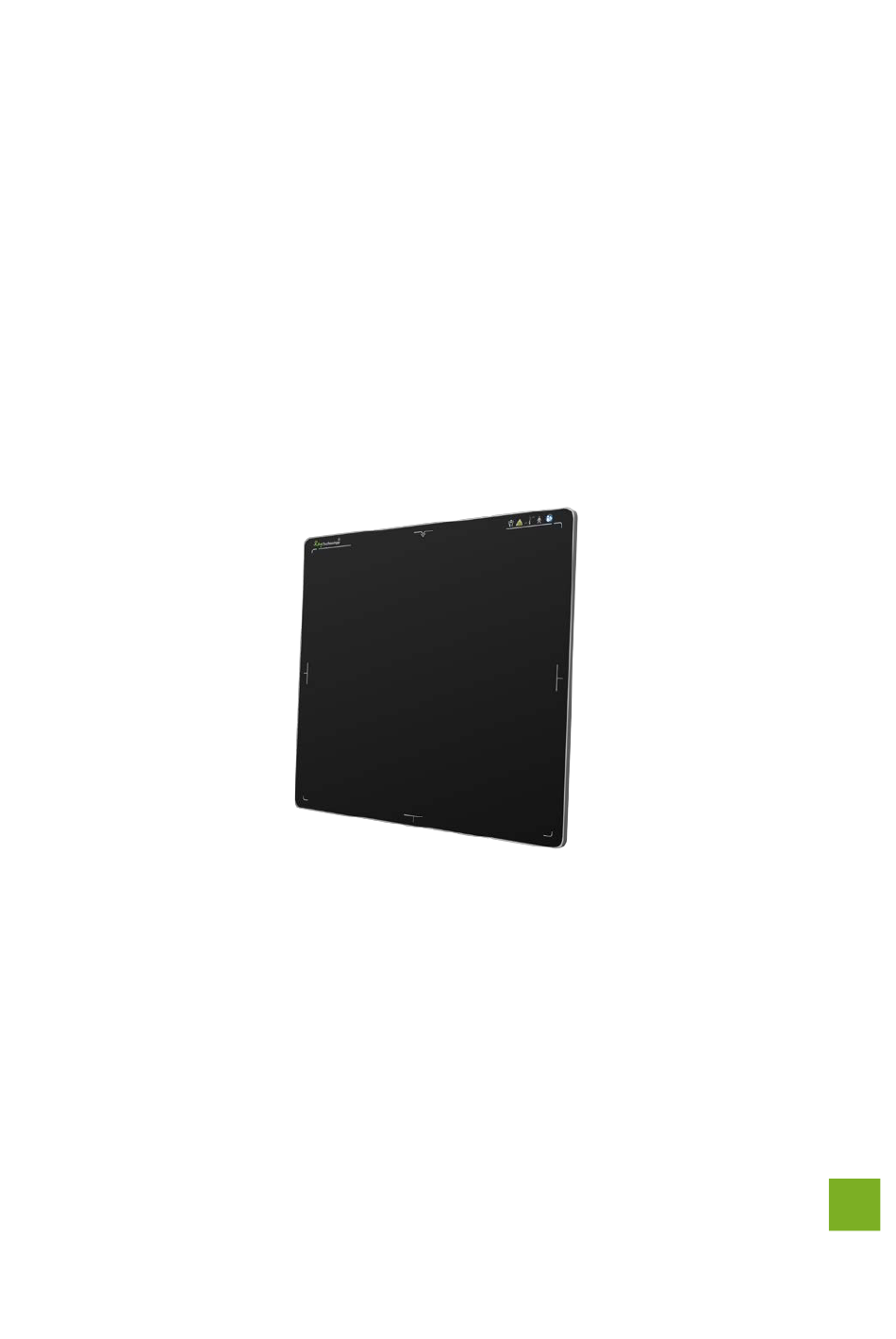

  • Page 1 Flat Panel Detector Mars1717X User Manual Version ：A1 Doc ID ：053-201-02 Release Date:：2020.10.16 Before operating, please read this user manual and pay attention to all safety precautions. Please ensure that this user manual is properly maintained so that it can be accessed at any time (reserve).
  • Page 3 —Consult the dealer or an experienced radio/TV technician for help Congratulations on your purchase of the Flat Panel Detector (hereinafter referred to as Mars1717X) which is manufactured by iRay Technology Company Ltd. (Hereinafter referred to as iRay).
  • Page 4 To Customers Congratulations on your purchase of the Fixed Digital Flat Panel (hereinafter referred to as Mars1717X) which is manufactured by iRay Technology Co.Ltd. (Hereinafter referred to as iRay). At iRay, we strive to not only make the world-class products that deliver the best value possible to our customers but also offer the highest quality of service and customer care.
  • Page 5 Information regarding specification, compositions, and appearance of this product is subject to change without prior notice. User Manual of Mars1717X...
  • Page 6 All rights reserved No part of this publication may be reproduced in any form or by any means without the written permission of iRay. The information contained herein is designed only for use with iRay Mars1717X. Trademarks The iRay name and iRay logo are registered trademarks of iRay Technology Co. Ltd.
  • Page 7 Identify conditions under which improper use of the product may cause property damage. Indicate a prohibited operation. Indicate an action that must be performed Indicate important operations and restrictions. Indicate operations for reference and complementary information. User Manual of Mars1717X...
  • Page 8 Flat Panel Detector Mars1717X Labels and markings on the equipment Symbol Description Caution: please refer to the instructions in the user manual. Indicates that the equipment has passed CE testing and the CE Notified Body number follows it. Serial number of the product.
  • Page 9 Fragile Keep away from sunlight Keep dry Humidity limits. Keep the equipment up right. Do not roll the transportation package. Stacking limit number. IP56 for the detector Detector symbol : device is for prescription use only User Manual of Mars1717X...
  • Page 10 Flat Panel Detector Mars1717X Switch to this position means power on for part of the equipment Switch to this position means power off for part of the equipment User Manual of Mars1717X...

  • Page 11: Table Of Contents

    Correction and Calibration Template Generation ........68 5.6. Local Image Check .................. 73 5.7. Firmware Upgrade ................... 74 REGULATORY INFORMATION ................ 78 6.1. Medical Equipment Safety Standards ............. 78 6.2. Guidance and Manufacture’s Declaration for EMC ......... 79 User Manual of Mars1717X...
  • Page 12 Flat Panel Detector Mars1717X 6.3. Radio Frequency Compliance Information ..........81 6.4. Battery Safety Standards ................ 84 6.5. Product Label ..................85 TROUBLE SHOOTING ..................89 SERVICE INFORMATION ................. 91 8.1. Service Office Information ............... 91 8.2. Product Lifetime ..................91 8.3.
  • Page 13 Contents GENERAL DESCRIPTION ................12 1.1. Safety Precautions ..................12 1.2. Notes for Use ..................... 18 User Manual of Mars1717X...

  • Page 14: General Description

    Flat Panel Detector Mars1717X 1. General Description 1.1. Safety Precautions Follow these safeguards and properly use the equipment to prevent injury and damage to any equipment/data WARNING Installation and environment Do not use or store the equipment near flammable chemicals such as alcohol, thinner, benzene, etc.
  • Page 15 Never disassemble or modify the equipment. No modification of this equipment is allowed. Parts of the Mars1717X that are not serviced or maintained while in use with the patient. Doing so may result in fire or electric shock. Also, since the...
  • Page 16 Flat Panel Detector Mars1717X Have the patient take a fixed posture and do not let the patient touch parts unnecessarily. If the patient touches connectors or switches, it may result in electric shock or malfunction of the equipment. When a problem occurs...
  • Page 17 Also, be sure to connect all the grounds for the system to a common ground. Do not use any power source other than the one provided with this equipment. Otherwise, fire or electric shock may be caused due to leakage. User Manual of Mars1717X...
  • Page 18 Flat Panel Detector Mars1717X Handling Do not spill liquid or chemicals onto the equipment. In case the patient is injured, it is not allowed to contact with blood or other body fluids. Doing so may result in fire or electric shock.
  • Page 19 Do not mix the battery with ones not provided by Manufacturer Do not charge the battery with a broken charger. Charge the battery regularly to avoid over-discharge failure. Do not use the battery when it is severe ballooning. User Manual of Mars1717X...

  • Page 20: Notes For Use

    Flat Panel Detector Mars1717X 1.2. Notes for Use When using the product, take the following precautions. Otherwise, problems may occur and the product may not function correctly. Before exposure Be sure to check the connection of all the parts are set properly & check the detector is kept ...
  • Page 21 Wipe it with a cloth slightly damped with a neutral detergent. Do not use solvents such as  alcohol, benzene and acid. Doing so may damage the surface of the product. It’s recommended to use a waterproof non-woven cover as the isolated layer between  product and the blooding patient. User Manual of Mars1717X...
  • Page 22 Flat Panel Detector Mars1717X GENERAL DESCRIPTION ................. 21 2.1. Scope ......................21 2.2. Principle ..................... 21 2.3. Model ......................21 2.4. Characteristics ................... 22 2.5. Intended Use ....................22 2.6. ESSENTIAL PERFORMANCE ..............22 2.7. Application Specification ................23 2.8. The relative position between patient and detector ........26 2.9.

  • Page 23: General Description

    4267×4267 with 100μm pixel pitch. The scintillator of Mars1717X is CsI(Caesium Iodide) which is direct deposit. Since Mars1717X supports multiple trigger modes, it can satisfy both of the general DR system and retrofit DR system.

  • Page 24: Characteristics

    To get image of dark field, the Mars17X shall be not influenced to the imaging acquisition. To keep the data transmission function, the Mars1717X shall be not influenced to the data and signal transmission 2.6.

  • Page 25: Application Specification

    (the cancer risk per unit dose of ionizing radiation is higher for younger patients); use of equipment and exposure settings designed for adults of average size can result in excessive and unnecessary radiation exposure of smaller patients; younger patients have a longer expected lifetime putting them at higher risk of iRay Technology Co.
  • Page 26 Flat Panel Detector Mars1717X cancer from the effects of radiation exposure. To help reduce the risk of excessive radiation exposure, you should follow the ALARA (As Low As Reasonably Achievable) principle and seek to reduce radiation dose to only the amount necessary to obtain images that are adequate clinically.
  • Page 27 Adult Extemities List Grid Ankle – Lateral Femur – AP Femur – Lateral Hand - AP Hand – Lateral Humerus - AP Humerus – Lateral Knee - AP Knee – Lateral Wrist - PA Wrist – Lateral iRay Technology Co.

  • Page 28: The Relative Position Between Patient And Detector

    Flat Panel Detector Mars1717X Intended OPERATOR: All of use, maintenance and operation steps should be carried out by the operator who has accepted the professional training offered by the company’s customer service staff. 2.8. The relative position between patient and detector...

  • Page 29: Environment

    Atmospheric Atmospheric Temperature Humidity Variation Pressure Pressure Variation <10kp/min Operating <1k/min 5%~90% RH 700~1060hPa 10~35℃ (1kp=1.0197E-5Pa) Transport &Storage <10kp/min <1k/min 5%~95% RH 600~1060hPa -20~55℃ (without (1kp=1.0197E-5Pa) battery) 2.11. Components Dsecription 2.11.1. Detector 2.11.2. Button and Indicator User Manual of Mars1717X...
  • Page 30 Flat Panel Detector Mars1717X Item Description DC Input Interface 24V DC input Multi-Function Multi-Function Button Status Indicator Detector Status indicator Mode Indicator Detector WIFI mode indicator Link Indicator Detector Link indicator Power Indicator Detector Power indicator Power Button Power button 2.11.3.

  • Page 31: Product Specification

    2. General Description 2.12. Product Specification 2.12.1. Detector Item Specification Model Mars1717X Image Sensor a-Si (Amorphous Silicon) TFT Scintillator Pixel Size 100um Fill Factor User Manual of Mars1717X...
  • Page 32 Flat Panel Detector Mars1717X Effective Array 4267x4267 Effective Area (H x V) 426.7mm×426.7mm Spatial Resolution Min 4.3 lp/mm Image Transfer WIFI Full Image Time <5s Cycle Time Power Consumption Max 20W @No battery charging Dimension (L × W × H) 460mmx460mmx15mm @typ.
  • Page 33 Discharged End Voltage Charging Method CC-CV Operating Temperature Charge 0℃-+60℃, Discharge-10℃-+60℃ 1 month-20℃-+50℃ Storage Temperature 3 month -20℃-+45℃ 6 month -20℃-+35℃ Relative Humidity 5%~95% Dimension (L × W × H) 210 x 105 x 8 mm Weight 0.285kg User Manual of Mars1717X...
  • Page 34 Flat Panel Detector Mars1717X Item Description Battery Label Battery Interface 7-pin battery connector Guide Block Touch Display Show battery level after touching 2.12.3. Battery Charger Item Specifications Model Charger-Combo Simultaneous Charging 1 battery pack Full charging time ≤3 hours Rated power supply 90V~264V(AC) Dimension (L ×...
  • Page 35 A indicator on Battery charging abnormal B and C alternately blinking Two or more battery charging at the same time is prohibited, if inserted at the same time, the charger will automatically stop working. User Manual of Mars1717X...
  • Page 36 Flat Panel Detector Mars1717X BASIC OPERATION ..................35 3.1. Preparation ....................35 3.2. Routine Operation ..................36 3.3. Battery Charger Installation ................ 38 User Manual of Mars1717X...

  • Page 37: Basic Operation

    (Make sure battery capacity overpass is 15%). Slide the battery lock lever. 3.1.2. Adapter Detector supports an external adapter powered, It gets CB certificate No. SG PSB-MD-00005 and NRTL certificate No. U8V 093768 0016.The ports defined as bellow: User Manual of Mars1717X...

  • Page 38: Routine Operation

    Flat Panel Detector Mars1717X Definition Voltage Range Rated Current DC Power Negative 0~0.5V 0~0.42A DC Power Positive 23~25V 0~0.42A DC Power Positive 23~25V 0~0.42A DC Power Negative 0~0.5V 0~0.42A In order to meet the safety and function requirements of the detector, standard components are recommended.
  • Page 39 Client WIFI connection is not built Green ON Wired connection is enabled (Service Mode) Mode indicator: Mode Indicator Lighting Status Description Client connection is built AP mode is enabled Detector is off Client connection is not built User Manual of Mars1717X...

  • Page 40: Battery Charger Installation

    Flat Panel Detector Mars1717X Status indicator： Mode Indicator Lighting Status Description Detector is off Green ON Exposure is allowed Orange ON Error 3.3. Battery Charger Installation Operation Figure Unload Battery from battery charger. Insert battery into battery charger. Note the interface position as figure.
  • Page 41 System requirement ................40 4.2. Environment setup................... 40 4.3. Wired Connection (for setting&maintenance) ......... 40 4.4. Software UI ....................45 4.5. List of the HAZARDOUS SITUATIONS resulting from a failure of the IT- NETWORK ......................63 User Manual of Mars1717X...

  • Page 42: Software Setup

    Flat Panel Detector Mars1717X 4. Software Setup 4.1. System requirement iDetector is developed and deployed on Windows Operation System, it can be run on Windows XP/Windows 7/Windows 8/Windows 10, OS should install latest service pack. And requires computer memory 4 GB minimum. The firewall should be shut down to avoid commuication issue.
  • Page 43 “Wifi”tab of “Detector” pag to get the current wifi configuration. Click “Read Network Config” to get default setting. Change SSID and password setting. make sure SSID is different from other already exist; Change channels and frequency setting User Manual of Mars1717X...
  • Page 44 Flat Panel Detector Mars1717X Click ”Channel” and choose a clean frequency and channel Click ”Write Network Config” Waiting FPD status be “Ready” User Manual of Mars1717X...
  • Page 45 Add: add the information of the access point, such as SSID and password. Select: Select the Access Point that needs to be connected to. 4.3.3. Configuration of external wireless card Open local wireless signal list Select SSID which belongs to detectors; Input password and log into system User Manual of Mars1717X...
  • Page 46 Flat Panel Detector Mars1717X Open wireless card configuration open IPV4 setting IP setting as follows IP address: 192.168.8.188 IP address: Subnet mask: 255.255.255.0 192.168.8.188 Subnet mask: 255.255.255.0 User Manual of Mars1717X...

  • Page 47: Software Ui

    Detector Configurate parameters for detector. Calibrate Generate calibration files and manage the calibration files Local File Open and view local images. 4.4.1. HomePage The main function in this page is to connect detector. User Manual of Mars1717X...
  • Page 48 Flat Panel Detector Mars1717X Item Function description Name Display the name of detector Display the SN of detector Product Type Display the type of detector State Display the connection state (Bind，Unknown, Ready etc.) Button Function description Connect Click this button to connect the selected detector.
  • Page 49 Status bar is also can be seen in other pages, and they are all the same. Item Description SN number of current connected detectors State Detectors state , eg busy, ready Task the current task of detector Message feedback information of command,eg succeed,failed Functions in this Page. User Manual of Mars1717X...
  • Page 50 Flat Panel Detector Mars1717X Correction Menu Description Do hardware PostOffset correction for image if checked HWPostOffset Offset Gain HWGain Do hardware Gain correction for image if selected Defect HWDefect Do hardware defect correction for image if checked Acqurie Button Description Prep Clear.
  • Page 51 Lateral-drag the right mouse button to adjust the window width, and vertical-drag the right mouse button to adjust the window level; F3 Key: Quickly locate the image window width and window level. F4 Key: Adjust window width and window level automatically. User Manual of Mars1717X...
  • Page 52 Flat Panel Detector Mars1717X 4.4.3. SDK Pgae SDK page is used to set parameters in config.ini and log level. Different log level will show different details. It is recommended to set the log level as Debug 4.4.4. Detector Page In this page, there are Parameters, Sensor and Images tab.
  • Page 53 Exposure window for getting image Acquire Delay Time(ms) which use a dynamic window Max exposure window for command Exp Window Time(ms) trigger which use a dynamic window Src MAC Detector MAC User Manual of Mars1717X...
  • Page 54 Flat Panel Detector Mars1717X Button function description: Function Button Description Reset Detector Reset Detector Read Read parameters Write Write parameters Write RAM Write parameters into RAM(will lost changes after reset) Upgrade Firmware Upgrade firmware Upload detector log to the specified directory Sensor ...
  • Page 55 4.Software Setup Wifi  User can config the wireless connect parameters on this tab. Images  You can Query and upload Images from detector to Workstation. User Manual of Mars1717X...
  • Page 56 Flat Panel Detector Mars1717X 4.4.5. Calibrate Page Offset, Gain, Defect calibrate files can be generated and managed in this page. Click “Start Generate Templates” to enter generating templates page. User Manual of Mars1717X...
  • Page 57 Subset settings control. Click this button to upload selected template from detector into specified calibration directory. Upload Lag Upload Lag into SDK current directory Active Select one item in list. Click this button to activate selected template for hardware correction. User Manual of Mars1717X...
  • Page 58 Flat Panel Detector Mars1717X UpdateHWPreOffset Force detector update Offset template ReadStatus Get the current state of template for hardware correction, enable/disable Generate Gain Template File  If the relative position between tube and detector changed or KV value changed, it suggest to create gain template file.
  • Page 59 “Cancel” button. If “Download to FPD after generation” is checked, then the download UI will appear after finishing generating. User can refer to the part of “Generate Defect Template File" User Manual of Mars1717X...
  • Page 60 Flat Panel Detector Mars1717X When the generating process is finished, the UI will give the message of successful. Generate Defect Template File  The process of generate defect map is quite similar with the one of gain map. On the “Create Defect” page, user can start the generating process by “Start” button.
  • Page 61 The correction map also can be managed at anytime on the page of “Mode&Files”. Choose the item of “Default” in the Subset settings part and click “Download to FPD” to finish downloading the maps into the detector. User Manual of Mars1717X...
  • Page 62 Flat Panel Detector Mars1717X Upload the correction files  The correction maps can be uploaded to the workstation too. Choose the gain or defect in the “Fpd template files”and the “Default” directory in the “Subset settings”, then click the “Upload to workdir”.
  • Page 63 Active area : 4267*4267 What needs to be notice is only the active area pixels will be displayed when use load file funtion, the value of dummy pixels and empty channels will be filled by 65535. User Manual of Mars1717X...
  • Page 64 Flat Panel Detector Mars1717X This page provides ROI tool, which can see the AVG, SNR, and other properties of the choosen image area by right mouse button. This page provides WW/WL tool as Acquire page . Click this button to auto adjust WW/WL based on selected area by right button of mouse.

  • Page 65: List Of The Hazardous Situations Resulting From A Failure Of The It- Network

    The operating system is not compatibility; Change or update the software failed; The compatibility of the interface; The data transfer protocol error; The inconsistent of interface or format leads to data distortion; The data output failed; User Manual of Mars1717X...
  • Page 66 Flat Panel Detector Mars1717X OPERATION INSTRUCTIONS FOR IMAGE ACQUISITION ......65 5.1. Steps for acquiring image ................ 65 5.2. Software Mode ..................65 5.3. AED Mode ....................67 5.4. After use ....................68 5.5. Correction and Calibration Template Generation ........68 5.6.

  • Page 67: Operation Instructions For Image Acquisition

    5.Operation Instructions For Image Acquisition 5. Operation Instructions for Image Acquisition Mars1717X provides SDK for users to integrate detector into their DR system. Additionally, it also provides an application for demonstration, i.e. IDetector. User can use IDetector to control detector without DR system.
  • Page 68 Flat Panel Detector Mars1717X 5.2.2. Work Flow(PrepAcq) Select HWPostOffset、HWGain、HWDefect. If user need the raw image, please de-select all these correction options. Also, the software correction is supported. RAW X-Ray image RAW offset(Or corrected) Cmd_PrepAcq Ack_Prohibit Ack_Enable RAW Preview (If HW-offset is disabled)

  • Page 69: Aed Mode

    The preview image will be always sent, which is 4x4 averaging, the raw X-Ray image will be sent if the HW correction is disabled with the raw offset image follows, otherwise, the X-Ray image will not be sent and only the corrected image will be transferred. User Manual of Mars1717X...

  • Page 70: After Use

    Flat Panel Detector Mars1717X 5.3.2. Freesync Mode RAW X-Ray image RAW Offset(Or corrected) RAW Preview X-Ray Info image （If HW-offset is disabled） XWIN1 X-Ray XWIN1 Offset IDLE (fixed) imaging (fixed) imaging For Freesync mode, there is no low power state.
  • Page 71 HwGeneratePreOffsetTemplate” 5.5.2. Gain Calibration Template Generation If the relative position between tube and detector changed or KV value changed, it suggest to create gain template file. Enter Create Gain page Click "Start" button to start process. User Manual of Mars1717X...
  • Page 72 Flat Panel Detector Mars1717X Click PREP button, acquire image. Please exposure after Acquire button enable. And click Acquire button to acquire image after exposure end. Click Accept button after acquired image. If Current Value textbox is yellow, click PREP button. Re-acquire images after adjust generator parameters.
  • Page 73 HWPostOffset. Enter Calibrate UI. Select Create Defect tab. Click "Start" button to start process. Click PREP button, acquire image. Please exposure after Acquire button enable. And click Acquire button to acquire image after exposure end. Click User Manual of Mars1717X...
  • Page 74 Flat Panel Detector Mars1717X Accept button after acquired image. If Current Value textbox is yellow , click PREP button. Re- acquire images after adjust generator parameters. Note: In different trigger mode, the operation maybe have little difference. Please follow the UI tips.

  • Page 75: Local Image Check

    For the raw file or dft file there will be a dialog to select image size. Select correct size to open image files. If the file is not correct user will get an error message. Mars1717X image size: 4267*4267 User Manual of Mars1717X...

  • Page 76: Firmware Upgrade

    Flat Panel Detector Mars1717X This page provides ROI tool, which can see the AVG, SNR, and other properties of the choosen image area by right mouse button. This page provides WW/WL tool as Acquire page . Click this button to auto adjust WW/WL based on selected area by right button of mouse.
  • Page 77 Word “MCU” indicates the file is only for MCU. User can choose one of these files as required to start the upgrade. Choose the file that needs to be upgraded, and must check the package info to confirm if it is correct. User Manual of Mars1717X...
  • Page 78 Flat Panel Detector Mars1717X Note: 1. There is a progress bar for indication. Make sure battery is inserted and battery capacity is over 2. Please make sure that iDetector shows “Ready”. It can also be checked by click “Config” button, there is firmware version.
  • Page 79 REGULATORY INFORMATION ................ 78 6.1. Medical Equipment Safety Standards ............. 78 6.2. Guidance and Manufacture’s Declaration for EMC ......... 79 6.3. Radio Frequency Compliance Information ..........81 6.4. Battery Safety Standards ................ 84 6.5. Product Label ..................85 User Manual of Mars1717X...

  • Page 80: Regulatory Information

    ANSI/AAMI ES60601- Medical electrical equipment - Part 1: General 1:2005/(R)2012+A1:2012+C1:2009/(R)2012+A2:20 requirements for basic safety and essential 10/(R)2012 performance (IEC 60601-1:2005, MOD) Medical electrical equipment – Part 1: General CAN/CSA-C22.2No.60601-1:14 requirements for basic safety and essential performance User Manual of Mars1717X...

  • Page 81: Guidance And Manufacture's Declaration For Emc

    Near fields from RF wireless communications equipment  Test frequency Band Immunity test levels (MHz) (MHz) Professional healthcare facility environment 380-390 Pulse modulation 18Hz, 27V/m 430-470 FM, ±5kHz deviation, 1kHz sine, 28V/m 704-787 Pulse modulation 217Hz, 9V/m User Manual of Mars1717X...
  • Page 82 Flat Panel Detector Mars1717X 800-960 Pulse modulation 18Hz, 28V/m 1720 1700-1990 Pulse modulation 217Hz, 28V/m 1845 1970 2450 2400-2570 Pulse modulation 217Hz, 28V/m 5240 5100-5800 Pulse modulation 217Hz, 9V/m 5500 5785 Input a.c. power port  Immunity test levels Phenomenon...

  • Page 83: Radio Frequency Compliance Information

    The use of accessories, transmitters and cables other than those specified by this User Manual, with the exception of accessories and cables sold by iRay of Mars1717X as replacement parts for inner components, may result in increased emission or decreased immunity.
  • Page 84 Flat Panel Detector Mars1717X ETSTEN 301 489-17 V3.2.4 EN 55032:2015+A11:2020 EN 55035:2017+A11:2020 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 50566:2017 EN 62209-2:2010+A1:2019 IEC 62479:2010 6.3.1. FCC Compliance Contains module’s FCC ID：2ACHK-01070189 The panel has been tested to comply with limits for a Class B digital device, pursuant to ...
  • Page 85 0 mm between this device and your body. RF exposure compliance with any body-worn accessory, which contains metal, was not tested and certified, and using such body-worn accessory should be avoided. User Manual of Mars1717X...

  • Page 86: Battery Safety Standards

    Flat Panel Detector Mars1717X 6.4. Battery Safety Standards Standards Description IEC 62133:2017 Secondary cells and batteries containing alkaline or other non- acid electrolytes UN38.3 United Nations Recommendations on the Transport of dangerous goods Manual of tests and Criteria ST/SG/AC.10/11/Rev.5/Amend.1&Amend.2 User Manual of Mars1717X...

  • Page 87: Product Label

    6.Regulatory Information 6.5. Product Label Mars1717X Detector Label User Manual of Mars1717X...
  • Page 88 Flat Panel Detector Mars1717X Battery Charger Label User Manual of Mars1717X...
  • Page 89 6.Regulatory Information Battery Label User Manual of Mars1717X...
  • Page 90 Flat Panel Detector Mars1717X TROUBLE SHOOTING ..................89 User Manual of Mars1717X...

  • Page 91: Trouble Shooting

    7.Trouble Shooting 7. Trouble Shooting Please refer to service manual. If the problem persists, turn off the panel and contact iRay service department ( ). We would provide the best service service@iraygroup.com User Manual of Mars1717X...
  • Page 92 Flat Panel Detector Mars1717X SERVICE INFORMATION ................. 91 8.1. Service Office Information ............... 91 8.2. Product Lifetime ..................91 8.3. Regular Inspection and Maintenance ............91 8.4. Repair ...................... 91 8.5. Replacement Parts Support ..............91 User Manual of Mars1717X...

  • Page 93: Service Information

    If problem cannot be solved, contact your sales representative or local iRay dealer for repairs. Please refer to the label and provide the following information: Product Name: Series Number: Description of Problem: as clearly as possible. 8.5. Replacement Parts Support User Manual of Mars1717X...
  • Page 94 Flat Panel Detector Mars1717X Main parts (parts required to maintain the function of the product) of this product will be stocked for 5 years after discontinuance of production for repairing. User Manual of Mars1717X...
  • Page 95 APPENDIX APPENDIX A INFORMATION OF MANUFACTURES .............. 94 APPENDIX B INFORMATION OF EUROPE REPRESENTATIVE ..........95 User Manual of Mars1717X...

  • Page 96: Appendix A Information Of Manufactures

    Flat Panel Detector Mars1717X Appendix A Information of Manufactures COMPANY: iRay Technology Co., Ltd. ADDRESS: RM202, Building 7, No. 590, Ruiqing RD. , Zhangjiang East, Podong, Shanghai, China ZIP CODE: 201201 TELEPHONE: +86 021-50780560 FAX: +86 021-50780560 WWW.IRAYGROUP.COM HOMEPAGE: User Manual of Mars1717X...

  • Page 97: Appendix B Information Of Europe Representative

    APPENDIX Appendix B Information of Europe Representative COMPANY: iRay Europe GmbH ADDRESS: IN DEN DORFWIESEN 14, 71720 OBERSTENFELD GERMANY ZIP CODE: TELEPHONE: +49-7062-977 88 00 FAX: +49-7062-976 0571 HOMEPAGE: WWW.IRAYEUROPE.COM User Manual of Mars1717X...
