iRay Technology Mars1717XU-VSI User Manual

Wireless digital flat panel detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

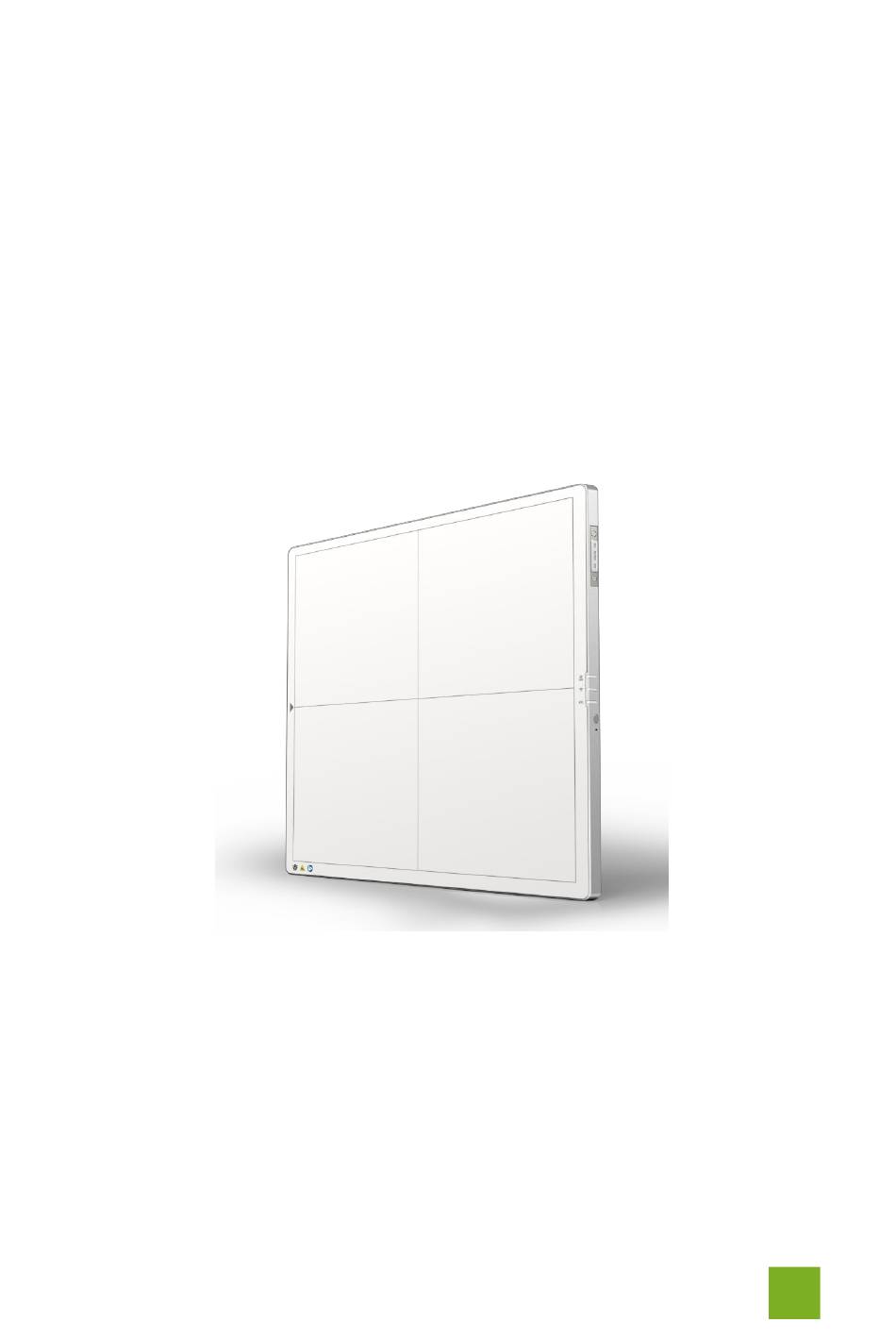

Wireless Digital Flat Panel Detector
Mars1717XU-VSI
User Manual
Before operating, please read this user manual and pay attention to all safety precautions.
Please ensure that this user's manual is properly maintained so that it can be accessed at any time
( reserve ).
Please use it correctly on the basis of full understanding of the content.
E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mars1717XU-VSI and is the answer not in the manual?

Questions and answers

Related Manuals for iRay Technology Mars1717XU-VSI

Summary of Contents for iRay Technology Mars1717XU-VSI

  • Page 1 Wireless Digital Flat Panel Detector Mars1717XU-VSI User Manual Before operating, please read this user manual and pay attention to all safety precautions. Please ensure that this user's manual is properly maintained so that it can be accessed at any time ( reserve ).
  • Page 3 To Customers Congratulations on your purchase of the Mars1717XU-VSI Wireless Digital Flat Panel detector (hereinafter referred to as Mars1717XU) which is manufactured by iRay Technology Co.Ltd. (Hereinafter referred to as iRay). Please take time to read through this user guide in order to utilize the product effectively.
  • Page 4 No part of this publication may be reproduced in any form or by any means without the written permission of iRay. The information contained herein is designed only for use with iRay Mars1717XU. Trademarks The iRay name and iRay logo are registered trademarks of iRay Technology Co.Ltd. iRay Technology Co. Ltd.
  • Page 5 This is used to indicate a prohibited operation. This is used to indicate an action that must be performed. This is used to indicate important operations and restrictions. This is used to indicate operations for reference and complementary information. iRay Technology Co. Ltd.
  • Page 6 This symbol is used to indicate detector is allowed to withstand 100 kg on the surface. Caution: please refer to the instructions in the user manual. This symbol is used to indicate the operational temperature limits. This symbol is used to indicate non-ionizing radiation. iRay Technology Co. Ltd..
  • Page 7 Package symbol, keep away from sunlight. Package symbol, keep dry. Package symbol on the the detector packing-case: storage temperature limits Package symbol, this symbol is used to indicate the humidity limits. Package symbol, keep the equipment up right. iRay Technology Co. Ltd.
  • Page 8 Mars1717XU Wireless Digital Flat Panel Detector User Manual Package symbol, do not roll the transportation package. Package symbol, this symbol is used to indicate stacking limit number. iRay Technology Co. Ltd..

  • Page 9: Table Of Contents

    5.6 Lithium-ion Capacitor Reference Standards ........47 5.7 Product Label ..................48 5.8 Radio Frequency Compliance Information ........48 5.9 INFORMATION TO USER..............49 6. SOFTWARE OPERATION INFORMATION ..............51 6.1 Default Settings ................52 iRay Technology Co. Ltd.
  • Page 10 8. SERVICE INFORMATION .................... 56 8.1 Product lifetime ................57 8.2 Regular inspection and Maintenance ..........57 8.3 Repair ....................58 8.4 Replacement parts support .............. 58 APPENDIX ........................59 Appendix A Information of Manufactures ..........60 iRay Technology Co. Ltd..

  • Page 11: Safety Information

    1. Safety Information Safety Information 1.1 Safety precautions ................10 1.2 Notes for Using ................14 iRay Technology Co. Ltd.

  • Page 12: Safety Precautions

    Otherwise, you may get an electric shock that could result in death or serious injury.  Be sure to hold the plug or connector to disconnect the cord. If you pull the cord, the core wire may be damaged, resulting in fire or electric shock. iRay Technology Co. Ltd.
  • Page 13  For safety reasons, be sure to turn OFF the power to each piece of equipment when performing inspections indicated in this manual. Otherwise, electric shocks may occur. iRay Technology Co. Ltd.
  • Page 14 Doing so may result in fire or electric shock. In such a situation, protect the equipment with a disposable cover as necessary.  Turn OFF the power and pull out the plug to each piece of equipment for safety when not used. iRay Technology Co. Ltd.
  • Page 15 Otherwise, the detector may flip over, resulting in injury to the user or patient as well as damage of the inner device. Keep the same load (same pressure) on the detector when acquiring the image. Or the image will be incorrect. CAUTION iRay Technology Co. Ltd.

  • Page 16: Notes For Using

    1.2 Notes for Using When using the equipment, take the following precautions. Otherwise, problems may occur and the equipment may not function correctly. Before exposure  Be sure to check the equipment daily and confirm that it works properly. iRay Technology Co. Ltd.
  • Page 17 Doing so may damage the surface of the equipment.  It's recommended to use a waterproof non-woven cover as the isolated layer between detector and the blooding patient. iRay Technology Co. Ltd.

  • Page 18: General Description

    2.6.1.1 Basic ................... 20 2.6.1.2 MTF ..................21 2.6.1.3 DQE ..................21 2.6.2 Power supply ................. 21 2.6.3 AP Router (Optional) ............. 22 2.6.4 Wireless Communication ............22 2.6.5 Recommended Appliance Condition ........23 2.6.6 Use Environment ..............23 iRay Technology Co. Ltd.

  • Page 19: Scope

    VSI- CsI scintillator screen Product Application：XU, cassette size detector Product dimension：1717，17inch×17inch Product serials：wireless digital flat panel detector serials  Wireless static Flat Panel Detector used for general radiography.  17 × 17 inch  Built-in non-detachable Lithium-ion capacitor iRay Technology Co. Ltd.

  • Page 20: Intended Use

    The Flat Panel Detector (FPD) of Mars1717XU is one of the flat panel detector series based on amorphous silicon technology, which are used in DR system to provide clinical X-ray images. The host computer of Mars1717XU-VSI flat panel detector employs Caesium Iodide (CsI) scintillation screen, and provides WIFI data port and DC power supply.

  • Page 21: Components Description

    Detector indicator of detector Button Power button / Reset Switch hole Front surface film In line with biological compatibility Middle frame Supporting and fixation Back surface film In line with biological compatibility Detector Label Product information. iRay Technology Co. Ltd.

  • Page 22: Product Specification

    Charging Time Max. 50minutes Discharging Time Cycle time=30s, 30min, 60images Cycle time=90s, 45min, 30images Exposure Preparation Time Sleeping Awakening Time Sleeping Endurance Time Dimension (L × W × H) 460 x 460 x 15.4 mm Weight 3.9kg iRay Technology Co. Ltd.

  • Page 23: Mtf

    MTF(CsI) 0.65 0.43 0.17 2.6.1.3 DQE Spatial Frequency (lp/mm)@RQA5 DQE (CsI)@2.5uGy 0.65 0.45 0.30 0.20 2.6.2 POWER SUPPLY Mars1717XU supports both DC and built-in Lithium-ion capacitor power supply.. Item Specifications DC Power 12V(DC),2.5A Lithium-ion Capacitor 7.6V(DC),0.93A iRay Technology Co. Ltd.

  • Page 24: Ap Router (Optional)

    5G: 5.15~5.25 GHz and 5.725~5.85 GHz @CH36-CH165 HT20 Section @CH38-CH163 HT40 Section 802.11b: CCK, DQPSK, DBPSK 802.11a/g: Modulation 64 QAM, 16 QAM, QPSK, BPSK 802.11n: 64 QAM, 16 QAM, QPSK, BPSK Antenna 2 Dual Band internal antenna iRay Technology Co. Ltd.

  • Page 25: Recommended Appliance Condition

    5~35℃ -30~55℃ Temperature Temperature change <1k/min <1k/min Humidity 30%~80% RH 10%~90% RH Atmospheric Pressure 700~1060hPa 700~1060hPa <10kp/min <10kp/min Pressure Change (1kp=1.0197E-5Pa) (1kp=1.0197E-5Pa) The Mars1717XU serial detectors shall operate at an altitude specified NO more than 3000m. iRay Technology Co. Ltd.

  • Page 26: Installation

    3.3.1 AP Mode ................. 27 3.3.1.1 External Wireless LAN Setting ..........27 3.3.1.2 AP Mode Detector Configuration ........29 3.3.2 Client Mode ................32 3.3.2.1 Configuration of External wireless router ......32 3.3.2.2 Client mode configuration of detector ......... 36 iRay Technology Co. Ltd.

  • Page 27: Detector Installation

    On the other hand, it can also be used as internal control IC reset button when button is active for 8s. After booting up the detector, user can check the status LED indicator of detector. iRay Technology Co. Ltd.
  • Page 28 AP mode, Wireless AP is ready Green ON Wired Connection is ready Green Blinking Or RST key(AP/Client switch) active Status indicator E shows as following: Status indicator Lighting Status Description Shut down/Idle Green ON Data Transmission/RST Key(Recovery) active Orange ON ERROR iRay Technology Co. Ltd.

  • Page 29: Software Installation

    SSID is XU-SN, password is 12345678, and IP address is 192.168.8.8. The detector will directly connect to wireless LAN when power on. A user should accomplish wireless client configuration of AP mode as following steps: 3.3.1.1 EXTERNAL WIRELESS LAN SETTING iRay Technology Co. Ltd.
  • Page 30 Mars1717XU Wireless Digital Flat Panel Detector User Manual Open the wireless signal list Select SSID belong to the detector input password Open wireless network status iRay Technology Co. Ltd.

  • Page 31: Ap Mode Detector Configuration

    IPV4 setting IP setting IP address: 192.168.8.188 Network mask setting Subnet mask: 255.255.255.0 Open SDK, select corresponding product start connection by clicking “connect” 3.3.1.2 AP MODE DETECTOR CONFIGURATION Connect the detector and Indetector default mode iRay Technology Co. Ltd.
  • Page 32 Click “Detector” button of IDetector software Click “wifi” button Select “AP mode” “Read Config” 1. Click button to read the default setting; 2. Change SSID password setting make sure SSID not to conflict with other existing devices’ SSID; iRay Technology Co. Ltd.
  • Page 33 3. Installation and Operation Change the channel and frequency settings. Click “Chanel” to select a clean wireless frequency and channel. Click “write Config” iRay Technology Co. Ltd.

  • Page 34: Client Mode

    When different detectors are used, it is strictly forbidden to use the same SSID name for connection. 3.3.2.1 CONFIGURATION OF EXTERNAL WIRELESS ROUTER Connect one end of Gigabit Ethernet Cable Connect another end to LAN port External wireless router Open network management interface iRay Technology Co. Ltd.
  • Page 35 3. Installation and Operation Open Local network configuration Open IPV4 setting IPSetting Select “Obtain an IP address automatically” Network mask setting iRay Technology Co. Ltd.
  • Page 36 Configure 2.4GHz wireless network Password: 12345678 Channel: [Please check the current Wi-Fi environment, and choose a relatively clean channel] SSID: NETGEAR_BIG_50 (For example, set up a wifi named Mars5G) Configure 5GHz wireless network Security: WPA2-PSK Password: 12345678 iRay Technology Co. Ltd.
  • Page 37 Subnet Mask: 255.255.255.0 External Wireless AP Reboot Apply above settings and reboot your wireless router. Recover Local Network IPv4 setting of PC wired Ethernet interface IP setting IP address: 192.168.100.188 Network mask setting Subnet mask: 255.255.255.0 iRay Technology Co. Ltd.

  • Page 38: Client Mode Configuration Of Detector

    Click “wifi” button and “Read Config” button; Select “Client mode”; Change the default wireless router： SSID: IRAY-China Key: 1234-qwer to current wireless router (for example: set up a wifi named Mars5G) SSID: NETGEAR_BIG_50 Password: 12345678 Click “write Config ” iRay Technology Co. Ltd.
  • Page 39 3. Installation and Operation Reconnect IDetector and the flat panel detector Enter acquisition interface to set up connection iRay Technology Co. Ltd.

  • Page 40: Operation

    4. Operation 4. Operation 4.1 Main Operation .................. 39 4.2 Block diagram..................39 4.3 Work Flow ..................40 4.4 Description of workflow ..............40 iRay Technology Co. Ltd.

  • Page 41: Main Operation

    Workstation is a host PC device installed with IDetector or SDK. In RREP_ACQ2 Mode, the workstation communicates with GCU through SDK (double panel mode) or the flat panel detector to control X-ray imaging time of X-ray generator. iRay Technology Co. Ltd.

  • Page 42: Work Flow

    Workstation PC receives “Awaken hand switch I prep ” request, sends command “Awaken” to the detector; the detector starts internal clear after receiving “Awaken” command sent from the workstation; Meanwhile the workstation informs GCU (I/O Box) to control high voltage generator to start anode rotation; iRay Technology Co. Ltd.
  • Page 43 10. The detector completes image acquisition and begins to send data to the workstation; 11. Workstation receives all image data from the detector (including preview image and full image). Typical Cycle Analysis Hand Switch Rotating Anode Filament iRay Technology Co. Ltd.

  • Page 44: Regulatory Information

    5.6 Lithium-ion Capacitor Reference Standards ........47 5.7 Product Label ..................48 5.7.1 Detector Host Label ............... 48 5.7.2 Host Housing Label ..............48 5.8 Radio Frequency Compliance Information ........48 5.8.1 SRRC Compliance ..............48 iRay Technology Co. Ltd.

  • Page 45: Registrant Information

    Address: Room 202, Building 9, No.590, Ruiqing Rd, East area of Zhangjiang Hi-tech industrial district, Pudong, Shanghai, PRC, 201201 Contact: +86-21-50720560 After-sales Service Office: iRay Technology Co., Ltd . Address of After-sales Service Office: Building 45, No.1000, Jinhai Rd, Pudong New Area, Shanghai, PRC, 201206 Contact of After-sales Service Office: +86-21-50720560 5.2 Manufacturer Information...

  • Page 46: References Harmonized Standards Under Directive 93/42/Eec

    Secondary cells and batteries containing alkaline or other non-acid electrolytes – IEC 62133:2012 Safety requirements for portable sealed secondary cells, and for batteries made from them, for use in portable applications EN 62220-1:2004 Medical electrical equipment - Characteristics of iRay Technology Co. Ltd.

  • Page 47: The Compliance For Each Emissions And Immunity Standard Or

    Radiated RF EM field IEC 61000-4-3 80MHz-2.7GHz 80% AM at 1kHz Proximity fields from Refer to table “Proximity fields from RF wireless IEC 61000-4-3 RF wireless communications communications equipment” equipment Rated power IEC 61000-4-8 30A/m frequency magnetic iRay Technology Co. Ltd.
  • Page 48 IEC 61000-4-4 transients/burst 100kHz repetition frequency 3V, 0.15MHz-80MHz Conducted disturbances 6V in ISM bands between 0.15MHz and IEC 61000-4-6 induced by RF 80MHz fields 80%AM at 1kHz  Cables information below is provided for EMC reference. iRay Technology Co. Ltd.

  • Page 49: Lithium-Ion Capacitor Reference Standards

    QC-T 741-2014 Ultra-capacitor for Electric Vehicles UN38.3 United Nations Recommendations on the Transport of dangerous goods Manual of tests and Criteria ST/SG/AC.10/11/Rev.5/Amend.1&Amend.2 GB31241-2014 Lithium ion cells and batteries used in portable electronic equipments - Safety requirements iRay Technology Co. Ltd.

  • Page 50: Product Label

    This equipment has been tested and found to comply with CMIIT ID:2017AP3876 of SRRC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.  Operation is subject to the following tow conditions. iRay Technology Co. Ltd.

  • Page 51: Information To User

    THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. iRay Technology Co. Ltd.
  • Page 52 FROM THAT TO WHICH THE RECEIVER IS CONNECTED.  CONSULT THE DEALER OR AN EXPERIENCED RADIO/TV TECHNICIAN FOR HELP.  This device has been tested and meets the FCC RF exposure guidelines. The maximum SAR value reported is 0.28 w/kg. iRay Technology Co. Ltd.

  • Page 53: Software Operation Information

    6. Software Opeartion Information 6. Software Operation Information 6.1 Default Settings ................52 iRay Technology Co. Ltd.

  • Page 54: Default Settings

    Mars1717XU Wireless Digital Flat Panel Detector User Manual Please refer to Chapter 3 of this manual “IDetector use method” and description of iRayDR user manual for operation of the software. 6.1 Default Settings Default setting parameters of part of detector software are as following: [Battery] Battery_Level_1_H=100 Battery_Level_1_L=60...
  • Page 55 Master Build Time=17-03-02:1 Slave Build Time=00-00-00:0 MCU Build Time=00-00-00:0 CBX Build Time=00-00-00:0 Src IP=192.168.100.8 Src MAC=000FEAEF6FBE Dest Port=28000 Dest IP=192.168.100.188 Dest MAC=5CF9DD5FE30E Sync-Box IP=192.168.100.96 Auto Sleep Idle Time (minute)=0 Trigger Mode=TriggerMode_Prep iRay Technology (Shanghai) Ltd. Doc N0.: 058-201-02 Version: A4 Date:2017.08.23...
  • Page 56 Self Clear Span Time (us)=100 Sequence Interval Time (ms)=8000 Tube Ready Time=500 Set Delay Time (ms)=600 Exp Window Time (ms)=10000 Sync Exp Time (ms)=65535 VT (v)=0.87 Dyna Offset Gap Time (ms)=100 Image Channel Protocol=Ethernet_TCP iRay Technology (Shanghai) Ltd. Doc N0.: 058-201-02 Version: A4 Date:2017.08.23...

  • Page 57: Trouble Shooting

    7. Trouble Shooting 7. Trouble Shooting This section is detailed in the Mars1717XU service manual. iRay Technology Co. Ltd.

  • Page 58: Service Information

    8. Service Information 8.1 Product lifetime ................57 8.2 Regular inspection and Maintenance ..........57 8.2.1 Daily inspection ..............57 8.2.2 Monthly and annual inspection..........57 8.3 Repair ....................58 8.4 Replacement parts support .............. 58 iRay Technology Co. Ltd.

  • Page 59: Product Lifetime

    If there is any repair, maintenance and inspection involved with opening the housing of the instrument, please make sure to contact after-sale service engineering with corresponding qualification, or please contact Shanghai iRay after-sales service department or authorized product distributors. iRay Technology Co. Ltd.

  • Page 60: Repair

    Description of Problem: as clearly as possible 8.4 Replacement parts support Performance parts (parts required to maintain the function of the product) of this product will be stocked for 8 years after discontinuance of production, to allow for repair. iRay Technology Co. Ltd.

  • Page 61: Appendix

    Appendix Appendix Appendix A Information of Manufactures ..........60 iRay Technology Co. Ltd.

  • Page 62: Appendix A Information Of Manufactures

    Technology Co.LTD. ADDRESS: Rm202, Building 7, No. 590, Ruiqing Rd, Zhangjiang East, Pudong New Area, Shanghai, China ZIP CODE: 201201 TELEPHONE: +86-21-50720560 FAX: +86-21-50720561 HOMEPAGE: WWW.IRAYCHINA.COM SERVICE: SERVICE DEPARTMENT OF IRAY SERVICE TEL +86-21-50720560 MARKET TEL +86-21-50720560 iRay Technology Co. Ltd.
