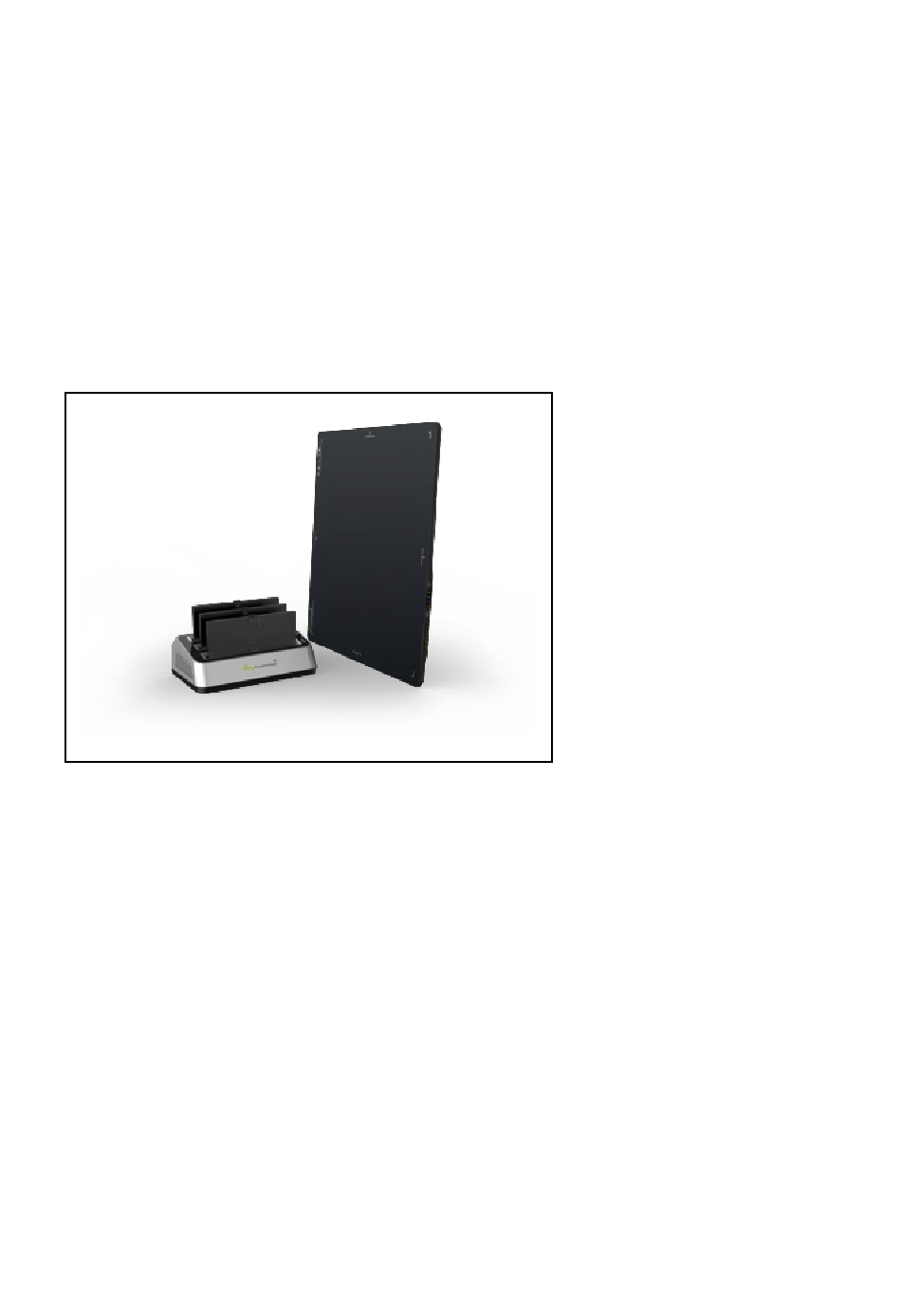

Digital Flat Panel Detector
Mars1417XF
User Manual
Before operating, please read this user manual and pay attention to all safety precautions. Please
ensure that user manual is properly maintained so that it can be accessed at any time. Please use
correctly on the basis of full understanding of content.
iRay Technology Co. Ltd.
1
