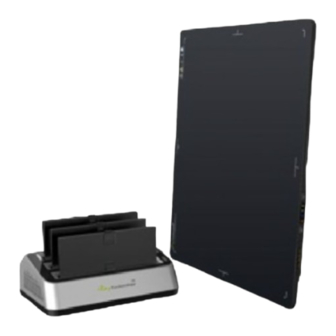

iRay Technology Mars1417XF-GSI User Manual

iRay Technology Mars1417XF-GSI User Manual

Wireless digital flat panel detector
Table of Contents

Advertisement

Quick Links

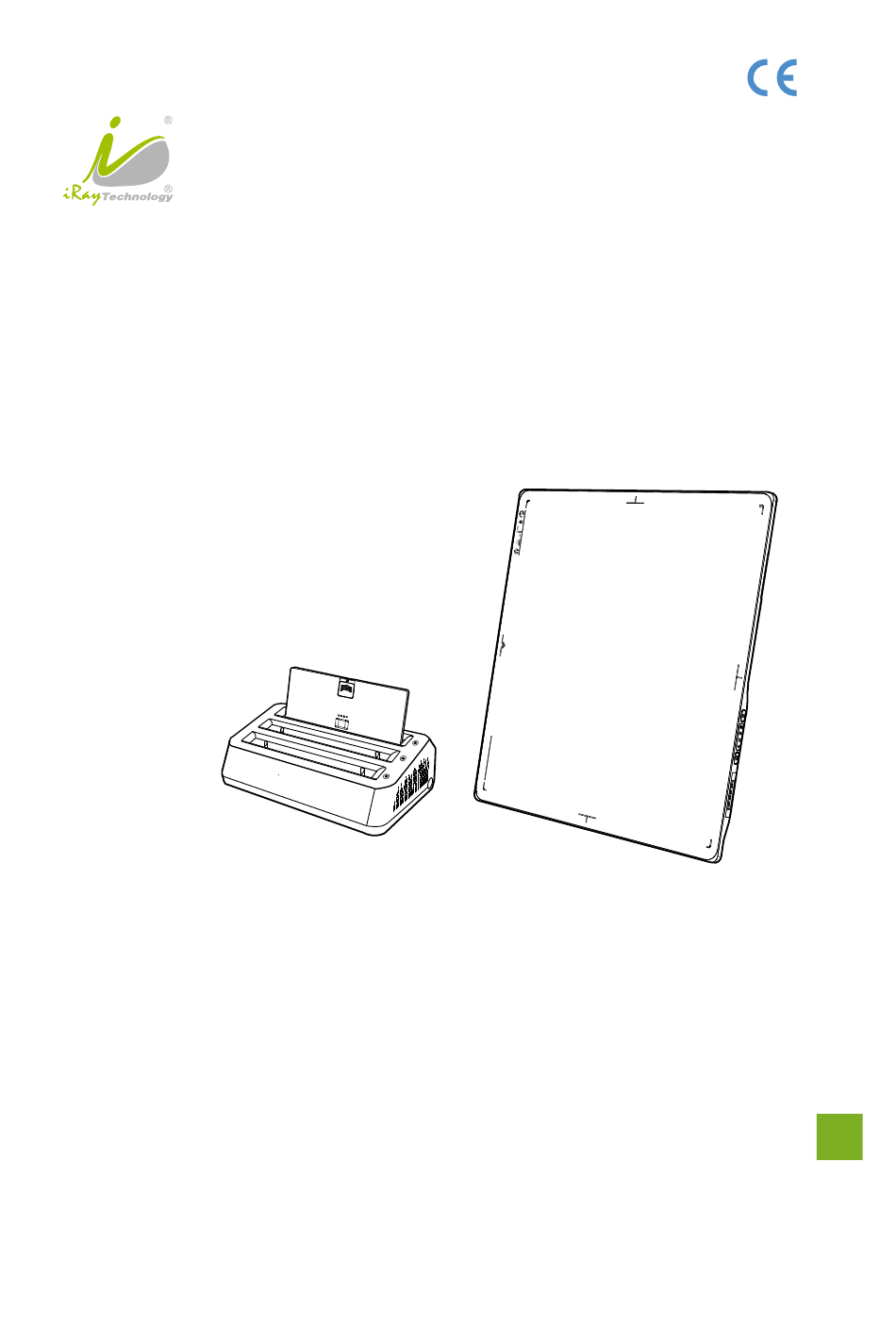

Mars1417XF
Wireless Digital Flat Panel Detector
User Manual
Document Version:
Document ID:
Release Date:
A07
052-201-04
11/24/2023
0197
E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mars1417XF-GSI and is the answer not in the manual?

Questions and answers

Summary of Contents for iRay Technology Mars1417XF-GSI

  • Page 1 0197 Mars1417XF Wireless Digital Flat Panel Detector User Manual Document Version: 052-201-04 Document ID: Release Date: 11/24/2023...
  • Page 2: Environmental Protection

    No part of this publication may be reproduced in any form or by any means without the written permission of iRay Technology Co., Ltd. Trademarks The name and logo of iRay are registered trademarks of iRay Technology Co., Ltd. Environmental Protection This symbol indicates that this product cannot be disposed as domestic or commercial waste. Improper handling of this type of waste may result in a negative impact on health and environment.
  • Page 3: For Your Safety

    Mars1417XF User Manual To Customers For Your Safety  To avoid personal injury or product damage, be sure to read the user manual and all accompanying information carefully and pay attention to all safety information before installing and using the detector. ...
  • Page 4 Mars1417XF User Manual To Customers This emphasizes or supplements important information about the main text. NOTE This symbol is used to indicate “please refer to accompanying documents attached to the CD disk or sections in this manual”. REFERENCE Abbreviations Abbreviations Explanation Alternating Current Automatic Exposure Detection...
  • Page 5: Table Of Contents

    Mars1417XF User Manual Contents Contents TO CUSTOMERS ..........................I CONTENTS ............................IV SAFETY INFORMATION ........................ 1 Label Description ........................... 1 Safety Precautions ..........................4 1.2.1 Operation and Storage Environment ......................4 1.2.2 Equipment, Interface, Power Source, and Cables ..................5 1.2.3 Handling ..............................
  • Page 6 Mars1417XF User Manual Contents 3.6.3 Battery Charger ............................23 3.6.4 Power Adapter ............................24 BASIC OPERATION ........................25 Preparation ............................25 4.1.1 Attaching Battery Pack to Detector ......................25 4.1.2 Installing the Battery into the Charger ..................... 26 Routine Operation ..........................26 IT NETWORK ..........................
  • Page 7: Safety Information

    Mars1417XF-GSI 無線電子平板探測器 產品型號: 接入電源: 適配器供電輸入 4700 電源供電輸入 4700 iRay Technology Co., Ltd. RM202, Building 7, No. 590, Ruiqing RD. Zhangjiang East , Pudong, 201201 Shanghai P.R.China www.iraygroup.com 20XX-XX 上海奕瑞光電子科技股份有限公司 中國上海市浦東新區瑞慶路 590号9幢2層202室 Made in China Copyright © iRay Technology Co., Ltd.
  • Page 8: Battery Charger

    Technology Co. , Ltd. RM202, Building 7, No. 590, Ruiqing RD. Zhangjiang East , Pudong, 201201 Shanghai P.R.China www.iraygroup.com 20XX-XX 上海奕瑞光電子科技股份有限公司 中國上海市浦東新區瑞慶路 590号9幢2層202室 Made in China ◼ Battery Charger ◼ Battery Pack ------------------ Copyright © iRay Technology Co., Ltd.
  • Page 9 Production Site Production Version No. Derivative Type Production Type iRay Technology’s authorized representative in the European community Indicates the information of the manufacturer, including the name and address of the manufacturer Caution! Consult accompanying documents Consult instructions for use When the end user intends to discard the product, it must be sent to separate collection facilities...
  • Page 10: Safety Precautions

    Do not operate or store the equipment in or around flammable or corrosive gases, gas mixtures, liquids, chemicals, or other substances. Ignoring this warning may result in an explosion, fire, or electric shock, which may result in WARNING personal injury, death, or substantial product damage. Copyright © iRay Technology Co., Ltd.
  • Page 11: Equipment, Interface, Power Source, And Cables

    Observe and follow all safety information in this manual and on the warning labels on the battery (if applicable). Ignoring warnings could result in personal injury or product damage. CAUTION  Do not modify the cables or subject the cable to external stress or damage. Avoid placing Copyright © iRay Technology Co., Ltd.
  • Page 12: Handling

    WARNING fixed posture and do not let the patient touch parts unnecessarily. Ignoring this warning may cause electrical shock and/or unknown hazards, which may result in severe personal injury, death, or substantial product damage. Copyright © iRay Technology Co., Ltd.
  • Page 13: Failure Handling

    AC outlet, and immediately contact your sales representative or local iRay distributor. Further use under abnormal conditions may result in severe personal injury, death, or substantial product damage. Copyright © iRay Technology Co., Ltd.
  • Page 14: Battery Pack

    The X-ray detector must be repaired by X-ray detector manufacturer authorized personnel only. Ignoring this warning may result in explosion, fire, electric shock, or unknown hazards, which may result in severe personal injury, death, or substantial product damage. Copyright © iRay Technology Co., Ltd.
  • Page 15: Notes For Using The Equipment

     If the detector receives a dose which is close to the full range, clipped data lines appear in the full range area.  For clinical use, minimum trigger dose for detector is 800~900nGy/s(80KV). Copyright © iRay Technology Co., Ltd.
  • Page 16: After Exposure

    Wipe it with a cloth slightly damped with a neutral detergent. Do not use solvents such as alcohol, thinner, benzene, acid and base. Doing so may damage the surface of the equipment. It’s recommended to use a waterproof non-woven cover as the isolated layer between detector and the blooding ③ patient. Copyright © iRay Technology Co., Ltd.
  • Page 17: Regulatory Information

    IEC 60601-1:2005 +CORR.1 (2006) + CORR. 2 (2007) + AM1 (2012) EN 60601-1:2006+A11:2011+A1:2013+A12:2014 BS EN 60601-1:2006+A11:2011 ANSI/AAMI ES60601-1:2005/(R)2012+A1:2012+C1:2009/(R)2012+A2:2010/(R)2012 CAN/CSA-C22.2 No.60601-1:14 KS C IEC 60601-1 SS-EN 60601-1:2006+A11:2011+A1:2013+ AC1:2014+A12:2014 IEC 60601-2-54:2009+A1:2015 CAN/CSA-C22.2 NO. 60601-2-54:11 KS C IEC 60601-2-54:2012 SS-EN 60601-2-54:2010+A1:2015 IEC 60601-1-6:2010+A1:2013 Copyright © iRay Technology Co., Ltd.
  • Page 18: Guidance And Manufacturer's Declaration For Emc

    80% AM at 1kHz Refer to table “Near Fields from RF Wireless Near fields from RF wireless IEC 61000-4-3 Communications Equipment” communications equipment Rated power frequency 30A/m IEC 61000-4-8 magnetic fields 50Hz or 60Hz Copyright © iRay Technology Co., Ltd.
  • Page 19: Recommended Separation Distances

    Portable RF communications equipment, including antennas, can effect medical electrical equipment. The warning should include a use distance such as “be used no closer than 30 cm (12 inches) to any part of the [ME EQUIPMENT or ME SYSTEM], including cables specified by the manufacturer”. Copyright © iRay Technology Co., Ltd.
  • Page 20: Electromagnetic Compatibility (Emc)

    EN 50566:2017 EN 62479:2010 EN 55032:2015 EN 61000-3-2:2014 EN 61000-3-3:2013 European Union EN 55035:2017 EN 301 489-1 V2.1.1 EN 301 489-17 V3.1.1 EN 300 440 V2.1.1 EN 300 328 V2.1.1 EN 301 893 V2.1.1 Copyright © iRay Technology Co., Ltd.
  • Page 21: Battery Safety Standards

    Copyright © iRay Technology Co., Ltd.
  • Page 22: Radio Frequency (Rf) Energy

    SAR compliance for body-worn operation is based on a separation distance of 0 mm between the unit and the human body. Carry this device at least 0 mm away from your body to ensure RF exposure level compliant or lower to the reported level. Copyright © iRay Technology Co., Ltd.
  • Page 23: Product Introduction

    It was developed to provide X-ray image, which contains an active matrix of 2336×2836 with 150um pixel pitch. Detector’s scintillator has two options GOS (Gadolinium Sulfoxylate) and CsI (CaesiumIodide). Lineup Mars 1417 XF GSI/CSI GSI:GOS; CSI:CSI 14 inch×17 inch Mars Series Copyright © iRay Technology Co., Ltd.
  • Page 24: Intended Use

    IPX4 Packing List Check the list below to verify that all the items have been included. Contact your iRay dealer if anything is missing or damaged. Item Figure Qty. (unit: piece) Mars1417XF GSI/CSI Detector Copyright © iRay Technology Co., Ltd.
  • Page 25 Mars1417XF User Manual Product Introduction Item Figure Qty. (unit: piece) Power adapter (24V) Battery pack Battery charger Gigabit Ethernet cable User Manual (Paper Print) Copyright © iRay Technology Co., Ltd.
  • Page 26: Component Description

    Battery Battery inserted to supply electrical power when connecting wirelessly ◼ Status Indicator Status Indicator Color Description  Detector is turned off  Exposure prohibited Green ON Ready for exposure Orange blinking Safety Mode Copyright © iRay Technology Co., Ltd.
  • Page 27: Mode Indicator

    >15% Green ON Detector is turned on ≥7% & < 15% Orange Blinking Detector is turned on Detector is turned on or ≥ 15% & < 95% Green Blinking detector is in sleep mode Copyright © iRay Technology Co., Ltd.
  • Page 28: Battery Pack

    The activation will take approximately 8~10 seconds Establish a wired/wireless connection between the computer and the detector Insert the battery pack into the battery compartment of the detector Web activation Type http://192.168.8.8/cgi-bin/shipmode.cgi?action=off in the Web to exit the ship mode Copyright © iRay Technology Co., Ltd.
  • Page 29: Battery Lock

    Supplies power to the battery charger ◼ LED Indicators Indicator Status Operating Status No battery inserted Battery inserted with capacity ≤ 95%, charging Green blinking Green ON Battery inserted with capacity >95% Orange blinking Battery slot malfunction Copyright © iRay Technology Co., Ltd.
  • Page 30: Power Adapter

    Detector supports an external adapter powered, It gets CB certificate No. SG PSB-MD-00005 and NRTL certificate No. U8V 093768 0016.The ports are defined as bellow: Definition Voltage Range Rated Current DC Power Negative 0~0.5V 0~0.42A DC Power Positive 23~25V 0~0.42A DC Power Positive 23~25V 0~0.42A DC Power Negative 0~0.5V 0~0.42A Copyright © iRay Technology Co., Ltd.
  • Page 31: Basic Operation

    Mars1417XF battery connector port ② Slide the battery pack into battery compartment until fully inserted ③ Slide the battery lock to lock the battery pack Copyright © iRay Technology Co., Ltd.
  • Page 32: Installing The Battery Into The Charger

    Shutdown: when the detector is turned on, you can press the button and hold for 4 seconds to turn off the detector. Reboot: if the panel is disconnected, you may press and hold the power button for 8 seconds to restart the connect. Copyright © iRay Technology Co., Ltd.
  • Page 33: Network

    Image Transfer Wireless: IEEE802.11a/b/g/n/ac Wireless Frequency Range 2.412~2.472GHz, 5.18~5.22GHz;5.745~5.85GHz 802.11b DSSS (CCK, DQPSK, DBPSK) Modulation Type 802.11 a/g/n/ac: (OFDM, 256QAAM, 64QAM, 16QAM, QPSK, BPSK) 2.4GHz ≤ 40MHz 5.19GHz ≤ 80MHz Wireless Band 5.8GHz ≤ 80MHz Copyright © iRay Technology Co., Ltd.
  • Page 34: Intended Information Flow

    Changes to IT Network Changes to IT Network include:  Changes in IT network configuration  Connection of additional items to IT network  Disconnecting items from IT network  Update of equipment connected to IT network Copyright © iRay Technology Co., Ltd.
  • Page 35: Technical Specifications

    Effective area (H x V) 350.4mm× 425.4 mm Greyscales 16 bits Mars1417XF-GSI’s active area and defect Mars1417XF-CSI defect calculation area is calculation area is 2336× 2836 and TFT 2320× 2818, the active area is 2336× 2836, TFT module size is 2342× 2840.
  • Page 36: Power Adapter

    100~240V 50Hz/60Hz AC input Output 24V single output, 120W Dimensions (W× H× D) 172mm× 72mm× 42mm Battery Charger Item Specification Model Charger-KX Simultaneous Charging 3 battery packs Full Charging Time 2.5 hours ≤4hours Full Charging Time Copyright © iRay Technology Co., Ltd.
  • Page 37: Battery Pack

    The device must be transported, stored, and operated in permissible environmental conditions, as stated below: Item Operation Storage & Transportation 5~30℃ Ambient temperature -20℃~50℃ Relative humidity 10%~80% RH (non-condensing) 10%~90% RH (non-condensing) Atmospheric pressure 700~1060mbar 700~1060mbar Altitude Max. altitude 3000m Copyright © iRay Technology Co., Ltd.
  • Page 38: Service Information

    Verify that the power cord is reliably connected to the power socket of the detector Make sure there is no short circuit at the battery connection pins Battery Make sure the battery is not expanding Copyright © iRay Technology Co., Ltd.
  • Page 39: Monthly And Yearly Inspection

    ① Name and model of product; ②Product SN; ③ Description of product failure as detailed as possible. Customer Service CS Dept.: Service Office of iRay Technology Co. Ltd. Building 45, No. 1000, Jinhai RD., Pudong New Area, 201206 Shanghai China Address:...
  • Page 40: Manufacturer Information

    In den Dorfwiesen 14, 71720 Oberstenfeld Germany Address: Telephone: +49-7062-977 88 00 +49-7062-976 0571 Fax: Email: S.feng@iraygroup.com Website: www.iraygroup.com ◼ European Importer Company: FUJIFILM Europe B.V. Address: Oudenstaart 1, 5047 TK Tilburg, the Netherlands Website: https://www.fujifilm.eu/eu/manufacturing-europe Copyright © iRay Technology Co., Ltd.
  • Page 41 All the information contained in this manual remains the confidential and proprietary property of iRay Technology Co., Ltd. Any reproduction, disclosure, or use in whole or in part is strictly prohibited, except as may be specifically authorized by prior written agreement or permission of iRay.
