iRay Technology Mars1417V User Manual

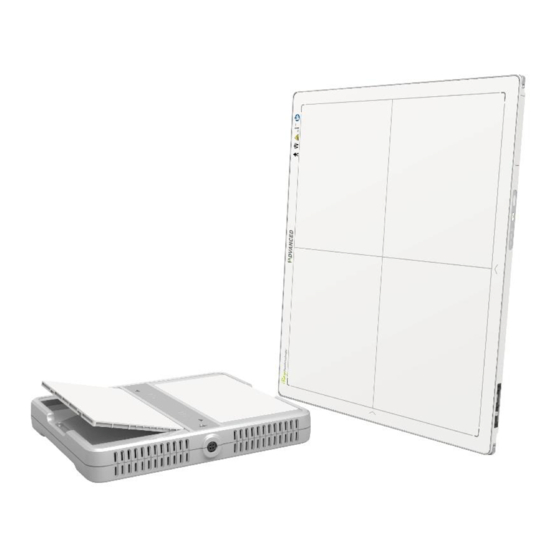

Wireless digital flat panel detector
Hide thumbs Also See for Mars1417V:
Table of Contents

Advertisement

Quick Links

To Customer
Wireless Digital Flat Panel Detector
Mars1417V
User Manual
Document Version: A1
Document ID: 085-201-02
Release Date: 2019-08-22
Before operating, please read this user manual and pay attention to all safety precautions.
Please ensure that this user's manual is properly maintained so that it can be accessed at any time
(reserve).
Please use it correctly on the basis of full understanding of the content.
E
iRay Technology Co. Ltd................................................................................................................................................................1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mars1417V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iRay Technology Mars1417V

Summary of Contents for iRay Technology Mars1417V

  • Page 1 Before operating, please read this user manual and pay attention to all safety precautions. Please ensure that this user's manual is properly maintained so that it can be accessed at any time (reserve). Please use it correctly on the basis of full understanding of the content. iRay Technology Co. Ltd.………………………………………………………………………………………………………………………………….………..1...
  • Page 2 Mars1417V Digital Flat Panel Detector User Manual Congratulations on your purchase of iRay Mars1417V (configuration: Mars1417V3) Digital Flat Panel. At iRay, we strive to not only make the world-class products that deliver the best value to our users but also offer the highest quality of service and customer care. Please take time to read user manual to utilize the product effectively.
  • Page 3 No part of this publication may be reproduced in any form or by any means without the written permission of iRay. The information contained herein is designed only for use with iRay Mars1417V. Trademarks The iRay name and iRay logo are registered trademarks of Shanghai iRay Technology Ltd. iRay Technology Co. Ltd.……………………………………………………………………………………………………………………………….………..3...
  • Page 4 This is used to indicate operations for reference and complementary information. Labels and markings on the equipment The contents of the labels and markings on Mars1417V (configuration: Mars1417V3) product are indicated below: ICON MEANING Caution: please refer to the instructions in user manual.
  • Page 5 Safety Signs: Dangerous Voltage Handled with care This symbol indicates operational temperature limits. This symbol indicates storage temperature limits. This symbol indicates the product radiates wireless signal. This symbol indicates the product has passed FCC certification. iRay Technology Co. Ltd.……………………………………………………………………………………………………………………………….………..5...
  • Page 6 Mars1417V Digital Flat Panel Detector User Manual Package symbol, fragile. Package symbol, keep away from sunlight. Package symbol, keep dry. This symbol indicates the humidity limits. Keep the product up right Do not roll the transportation package. This symbol indicates stacking limit number.

  • Page 7: Table Of Contents

    Mars1417V Digital Flat Panel Detector User Manual Contents ........................12 SAFETY 1.1. Safety precautions..........................12 1.2. Notes for Using..........................17 ................... 20 GENERAL DESCRIPTION 2.1. Scope..............................20 2.2. Model..............................20 2.3. Characteristic...........................21 2.4. Intended use/ essential performance/ application specification........21 2.4.1. Intended use..........................21 2.5.
  • Page 8 Mars1417V Digital Flat Panel Detector User Manual Use Environment........................31 2.9.9. 2.10. IT network............................ 31 Purpose for IT-network......................31 2.10.1. Required characteristics......................32 2.10.2. Required configuration......................32 2.10.3. 2.10.4. Technical specifications......................32 2.10.5. Intended information flow......................32 2.10.6. Hazardous situations resulting from failure of the IT-network..........32 2.10.7.
  • Page 9 List of the HAZARDOUS SITUATIONS resulting from a failure of the IT- NETWORK............................81 ................... 83 REGULATORY INFORMATION 5.1. Medical equipment safety standards..................83 5.2. The compliance for each EMISSIONS and IMMUNITY standard or test specified by IEC60601-1-2 standard........................84 5.3. Radio Frequency Compliance Information................87 iRay Technology Co. Ltd.……………………………………………………………………………………………………………………………….………..9...
  • Page 10 Mars1417V Digital Flat Panel Detector User Manual 5.3.1. FCC Compliance........................87 5.4. Battery Safety Standards......................88 ....................90 TROUBLE SHOOTING ................... 92 SERVICE INFORMATION 7.1. Product Lifetime..........................92 7.2. Regular Inspection and Maintenance..................92 7.3. Repair..............................92 7.4. Replacement Parts Support......................92 ............94 APPENDIX A INFORMATION OF MANUFACTURES APPENDIX B INFORMATION OF MEDICAL DEVICE DIRECTIVE EUROPEAN .....................95...
  • Page 11 Mars1417V Digital Flat Panel Detector User Manual ........................12 SAFETY 1.1. Safety precautions..........................12 1.2. Notes for Using..........................17 11..............................iRay Technology Co. Ltd.

  • Page 12: Safety

    To avoid the risk of electric shock, this product must  only be connected to power supply with protective earth. Not doing so may result in fire or electric shock. Do not connect the adapter cord when connect the  panel to patient. iRay Technology Co. Ltd.………………………………………………………………………………………………….…………………………….………..12...
  • Page 13 Never use methanol, benzene and acid because they would corrode the equipment. Don’t dip the product into liquid.  Please make sure that surface & plugs are dry before  turning on. Otherwise, it may result in fire or electric shock. iRay Technology Co. Ltd.……………………………………………………………………………………………………………………………….………..13...
  • Page 14 Mars1417V Digital Flat Panel Detector User Manual Clean the plug of the power cord periodically by  unplugging it from the AC outlet and removing dust or dirt from the plug, its periphery and AC outlet with a dry cloth.
  • Page 15 Otherwise, the internal image sensor may be damaged and image may be incorrect. Patients stand on the product temporarily, and the intended weight can be 135kg. Based on the internal TFT character, cannot load the dynamic forces due to loading from persons <Load Limit> iRay Technology Co. Ltd.……………………………………………………………………………………………………………………………….………..15...
  • Page 16 Mars1417V Digital Flat Panel Detector User Manual Uniform load：150 kg over the whole area of the surface. Local load：100 kg on an area 4 cm diameter. Be sure to use the product on flat surface so it would  not bend. Otherwise, the internal image sensor may be damaged.

  • Page 17: Notes For Using

    It’s strongly recommended to remove battery from panel if panel is not used  more than 5 days. If battery stores for a long time, it should be charged (30% to 50%) every 3 month or charged (50% to 70%) every 6 month. iRay Technology Co. Ltd.……………………………………………………………………………………………………………………………….………..17...
  • Page 18 Mars1417V Digital Flat Panel Detector User Manual Contact with the patients parts cleaning, disinfection and sterilization After every examination, wipe the patient contact surfaces with nonflammable  disinfectants to prevent the risk of infection, such as benzalkonium chloride, benzalkonium bromide. For details on how to sterilize, consult a specialist.
  • Page 19 Mars1417V Digital Flat Panel Detector User Manual ....................20 2.GENERAL DESCRIPTION 2.1. Scope............................20 2.2. Model.............................20 2.3. Characteristic..........................21 2.4. Intended use/ essential performance/ application specification........21 2.5. Essential performance......................21 2.6. The relative position between patient and detector............22 2.7. Product Components....................... 22 2.8.

  • Page 20: General Description

    2304×2800 with 150um pixel pitch. The greatest feature is Mars1417V supports wireless communication between panel and Workstation. Mars1417V’s power supply includes battery. Mars1417V can be used as a real portable panel. 2.1. Scope This manual contains information about the Mars1417V. Information in the manual, including the illustrations, is based on prototype.

  • Page 21: Characteristic

    IEC60601-2-63. 2.5. Essential performance According to the Mars1417V series intended use and the result of risk management, getting imaging and function of data transmission is defined as essential performance. Getting qualified dark image proves that essential performance does not influence intended use.

  • Page 22: The Relative Position Between Patient And Detector

    Otherwise, the image is prone to abnormal light lines. 2.7. Product Components Mars1417V comes with both DC power supply and battery package. Once powered on, it would build a connection with Workstation through Ethernet cable (only for service) or Wireless connection.
  • Page 23 Installation 1 pcs Medical Adapter DC 24V 2 pcs Battery Battery pack Ethernet Cable 1pcs (Only for service) 3.5 m 1pcs Gigabit Ethernet Cable 1 pcs AC Power Cable 1 pcs DC Power Cable 3.5 m iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..23...

  • Page 24: Components Description

    Mars1417V Digital Flat Panel Detector User Manual Battery Charger 1pcs 1pcs Gain correction data CD-Rom Defect correction map Manual 2.8. Components Description 2.8.1. Detector External Signals Input Control Panel 24..............................iRay Technology Co. Ltd.

  • Page 25: Battery

    Detector indicator of control panel Power Button Power button of control panel reserved Antenna Antenna 2.8.2. Battery Item Name Description Battery Label Battery Interface 8 Pin Battery connector Pilot Pin Indicator Installation direction indicator 2.8.3. Battery Charger iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..25...
  • Page 26 Mars1417V Digital Flat Panel Detector User Manual Item Name Description Battery Interface 8 Pin Battery connector Capacity Indicator The indicator definition is as follow Power Indicator The indicator definition is as follow Hand Pull Position The limit ball plug DC Jack...

  • Page 27: Product Specification

    III grid on stops Battery enter into 2nd level protection, I, II and III blinking automatic unlock with safety condition 2.9. Product Specification 2.9.1. Detector Item Specification Model Mars1417V-TSI (CsI) Image Sensor a-Si (Amorphous Silicon) TFT iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..27...

  • Page 28: Battery

    Mars1417V Digital Flat Panel Detector User Manual Pixel Size 150 μm Active Array 2304 x 2800 Active Area (H x V) 345.6mm x 420mm Gray scales 16bit Spatial Resolution 3.3 Lp/mm Image Acquisition Time (Wireless) Preview Acquisition Time: 3 sec.

  • Page 29: Battery Charger

    Rated power supply 24V(DC) Dimension (L × W × H) 300 x 263 x 42 mm Weight 1.26 kg 2.9.4. Power supply Mars1417V supports both DC Power and Battery package input. Item Specifications DC Power 24V(DC), 0.75A Battery Package 10.8V(DC),1.6A The product must be used with the approved adaptor whose CB certificate number is SG PSB-MD- 00191.

  • Page 30: Ap Router

    Mars1417V Digital Flat Panel Detector User Manual 2.9.5. AP Router Mars1417V do not include AP Router. Users can choose AP Router as they wish, however specification below is a requirement. Item Specifications Wireless Standard IEEE 802.11 a/b/g/n/ac Frequency Range 2.412 ~ 2.4835 GHz and 5.15 ~ 5.85 GHz 802.11b: Max.

  • Page 31: Mechanical Outlines

    -20~55℃ <1k/min 5%~95% RH 700~1060hPa (1kp=1.0197E-5Pa) The Mars1417V serial detectors shall operate at an altitude specified not more than 3000m, the environment is only for detector. 2.10. IT network 2.10.1. Purpose for IT-network Transmission between the detector and the workstation is image data and command/status communication.

  • Page 32: Required Characteristics

    Mars1417V Digital Flat Panel Detector User Manual 2.10.2. Required characteristics Wireless communication follows IEEE 802.11a/b/g/n/ac protocol. It works on 2.4GHz and 5GHz. It supports at least 2 routers. 2.10.3. Required configuration The wireless card and the detector must work on the same IP segment such as 192.168.8.XXX They must support IEEE 802.11a/b/g/n/ac.

  • Page 33: Warning

    IT-network could introduce new risks and require additional analysis 2.10.8. Changes to the IT-network include 1. Changes in the IT-network configuration; 2. Connection of additional items to the IT-network; 3. Disconnecting items from the IT-network; 4. Update of equipment connected to the IT-network; iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..33...
  • Page 34 Mars1417V Digital Flat Panel Detector User Manual ......................35 INSTALLATION 3.1. Panel Installation..........................35 3.1.1. Attach Battery Pack........................35 Attach DC Power........................35 3.1.2. Booting Up..........................36 3.1.3. 3.1.4. Button function........................... 38 3.2. Battery Charger Installation......................38 3.3. Software Installation........................39 3.4. Panel Infrastructure........................39 3.4.1.

  • Page 35: Installation

    3.1. Panel Installation 3.1.1. Attach Battery Pack Mars1417V can be powered by both battery package and DC power. Once battery package is inserted or DC power is on, Panel would be activated immediately. If none of battery and DC power is on, Mars1417V would power off. Please see below for battery installation.

  • Page 36: Booting Up

    Mars1417V Digital Flat Panel Detector User Manual Connect one end of DC Power Cable to the Medical Adapter As figure is power interface Ethernet interface Connect another end of DC Power Cable to the DC input of the detector. 3.1.3. Booting Up On the control panel, user can press power button to power on/off.
  • Page 37 Client mode, no connection is built  Green and Blue Initialization  Blinking Status indicator is as table: Status Indicator Lighting Status Description Shut down  Exposure prohibit  Green ON Exposure enable  Green Blinking Image transmission  iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..37...

  • Page 38: Button Function

    Mars1417V Digital Flat Panel Detector User Manual Orange ON Error  Orange Blinking Safety mode  3.1.4. Button function The Button function is shown as table below Power Action Note Status N.A. No-Action Power ON Short-Hold Hold for 4 seconds.

  • Page 39: Software Installation

    (iDetector should not be used for terminal hospital) 3.4. Panel Infrastructure Mars1417V supports two connection modes as follows, the IP address and other information mentioned below is as the example, user should configure the connection with the specific requirement.

  • Page 40: Wireless Client Mode

    Mars1417V Digital Flat Panel Detector User Manual To build connection between workstation and Panel, User should follow steps below. 3.4.1. Wireless Client Mode To complete Wireless Client mode configuration, user has to finish actions listed below. Configuration of External wireless AP...
  • Page 41 Select “Obtain an IP address automatically” Open browser and type 192.168.1.1 Log into external wireless AP Wireless setup Configure 2.4GHz wireless network SSID: NETGEAR_BIG_24 Security: WPA2-PSK Password: 12345678 Channel: [Please check the current Wi-Fi environment, and choose a relatively clean channel] iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..41...
  • Page 42 Mars1417V Digital Flat Panel Detector User Manual Configure 5GHz wireless network SSID: NETGEAR_BIG_50 Security: WPA2-PSK Password: 12345678 Channel: [Please check the current Wi-Fi environment, and choose a relatively clean channel] LAN setup Configure LAN IP address IP address: 192.168.8.1 Subnet Mask: 255.255.255.0 External wireless AP reboot Apply above settings and reboot your wireless router.
  • Page 43 Ethernet Cable like 3.4.1 Click “Detector” Click ”Wifi” Click ”Read Config” Choose “Client” mode Click “Add” Type SSID and Password Click “Apply” Choose SSID and select(There will be √ occurred)” Click “write config” to save parameters. iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..43...

  • Page 44: Wireless Ap Mode

    Mars1417V Digital Flat Panel Detector User Manual Turn on wireless router. Make sure there are wired connection between router and work station and IP 192.168.8.188. Click “Read wifi Status” to check wireless transmission status, numericl value occurred means the link is up and available.
  • Page 45 Choose AP mode Click “Read Config” to get default setting. Change SSID and password setting , make sure SSID is different from other already exist; Change channels and frequency setting Click “Country” and choose a country setting iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..45...
  • Page 46 Mars1417V Digital Flat Panel Detector User Manual Click ”Channel” and choose a clean frequency and channel Click ”write config” Do not remove wired cable until FPD status from Busy become Ready Since we have chosen default SSID and password, it would connect to wireless AP immediately after powered on next time.
  • Page 47 Installation Open local wireless signal list Select SSID which belongs detectors; Input password and log into system Open wireless card configuration iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..47...
  • Page 48 Mars1417V Digital Flat Panel Detector User Manual open IPV4 setting IP setting IP address: 192.168.8.188 Network mask setting Subnet mask: 255.255.255.0 Open SDK and choose product start connection 48..............................iRay Technology Co. Ltd.
  • Page 49 4.6. Defect Template Check and Modification................63 4.7. Correction and Calibration Management................. 66 4.8. Firmware Update..........................68 4.9. Short cut............................75 4.10. Software............................76 4.11. List of the HAZARDOUS SITUATIONS resulting from a failure of the IT- NETWORK............................81 iRay Technology Co. Ltd.……………………………………………………………………………………………………………………………….………..49...

  • Page 50: Operation

    Mars1417V Digital Flat Panel Detector User Manual 4. Operation Mars1417V provides SDK for user to integrate panel into their DR system. Additionally, it also provides an application for demonstration, i.e. iDetector. User can use iDetector to control panel without DR system.
  • Page 51 User triggers x ray generator to initialize and do anode rotation to prepare for X ray shooting. X ray generator finishes preparation for X ray shooting and reminds user to shoot. X ray generator starts releasing x ray iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..51...

  • Page 52: Inner2 Mode

    Mars1417V Digital Flat Panel Detector User Manual X ray generator finishes x ray shooting. Workstation receives “Acquire” request, send command “Data Acquisition” to panel. 10. Panel receives “Data Acquisition” from workstation, start data acquisition operation. 11. Panel completes image acquisition and begins to send data to workstation.
  • Page 53 Panel starts uploading Post-dark image to Workstation. If hardware offset is chosen, panel would do correction and calibration first, then upload processed image to Workstation. Workstation into exposure prohibit state. iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..53...

  • Page 54: Freesync Mode

    Mars1417V Digital Flat Panel Detector User Manual 4.1.3. Freesync Mode 4.1.3.1. Block Diagram Workstation is a host PC device installed with iDetector and SDK. Chapter 3 has described how to establish connection between panel and Workstation. In FreeSync mode, User doesn’t interact with Workstation.

  • Page 55: Connection Build

    Port are the same as the value in config.ini. The port should use the default value of 28000 Note: 1. once changing connection from different network card, user must re-connect panel with different IP address. iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..55...

  • Page 56: Panel Configuration

    Mars1417V Digital Flat Panel Detector User Manual 2. The rule of Multi-Share control is based on IP address. The second terminal with different IP address is not allowed to operate panel after the first one connected. If there is no command transmission between panel and Workstation over 5 minutes, panel releases access authority.

  • Page 57: Correction And Calibration Template Generation

    On the other hand, it is also recommended to do the correction and calibration in each 6 months. 4.4.1. Pre-offset Template Generation If panel is configured to do Pre-offset correction, Pre-offset Template is necessary. See below iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..57...
  • Page 58 Mars1417V Digital Flat Panel Detector User Manual Select “Calibrate” Click “Start Generate Templates” Click “Create Offset” Click “Start create offset template file” It will show ”Offset Map Generating” 58..............................iRay Technology Co. Ltd.

  • Page 59: Gain Calibration Template Generation

    Before Gain template generating, make sure SID1.2m, no copper is required, the GUI of the software maybe different with the below figures. On Gain template generating page, there are five images that need to be got Click “start” button Click “PREP”, and start exposure iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..59...

  • Page 60: Defect Correction Template Generation

    Mars1417V Digital Flat Panel Detector User Manual After exposure, click “Acquire” to get the light image value meet expected value, click “Accept”, then get the other four images. If the value does not meet the expected value, please do not click “Accept”,...
  • Page 61 Operation On the “Defect Calibration” page, start exposure, there are 8 images need to be captured. Click “Start” button Click “PREP”, and start exposure After exposure, click “Acquire” to get the light image iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..61...

  • Page 62: Image Check And Upload

    Mars1417V Digital Flat Panel Detector User Manual value meet expected value, click “Accept”, then get the other 7 images. If the value does not meet the expected value, please do not click “Accept”, adjust exposure dose ,then click the “PREP”...

  • Page 63: Panel Image Upload

    SN 4.6. Defect Template Check and Modification iDetector provides function to check defect template. If defect template has updates, user could add and delete defect pixel or defect lines by modifying defect template opened. iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..63...

  • Page 64: Defect Template Check

    Mars1417V Digital Flat Panel Detector User Manual 4.6.1. Defect Template Check Click “LoadFile” “LocalFile” page Choose the specified defect template, and click “Open” defect template will showed on the UI 64..............................iRay Technology Co. Ltd.

  • Page 65: Defect Template Modification

    Find the pixel that needs to be managed, type the coordinate of the pixel and click “Add”, the information will be added to the template click “Delete”, information will be deleted Click “Save” iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..65...

  • Page 66: Correction And Calibration Management

    Mars1417V Digital Flat Panel Detector User Manual It is similar to manage the defect pixel, If user need to add the defect line, type the coordinate of the line and click “Add” If the information needs to be deleted, click “Delete”...

  • Page 67: Correction And Calibration Management

    Panel supports two ways to do correction and calibration. Software Correction and Calibration defines the scenario that Workstation completes all correction and calibration. If panel complete all correction and calibration by itself, it is named as Hardware Correction and Calibration. User can set the calibration method on “Acquire” page iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..67...

  • Page 68: Firmware Update

    Mars1417V Digital Flat Panel Detector User Manual Choose “HWPostOffset”, “HWGain”, “HWDefect”, the hardware-based calibration is on Choose “SWPostOffset”, “SWGain”, “SWDefect”, software-based calibration is on 4.8. Firmware Update Panel supports the use of the Web way to upgrade the firmware, if a user needs to update the firmware, please complete the following steps.
  • Page 69 Operation User name: admin Password: iray Click “login” Click “ ” Click “Upgrade” Click “Browse” iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..69...
  • Page 70 Mars1417V Digital Flat Panel Detector User Manual Find the MCU file, select it and open it The selected file name will be displayed on the interface. Click “Upgrade” Click “close” There will show the progress bar. If upgrade success, the interface as shown in the picture on the right will be displayed.

  • Page 71: Fpga Update

    Operation 4.8.2. FPGA Update Connect the panel to PC Open a browser, and type “192.168.8.8” in the search bar, then click the “Enter” button User name: admin Password: iray Click “login” Click “ ” Click “Upgrade” iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..71...
  • Page 72 Mars1417V Digital Flat Panel Detector User Manual Click “Browse” Find the FPGA file, select it and open it The selected file name will be displayed on the interface. Click “Upgrade” Click “close” There will show the progress bar. 72..............................iRay Technology Co. Ltd.

  • Page 73: Arm Update

    Otherwise, it means failure. 4.8.3. ARM Update Connect the panel to PC Open a browser, and type “192.168.8.8” in the search bar, then click the “Enter” button User name: admin Password: iray Click “login” iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..73...
  • Page 74 Mars1417V Digital Flat Panel Detector User Manual Click “ ” Click “Upgrade” Click “Browse” Find the ARM file, select it and open it The selected file name will be displayed on the interface. Click “Upgrade” 74..............................iRay Technology Co. Ltd.

  • Page 75: All Firmware Update

    Drag the left mouse button, drag the image displayed.  Lateral-drag the right mouse button to adjust the window width, and vertical-drag the right mouse  button to adjust the window level. F3 Key: Quickly adjust the image window width and window level.  iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..75...

  • Page 76: Software

    Mars1417V Digital Flat Panel Detector User Manual 4.10. Software 4.10.1. Main GUI iRay provides test tools, such as iDetector for testing the basic performance of detector. It can connect the detector, acquire image, image correct and calibrate. Function description of regions and buttons within the main window as follows:...

  • Page 77: Message Box

    Message Information Remaining power of the battery, showed as percentage 4.10.2.2. Progress Bar Progress Bar defines as following. If progress bar is Green when shooting X ray, image quality is acceptable, otherwise image quality would degrade. iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..77...

  • Page 78: Configuration Gui

    Mars1417V Digital Flat Panel Detector User Manual 4.10.3. Configuration GUI 4.10.3.1. General Settings Except the following parameters, the value should not be modified for other parameters. Description Modify Product No Type number of the detector Sub Product No Sub-type of the detector...
  • Page 79 Self Clear Span Time Should not be modified, and keep the original value Hvg Prep On Reserved Hvg XRay Enable Reserved Hvg XRay On Reserved Tube Ready Time Reserved Image Pkg Gap Time Reserved Out Mode Cap Trigger Reserved iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..79...
  • Page 80 Mars1417V Digital Flat Panel Detector User Manual 4.10.3.2. SDK Settings Only the following parameters need to be concerned Description Modify Host IP IP Address of local workstation Host Port Port of local workstation Ftp Download Host IP FTP download server IP, keep the same as Host IP...

  • Page 81: List Of The Hazardous Situations Resulting From A Failure Of The It-Network

    1) The operating system is not compatibility; 2) Change or update the software failed; 3) The compatibility of the interface; 4) The data transfer protocol error; 5) The inconsistent of interface or format leads to data distortion; 6) The data output failed; iRay Technology Co. Ltd.……………………………………………………………………………………….……………………………………….………..81...
  • Page 82 Mars1417V Digital Flat Panel Detector User Manual ................... 83 REGULATORY INFORMATION 5.1. Medical equipment safety standards..................83 5.2. The compliance for each EMISSIONS and IMMUNITY standard or test specified by IEC60601-1-2 standard........................84 5.3. Radio Frequency Compliance Information................87 5.3.1.

  • Page 83: Regulatory Information

    - Collateral standard: Usability Medical device – Application of risk management to medical EN ISO14971: 2012 devices ANSI/AAMI ES60601- Medical electrical equipment - Part 1: General requirements for 1:2005/(R)2012+A1:2012+C1:2 basic safety and essential performance (IEC 60601-1:2005, 009/(R)2012+A2:2010/(R)2012 MOD) iRay Technology Co. Ltd.……………………………………………………………………………………………………………………………….………..83...

  • Page 84: The Compliance For Each Emissions And Immunity Standard Or Test Specified By

    Mars1417V Digital Flat Panel Detector User Manual CAN/CSA-C22.2 Medical electrical equipment – Part 1: General requirements for basic safety and essential performance No.60601-1:14 Medical devices—Symbols to be used with medical device ISO 15223-1:2016/ EN ISO labels, labeling and information to be supplied—Part 1:...
  • Page 85 0% UT; 0.5 cycle At 0º, 45º, 90º, 135º, 180º, 225º, 270º and 315º 0% UT; 1 cycle Voltage dips IEC 61000-4-11 70% UT; 25/30 cycles Single phase: at 0º Voltage interruptions IEC 61000-4-11 0% UT; 250/300 cycles iRay Technology Co. Ltd.……………………………………………………………………………………………………………………………….………..85...
  • Page 86 Important information regarding Electromagnetic Compatibility (EMC)  Mars1417V requires special precautions regarding EMC and needs to be installed only by iRay or authorized personnel and put into service according to EMC information provided in the user manual. Mars1417V in use may be susceptible to electromagnetic interference from portable and mobile RF communications such as mobile (cellular) telephones.

  • Page 87: Radio Frequency Compliance Information

    The use of accessories, transmitters and cables other than those specified by this User Manual, with the exception of accessories and cables sold by iRay of Mars1417V as replacement parts for inner components, may result in increased emission or decreased immunity.

  • Page 88: Battery Safety Standards

    Mars1417V Digital Flat Panel Detector User Manual Connect the panel into an outlet different from the receiver is connected. Consult the distributor or an experienced radio/TV technician for help. 5.4. Battery Safety Standards Standards Description Secondary cells and batteries containing alkaline or other non-acid...
  • Page 89 Trouble Shooting ....................90 TROUBLE SHOOTING iRay Technology Co. Ltd.……………………………………………………………………………………………………………………………….………..89...

  • Page 90: Trouble Shooting

    Mars1417V Digital Flat Panel Detector User Manual 6. Trouble Shooting Please refer to service manual. If the problem persists, turn off the panel and contact iRay service department (service@iraygroup.com). We would provide the best service. 90..............................iRay Technology Co. Ltd.
  • Page 91 Service Information ..................92 SERVICE INFORMATION 7.1. Product Lifetime..........................92 7.2. Regular Inspection and Maintenance..................92 7.3. Repair..............................92 7.4. Replacement Parts Support......................92 iRay Technology Co. Ltd.……………………………………………………………………………………………………………………………….………..91...

  • Page 92: Service Information

    Mars1417V Digital Flat Panel Detector User Manual 7. Service Information 7.1. Product Lifetime The estimated product lifetime is up to 7 years under appropriate regular inspection and maintenance (battery 5 years). 7.2. Regular Inspection and Maintenance In order to ensure the safety of patients and operator, to maintain the performance and reliability of the panel, be sure to perform regular inspection at least once a year.
  • Page 93 Appendix ............94 APPENDIX A INFORMATION OF MANUFACTURES APPENDIX B INFORMATION OF MEDICAL DEVICE DIRECTIVE EUROPEAN .....................95 REPRESENTATIVE iRay Technology Co. Ltd.……………………………………………………………………………………………………………………………….………..93...

  • Page 94: Appendix A Information Of Manufactures

    Mars1417V Digital Flat Panel Detector User Manual Appendix A Information of Manufactures Company: iRay Technology Taicang, Ltd. ADDRESS: NO.33 Xinggang Road, Taicang Port Economic and Technological Development Zone, Jiangsu, China ZIPCODE: 215434 TELEPHONE: +86-0512-53690872 94..............................iRay Technology Co. Ltd.

  • Page 95: Appendix B Information Of Medical Device Directive European

    Appendix Appendix B Information of Medical Device Directive European Representative iRay Europe GmbH Address: In den Dorfwiesen 14, 71720 Oberstenfeld Germany Tel: +49-7062-977 88 00 Fax: +49-7062-976 0571 iRay Technology Co. Ltd.……………………………………………………………………………………………………………………………….………..95...
