www.ti.com
5.2 Layout
Figure 5-1
through
Figure 5-7
SBAU382 – NOVEMBER 2021
Submit Document Feedback
show the layout for the ADS704X-5XEVM.

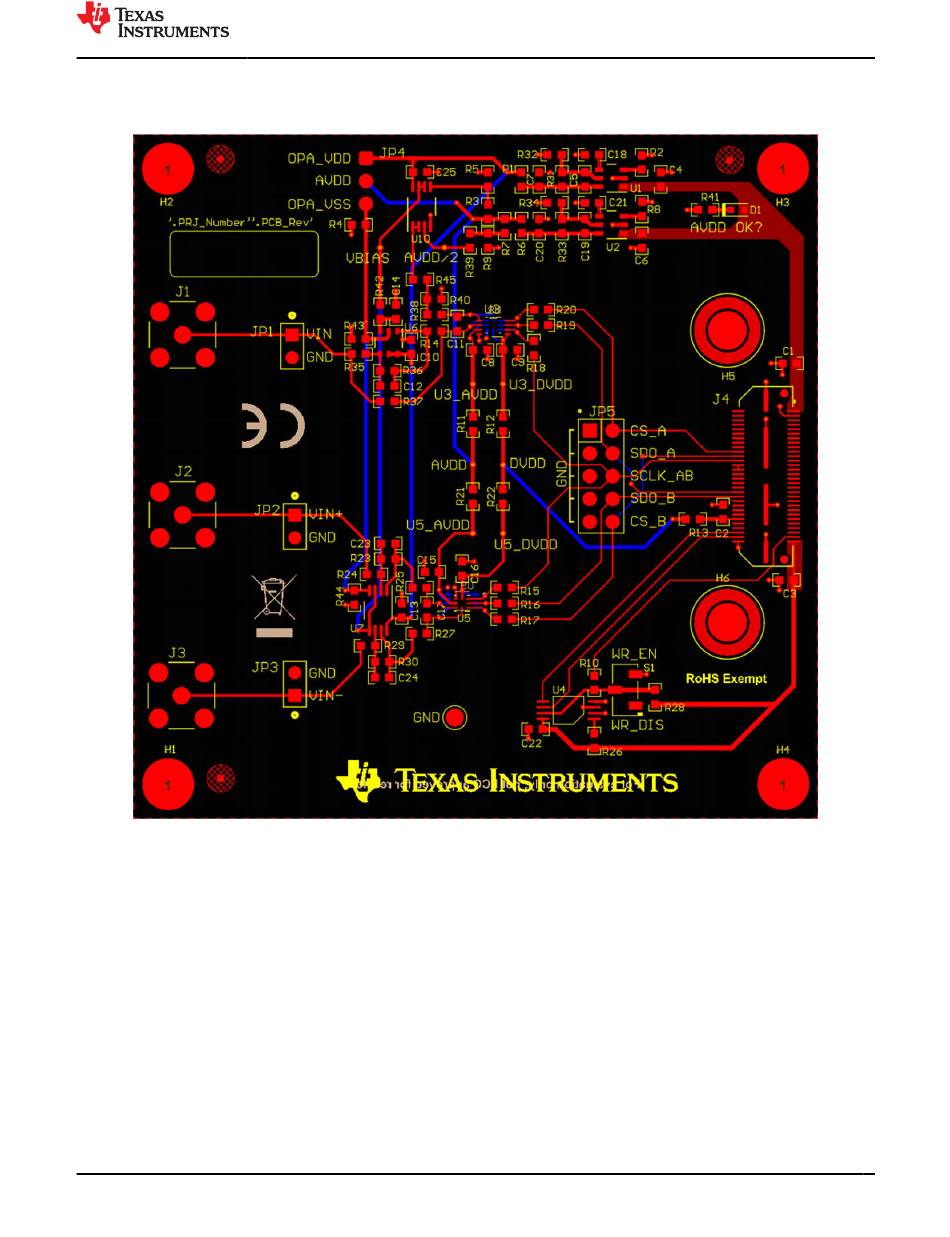

Figure 5-1. Composite PCB Layout
Copyright © 2021 Texas Instruments Incorporated
Bill of Materials, Layout, and Schematic
ADS7042EVM-PDK, ADS7049-Q1EVM-PDK, and ADS7057EVM-PDK
21
Evaluation Module
