EVM Operation

4.2 EVM GUI Global Settings for ADC Control

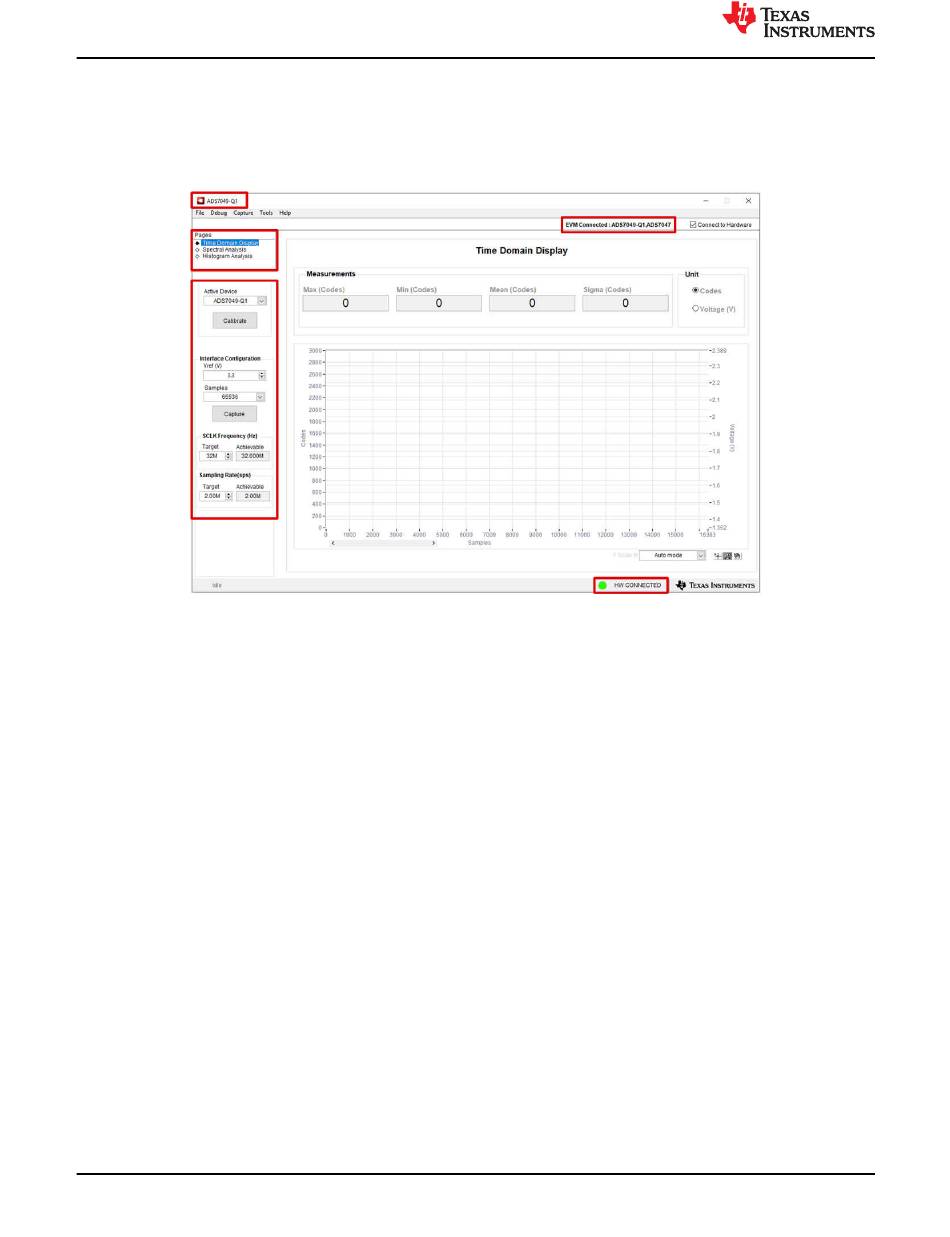

Figure 4-2 shows the default screen when the GUI is started. The GUI defaults to the Time Domain Display,
though other options are available in the Pages control box. When the GUI connects successfully, HW
Connected shows in green in the bottom ribbon and the specific devices included on the EVM are identified
in the upper right. In this case, ADS7049-Q1 and ADS7047 are included on the EVM represented by
The EVM global controls are located on the left-hand side of the GUI and are as follows:
• Active Device (also shown in the upper left corner of the GUI)
• VREF (only valid if AVDD is modified from the default value as per
to 3.3 V)
• Samples
• SCLK Frequency
• Sampling Rate
14 ADS7042EVM-PDK, ADS7049-Q1EVM-PDK, and ADS7057EVM-PDK
Evaluation Module
Figure 4-2. ADS704X-5XEVM GUI Overview
Copyright © 2021 Texas Instruments Incorporated
Section 2.2, otherwise leave this value set
