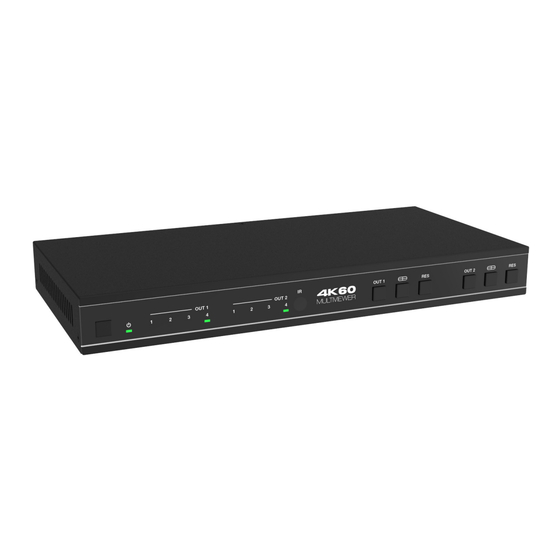

- Page 1 ANI-PiP-42UHD 4X2 4K60 UHD Multiviewer Seamless Video Matrix Switcher AUDIO / VIDEO MANUFACTURER A-NeuVideo.com Frisco, Texas 75036...
- Page 2 SAFETY INFORMATION 1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. 2. Follow all instructions printed on unit chassis for proper operation. 3.
- Page 3 NEUVIDEO SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. •...
-
Page 4: Table Of Contents
APPLICATION EXAMPLE ....................21 INTRODUCTION The ANI-PiP-42UHD 4x2 Multiviewer Seamless UHD Video Matrix Switcher was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on (2) screens. It can accept (4) HDMI input digital sources and combine (4) video signals onto (2) HDMI UHD or HD monitors independently. -
Page 5: Features
FEATURES • HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant • 18Gbps uncompressed Bandwidth, input and output resolution up to 4K2K@60 4:4:4 • HDMI audio formats support LPCM, DD+, DTS, Dolby TrueHD, DTS HD-master pass- through • Seamless switching between input channels •... -
Page 6: Specifications
SPECIFICATIONS • Input Ports: (4) HDMI IN [Type A, 19-pin female] • Output Ports: • (2) HDMI OUT [Type A, 19-pin female] • (2) L/R OUTPUT [RCA] • (2) OPTICAL OUTPUT [S/PDIF] • Control Ports: • RS-232 [3pin-3.81mm phoenix connector] •... -
Page 7: Operation Controls & Functions
OPERATION CONTROLS & FUNCTIONS Front Panel q POWER BUTTON: Press this button to power on the device. Hold down this button for 1 second to enter the standby mode. w POWER LED: The Power LED will light in green when the product is powered on, and red when the product is on standby. - Page 8 OPERATION CONTROLS & FUNCTIONS a OUT 2 MULTIVIEW BUTTON: Multiview display mode switching button for the HDMI OUT 2 port. • Press this button to circularly select: Single-PIP-PBP(1)-PBP(2)-Triple(1)-Triple(2)- Quad(1)-Quad(2)-single. • Press this button for 3 seconds to switch the aspect ratio (16:9/Full) for PBP (1) / PBP (2) / Triple (1) / Triple (2) / Quad (1) / Quad (2).
- Page 9 OPERATION CONTROLS & FUNCTIONS BACK PANEL q L/R PORT: PCM2.0 Analog audio output port. w OPTICAL OUT 1: Optical fiber digital audio output port. e HDMI OUT 1: HDMI signal output port, connected to HDMI display device such as TV or Monitor with HDMI cable.
-
Page 10: Remote Control
Remote Control q POWER BUTTON: Press this button to power on the switcher or set it to standby mode. w OUT 1/OUT 2 BUTTONS: HD 1/2/3/4: Press these buttons to select input source on single screen display mode, and the corresponding input LED on the front panel will light in green. - Page 11 Remote Control Power Toggle 08F7 4D Aspect Ratio (OUT 1) 08F7 43 HD Input 1 (OUT 1) 08F7 09 Aspect Ratio (OUT 2) 08F7 53 HD Input 2 (OUT 1) 08F7 54 Resolution (OUT 1) 08F7 03 HD Input 3 (OUT 1) 08F7 47 Resolution (OUT 2) 08F7 51...
-
Page 12: Edid Settings / Video & Audio
EDID Settings / Video & Audio EDID Settings User can select following EDID modes via RS-232 command or OSD menu navigation. EDID Mode EDID Mode 4K2K60_444, Stereo Audio 2.0 1680x1050, Stereo Audio 2.0 4K2K60_444, Dolby/DTS 5.1 1600x1200, Stereo Audio 2.0 4K2K60_444, HD Audio 7.1 1440x900, Stereo Audio 2.0 4K2K30_444, Stereo Audio 2.0... -
Page 13: Multiview
Display aspect selection Multiview window distributions are as following: Users can select Multiview modes via RS-232 commands or OSD menu navigation. * The ANI-PIP-42UHD switcher supports customized PIP size and location via RS-232 commands. The command format is “s output y PIP Hstart Vstart Hsize Vsize!”... -
Page 14: Osd Menu Navigation
OSD Menu Na vigation 1. A total of eight buttons on the IR Remote are used for OSD menu navigation, including OUT 1, OUT 2, Exit, /‚/ƒ/„ OK. Menu contents are as follows: Menu contents are as follows: 4096x2160p 60Hz / 4096x2160p 50Hz / 3840x2160p 60Hz / 3840x2160p 50Hz / 3840x2160p 30Hz / 3840x2160p 25Hz / 1920x1200p60Hz... - Page 15 OSD Menu Na vigation MODE 1, 2 Multiview Aspect Full, 16:9 WIN1, HDMI1, HDMI2, HDMI3, Audio Select WIN1 HDMI4 AUDIO Volume 0..100 Audio-Mute ON, OFF 4K60-2.0, 4K60-5.1CH, 4K60-7.1CH, 4K30-2.0CH, 4K30-5.1CH, 4K30-7.1CH, 1080P-2.0CH, 1080P-5.1CH, 1080P-7.1CH, 1920x1200-2.0CH, System EDID 4K60-2.0 1680x1050-2.0CH, 1600x1200-2.0CH, 1440x900-2.0CH, 1360x768-2.0CH, 1280x1024-2.0CH, 1024x768-2.0CH, 720P-2.0CH, AUTO...
-
Page 16: Rs-232 Commands
RS-232 CommandS The product also supports RS-232 command control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable. Then, open a Serial Command tool on PC to send ASCII commands to control the product. The ASCII command list about the product is shown as below. - Page 17 RS-232 CommandS Command Code Function Description Example Feedback Output Setting s output y res x! 7. 1920x1200p60RB, s output res 3! out resolution: 3840x2160p60 cont’d 8. 1920x1080p60, 9. 1920x1080p50, 10.1360x768p60, 11.1280x800p60, 12.1280x720p60, 13.1280x720p50, 14. 1024x768p60, r output y res! Get output y resolution r output res! output 1 resolution: (y=1~2)
- Page 18 RS-232 CommandS Command Code Function Description Example Feedback EDID Setting s input EDID x! Set HDMI input EDID mode s input EDID 1! input EDID:4K2K60_444, Stereo (x=1~19) Audio 2.0 1. 4K2K60_444,Stereo Audio 2.0 2. 4K2K60_444,Dolby/DTS 5.1 3. 4K2K60_444,HD Audio 7.1 4.
- Page 19 RS-232 CommandS Command Code Function Description Example Feedback s output y audio y=2. output 2 s output 1 audio output 1 audio mute off mute x! x=0. mute off mute 0! cont’d x=1. mute on r output y audio Get output y audio mute on/off r output 1 audio output 1 audio mute off mute!
- Page 20 RS-232 CommandS Command Code Function Description Example Feedback s output z Select output z one input for one s output 1 output 1: window x in y! display window for the current window 1 in 1! window 1 select HDMI 1 Multiview mode.
- Page 21 RS-232 CommandS Command Code Function Description Example Feedback r output y PIP Get output y PIP window size r output 1 PIP output 1 PIP size large size! (y=1~2) size! 1. output 1 2. output 2 s output y PBP Set output y PBP windows s output 1 PBP output 1 PBP mode 1...
- Page 22 RS-232 CommandS Command Code Function Description Example Feedback s output y triple 2. output 2 s output 1 triple output 1 triple aspect full screen aspect x! (x=1~2) aspect 1! cont’d 1. Full screen 2. 16:9 r output y triple Get output y triple windows r output 1 triple output 1 triple aspect full screen...
-
Page 23: Application Example
Application Example... - Page 24 Product. The Product is sold to you and any use of any associated intellectual property is deemed to be licensed to you by A-NeuVideo for your personal use only. A-NeuVideo does not transfer either the title or the intellectual property rights to the Product and A-NeuVideo retains full and complete title to the intellectual property rights therein.
