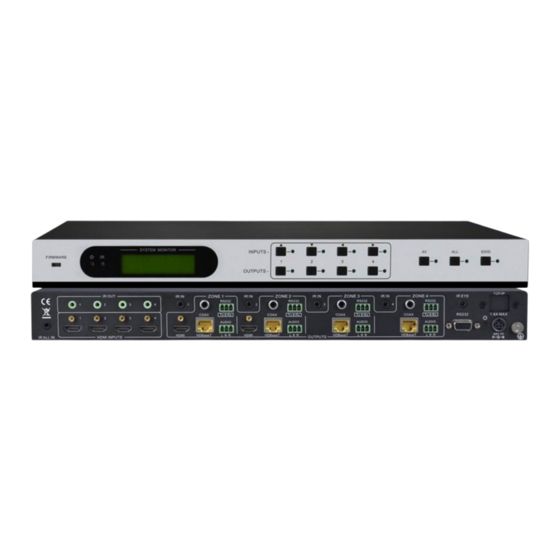

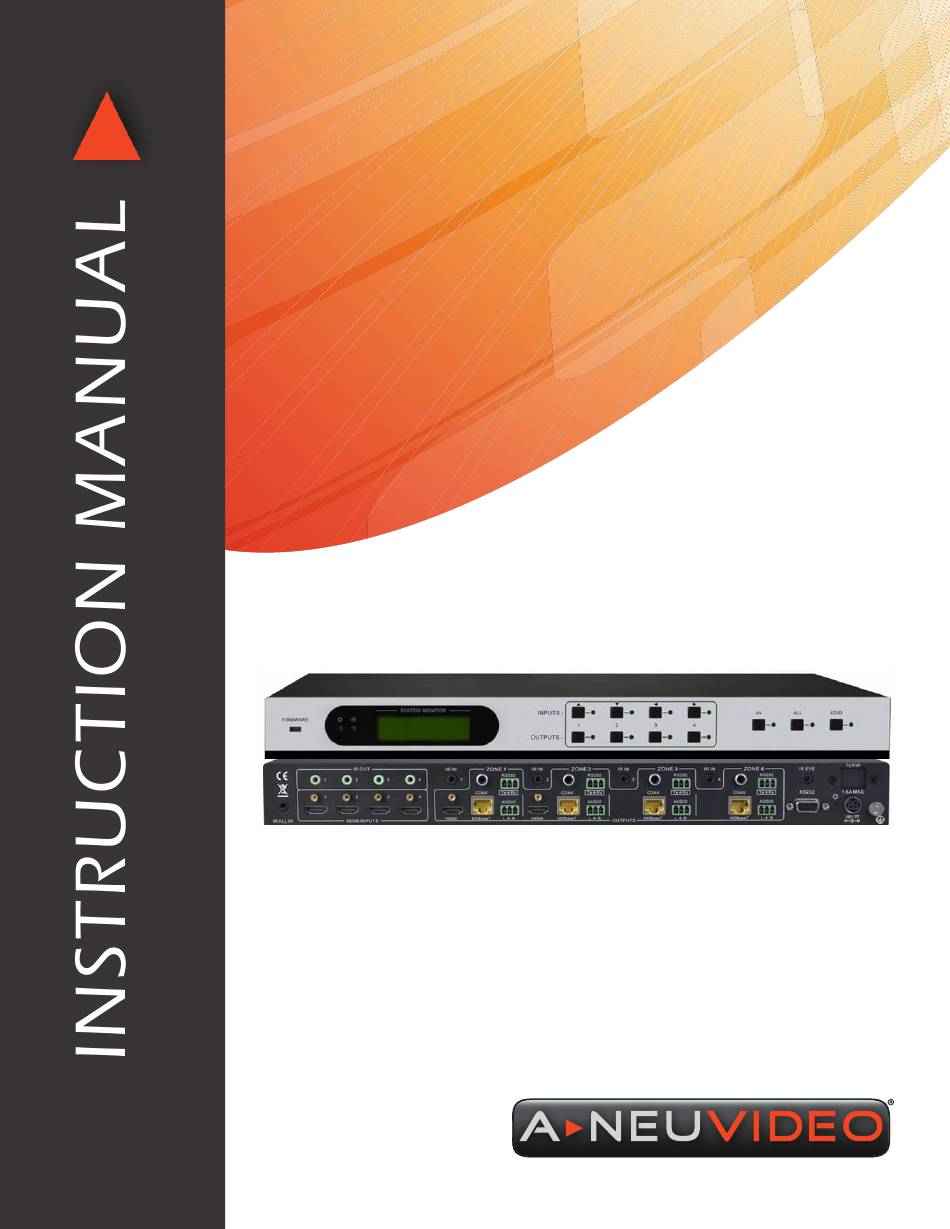

- Page 1 ANI-44H5-POE HDBaseT™ 4x4 Matrix Switcher with PoH A-NeuVideo.com Frisco, Texas 75034 (317) 456-2461 V2.0 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
INTRODUCTION • To protect the unit from overheating, do not block any vents or ANI-44H5-POE HDBaseT™ 4x4 Matrix Switcher includes (4) HDMI openings in the unit housing that provide ventilation and allow for inputs, (4) HDBaseT™ outputs, (2) local HDMI outputs, (4) de- sufficient space for air to circulate around the unit. -
Page 4: Features & Specifications
NEUVIDEO FEATURES & SPECIFICATIONS FEATURES • Supports 1080p@24Hz & 3D • HDCP Compliant and DVI compatible, supporting HDMI 1.4a & DVI 1.0 • Powerful EDID & HDCP management • HDBaseT™ outputs, to transmit HDMI, IR & RS-232 to 200 feet (60M) long distance over a CAT5E/6 cable •... -
Page 5: Front Panel
NEUVIDEO PANEL DESCRIPTIONS FRONT PANEL FirMwAre: Micro USB port for update firmware. Power iNDiCATor: Keep light when power on. ir reCeiVer: Receive control signal from IR remote. lCD: Real-time shows system status. iNPUTS/ MeNU BUTToNS: Normal mode: Input buttons, ranging from “1” to “4”. inquire mode: Press “AV”... -
Page 6: Real Panel
NEUVIDEO PANEL DESCRIPTIONS REAR PANEL ir All iN: IR control signal input port, connect with IR receiver, pass through to all the HDBaseT™ ports to control remote devices. HDMi iNPUTS: HDMI input ports, (4) in total, type A female HDMI connector, connect with HDMI input source devices. ir oUT: Connect with IR transmitter, to send out the IR signal from the HDBaseT™... -
Page 7: System Connection
NEUVIDEO System Connection Connection Procedure 1. Connect HDMI sources (e.g. DVD) to HDMI inputs of the HDBaseT™ 4x4 matrix switcher with HDMI cables. 2. Connect HDMI displays (e.g. HDTV) to HDMI outputs of the HDBaseT™ 4x4 matrix switcher with HDMI cables. 3. -
Page 8: System Operations
NEUVIDEO System Operations Button Control The operation examples are showed in the section Front Panel. Here we make a brief introduction to the system inquire operations. Keep pressing the button “AV” for 3 seconds, it will enter into system inquire menu. Use Left and Right direction button to check the previous/ next item. -
Page 9: Ir Control / Remote Control
NEUVIDEO IR Control / REMOTE CONTROL IR CONTROL By using IR & HDBaseT™ transmission technology, the HDBaseT™ 4x4 matrix switcher has some functions as follows: 1. Control far-end output device from local. 2. Control local input/output device remotely. 3. Control the HDBaseT™ 4x4 matrix switcher locally/remotely. The HDBaseT™... -
Page 10: Ir Operations
NEUVIDEO IR Operations IR Matrix Switching The (4) “IR OUT” ports make up a 4x4 IR matrix with the “IR IN” ports of the far-end receivers. See as below: Control local Devices or the HDBaseT™ 4x4 Matrix Switcher remotely The IR signal is received from corresponding remote controller, and then transferred to HDBaseT™ receiver, then to corresponding zone of the matrix through the twisted pair, finally transferred to IR OUT port and received by controlled device. - Page 11 NEUVIDEO IR Operations 3. CoNTrol FAr-eND oUTPUT DeViCe FroM loCAl To control a remote display from local, the IR receiver used must be with IR carrier. The IR signal is transferred to the corresponding zone connected with HDBaseT™ receiver connected with the IR transmitter. When the IR receiver is connected to IR ALL IN port, the IR signal can be finally transferred to all the (4) IR transmitters connected with HDBaseT™...
- Page 12 NEUVIDEO IR Operations 5. CoNTrol loCAl DeViCe FroM reMoTe User can control local device such as video source device, HDBaseT™ 4x4 matrix etc remotely. When using, the IR signal received from the HDBaseT™ receiver will be transmitted to the corresponding IR OUT port of the HDBaseT™ 4x4 matrix switcher. See below: 6.
-
Page 13: Rs-232 Communication Port / Twist Pair
NEUVIDEO RS-232 Communication Port/ TWIST PAIR Connection with RS-232 Communication Port Except the front control panel, the HDBaseT™ 4x4 matrix switcher can be controlled by far-end control system through the RS-232 communication port. This RS-232 communication port is a female 9-pin D connector. The definition of its pins is as the table below. FUNCTioN Unused Transmit... -
Page 14: Rs-232 Control
NEUVIDEO RS-232 Control RS-232 Commands Through the RS-232 communication port, user can control a far-end device whose bound rate is 2400, 4800, 9600, 19200, 38400, 57600 or 115200. Default setting of the HDBaseT™ 4x4 matrix switcher: bound rate is 9600, data bit is 8, stop bit is (1) and parity bit is none. Communication protocol: rS-232 Communication Protocol Baud rate: 9600 Data bit: 8... - Page 15 NEUVIDEO RS-232 Control CoMMAND CoMMAND FUNCTioNS TYPeS CoDeS Set communication between PC and HDBaseT™ receiver. Y is for RS-232 port (connect with RS-232 port of HDBaseT™ receiver) Value = 1,2,3,4,5,A,B,C,D,E,F,G or H The value of Y is defined into the following meanings (in a given baud rate depended by the value of X): a.
- Page 16 NEUVIDEO RS-232 Control CoMMAND CoMMAND FUNCTioNS TYPeS CoDeS %0900. Set as infrared carrier following mode. %0901. Set as infrared carrier enforcing mode. %0911. Reset to factory default. %9951. Check the command sent by port 1 when PWON. %9952. Check the command sent by port 2 when PWON. %9953.
- Page 17 NEUVIDEO RS-232 Control Control the HDBaseT™ 4x4 Matrix Switcher To control the HDBaseT™ 4x4 matrix switcher, you need to connect its 9 pin female RS-232 port to PC’s RS-232 port, or you can just connect any one of the HDBaseT™ receiver’s RS-232 port with PC (RS-232 command transmits to the HDBaseT™ 4x4 matrix switcher via the twisted pair).
- Page 18 NEUVIDEO RS-232 Control Bi-directional RS-232 Control By connecting one 3p captive screw RS-232 port with PC (or controlled device), and connecting the RS-232 port of corresponding HDBaseT™ receiver with controlled device (or PC), the RS-232 signal is able to be transmitted bi-directionally. CoNTrol FAr-eND DeViCe FroM loCAl Connect the RS-232 (3P captive screw) port in one zone to PC, and connect the controlled RS-232 device (3rd party device) to the corresponding (same zone as PC) receiver, see below:...
-
Page 19: Tcp/Ip Control
NEUVIDEO TCP/IP Control OPTIONAL MODULE (not field installed) Control Modes TCP/IP default settings: IP is 192.168.0.178, Gateway is 192.168.0.1, and Serial Port is 4001. IP & Gateway can be changed as you need, Serial Port cannot be changed. CoNTrolleD BY SiNGle PC Connect a computer to the TP port of the HDBaseT™... -
Page 20: Tcp/Ip Settings
NEUVIDEO TCP/IP Settings Step1. Connect the TCP/IP port of the HDBaseT™ 4x4 matrix switcher to Ethernet port of PC with twisted pair. Step2. Set the PC’s IP and gateway to the same IP section as the default IP of the HDBaseT™ 4x4 matrix switcher (192.168.0.178). Step3. - Page 21 NEUVIDEO TCP/IP Settings Step5. Change IP/Serial Port Change iP a. Select the tab “system info”, and then you are able to change the IP b. Press the button Apply to save your settings. Then the PC(s) in this LAN (connected with this router) will be able to control the matrix switcher.
- Page 22 NEUVIDEO TCP/IP Settings b. Set the port number to 4001 (unique, other number are unavailable), as pictured below: c. Press the button Apply on present page to save your settings, as below: Step6. Select the tab “reset device”, then your settings will be loaded to the HDBaseT™ 4x4 matrix switcher.
-
Page 23: Usb Firmware Updating
NEUVIDEO USB Firmw are Updating When required and supplied by the manufacture, you can update the firmware using the devices USB port. When the update program is running normally, it will show the interface as shown in next figure. Click and select the upgrade file. - Page 24 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
