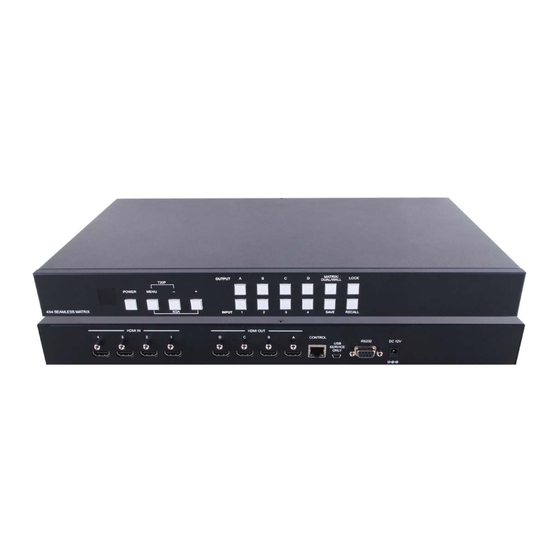

- Page 1 ANI-QUAD 4x4 HDMI VIDEO WALL PROCESSER & MATRIX SWITCH INSTRUCTION MANUAL A-NeuVideo.com | Frisco, Texas 75034 (317) 456-2461 V.1.4...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
We assume no responsibility for any infringements of patents or other rights of third parties which may The ANI-QUAD is a high performance, high speed HDMI video result from its use. processing system that can be easily confi gured and controlled... -
Page 4: Features & Specifications
FEATURES & SPECIFICATIONS FEATURES • HDMI, HDCP1.1 and DVI compliant • Deep color support 8/10/12 bit source • Seamless switching. Most sources switch with zero delay, similar to a cuts only production switcher. • Supports three different modes: Matrix mode/ Dual mode/ TV Wall mode •... -
Page 5: Front Panel
PANEL DESCRIPTIONS FRONT PANEL IR Window: IR receiver for signal from the device’s remote control or external IR controller Power • ON/OFF: Press this button to power On the device or set it to standby mode. • Factory reset to default: Press and hold Power button then connect power to reset the system to Factory default settings. ... -
Page 6: Rear Panel
This slot is reserved for factory use and fi rmware updates. RS-232: Used for remote control of the ANI-QUAD using RS-232 commands via a PC or other external controller. DC 12V: Plug the 12V DC power supply into the unit and connect the adaptor to an AC outlet. -
Page 7: Output Modes
OUTPUT MODES OUTPUT MODES VIDEO WALL MODE MATRIX MODE DUAL MODE... -
Page 8: Remote Control
REMOTE CONTROL DIP SWITCH Open Remote control back cover to adjust dip-switch ON/OFF to match IR address setting in the OSD menu. Factory default is “0”. RS-232 PROTOCOLS ANI-QUAD Remote Controller(PC) Assignment Defi nition Baud Rate: 115200bps Data Bit: 8 bits... -
Page 9: Rs-232 & Telnet Commands
RS-232 & TELNET COMMANDS RS-232 & TELNET COMMANDS All commands require a carriage return (0x0D). Commands are case-sensitive. Command Action ANI-QUAD Returns AUA001 Dual A Audio channel in Left side AUA001 AUA002 Dual A Audio channel in Right side AUA002... - Page 10 RS-232 & TELNET COMMANDS RS-232 & TELNET COMMANDS Command Action ANI-QUAD Returns INP999 Check current INPUT INP??? LCK000 Un-lock LCK000 LCK001 Lock LCK001 LCK999 Check current Lock/un-lock status LCK??? MNE001 OSD Menu EXIT No response MND001 OSD Menu DOWN No response...
-
Page 11: Gui Interface
SIMPLE CONTROL PANEL FULL FUNCTION CONTROL PANEL This is a Zip fi le (compressed). This is the actual software used to control the ANI-QUAD. CLICK THE LINK TO FROM OUR WEBSITE TO DOWNLOAD ANI-QUAD GUI INSTALLATION FILES or use this link (http://www.a-neuvideo.com/shop/Software/ANI-QUAD_RS232_Ethernet_AP_v16C.ZIP) -
Page 12: Osd Menu
OSD MENU OSD OPERATION Main Menu Sub Menu Adjustments Default PICTURE CONTRAST 0 ~ 100 (*1) BRIGHTNESS 0 ~ 100 SATURATION 0 ~ 100 0 ~ 100 DUAL AL 0 ~ 100 DUAL AR DUAL DUAL BL DUAL BR OUT A OUT B WALL OUT C... - Page 13 OSD MENU OSD OPERATION Main Menu Sub Menu Adjustments Default BEZEL CORRECTION CORRECTION ON, OFF (*7) H CORRECTION 0 ~ by output resolution V CORRECTION 0 ~ by output resolution EXIT RECALL / SAVE RECALL CANCEL, FAV.1~ 4 CANCEL (*8) SAVE CANCEL, FAV.1~ 4 CANCEL...
-
Page 14: Timing
TIMING INPUT TIMING Support Timing 480i@59 480p@60 576i@50 576p@50 720p@25,30,50,60, 1080i@50,60 1080p@24,25,30,50,60 640x480@60,72,75,85 720x400@70 800x600@56,60,72,75,85 1024x768@60,70,75,85 1152x864@70,75 1280x720@60cvt 1280x768@60RB,60,75 1280x800@60RB,60,75 1280x1024@60,60cvt,75 1360x768@60 1366x768@60RB,60 1400x1050@60RB,60 1440x900@60RB,60,75 1600x900@60RB 1600x1200@60 1680x1050@60RB,60 1920x1200@60RB OUTPUT TIMING Support Timing 480p60 1024x768@60 576p50 1280x800@60 720p50 1280x1024@60 720p60 1366x768@60 1080i50 (Matrix Mode Only)* 1440x900@60... -
Page 15: Web Gui
WEB GUI GUI SCREEN SHOTS Note: Device power Status must set to ON and Source status must be unlock in order to set the setting accordingly. Click, drag, select or key-in on each selection setting to make the changes immediately. - Page 16 WEB GUI GUI SCREEN SHOTS...
- Page 17 WEB GUI GUI SCREEN SHOTS Click on the Ethernet page for IP confi guration setting. Both the device (from the OSD setting menu) and the web address entry bar will need to be reset once any change is made on this page.
-
Page 18: Connection Diagram
CONNECTION DIAGRAM CONNECTION DIAGRAM... - Page 19 BY, THROUGH OR UNDER A-NEUVIDEO, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-Neuvideo, Inc. at the return address set forth on the Product’s packing label at your expense.
