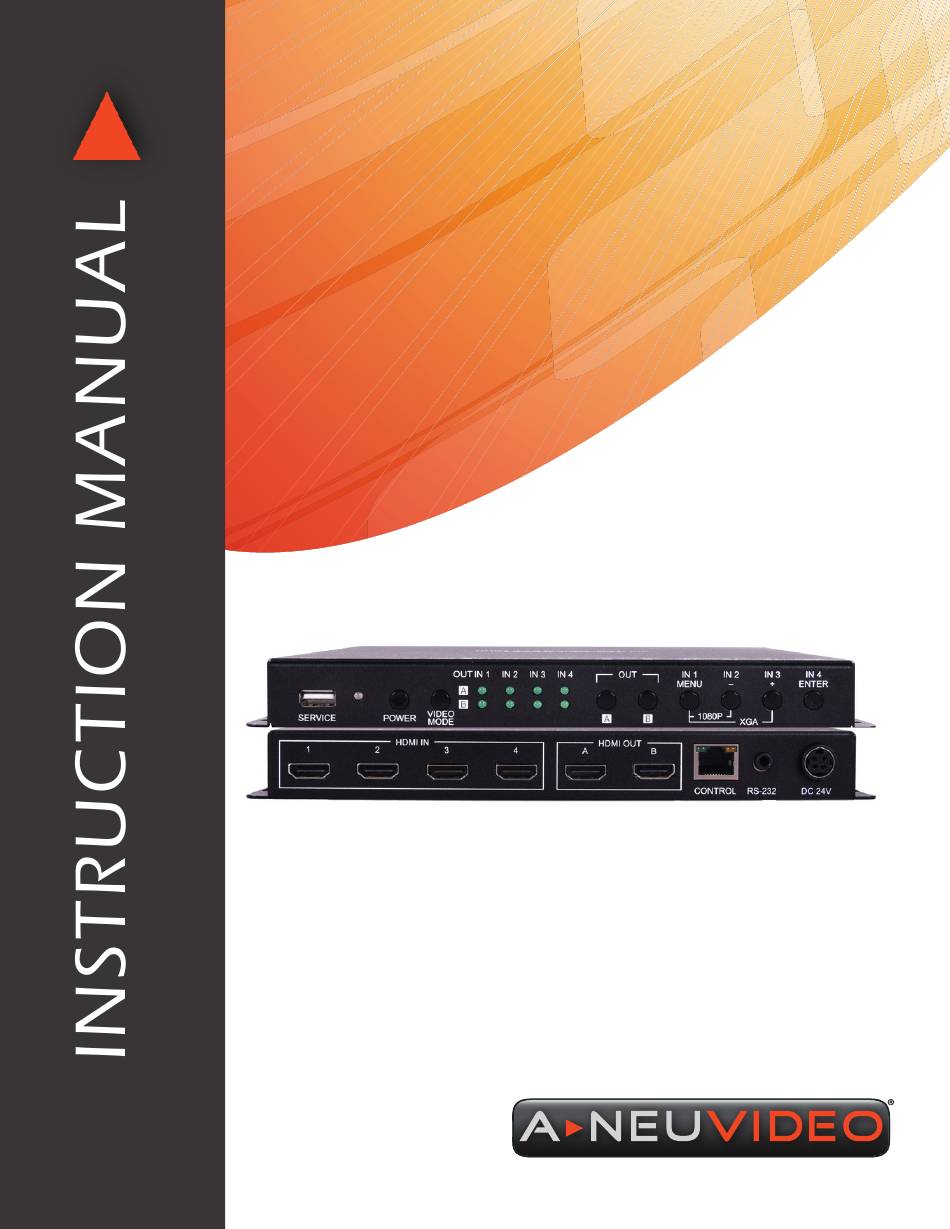

  • Page 1 ANI-42HPIPX UHD+ 4x2 HDMI Matrix with PiP A-NeuVideo.com Frisco, Texas 75036 AUDIO / VIDEO MANUFACTURER...
  • Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.

  • Page 3: Table Of Contents

    INTRODUCTION The ANI-42HPIPX This 4x2 HDMI Matrix with PiP is a high DISCLAIMERS performance HDMI switch with integrated scaling and multi-...

  • Page 4: Features / Applications / System Requirements

    NEUVIDEO FEATURES FEATURES • HDMI 2.0 and DVI 1.0 compliant (with the use of an HDMI-DVI adapter) • HDCP 1.x and 2.2 compliant • (4) HDMI inputs and (2) HDMI outputs • Supports up to 4K UHD+ (18Gbps, 4K@50/60Hz 4:4:4, 8bit) video input and output •...

  • Page 5: Specifications / Cable Specifications

    NEUVIDEO SPECIFICATIONS Specifications • HDMI Bandwidth: 18Gbps • Input Ports: (4) HDMI (Type-A) • Output Ports: (2) HDMI (Type-A) • Control Ports: • RS-232 (3.5mm) • IP Control (RJ-45) • Service Port: USB 2.0 (Type A) • Baud Rate: 19200 •...

  • Page 6: Operation Controls & Functions

    NEUVIDEO Operation controls & Functions Front Panel SERVICE PORT: This port is reserved for firmware update and user EDID/logo upload use only. POWER LED & BUTTON: Press this button to power the unit on (green LED) or place it into stand-by mode (red LED). Note: Ethernet and RS-232 remain active when the unit is in stand-by mode.

  • Page 7: Rear Panel

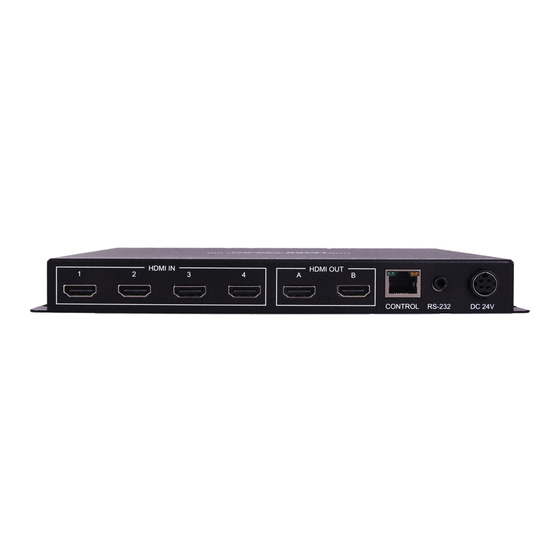

    NEUVIDEO Operation controls & Functions BACK Panel HDMI IN 1~4 PORTS: Connect to HDMI source equipment such as media players, game consoles, or set-top boxes. Note: Audio support on inputs 3~4 is limited to 2 channel LPCM. HDMI OUT A~B PORTS: Connect to HDMI TVs, monitors, or amplifiers for digital video and audio output.

  • Page 8: Rs-232 Control / Telnet Control

    NEUVIDEO RS-232 PINOUT / Telnet Control RS-232 Pinout & Defaults 3.5mm to DE-9 SERIAL PORT DEFAULT SETTINGS Adapter Cable BAUD RATE 19200 Data Bits Parity Bits None Stop Bits Flow Control None Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC are connected to the same active networks. TO ACCESS THE COMMAND LINE INTERFACE (CLI) Click START, type “cmd”...
  • Page 9 NEUVIDEO Serial & Telnet Commands Serial & Telnet Commands COMMAND DESCRIPTION HELP 8 Show the full command list. Show details about the specified command. HELP N1 8 N1 = {Command} Show the full command list. Show details about the specified command. ? N1 8 N1 = {Command} GET FW VER 8...
  • Page 10 NEUVIDEO Serial & Telnet Commands COMMAND DESCRIPTION GET WEBGUI LOGIN TIMEOUT 8 Show the current WebGUI inactivity timeout value. SET TELNET LOGIN N1 8 Enable or disable allowing Telnet logins. Available values for N1: [Enabled] [Disabled] GET TELNET LOGIN 8 Show the current state of Telnet login allowance.
  • Page 11 NEUVIDEO Serial & Telnet Commands COMMAND DESCRIPTION SET WINDOW N1 VPOSITION N2 8 Set the vertical position of the specified window. N1 = 1~4 [Window number] N1 = 0~{Max res} [Vertical size] Note: Valid in multi-windowing modes only. GET WINDOW N1 VPOSITION 8 Show the current vertical position of the specified window.
  • Page 12 NEUVIDEO Serial & Telnet Commands COMMAND DESCRIPTION SET WINDOW N1 BORDER COLOR N2 8 Set the border color of the specified window. [Cyan] N1 = 1~4 [Window number] [White] Available values for N2: [Dark Red] [Black] [Dark Green] [Red] [Dark Blue] [Green] [Dark Yellow] [Blue]...
  • Page 13 NEUVIDEO Serial & Telnet Commands COMMAND DESCRIPTION SET AUDIO OUT N1 ROUTE N2 8 Route the specified [Input 1] [Window 2] audio source to the [Input 2] [Window 3] specified audio output. [Input 3] [Window 4] N1 = A~B [Output port] [Input 4] Available values for N2: [Window 1]...
  • Page 14 NEUVIDEO Serial & Telnet Commands COMMAND DESCRIPTION SET OUT A OSD POSITION N1 8 Set the OSD menu location. Available values for N1: [Top Left] [Top Right] [Bottom Right] [Bottom Left] GET OUT A OSD POSITION 8 Show the current OSD menu location. SET OUT A OSD TIMEOUT N1 8 Set the OSD menu’s timeout value (in seconds).
  • Page 15 NEUVIDEO Serial & Telnet Commands COMMAND DESCRIPTION SET AUTO SYNC OFF N1 8 Enable or disable the Auto Sync Off [1 minutes] function and set the timeout length. [1.5 minutes] Available values for N1: [2 minutes] [Always on] [2.5 minutes] [5 seconds] [3 minutes] [10 seconds]...

  • Page 16: Osd Menu

    NEUVIDEO OSD Menu OSD Menu All functions of this unit can be controlled by using the OSD (On Screen Display) which is activated MAIN MENU by pressing the MENU button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER Video Mode buttons to navigate the OSD menu.
  • Page 17 NEUVIDEO OSD Menu 1. Input Select: Select the input to modify. WINDOW LAYOUT (MATRIX MODE) Note: All settings are individually saved, per-input. 2ND LEVEL 3RD LEVEL 2. Aspect Ratio: Select a fixed aspect ratio for the currently selected window. Input Select In 1~4 [1] Selecting the “Full”...
  • Page 18 NEUVIDEO OSD Menu 1. Window Select: Select the window to modify. WINDOW LAYOUT (PIP/POP/QUAD/PRESET MODES) Note: All settings are individually saved, per-window/per-mode. 2ND LEVEL 3RD LEVEL 2. Window On/Off: Enable or disable the currently selected window. Window Select Win 1~4 [1] Window On/Off 3.
  • Page 19 NEUVIDEO OSD Menu 1. Input Select: Select the input to modify. PICTURE 2ND LEVEL 3RD LEVEL 2. Contrast: Set the overall contrast of the currently selected input. Input Select IN 1 3. Brightness: Set the overall brightness of the currently selected input. In 2 4.
  • Page 20 NEUVIDEO OSD Menu 1. OUT A Source: Select the audio source to pair with video output A. AUDIO (PIP/POP/QUAD/PRESET MODES) 2ND LEVEL 3RD LEVEL 2. OUT A Mute: Enable or disable muting audio output A. OUT A Source WIN 1 3.
  • Page 21 NEUVIDEO OSD Menu 1. EDID Mode: Select how to assign EDIDs to the unit’s inputs. Selecting INPUT EDID “Independent” allows for a different EDID to be assigned to each input, selecting 2ND LEVEL 3RD LEVEL “All” allows for a single EDID to be assigned to all inputs. EDID Mode 2.
  • Page 22 NEUVIDEO OSD Menu Output Resolution: Select OUTPUT RESOLUTION OUTPUT RESOLUTION OUTPUT RESOLUTION preferred video output resolution. 2ND LEVEL 2ND LEVEL 2ND LEVEL Note: Both outputs always share the same resolution selection. 640x480p59 1400x1050p60 3840x2160p30 480p60 1440x900p60 4K p24 (DCI) 576p50 1600x900p60RB 4K p25 (DCI) 800x600p60...
  • Page 23 NEUVIDEO OSD Menu 1. Logo On/Off: Enable or disable displaying the logo graphic. LOGO SETTINGS 2. Position X/Y: 2ND LEVEL 3RD LEVEL Sets the position of the logo’s upper left corner, within the output. The position values are a relative percentage of the available output resolution. Logo On/Off 3.
  • Page 24 NEUVIDEO OSD Menu 1. Auto Sync Off: Set the amount of time to continue outputting sync with a black SETUP screen if there are no live sources and no operations have been executed on the unit. Setting this to “Always On” forces the unit to always output sync. 2ND LEVEL 3RD LEVEL Auto Sync Off...

  • Page 25: Webgui Control

    DEVICE DISCOVERY: Please obtain the “Device Discovery” software from our website A-Neuvideo.com and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery” software. Click on “Find Devices on Network”...
  • Page 26 NEUVIDEO WebGUI Control UPPER TAB WINDOWS: This upper section of the web interface is visible on every tab and provides control over the unit’s operational mode, source selection, and output resolution as well as containing basic information about the currently connected source and display devices.
  • Page 27 NEUVIDEO WebGUI Control 6. Aspect Ratio: Use the dropdown to select a fixed aspect ratio for the currently selected window or input. Available options are: Full, 16:9, 16:10, 4:3, Best Fit, and User. In multi-windowing modes the aspect ratio will be based on the window’s current height. Selecting the “Full”...
  • Page 28 NEUVIDEO WebGUI Control • IN 1~4: Always use the audio from the specified input. • WIN 1~4: Always use audio from the source currently displayed in the specified window. Note: WIN 2~4 is not available as a source in Matrix mode. 2.
  • Page 29 NEUVIDEO WebGUI Control OSD SETTINGS TAB This tab provides control over the behavior of the OSD menu and informational display. 1. Menu Position: Use the dropdown to set the position of the OSD menu on the output. Available choices are: Top Left, Top Right, Bottom Right, and Bottom Left. 2.
  • Page 30 NEUVIDEO WebGUI Control 2. Static IP Config: When the unit is in Static IP mode the IP address, netmask and gateway addresses may be manually set here. Click “Save” to apply and use the newly entered address. 3. Link Status: Displays the unit’s current IP configuration and the unit’s MAC address.

  • Page 31: Connection Diagram

    NEUVIDEO CONNECTION DIAGRAM CONNECTION DIAGRAM...

  • Page 32: Video Specifications

    NEUVIDEO Video Specifications Video Specifications INPUT OUTPUT INPUT OUTPUT SUPPORTED SUPPORTED RESOLUTIONS (HZ) HDMI HDMI RESOLUTIONS (HZ) HDMI HDMI 720x400p@70/85 1600x1200p@60 ü ü ü 640x480p@60/72/75/85 60Hz ü 1680x1050p@60 ü ü 720x480i@60 1920x1080i@50/60 ü ü 720x480p@60 ü ü 1920x1080p@24/25/30 ü ü 720x576i@50 ü...

  • Page 33: Audio Specifications

    NEUVIDEO Audio Specifications Digital Audio HDMI INPUTS 1~2/ ALL OUTPUTS LPCM Max Channels 8 Channels Sampling Rate (KHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 BITSTREAM Supported Formats Standard & High-Definition HDMI INPUTS 3~4 LPCM Max Channels 2 Channels Sampling Rate (KHz) BITSTREAM Supported Formats None...
  • Page 34 THIS PAGE IS INTENTIONALLY LEFT BLANK.
  • Page 35 THIS PAGE IS INTENTIONALLY LEFT BLANK.
  • Page 36 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
