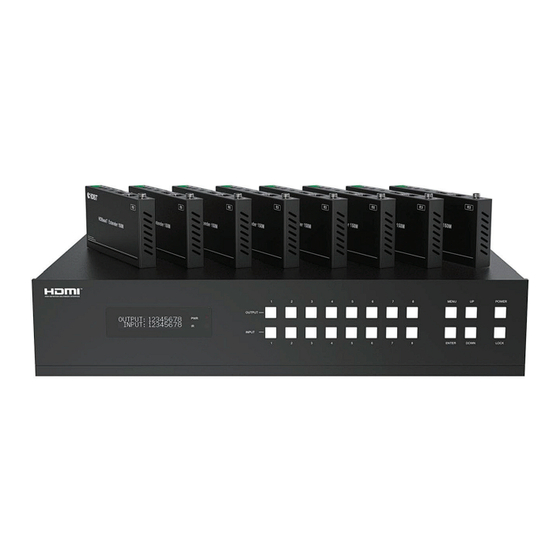

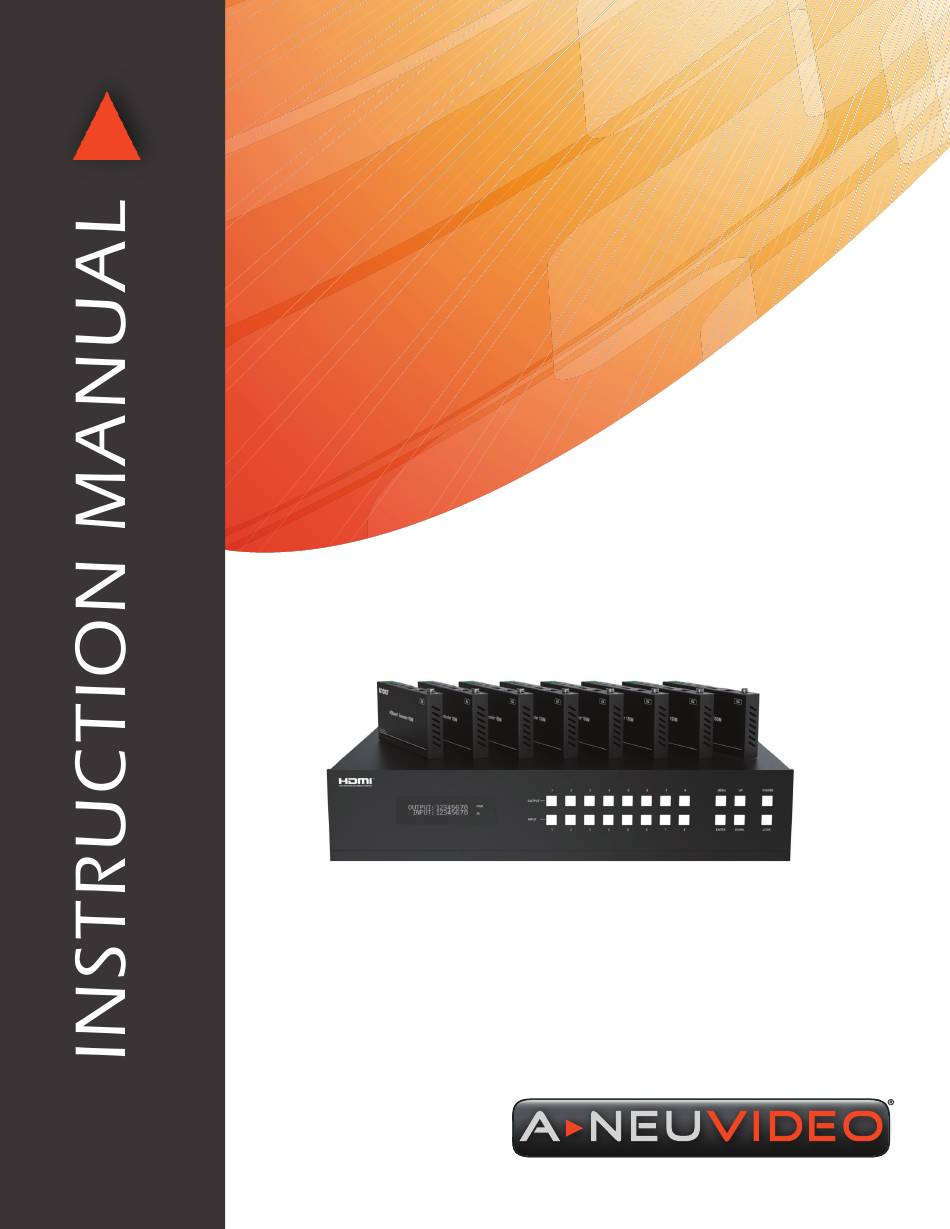

- Page 1 ANI-UHD88-8H 8x8 +8 4K@60Hz HDBT HDMI HDR HDCP 2.2 18G 492ft (150M) Matrix Switcher w/ 8 Receivers A-NeuVideo.com Frisco, Texas 75036 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
— electronic, mechanical, magnetic, optical, chemical, manual, or make sure the following items are contained in the shipping carton: otherwise — without the express written permission and consent. • ANI-UHD88-8H 18Gbps 8x8 HDBaseT™ (150M) Matrix • (8) HDBaseT™ Receiver © Copyright 2020. All Rights Reserved. -
Page 4: Features & Specifications
NEUVIDEO FEATURES / SPECIFICATIONS FEATURES • HDMI 2.0b, HDCP 2.2 and HDCP 1.x compliant • Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI & HDBaseT™ ports • (8) HDMI inputs, (8) HDMI & HDBaseT™ mirrored outputs • HDMI ports transmit 18Gbps lossless uncompressed video bandwidth •... - Page 5 NEUVIDEO SPECIFICATIONS SPECIFICATIONS • Controls: • (9) IR IN [3.5mm Stereo Mini-jack] • (9) IR OUT [3.5mm Stereo Mini-jack] • TCP/IP [RJ45] • RS-232 [D-Sub 9] HDBaseT™ Receiver: • Input: HDBT IN [RJ45, 8-pin female] • Outputs: • HDMI Type A [19-pin female] •...
-
Page 6: Operation Controls & Functions
NEUVIDEO OPERATION CONTROLS & FUNCTIONS Matrix Panel: Front Panel OLED SCREEN: Display matrix switching status, input / output port, EDID, Baud rate, IP Address. POWER LED: The LED will illuminate in green when the product is working normally, and red when the product is on standby. OUTPUT / INPUT BUTTONS: You need to press an output button (1~8) firstly and then press an input button (1~8) to select the corresponding input source for the output port. - Page 7 NEUVIDEO OPERATION CONTROLS & FUNCTIONS Matrix Panel: BACK Panel IR OUT (1-8/ALL) PORTS: Connect to IR blaster cable, the IR emit signal is from the “IR IN” port of the HDBaseT™ Receiver. IR IN (1-8/ALL) PORTS: Connect to IR receiver cable, the IR receive signal will emit to the “IR OUT” port of the HDBaseT™ Receiver. AUDIO OUT (1-8) PORTS: (8) groups of coaxial and balanced analog audio mirrored output ports.
- Page 8 NEUVIDEO OPERATION CONTROLS & FUNCTIONS HDBaseT™ Receiver Panels POWER LED: Red LED will be on when the receiver is powered on. SERVICE PORT: Firmware update port. DC 24V: DC 24V/1A power supply input port. Note: The Matrix supports POC function, it means that either transmitter or receiver is powered on by 24V/1A power adapter, the other one doesn’t need power supply.
-
Page 9: Remote Control
NEUVIDEO Remote Control Output Resolutions POWER ON OR STANDBY: Power on the Matrix or set it to standby mode. INPUT 1/2/3/4/5/6/7/8: Select input source button. ◄ ►: Select the last or next input source button. OUTPUT 1/2/3/4/5/6/7/8 BUTTON: Select output source button. ALL: Select all output source simultaneously. -
Page 10: Ir Control System
NEUVIDEO IR Control System IR Control System The product is not only a matrix switch but also an extender. It supports bi-directional IR control. When Matrix is connected to HDBaseT™ Receiver through CAT 5e/6/7 cable, you can control remote display device (HDBaseT™) or input source device (Matrix) through IR signal transmission. -
Page 11: Ir Cable Pin Assignment
NEUVIDEO IR Control System / IR Cable Pin Assignment At HDBaseT™ receiver (Remote end): IR signal follows video switch to change. For example, the HDMI output signal on the HDBaseT™ Receiver 1 is from the HDMI INPUT 2 port, so IR input signal of the HDBaseT™ Receiver 1 will emit to IR OUT 2 port of the Matrix. -
Page 12: Edid Management
NEUVIDEO EDID Management EDID Management This Matrix has 21 factory defined EDID settings, 2 user-defined EDID modes and 16 copy EDID modes. You can select defined EDID mode or copy EDID mode to input port through on-panel button, RS-232 control or Web GUI. ON-PANEL BUTTON OPERATION: On the initial OLED display screen, press “MENU”... -
Page 13: Web Gui User Guide
NEUVIDEO Web GUI User Guide Web GUI User Guide The Matrix can be controlled by Web GUI. The operation method is shown as below: STEP 1: Get the current IP Address. The default IP address is 192.168.1.100. You can get the current Matrix IP address in two ways: THE FIRST WAY: You can get the IP address via panel buttons. - Page 14 Web GUI User Guide Status Page: The Status page provides basic information about the product model, installed firmware version and the network settings of the device. ANI-UHD88-8H Video Page: You can do the following operations on the Video page: OUTPUT: The current device’s OUTPUT port.
- Page 15 NEUVIDEO Web GUI User Guide Set EDID for the User Click the “Browse” button, then select the bin file. If you select the wrong EDID file, there will be a prompt, as shown in the following figure: Make sure to select the correct file, then you can check the name of the selected file. Select “User 1”...
- Page 16 NEUVIDEO Web GUI User Guide Network Page: Modify Network Setting Modify the Mode/IP Address/Gateway/Subnet Mask/Telnet Port as required, click “Save” to save the settings, then it will come into effect. After modification, if the Mode is “Static”, it will switch to the corresponding IP Address; if the Mode is “DHCP”, it will automatically search and switch to the IP Address assigned by the router.
- Page 17 NEUVIDEO Web GUI User Guide System Page: PANEL LOCK: Click to lock/unlock panel buttons. “On” indicates that panel buttons are unavailable; “Off” indicates panel buttons are available. BEEP: Click to turn on/off the beep. LCD: You can turn on/off the LCD, and set the turn-on time (15s/30s/60s).
-
Page 18: Rs-232 Control Commands
NEUVIDEO RS-232 Control CommandS The ANI-UHD88-8H supports RS-232 control via 3rd party controller or Serial Command program (not provided). Connection type support is either RS-232 DB9 to RS-232 DB9, or USB to RS-232 DB9. RS-232 DB9 TO RS-232 DB9 RS-232 CONFIGURATION... -
Page 19: Ascii Commands
NEUVIDEO ASCII CommandS The ASCII command list about the product is shown as below. Each command must terminate with an ! and a carage return. POWER COMMAND DEFAULT FUNCTION DESCRIPTION EXAMPLE FEEDBACK CODE SETTING s power z! POWER ON/OFF THE DEVICE, Z=0~1 s power 1! Power on POWER ON... - Page 20 NEUVIDEO ASCII CommandS r lcd mode! GET THE BACKLIGHT STATUS OF LCD SCREEN r lcd mode! LCD ALWAYS ON s save preset z! SAVE SWITCH STATE BETWEEN ALL OUTPUT s save preset 1! Save to Preset 1 PORT AND THE INPUT PORT TO PRESET Z, Z=1~8 s recall preset z! CALL SAVED PRESET Z SCENARIOS, Z=1~8...
- Page 21 NEUVIDEO ASCII CommandS s hdbt y scaler z! SET HDMI OUTPUT Y PORT OUTPUT SCALER s hdmi 1 scaler 1! HDBT Output 1 set to HDBT ALL bypass mode MODE, Y=0~8 (0=ALL), Z=1~3 (1=BYPASS, s hdmi 0 scaler 1! OUTPUTS HDBT ALL Outputs set to 2=4K->1080P, 3=AUTO) SET TO BYPASS...
- Page 22 NEUVIDEO ASCII CommandS s cec in x play! SET INPUT X PLAY BY CEC, s cec in 1 play! Input 1 PLAY X=0~8 (0=ALL INPUT) OPERATION s cec in x pause! SET INPUT X PAUSE BY CEC, s cec in 1 pause! Input 1 PAUSE X=0~8 (0=ALL INPUT) OPERATION...
- Page 23 NEUVIDEO ASCII CommandS r mac addr! GET NETWORK MAC ADDRESS r mac addr! MAC ADDRESS: 00:1C:91:03:80:01 s ip mode z! SET NETWORK IP MODE TO STATIC IP OR s ip mode 0! Set IP mode: Static DHCP, Z=0~1 (Z=0 STATIC, Z=1 DHCP ) (Please use “s net reboot!”...
- Page 24 NEUVIDEO ASCII CommandS s uart x datalen y! SET THE DATA LENGTH OF X HDBT UART, s uart 1 datalen 1! HDBT uart1 data len is X=0-8, Y=1-2, 1: 8BIT 2: 7BIT 8bit s uart x baudrate SET THE BAUDRATE OF X HDBT UART, s uart 1 HDBT uart1 baudrate is X=0-8, Y=1-8, 1: 115200 (DEFAULT) 2: 57600...
-
Page 25: Application Example
NEUVIDEO Application Example The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. - Page 26 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 27 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 28 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
