EVAL-ADPD1081Z-PPG

GETTING STARTED

INSTALLING THE APPLICATIONS WAVETOOL

Download the Applications Wavetool software package from the
EVAL-ADPD1081Z-PPG product page at
ADPD1081. Unzip the folder and run the Applications Wavetool
executable file. Follow the prompts, beginning with the setup
window shown in Figure 2 for software installation.

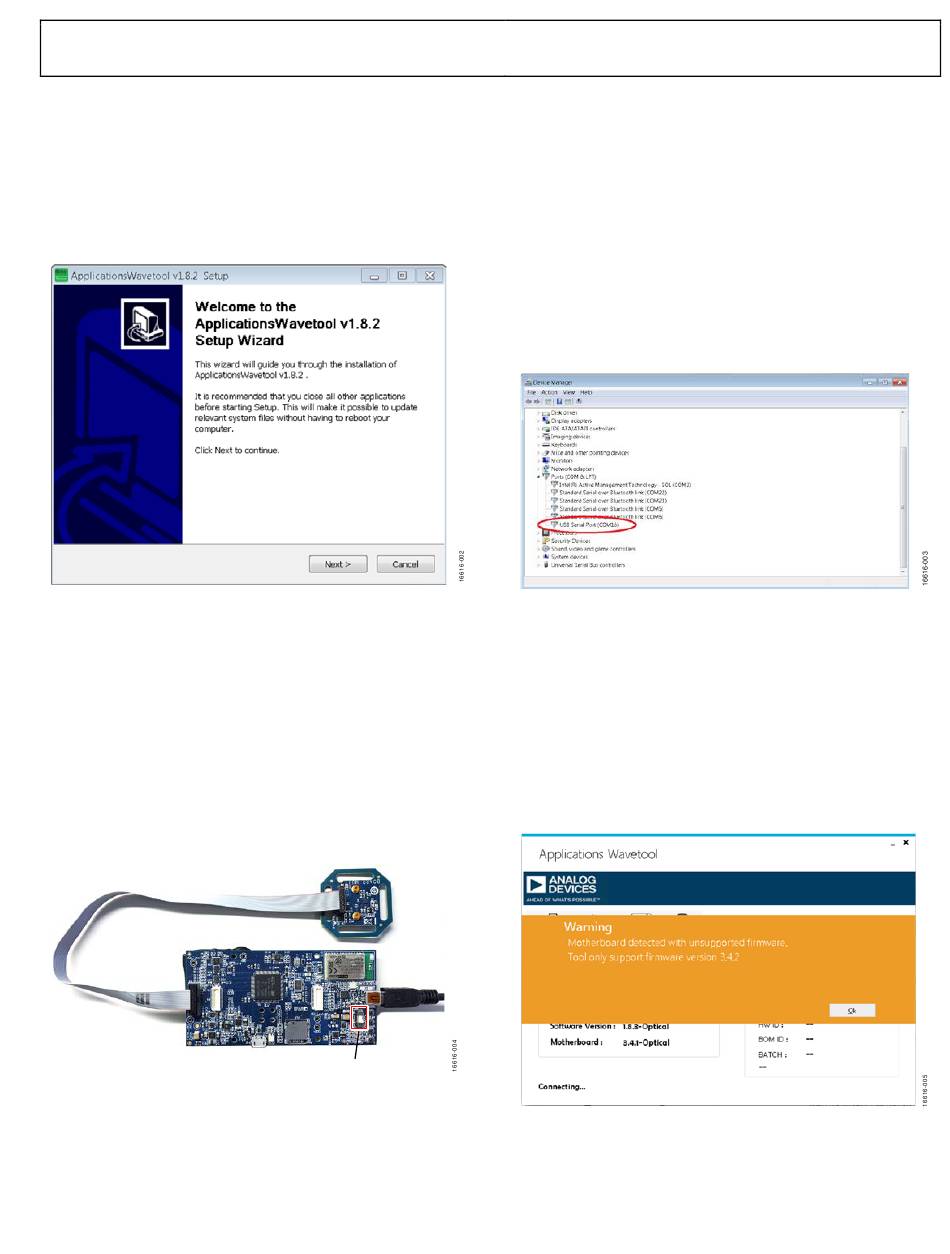

Figure 2. ApplicationsWavetool Setup Window
CONNECTING THE EVAL-ADPDUCZ
MICROCONTROLLER BOARD AND THE EVAL-
ADPD1081Z-PPG EVALUATION BOARD
Connect the USB cable to the
connect the ribbon cable to the EVAL-ADPD1081Z-PPG board,
and switch the power switch to the ON position (see Figure 3).
When the USB cable is connected, the second LED below the
power switch illuminates, indicating that the on-board battery is
being charged. When the power switch is turned to the ON
position, the LED immediately below the power switch illuminates,
indicating that the EVAL-ADPDUCZ
Figure 3. Connect the EVAL-ADPDUCZ
User Guide
www.analog.com/eval-
EVAL-ADPDUCZ evaluation board,
microcontroller board is on.
SWITCH TO ON
to the EVAL-ADPD1081Z-PPG
CHECKING THE USB SERIAL CONNECTION IN
WINDOWS®
Ensure that the COM port driver is installed correctly. To verify
proper installation, go to Control Panel > All Control Panel
Items > System > Device Manager, as shown in Figure 4. In this
case, the proper COM port selection is USB Serial Port (COM16).
The EVAL-ADPDUCZ
universal asynchronous receiver transmitter (UART) IC. If the
USB driver installation does not install properly, refer to the
corresponding FTDI driver installation guide for the operating
system in use.

RUNNING THE APPLICATIONS WAVETOOL

To start the Applications Wavetool application, navigate to the
Start menu > Analog Devices > ApplicationsWavetool and
click ApplicationsWavetool.

INSTRUCTIONS TO LOAD THE FIRMWARE

The EVAL-ADPDUCZ
version of the firmware installed during manufacture. In this
situation, the user receives the message shown in Figure 5 when
trying to connect to the Applications Wavetool.
Figure 5. Warning Message for Outdated Firmware
Rev. 0 | Page 3 of 9
microcontroller board uses an FT232 USB
Figure 4. USB Serial Port in Windows 7
microcontroller board may have an older
UG-1255
