ACQUIRING DATA

The EVAL-ADPD1081Z-PPG is intended for wrist-based PPG

measurements. Select the ADPD Device data view (see Figure 10).

This view opens a window that allows the user to run the

ADPD1080/ADPD1081

device and collect data (see Figure 12).

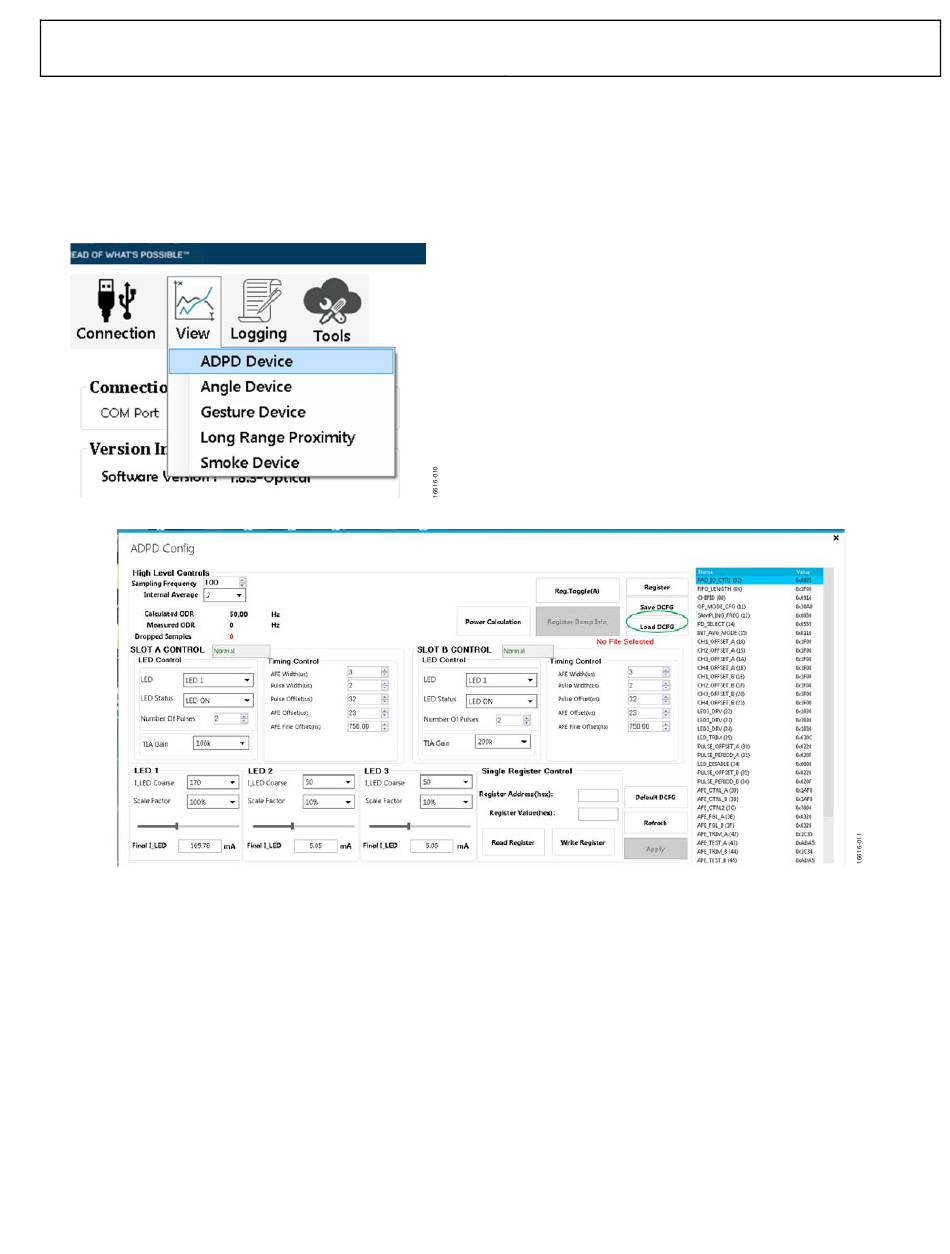

Figure 10. Select ADPD Device

User Guide

Figure 11. ADPD Config View

Rev. 0 | Page 5 of 9

In the upper right corner of the data view window, click the ADPD

Config button to open the ADPD Config (see Figure 11). Click

Load DCFG to select a configuration file. For PPG measurements,

select the ADPD108_M07.dcfg configuration file.
