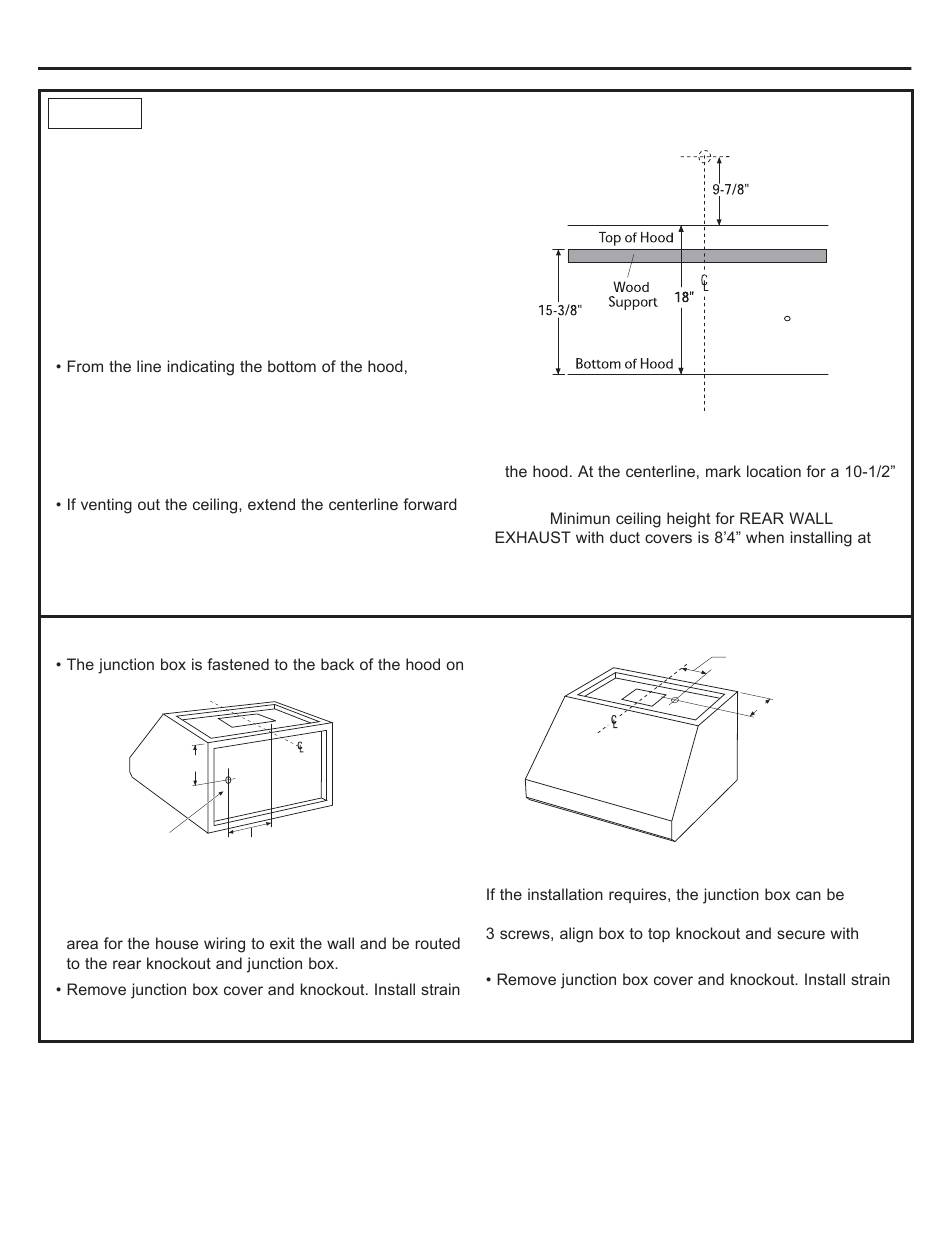

STEP 1 DETERMINE HOOD, DUCTWORK AND WIRING LOCATIONS
• Use a level to draw the cooktop centerline location.
Draw the line to ceiling height.
• Measure desired distance from the bottom of the
hood to the cooking surface, 30" min. to 36" max.
NOTE: If you are installing the hood with duct
covers, be sure to read "Using Duct Cover
Accessories" page 7. Exact installation height may
be determined by use of one or more duct covers.
• Use a level to draw a straight horizontal pencil line
indicating the bottom of the hood.
measure 15-3/8" up and draw another line for the
location of the wood support. See illustration.
FOR VERTICAL (Straight Up) DUCTING:
• Use a level to draw a centerline from the bottom of the
hood to ceiling or soffit.
on the ceiling or soffit.
• Locate the centerline of a 10-1/2" hole on the ceiling or
soffit by measuring 6" from the wall.
HOUSE WIRING LOCATION:
the right side.
8-3/8"
Electrical
Area
• The recessed back side of the hood provides a large
relief.
31-2000859 Rev. 0

Installation Instructions

18-13/16" for 48" Models
12-13/16" for 36" Models
9-13/16" for 30" Models
FOR DUCTING THROUGH REAR WALL:
• Measure 9-7/8" above the marked line for the top of
diameter hole.
NOTE:
30" above countertop using 10" elbow
Alternate Knockout Locations
relocated from the back to the top of the hood. Remove
original screws.
relief.
18-1/16" for 48" Models
12-1/16" for 36" Models
9-1/16" for 30" Models
6-1/2"
