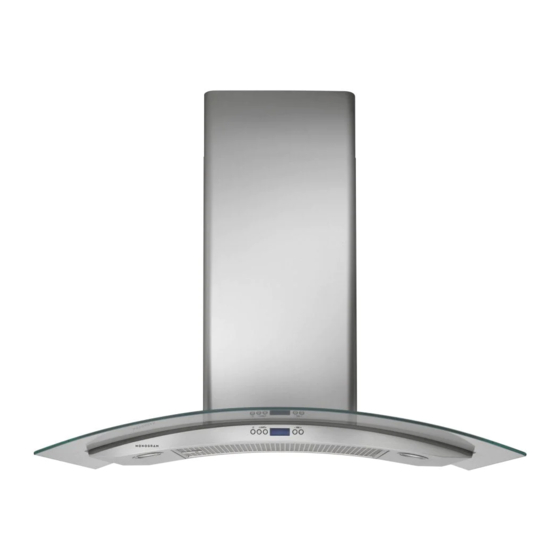

36" glass canopy chimney vent hood

Advertisement

Quick Links

com
::
rangehoods
.
Installation
Instructions
49-80328
04-06 JR
GE Monogram at
Call 1-800-667-8721 anywhere in the US and Canada
::rangehoods.com
is a division of
www.rangehoods.com
-
36" Glass Canopy
Chimney Vent Hood
ZV900
accessories
kitchen::

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZV900 and is the answer not in the manual?

Questions and answers

Summary of Contents for Monogram ZV900

  • Page 1: Installation Instructions

    Call 1-800-667-8721 anywhere in the US and Canada www.rangehoods.com Installation Instructions 36″ Glass Canopy Chimney Vent Hood ZV900 49-80328 04-06 JR ::rangehoods.com GE Monogram at accessories kitchen:: is a division of...
  • Page 2 Drill 2 (two) 3/16″ pilot holes through studs or rear wall support 14-5/8″ to top of bracket REAR WALL MOUNTING TEMPLATE ALIGN BOTTOM EDGE WITH PENCIL LINE, INDICATING BOTTOM OF THE HOOD 49-80405 04-06 JR...
  • Page 3: Safety Information

    Product failure due to improper installation is not par le fabricant. En cas de question, consulter le covered under the warranty. fabricant. For Monogram local service in your area, call 1.800.444.1845. B. Avant toute intervention ou nettoyage, couper For Monogram service in Canada, call 1.888.880.3030 l’alimentation électrique au disjoncteur et verrouiller...
  • Page 4: Table Of Contents

    9′ 5″ ceiling heights. required. The ZX90010 accessory is available for ceiling This hood can be installed over any Monogram heights of 9′ 6″ to 10′ 5″. electric cooktop or gas cooktop. It cannot be installed over a Monogram Professional cooktop or range.
  • Page 5: Installation Preparation

    à une réparation. L’appareil est équipé d’un sectionneur intégral situé à l’intérieur du logement du • Connect the hood wiring to the house wiring in accordance ventilateur. with local codes. ::rangehoods.com GE Monogram at accessories kitchen:: is a division of...
  • Page 6: Duct Fittings

    Equivalent length of duct pieces are Total Duct Run based on actual tests conducted by GE Evaluation Engineering and reflect requirements for good venting performance with any ventilation hood. ::rangehoods.com GE Monogram at accessories kitchen:: is a division of...
  • Page 7: Tools And Materials Required

    PRUDENCE : Portez des gants pour éviter • Remove and properly discard the plastic wrapping. les blessures causées par les tranchants. • Remove parts box, duct covers and other packaging. ::rangehoods.com GE Monogram at accessories kitchen:: is a division of...
  • Page 8: Determine Installation Height

    24″ to 30″ 24″ to 30″ ACCESSORIES: 10′ 1″ 24″ to 30″ 24″ to 30″ • Order ZX90010 accessory for ZV900 wall mount 10′ 2″ 25″ to 30″ 24″ to 30″ ′ ″ hood to reach ceiling heights between 9 ′...
  • Page 9: Check Installation Hardware

    REAR WALL MOUNTING TEMPLATE Mounting bracket 1 charcoal filter for recirculating installation ALIGN BOTTOM EDGE WITH PENCIL LINE, INDICATING BOTTOM OF THE HOOD 49-80405 04-06 JR Wall mount template ::rangehoods.com GE Monogram at accessories kitchen:: is a division of...
  • Page 10: Installation-Vented To The Outside

    ″ • Wiring should enter the back wall at least 22 above ″ the bottom of the hood, and within 6 of the left side of the centerline. ::rangehoods.com GE Monogram at accessories kitchen:: is a division of...
  • Page 11: Step 2, Install Mounting Bracket

    • Use wood screws to secure the mounting bracket to the wall. The screws must engage wall studs or the installed horizontal mounting support. • Check to be sure that the bracket is level. ::rangehoods.com GE Monogram at accessories kitchen:: is a division of...
  • Page 12: Step 4, Prepare The Hood

    Bottom view Rear mounting Rear side hooks Rear view • Join two cable connectors at the front of the hood. Engage flange on motor housing into slots To Lights Control Panel ::rangehoods.com GE Monogram at accessories kitchen:: is a division of...
  • Page 13: Step 5, Mount The Hood

    3/8″ and install wall fastener anchors. • Place the hood back onto the mounting bracket, check level again and install the wall fastener. ::rangehoods.com GE Monogram at accessories kitchen:: is a division of...
  • Page 14: Step 8, Connect Electrical

    • Secure all connections with wire nuts on each electrical connector. • Push wires into junction box and replace cover. Be sure wires are not pinched. • Secure J-Box cover with original screw. ::rangehoods.com GE Monogram at accessories kitchen:: is a division of...
  • Page 15: Step 9, Install Duct Covers

    • Refer to the Owner’s Manual for operating Lower duct instructions. cover Lower duct cover seat • Extend the inner duct upward to the ceiling bracket. • Secure duct cover to ceiling bracket with 2 screws. ::rangehoods.com GE Monogram at accessories kitchen:: is a division of...
  • Page 16: Installation-Recirculating

    Use cleats behind both sides of the support to secure to wall studs. • Reinstall drywall. ::rangehoods.com ::rangehoods.com GE Monogram at GE Monogram at accessories accessories kitchen:: kitchen:: is a division of...
  • Page 17: Step 2, Install Mounting Bracket

    • Use wood screws to secure the mounting bracket to the wall. The screws must engage wall studs or the installed horizontal mounting support. • Check to be sure that the bracket is level. ::rangehoods.com GE Monogram at accessories kitchen:: is a division of...
  • Page 18: Step 4, Prepare The Hood

    3/8″ and install wall fastener anchors. • Place the hood back onto the mounting bracket, check level again and install the wall fastener. ::rangehoods.com GE Monogram at accessories kitchen:: is a division of...
  • Page 19: Step 7, Size And Cut Duct Piece

    • Secure all connections with wire nuts on each electrical connector. • Push wires into junction box and replace cover. Be sure wires are not pinched. • Secure J-Box cover with original screw. ::rangehoods.com GE Monogram at accessories kitchen:: is a division of...
  • Page 20: Step 9, Install Duct Covers

    • Refer to the Owner’s Manual for operating cover seat instructions. • Extend the inner duct upward to the ceiling bracket. • Secure duct cover to ceiling bracket with 2 screws. ::rangehoods.com GE Monogram at accessories kitchen:: is a division of...
  • Page 21 NOTE: While performing installations described in this book, safety glasses or goggles should be worn. For Monogram ® local service in your area, call 1.800.444.1845. NOTE: Product improvement is a continuing endeavor at General Electric. Therefore, materials, appearance and specifications are subject to change without notice.
