Model 2461 Calibration and Adjustment Manual

Figure 6: Rear-panel connections for the 4 A to 10 A ranges

Connections for resistance calibration verification and adjustment

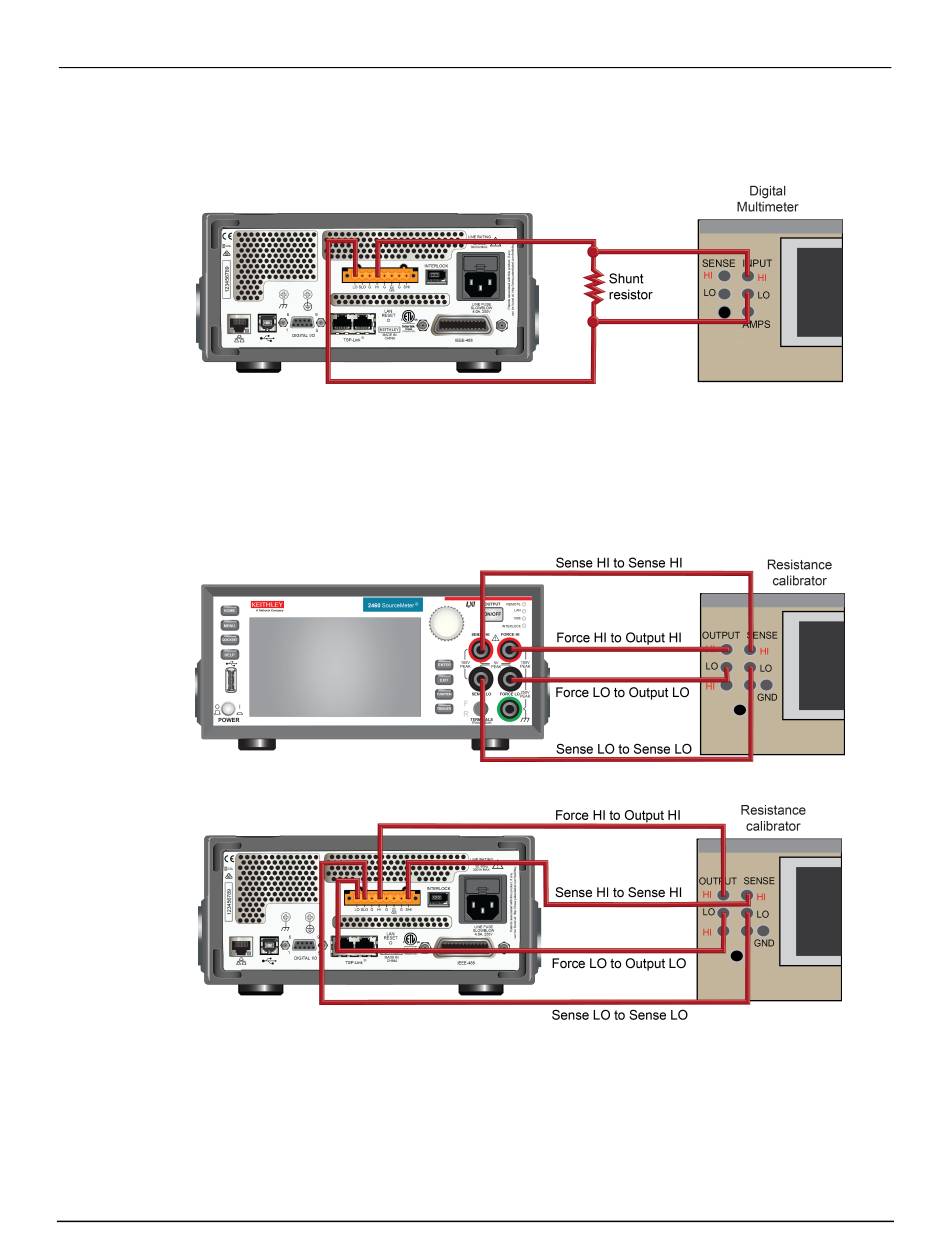

For resistance calibration verification or adjustment, use either the front-panel or rear-panel

connections shown in the following figures.

Figure 7: Front-panel resistance connections

Figure 8: Rear-panel resistance connections

2-6

2461-905-01 Rev. A / February 2016
