Section 2: Preparing for calibration verification and adjustment Model 2461 Calibration and Adjustment Manual

Connections for the 200 mV to 100 V ranges

For calibration verification or adjustment on the 200 mV to 100 V ranges, use either the front-panel or
rear-panel connections shown in the following figures.
The default voltage source protection value is 40 V. Before testing the 100 V range, be sure to assert
the interlock. Without the interlock asserted and the green interlock light on, the Model 2461 is
limited to 40 V. For more information on the Model 2461 interlock, see the "Using the Interlock"
section in the Model 2461 Reference Manual.

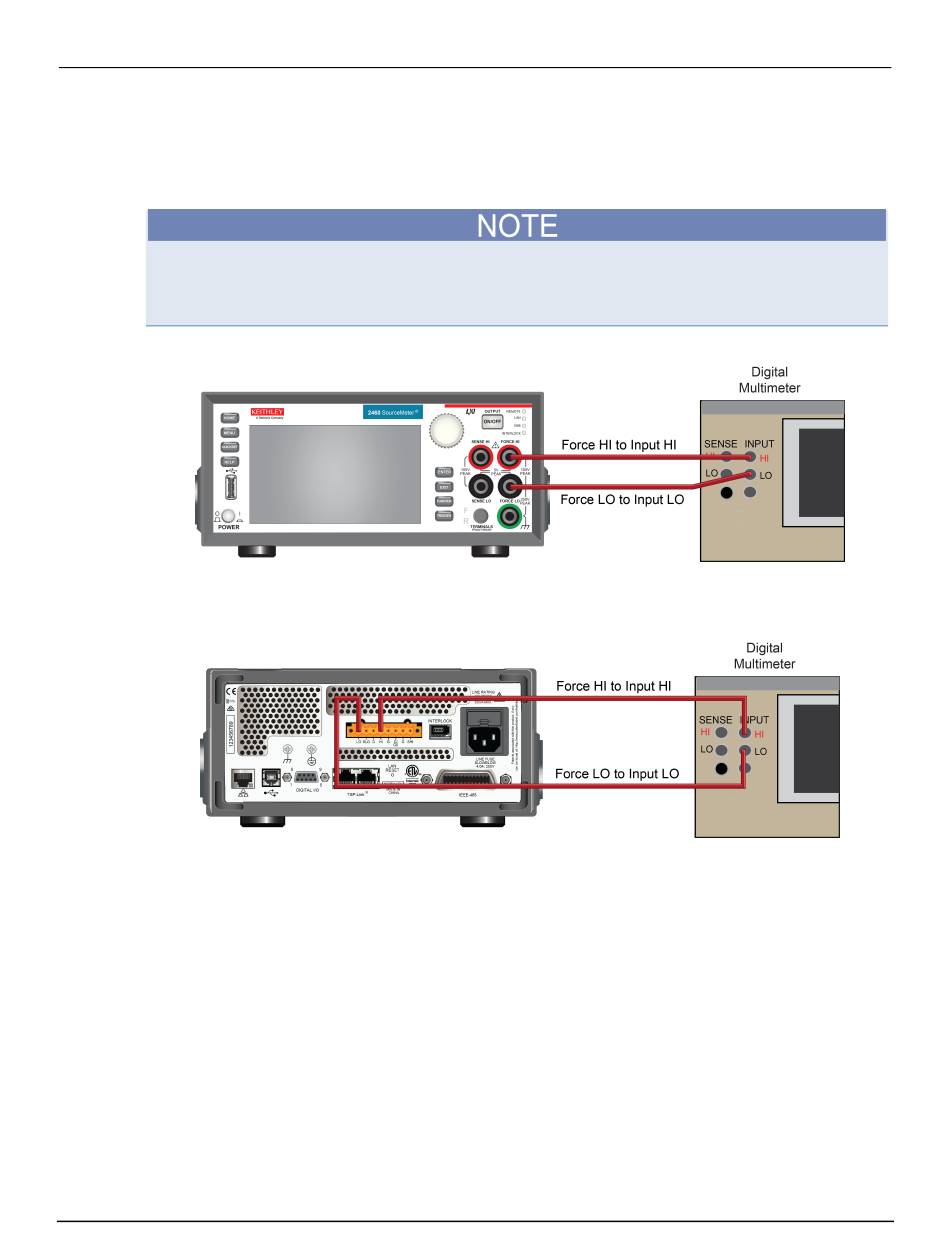

Figure 1: Front-panel connections for the 200 mV to 100 V ranges
Figure 2: Rear-panel connections for the 200 mV to 100 V ranges
2-4 2461-905-01 Rev. A / February 2016
