Model 2461 Calibration and Adjustment Manual

Connections for the 1 µA to 1 A ranges

For calibration verification or adjustment on the 1 µA to 1 A ranges, use either the front-panel or

rear-panel connections shown in the following figures.

For calibration verification or adjustment on the 4 A to 10 A ranges, use either the front-panel or

rear-panel connections shown in the following figures.

2461-905-01 Rev. A / February 2016

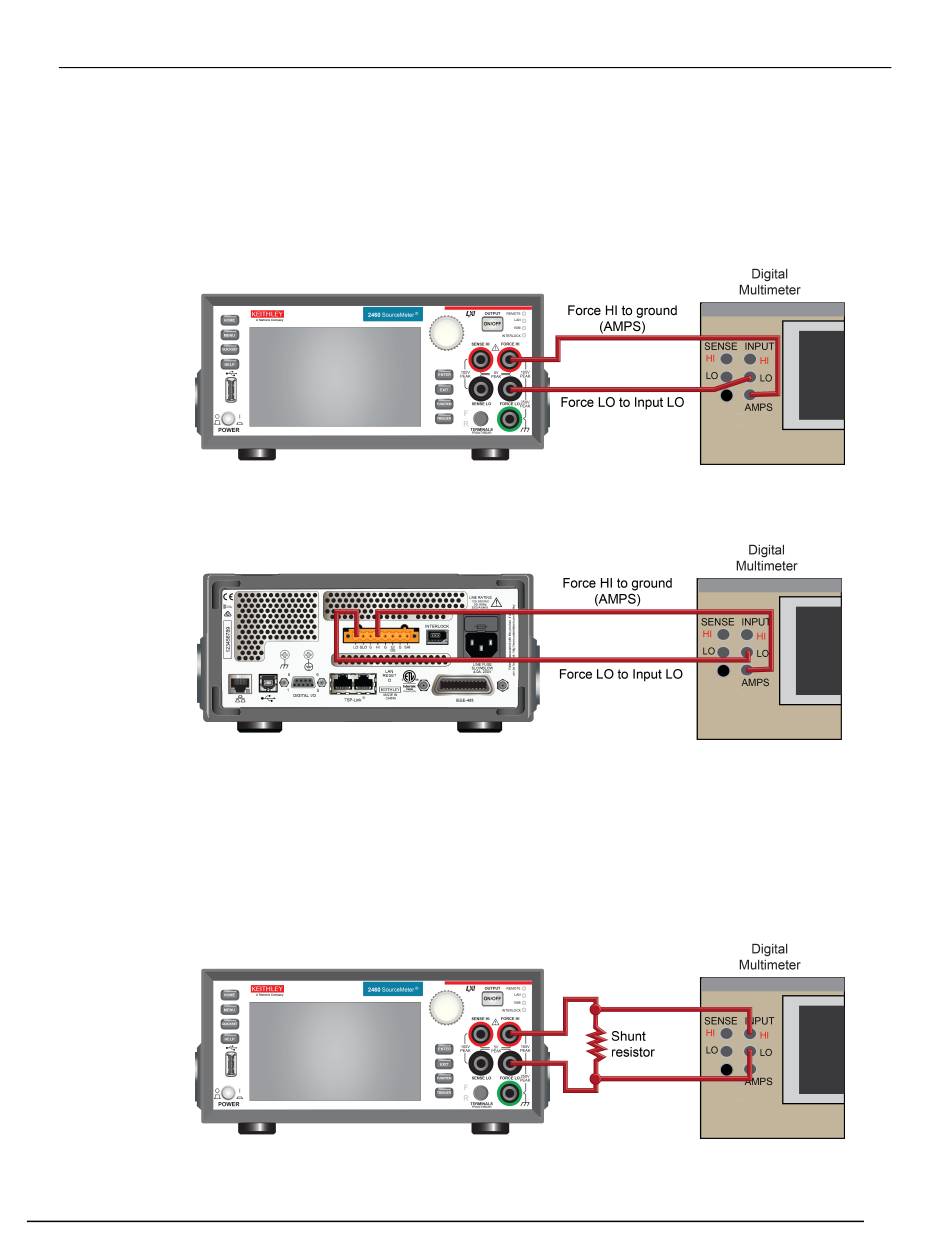

Figure 3: Front-panel connections for the 1 µA to 1 A ranges

Figure 4: Rear-panel connections for the 1 µA to 1 A ranges

Figure 5: Front-panel connections for the 4 A to 10 A ranges

Section 2: Preparing for calibration verification and adjustment

2-5
