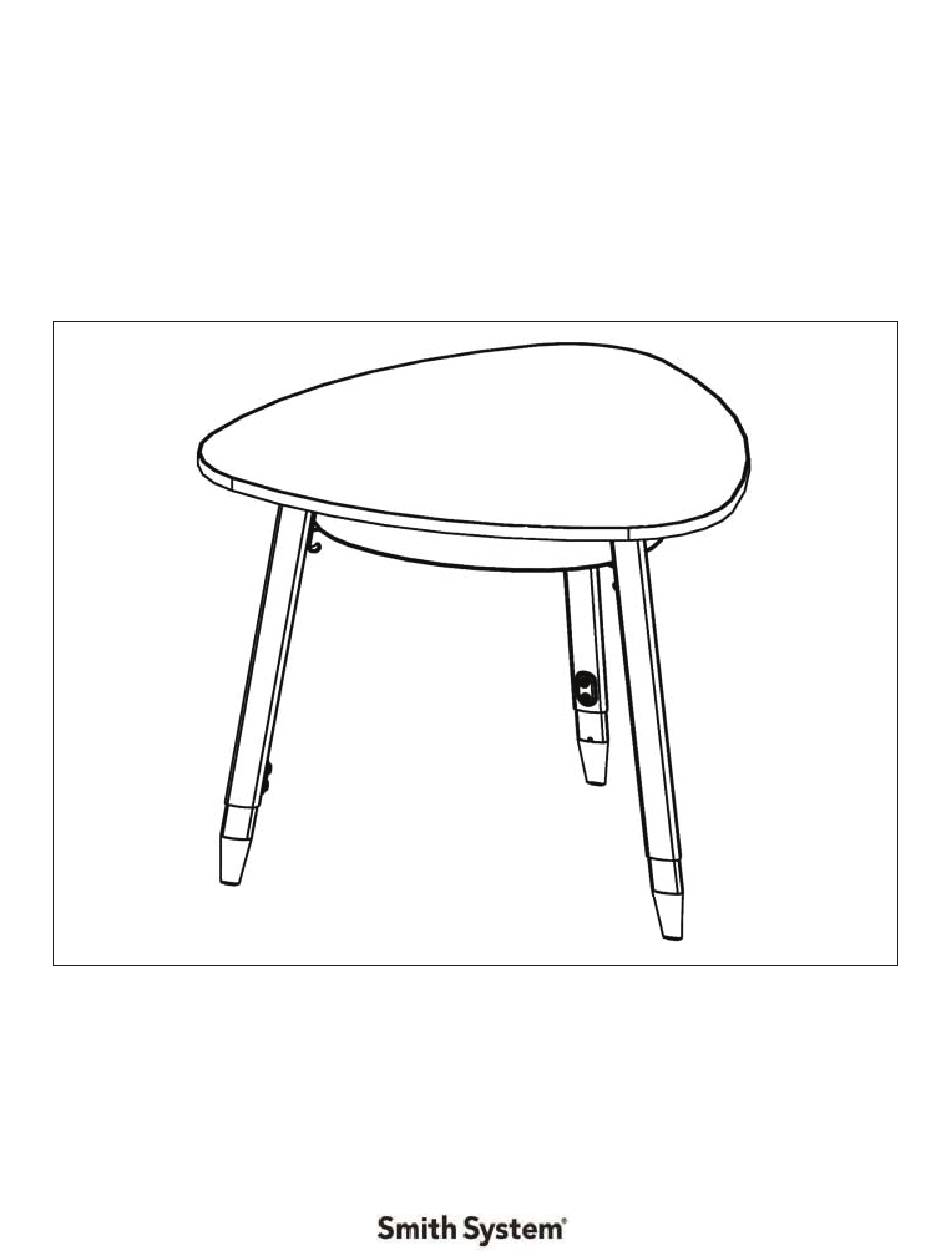

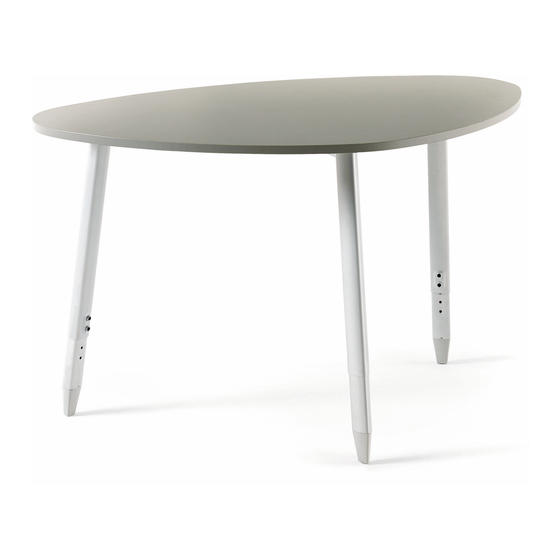

- Page 1 Assembly Instructions Secondary Surface on Flowform Round Triangle Table If you have damaged or missing components, please contact customer service at 1-800-328-1061 Document #: 179689 REVISED: 07/2020...
- Page 2 Hardware and Components 5/16”-18 X 1/2” BOLT ROUND TRIANGLE TABLE WITH LEGS (ALREADY INSTALLED ON LEG) INSTALLED QTY. 6 QTY. 1 SECONDARY SURFACE PLATE SECONDARY SURFACE BRACKET (PN: 60013) (PN: 60013) QTY. 1 QTY. 3 #10-32 X 1/4” UNDERCUT FLAT-HEAD SCREW 1/8”...
-
Page 3: Special Notes
Special Notes: TOOLS REQUIRED: • 3/16” Allen wrench (included with legs) or 3/16” Allen drill bit. Check that all components are accounted for and undamaged before assembling. Please assemble the product in a clean and dry area. Clean the product with a mild cleaner and a damp cloth. Document #: 179689 REVISED: 07/2020... - Page 4 Assembly Instructions 1. After assembling the legs to the top and leaving it on a clean smooth surface that will not harm the top finish, remove the 5/16”-18 x 1/2” Bolts and set to the side. 2. Lay secondary surface plate down on a clean smooth surface that will not harm the plate finish.
- Page 5 3. Attach the bracket using two of the #10-32 x 1/4” Undercut Flat-Head Screws, but do not fully tighten it yet. 4. Attach the other two brackets leaving them loose for positioning. 5. Place plate in the center of the legs on the table aligning the brackets with the gussets on the legs.
- Page 6 two of the 5/16”-18 x 1/2” Bolts into the bracket and the leg gusset. Repeat for the Install other brackets. Now tighten all screws. 7. Flip table over. ASSEMBLY COMPLETE Document #: 179689 REVISED: 07/2020...
