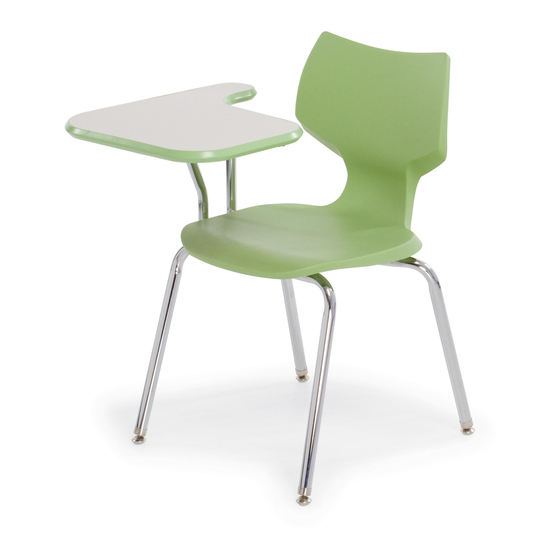

Flavors/Plato P-Tablet/Rhombus Chair
Assembly Instructions
For assistance in assembling product, missing or damaged parts, or to place an order please
contact customer service at 1-800-328-1061. You may also place your order online at
www.smithsystem.com

Tools Needed:

Phillips Head #2

Hardware Components:

Flavors or Plato
(96742) Clamps
P-Tablet
Flavors/Plato 'P-Tablet
(70080) (QTY 12)
Rhombus Tablet
3/16" x5/8" wood screws
Arm Frame
1714 East 14th Street Plano, Texas 75074 (800) 328-1061 Fax (972) 398-4051
www.smithsystem.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Flavors P-Tablet and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SMITH SYSTEM Flavors P-Tablet

  • Page 1 Flavors/Plato P-Tablet/Rhombus Chair Assembly Instructions For assistance in assembling product, missing or damaged parts, or to place an order please contact customer service at 1-800-328-1061. You may also place your order online at www.smithsystem.com Tools Needed: Phillips Head #2 Hardware Components: Flavors or Plato (96742) Clamps P-Tablet...
  • Page 2 Flavors/Plato P-Tablet/Rhombus Chair Directions 1. Place your 3/4” P-Tablet or Rhombus top laminate side down on a clean, dry surface. Place the Tablet Arm Frame on the Tablet Top. Locate the (5) Clamps and line them up with the holes in the frame.
  • Page 3 Flavors/Plato P-Tablet/Rhombus Chair Directions stacking bumpers from the bottom of the chair by unfastening the screws, and 3. Remove the KEEP THE SCREWS Remove screw Stacking bumper 4. Use the same screws to attach the Tablet Arm Assembly to the chair. Use the same screws to attach the tablet arm in the same location where the stacking...
