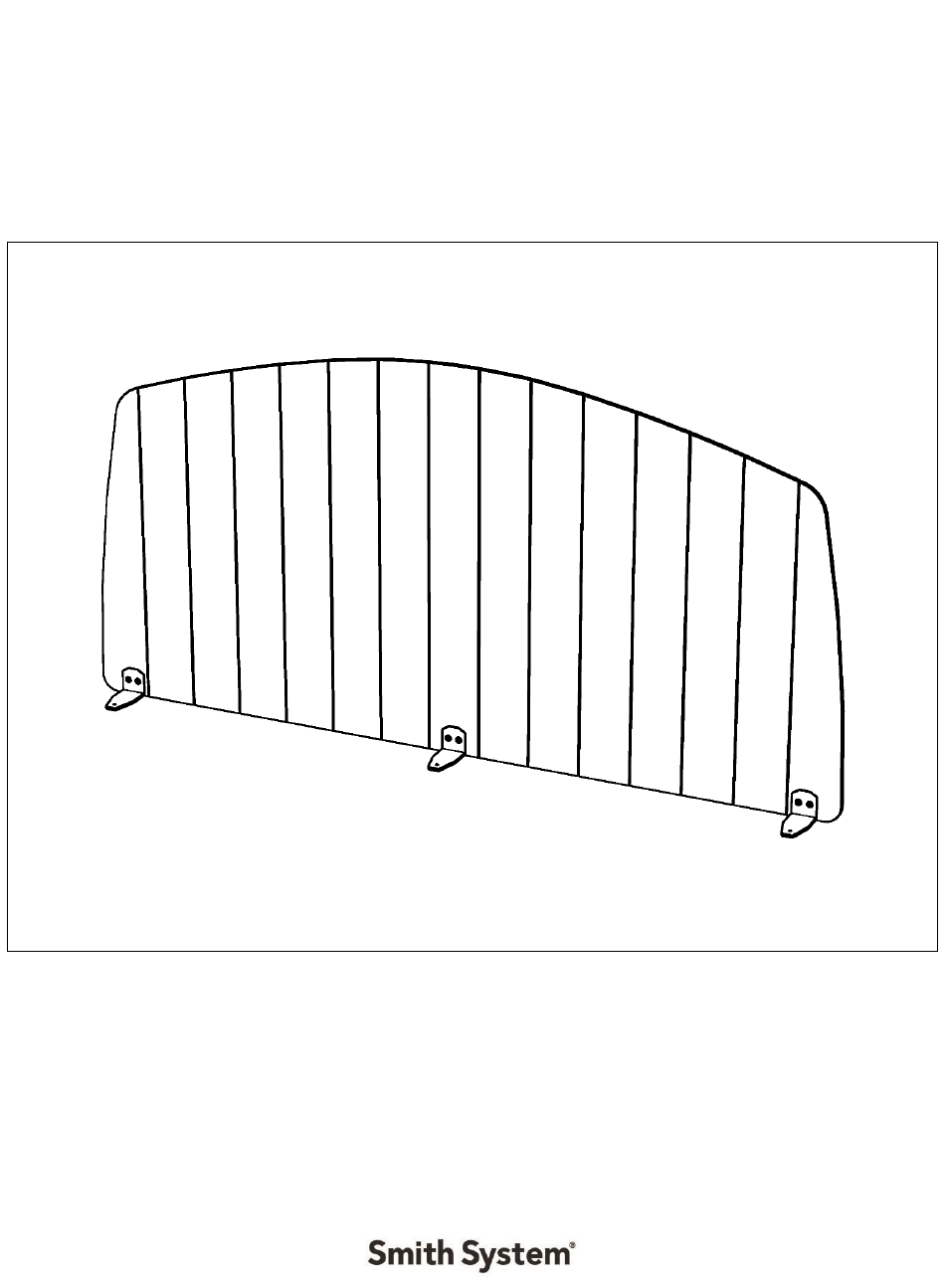

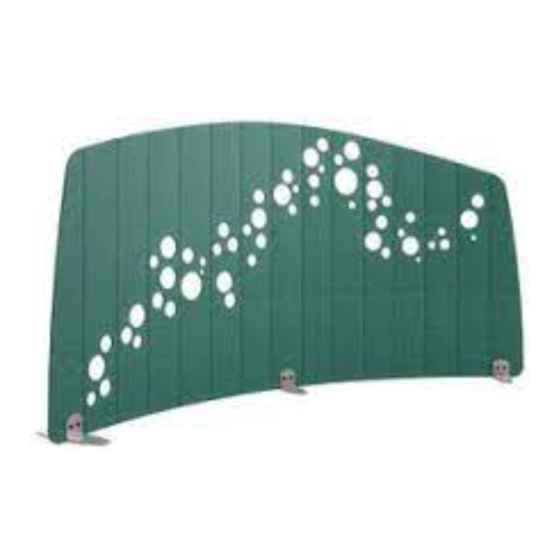

- Page 1 Assembly Instructions Flowform Flex Screen If you have damaged or missing components, please contact customer service at 1-800-328-1061 Document #: 179701 REVISED: 07/2022...
- Page 2 Hardware and Components (PN:60180) MOUNTING FEET QTY. 3 FLEX SCREEN PANEL (PN: 60179) QTY. 1 1/4”-20 X 5/8” 1/4”-20 X 3/8” 3/16” ALLEN WRENCH SHOULDER BOLT BARREL NUT QTY. 2 QTY. 6 QTY. 6 Special Notes: • TOOLS REQUIRED: • Optional Drill w/ 3/16” Allen Wrench driver bit. •...
- Page 3 Assembly Instructions 1. Lay Flex Screen Panel down on a clean smooth surface that will not harm the panel. 2. Align the holes in the top brackets of a Foot with the holes on one of the ends Flex Screen Panel. The bottom of the foot should end up even with the panel. Document #: 179701 REVISED: 07/2022...
- Page 4 3. Install two of the 1/4”-20 X 5/8” Shoulder Bolts and 2 of the 1/4”-20 X 3/8” Barrel Nuts using the two 3/16” Allen Wrenches as shown. Repeat steps 2 through 3 for the other two feet. HINT: You could used one of the Allen Wrenches and an optional power drill with a 3/16”...
- Page 5 Replacement Hardware [REPLACEMENT HARDWARE PACK: 60187-R] 1/4”-20 X 5/8” 1/4”-20 X 3/8” 3/16” ALLEN WRENCH SHOULDER BOLT BARREL NUT QTY. 2 QTY. 6 QTY. 6 Document #: 179701 REVISED: 07/2022...
