The startup of GDE takes few seconds.
The TAS3308 requires an initialization configuration file to be loaded after a reset. This file configures the
TAS3308 for the EVM configuration, enables the analog outputs, and sets the clock master/slave mode.
Before loading or building a process flow verify that an initialization file is specified in the Execute I
command file window. This window is found under Tools/I
If the EVM is to be operated in Master mode, select 3308EVM_init_master.cfg.
If the EVM is to be operated in Slave mode, select 3308EVM_init_slave.cfg.
SLEU093 – March 2008
Submit Documentation Feedback

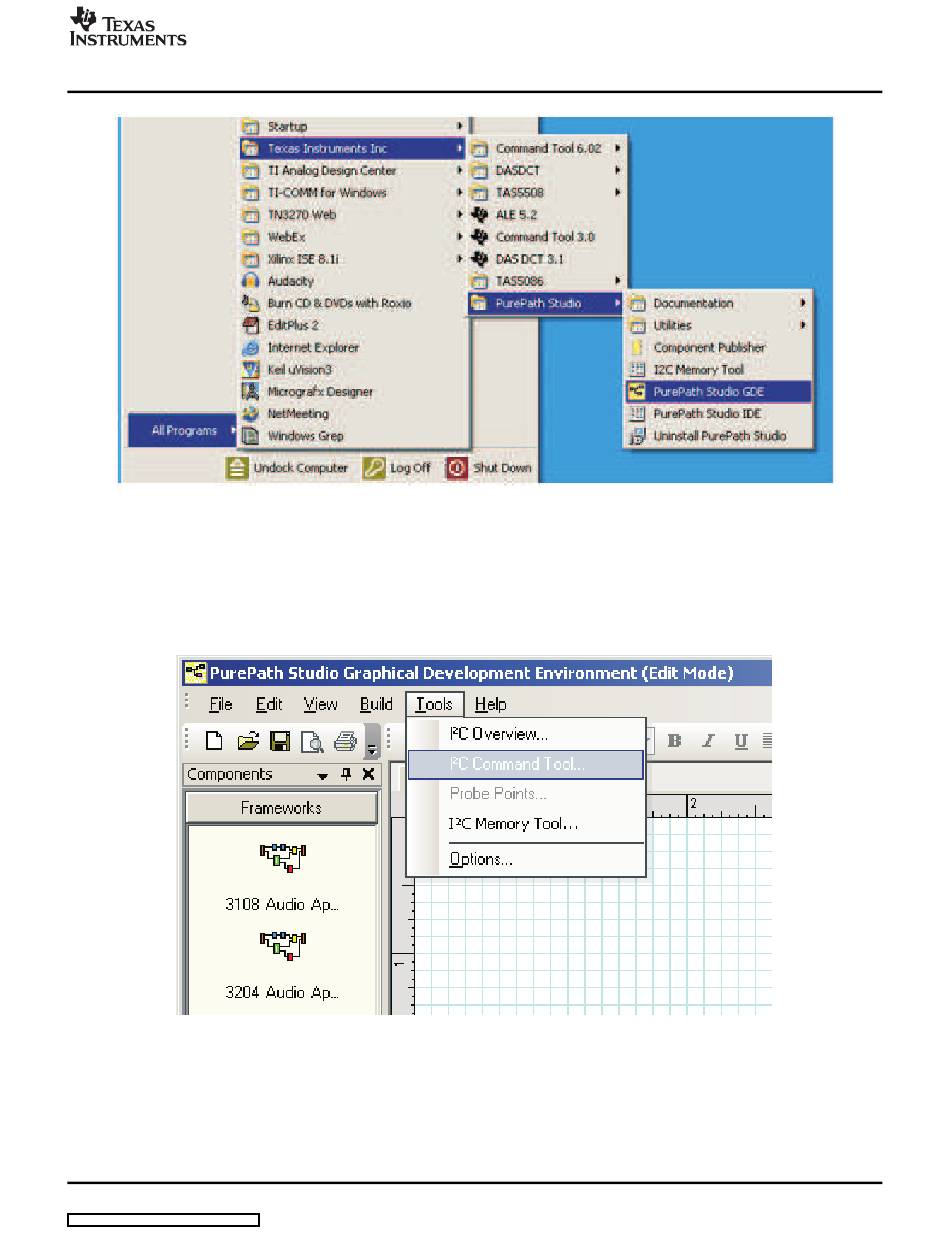

Figure 2-1. GDE Startup
Figure 2-2. Setting the I
2
C Command Tool.
2
C Initialization Sequence
TAS3308 Software Installation
2
C
Quick Setup Guide 17
