This user's guide describes the operation of the TAS5753MD evaluation module (EVM). The EVM is
connected to the PurePath™ Console Motherboard (PPCMB) and is configured using PurePath Console 3
(PPC3) software. Visit the
The main contents of this document are:
Details for properly connecting a TAS5753MD evaluation module (EVM) and the details of the EVM
Start-up procedure using PurePath Console 3 (PPC3) software with the correct plugin for the EVM
Quick-start guide for the common modes in which the TAS5753MDEVM is used
Throughout this document, the abbreviation EVM and the term evaluation module are synonymous with
the TAS5753MDEVM evaluation module, unless otherwise noted.
space
space
......................................................................................................................
1
Overview
....................................................................................................................
2
EVM Setup
3
Using the TAS5753MDEVM with PurePath Console 3
4
Board Layout, Bill of Materials, and Schematic
1

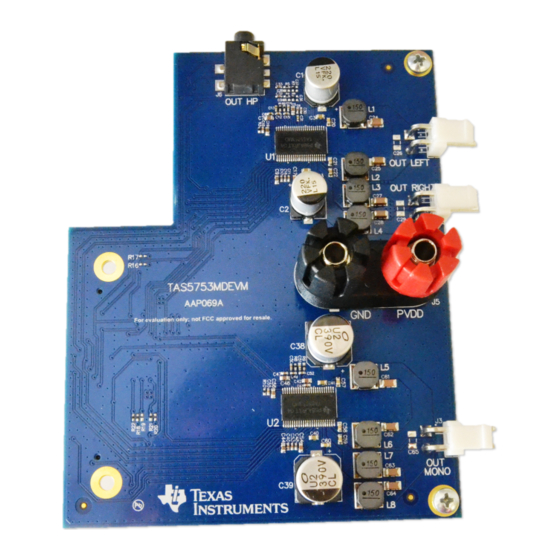

TAS5753MD Evaluation Board
2
Evaluation Module and PurePath Console Motherboard Connection
3
TAS5753MD Application in PurePath Console 3
4
TAS5753MD Application Home Window
5
TAS5753MDEVM Audio Processing Windows
6
Equalizer Window
7
Multiband AGL – Three-Band Crossover
8
Full-Band AGL
9
TAS5753MDEVM
10
TAS5753MD Layout
11
Bottom Layer Thermal Flow
12
TAS5753MDEVM Optional Features
13
TAS5753MDEVM Top Composite
14
TAS5753MDEVM Top Layer
15
TAS5753MDEVM Ground Layer
16
TAS5753MDEVM Power Layer
17
TAS5753MDEVM Bottom Layer
18
TAS5753MDEVM Bottom Composite
19
TAS5753MDEVM Stereo Device
20
TAS5753MDEVM Mono Device
21
TAS5753MDEVM PPCMB and Power Supply Connection
PurePath is a trademark of Texas Instruments.
SLAU683 – May 2016
Submit Documentation Feedback
e2e Audio Amplifiers
............................................................................................
.................................................................................
............................................................................................................
.................................................................................
..............................................................................................................
..........................................................................................................
.......................................................................................................
..............................................................................................
....................................................................................
.......................................................................................
.............................................................................................
.........................................................................................
..........................................................................................
..........................................................................................
...................................................................................
.........................................................................................
..........................................................................................
Copyright © 2016, Texas Instruments Incorporated
TAS5753MD Evaluation Module
forum for questions and other support issues.
Contents
.................................................................
........................................................................
List of Figures
................................................
........................................................................
..........................................................................
...........................................................
User's Guide
SLAU683 – May 2016
TAS5753MD Evaluation Module
2
3
4
14
2
3
4
5
7
8
9
11
14
14
15
15
16
16
17
17
18
18
21
22
23
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TAS5753MDEVM and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments TAS5753MDEVM

  • Page 1 Start-up procedure using PurePath Console 3 (PPC3) software with the correct plugin for the EVM • Quick-start guide for the common modes in which the TAS5753MDEVM is used Throughout this document, the abbreviation EVM and the term evaluation module are synonymous with the TAS5753MDEVM evaluation module, unless otherwise noted.
  • Page 2 PPCMB motherboard through the J4 connector. Regulators on the PPCMB create the 3.3-V power supply, which is sent back to the DUT through the J4 connector. The EVM is controlled by PPC3 software. Figure 1. TAS5753MD Evaluation Board TAS5753MD Evaluation Module SLAU683 – May 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 3 Power supply (8 V to 26.4 V) • Audio Source (Analog, USB, Optical) • Micro type-B USB cable • PurePath Console 3.xx GUI running on a PC SLAU683 – May 2016 TAS5753MD Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 4 EVM may be connected but it is likely not correctly programmed as the TAS5753MDEVM. In this case, connection to the EVM must be done manually by clicking on the Connect button located on the lower left corner of the window after opening the TAS5753MD application.
  • Page 5 Using the TAS5753MDEVM with PurePath Console 3 www.ti.com TAS5753MD Application Features The Home window is displayed when the TAS5753MD application is initialized. Several evaluation and integration options are available. TI recommends using the application walkthrough by clicking on the question mark icon available next to the page name in all pages. The application walkthrough feature provides guidance through various sections in the selected page and displays comments explaining the sections of the page.
  • Page 6 Using the TAS5753MDEVM with PurePath Console 3 www.ti.com Ensure that the PurePath Console motherboard and EVM are recognized as USB-AudioEVM, and that the sampling frequency is set to 48 kHz. Otherwise, the hardware check fails and the EVM evaluation may not be correct.
  • Page 7 Using the TAS5753MDEVM with PurePath Console 3 www.ti.com Figure 5. TAS5753MDEVM Audio Processing Windows Stereo/Mono device selection Configure each device of the EVM individually by selecting between Stereo and Mono on the upper right section of the Audio Processing window. The configuration of each device is made with the same controls;...
  • Page 8 Using the TAS5753MDEVM with PurePath Console 3 www.ti.com Tuning Snapshots Tuning Snapshot stores all the values of the current setting. A maximum of 5 Snapshots can be stored. When clicking on Tuning Snapshots, the Tuning History Navigator is opened. Tuning History Navigator saves the history of the tuning changes with each node corresponding to a single tune setting changed from the previous node.
  • Page 9 Using the TAS5753MDEVM with PurePath Console 3 www.ti.com Multiband AGL and Full-Band AGL The TAS5753MD features three multiband AGLs, as well as a full-band AGL. The multiband AGL is used as a three-band crossover, having an independent custom configuration for low, high, and mid frequency bands.
  • Page 10 Using the TAS5753MDEVM with PurePath Console 3 www.ti.com The AGL crossover configuration has two operating modes that can be selected on the top of the main plot: In basic mode, the crossover frequencies are ganged for left and right channels, and the filters are configured so cutoff frequencies for lowpass, bandpass, and highpass filter are matched.
  • Page 11 Using the TAS5753MDEVM with PurePath Console 3 www.ti.com All the multiband AGL functions are also featured in the full-band AGL window. By default, –1 dB is configured for full-band AGL and the attack and release rates are set to 10 V/ms.
  • Page 12 Using the TAS5753MDEVM with PurePath Console 3 www.ti.com The I/O tab in the I²C Monitor has two sub sections. The Input section has the provision to enter the read or write commands scripts. Clicking the Execute button executes the commands written in the Input section.
  • Page 13 Using the TAS5753MDEVM with PurePath Console 3 www.ti.com Dump Current State into a Header File This feature allows generation of a configuration file for the evaluated device according to the features evaluated and configured with PPC3. Different options are available for file generation, including the format (.h, .cfg, .mtk), sample rate, device address, and so forth.
  • Page 14 PVDD pin connection. The design has wide open areas at the top and bottom part of the amplifier to increase the thermal dissipation of the amplifier. Figure 10. TAS5753MD Layout TAS5753MD Evaluation Module SLAU683 – May 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 15 Figure 12. TAS5753MDEVM Optional Features The evaluation module is a four-layer board designed to enhance the thermal performance and robustness of the design. The second layer is used as ground plane, while the third layer contains the power planes that distribute the supply voltages through the board.
  • Page 16 Board Layout, Bill of Materials, and Schematic www.ti.com TAS5753MDEVM Board Layout Figure 13 through Figure 18 show the PCB layouts. Figure 13. TAS5753MDEVM Top Composite Figure 14. TAS5753MDEVM Top Layer TAS5753MD Evaluation Module SLAU683 – May 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 17 Board Layout, Bill of Materials, and Schematic www.ti.com Figure 15. TAS5753MDEVM Ground Layer Figure 16. TAS5753MDEVM Power Layer SLAU683 – May 2016 TAS5753MD Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 18 Board Layout, Bill of Materials, and Schematic www.ti.com Figure 17. TAS5753MDEVM Bottom Layer Figure 18. TAS5753MDEVM Bottom Composite TAS5753MD Evaluation Module SLAU683 – May 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 19 Board Layout, Bill of Materials, and Schematic www.ti.com Bill of Material lists the TAS5753MDEVM BOM. Table 3. TAS5753MDEVM Bill of Materials Item # Designator Value Part Number Manufacturer Description Package Reference !PCB1 AAP069 Printed Circuit Board C1, C2 220uF EEE-FK1V221P Panasonic CAP, AL, 220 µF, 35 V, +/- 20%, 0.16 ohm, SMD...
  • Page 20 Board Layout, Bill of Materials, and Schematic www.ti.com Table 3. TAS5753MDEVM Bill of Materials (continued) Item # Designator Value Part Number Manufacturer Description Package Reference 24LC512-I/ST Microchip EEPROM, 512KBIT, 400KHZ, 8TSSOP TSSOP-8 C26, C29, C65 0.33uF GRM319R71H334KA01D Murata CAP, CERM, 0.33 µF, 50 V, +/- 10%, X7R, 1206...
  • Page 21 BTL_R- PGND 0.047µF 15µH PLL_FLTP PGND 4700pF PLL_FLTM DR_OUTA 0.68µF TAS5753MDDCAR DR_OUTB 0.047µF Copyright © 2016, Texas Instruments Incorporated Figure 19. TAS5753MDEVM Stereo Device SLAU683 – May 2016 TAS5753MD Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 22 AGND DGND AVDD_REG1 0.047µF PGND 15µH PLL_FLTP PGND 4700pF PLL_FLTM 0.68µF TAS5753MDDCAR 0.047µF Copyright © 2016, Texas Instruments Incorporated Figure 20. TAS5753MDEVM Mono Device TAS5753MD Evaluation Module SLAU683 – May 2016 Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
  • Page 23 OUTB2 330pF 10.0k OUTC2 DR_OUTB 330pF OUTD2 1µF SNUBBER OPTION Copyright © 2016, Texas Instruments Incorporated Figure 21. TAS5753MDEVM PPCMB and Power Supply Connection SLAU683 – May 2016 TAS5753MD Evaluation Module Submit Documentation Feedback Copyright © 2016, Texas Instruments Incorporated...
