STEP 1
ATTACHING LEGS TO HEADBOARD AND SIDE RAILS
SIDE RAIL PANELS AND STORAGE ASSEMBLY
STEP 1.1
Gently lay the headboard and side rails on a clean,
non-abrasive surface.
STEP 1.2
Align and insert the threaded rods of the legs into
the holes on the bottom of the headboard and side
rails. Turn clockwise to tighten. See DETAIL A.
STEP 1.3
Remove the drawers from the storage spaces.
STEP 1.4
Bring the storage and the side rail panels to an
upright position. Align the locator pins on both ends
of the storage to the bore holes in the side rail
panels. Refer to DETAIL B and DETAIL C.
STEP 1.5
Attach the side panels to the storage by using Allen
bolts (BB) together with lock washers and plain
washers. See DETAIL B and DETAIL C.
HARDWARE NEEDED FOR STEP 1:
(BB)1/4" x 1 3/4" Allen Bolt = 8 pcs.
Lock Washers 1/4" = 8 pcs.
Plain Washers 1/4" = 8 pcs.
(BB)
Allen Wrench = 1 pc.

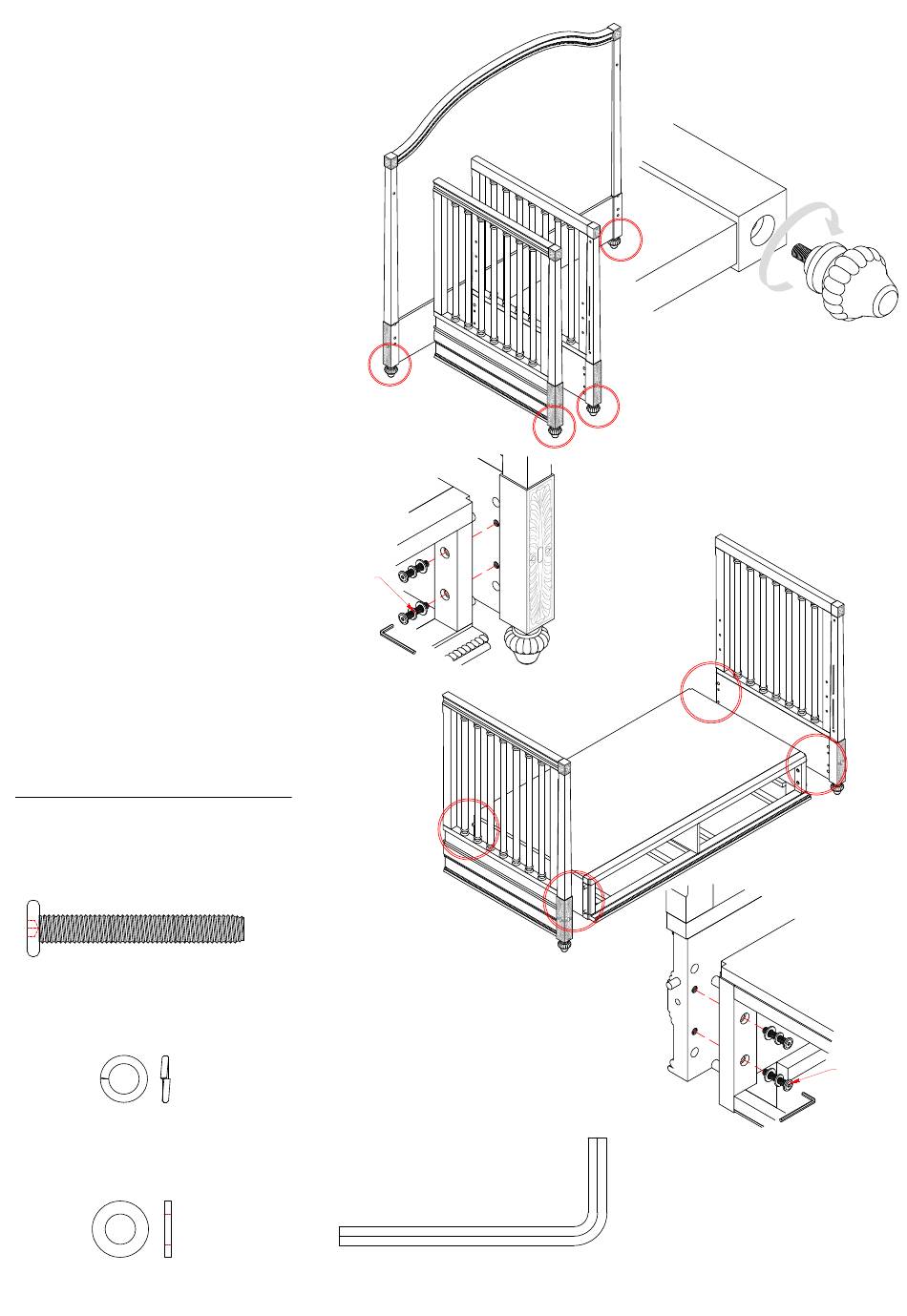

DETAIL A
DETAIL B
C
B
DETAIL C
(BB)
6/11
