RH Baby&child BELLINA STORAGE CONVERSION CRIB Assembly Instructions Manual page 11

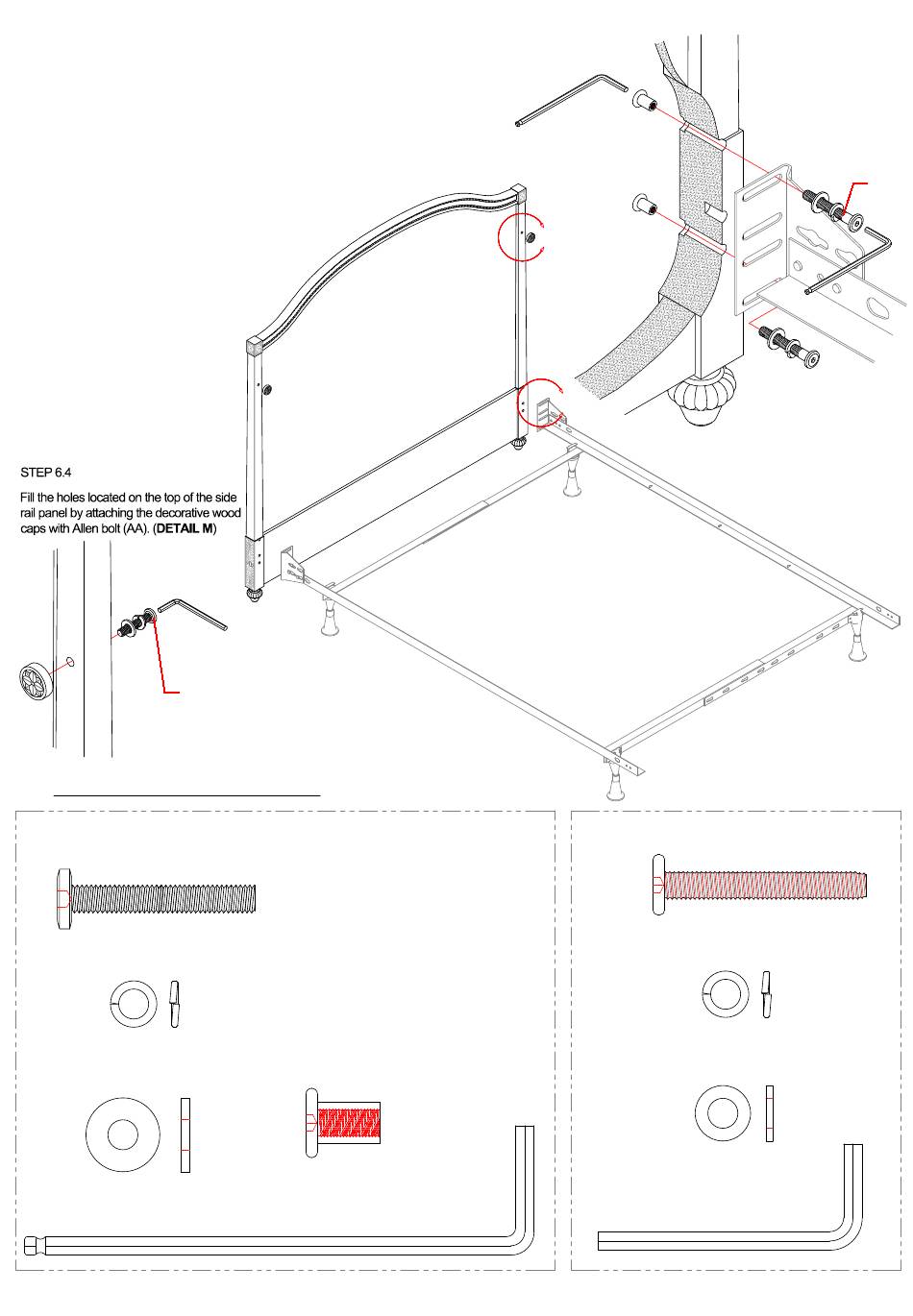

STEP 6
METAL BED FRAME ASSEMBLY
STEP 6.1
Loose all the bolts in crib to
disassemble the crib.
STEP 6.2
Bring the heaboard to the upright
position.
STEP 6.3
On the bottom of the headboard there
are holes for the bolt to pass through
that correspond to the holes on the
metal bed frame. Attach the metal bed
frame to the headboard by using allen
bolts (FF) with lock washers and plain
washers into the sleeve nut on the
other side. See DETAIL L.
(AA)
HARDWARE NEEDED FOR STEP 6
(FF) M6 x 40mm Allen Bolt = 4 pcs
Lock Washers = 4 pcs
Plain Washers = 4 pcs
Allen Wrench = 2 pcs
DETAIL M
Sleeve Nut M6 = 4 pcs
M
L
(AA) 1/4" x 1-3/4" Allen Bolt = 2 pcs
Lock Washers = 2 pcs
Plain Washers = 2 pcs
Allen Wrench = 1 pc
DETAIL L
(FF)
11/11
