RH Baby&child BENNET Assembly Instructions Manual

Storage conversion crib
Hide thumbs

Advertisement

Quick Links

Download this manual
1/15
1 1 /

Advertisement

loading
Need help?

Need help?

Do you have a question about the BENNET and is the answer not in the manual?

Questions and answers

Related Manuals for RH Baby&child BENNET

Summary of Contents for RH Baby&child BENNET

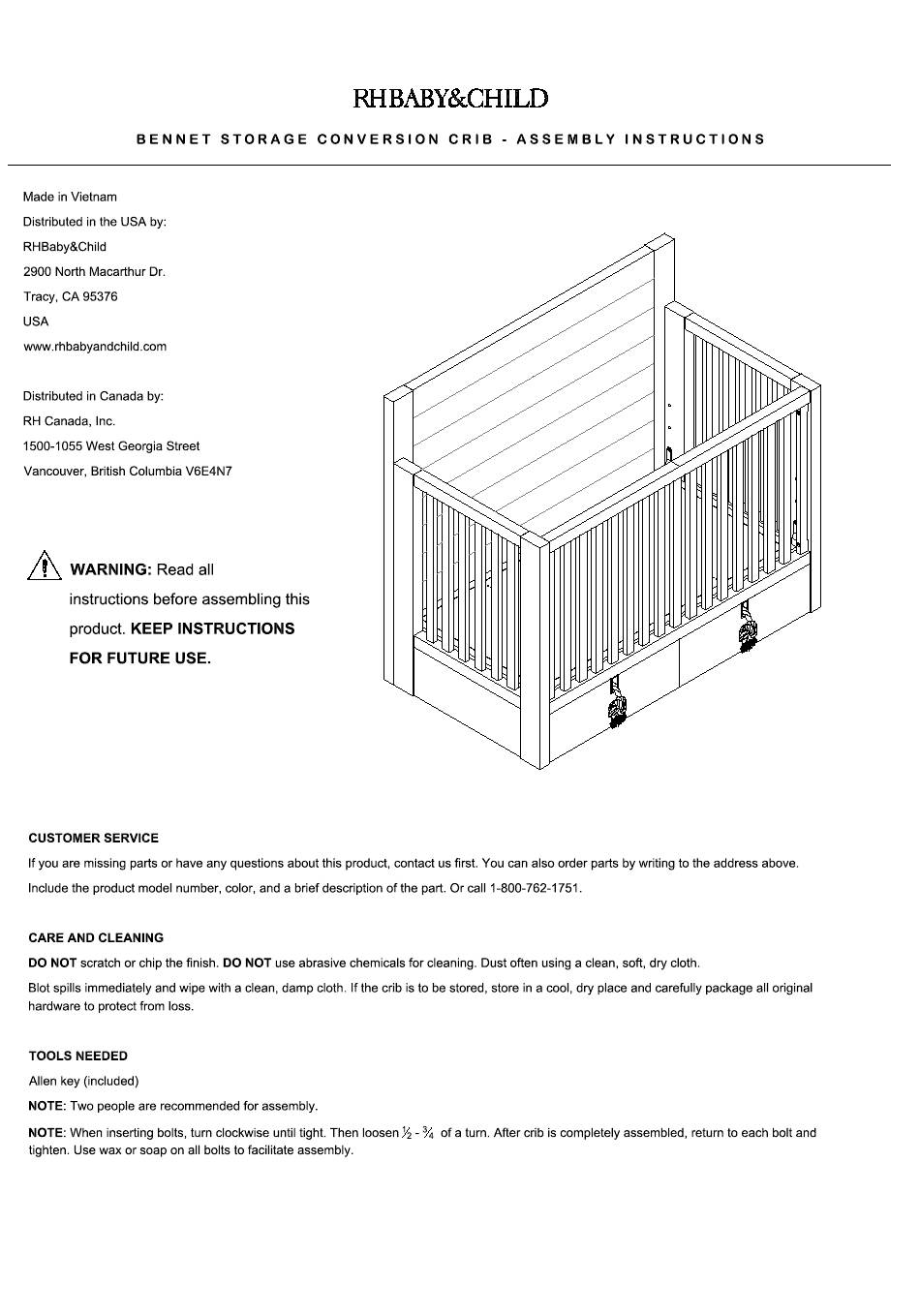

  • Page 1 1/15 1 1 /...
  • Page 2 IMPORTANT SAFETY INFORMATION FOR CRIBS WARNING: Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under an infant. WARNING: Failure to follow these warnings and the assembly instructions could result in serious injury or death. ·...
  • Page 3 IMPORTANT SAFETY INFORMATION FOR CRIBS CAUTION: ANY MATTRESS USED IN THIS CRIB SHOULD BE AT LEAST 27 1/4" X 51 5/8" WITH A THICKNESS NOT EXCEEDING 6". WARNING Do not use this crib if you cannot exactly follow the instructions provided.
  • Page 4 IMPORTANT SAFETY INFORMATION FOR TODDLER AND DAYBEDS WARNING: ENTRAPMENT / STRANGULATION HAZARD Infants have died in toddler beds from entrapment and strangulation. Failure to follow these warnings and the assembly instructions could result in serious injury or death. NEVER use bed with children under 15 months of age. DO NOT place bed near windows where cords from blinds or drapes may strangle a child.

  • Page 5: Item Identification

    ITEM IDENTIFICATION For ease of identification, all parts are labeled to correspond to the step number in which the part is used. Step 1 Fully remove the drawers and bottom panel of the storage Side rail panels and storage assembly (Page 6) Step 2 Install the bottom panel and drawers (Page 7) Step 3 Mattress support assembly (Page 8) Step 4 Headboard assembly (Page 9)
  • Page 6 STEP 1 FULLY REMOVE THE DRAWERS AND BOTTOM PANEL OF THE STORAGE SIDE PANELS AND STORAGE ASSEMBLY DETAIL A STEP 1.1 Fully remove all the drawers out of the storage. Please see detail on page 13 to remove drawer. See DETAIL A. STEP 1.2 Unscrew all screws on the bottom panel and fully remove the bottom panel from storage.
  • Page 7 STEP 2 INSTALL THE BOTTOM PANEL AND DRAWERS STEP 2.1 Install the bottom panel. See DETAIL D. STEP 2.2 Once the stabilizer rails are set, gently tilt the crib as illustrated in DETAIL E. STEP 1.3 Return the drawers to the storage by following the instructions on pages 14 and 15.
  • Page 8 STEP 3 MATTRESS SUPPORT ASSEMBLY DETAIL G STEP 3.1 Attach the support arms to the mattress support, using Allen bolts (BB) with lock washers and plain washers. See DETAIL G. (BB) STEP 3.2 Hang the mattress support on both end panels by using Allen bolts (BB), lock washers and plain washers, as per illustration in DETAIL H.
  • Page 9 STEP 4 HEADBOARD ASSEMBLY STEP 4.1 Insert the headboard to the back sides of the side panels. STEP 4.2 Use Allen bolts (CC), lock washers and plain washers to attach the crib headboard to the side panels. Please see DETAIL I and DETAIL J. DETAIL I (AA) DETAIL J...
  • Page 10 STEP 5 FRONT RAIL ASSEMBLY AND HIDING UNUSED HOLES DETAIL K STEP 5.1 Both ends of the front rail have holes for the bolts to pass through that correspond to the holes on the posts for both side rail panels (AA) with pre-installed nuts.
  • Page 11 STEP 6 TODDLER RAIL ASSEMBLY STEP 6.1 DETAIL M Loosen all the bolts on both ends of the front side rail to disassemble the front side rail. (CC) STEP 6.2 Replace the front side rail by the toddler rail. See DETAIL M.
  • Page 12 STEP 7 METAL BED FRAME ASSEMBLY DETAIL O STEP 7.1 Loosen all the bolts on the crib to disassemble the crib. (FF) STEP 7.2 Bring the headboard to the upright position. STEP 7.3 At the bottom of the headboard there are holes for the bolts to pass through that correspond to the holes on the metal bed frame.
  • Page 13 STEP 8 DRAWER REMOVAL INSTRUCTIONS STEP 8.1 Pull the drawer out. See at bottom side of drawer. Unlock the plastic peg by pulling black plastic peg on runner out. See DETAIL Q. STEP 8.2 Hold the drawer with both hands. Carefully lift the drawer front up from the front metal pin, then slide drawer forward to remove from back hooks.
  • Page 14 STEP 9 DRAWER ASSEMBLY INSTRUCTIONS STEP 9.1 Pull the runner on the way out. Put DETAIL S the drawer onto them, then hold both the runner with your hands. Lift the drawer up with your thumbs and push to hook the drawer at end of the runner.
  • Page 15 STEP 10 DRAWER HEIGHT ADJUSTMENT INSTRUCTIONS Adjust around gap of drawer by turning plastic button clockwise/counterclockwise direction. See DETAIL V. DETAIL V Plastic button 15/15...

This manual is also suitable for:

Clio shagreen storage panel crib
