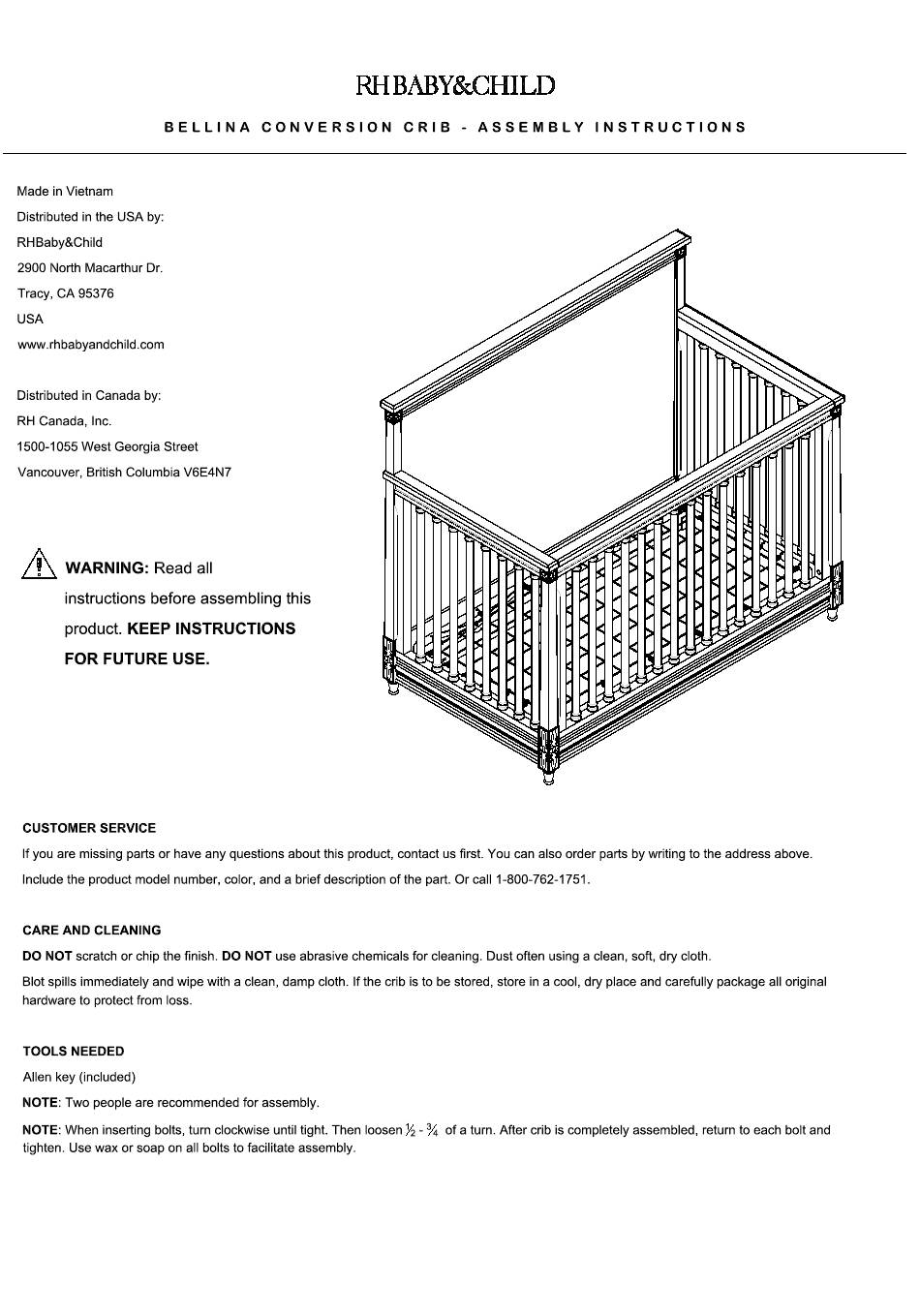

- Page 1 1/11 1 1 /...
- Page 2 IMPORTANT SAFETY INFORMATION FOR CRIBS WARNING: Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under an infant. WARNING: Failure to follow these warnings and the assembly instructions could result in serious injury or death. ·...
- Page 3 IMPORTANT SAFETY INFORMATION FOR CRIBS CAUTION: ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27 1/4" X 51 5/8" WITH A HEIGHT NOT EXCEEDING 6". WARNING Do not use this crib if you cannot exactly follow the instructions provided.
- Page 4 IMPORTANT SAFETY INFORMATION FOR TODDLER AND DAYBEDS WARNING: ENTRAPMENT / STRANGULATION HAZARD Infants have died in toddler beds from entrapment and strangulation. Failure to follow these warnings and the assembly instructions could result in serious injury or death. NEVER use bed with children under 15 months of age. NEVER place bed near windows where cords from blinds or drapes may strangle a child.
-
Page 5: Mattress Support
PARTS IDENTIFICATION For ease of identification, all parts are labeled to correspond to the Step number in which the part is used. Step 1 Leg assembly to headboard and end rail panel Headboard and end rail panel assembly (Page 6) Step 2 Mattress support and stabilizer rail assembly Mattress height adjustment (Page 7) - Page 6 STEP 1 LEG ASSEMBLY TO HEADBOARD AND END RAIL PANEL HEADBOARD AND END RAIL PANEL ASSEMBLY STEP 1.1 Gently lay the headboard and end rail panel on their backs on a clean and non-abrasive surface. STEP 1.2 Align and insert the threaded rod of the legs into the hole on the bottom of the headboard and end rail panel and turn clockwise to tighten.
- Page 7 DETAIL C STEP 2 MATTRESS SUPPORT ARM ASSEMBLY STABILIZER Hex Nut Lock Washer RAIL ASSEMBLY MATTRESS HEIGHT ADJUSTMENT STEP 2.1 Allen Bolt (BB) Lay mattress support flat with stabilizer rail on each side. NOTE: On each end of the arm of the mattress support, there is a hole for the bolt to pass through that corresponds to the holes located in the frame of the mattress support.
- Page 8 STEP 3 INSTALLATION OF STABILIZER RAILS INTO DETAIL E THE END RAIL PANELS STEP 3.1 On inside face of both end rail panels are pre-installed metal brackets, designed to hold the stabilizer rails. Set both ends of the stabilizer rails into brackets, as illustrated in DETAIL E. STEP 3.2 Once the stabilizer rails are set, gently tilt the crib as illustrated in DETAIL F, and then fasten the stabilizer rails...
- Page 9 STEP 4 DETAIL H STATIONARY FRONT RAIL ASSEMBLY STEP 4.1 On both ends of the end rail panel are holes for the bolt to pass through which correspond to the holes on the posts of both end rail panel with pre-installed nuts. Align the holes of the front rail panel into the end rail panels then engage allen bolt in each hole and tighten with allen wrench provided, as in DETAIL H AND DETAIL I.
- Page 10 STEP 5 TODDLER RAIL ASSEMBLY STEP 5.1 DETAIL J Remove the front rail panel of the crib by loosening all the bolts installed. STEP 5.2 Gently tilt the crib and release the bolts underneath the metal brackets holding the stabilizer rails. STEP 5.3 Gently remove the mattress support and slightly loosen the bolt at the back of the headboard that enough to set the toddler rail...
- Page 11 STEP 6 METAL BED FRAME ASSEMBLY STEP 6.1 DETAIL L Loose all the bolts in crib to disassemble the crib. STEP 6.2 Bring the heaboard in upright position. STEP 6.3 On the bottom of the headboard there are holes for the bolt to pass through that correspond to the holes on the metal bed frame.
