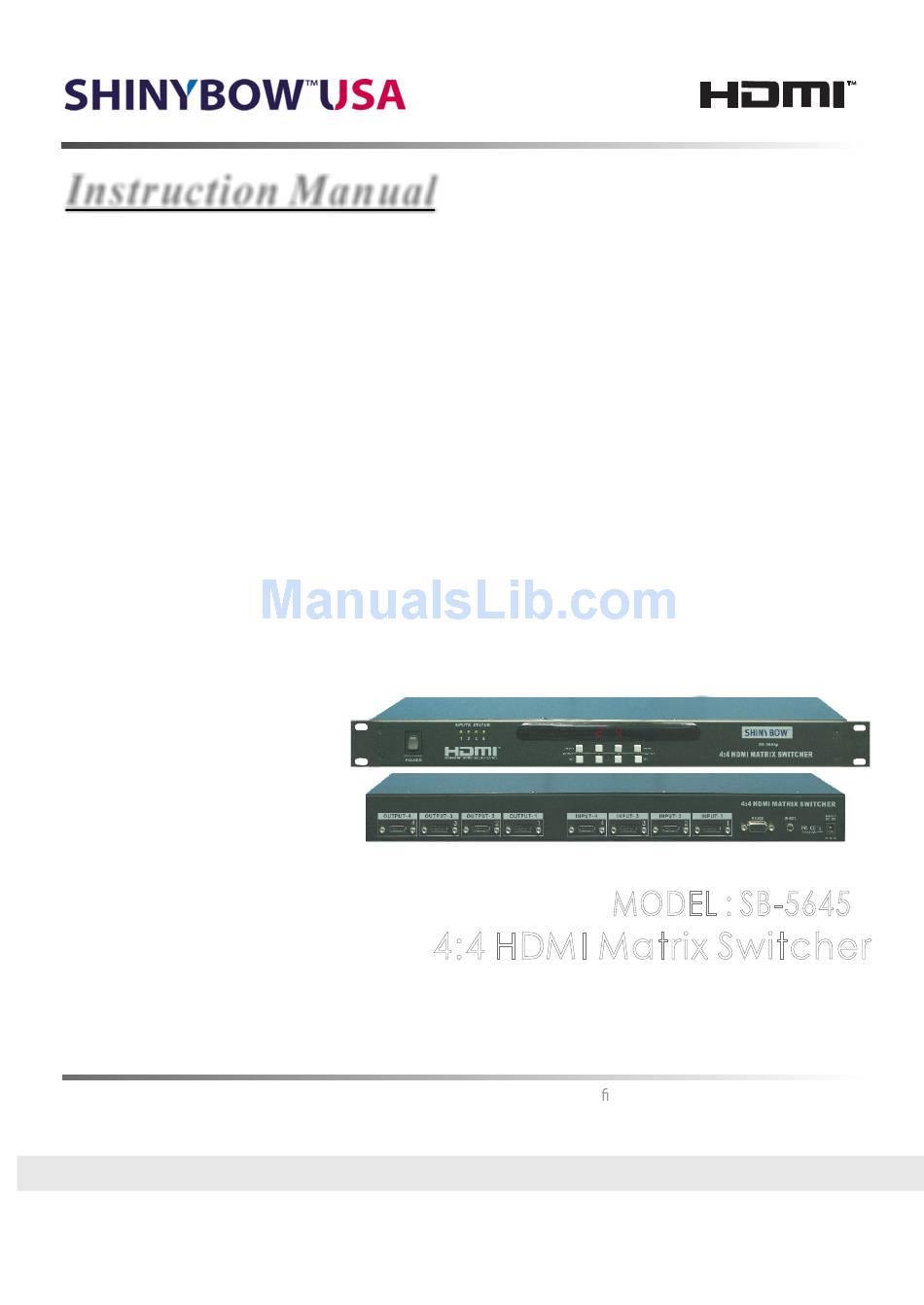

Instruction Manual
M U L T I M E D I A A U D I O A N D V I S U A L
Instruction Manual
H D MI M a tr ix S witc h e r S e r ie s
Tha nk y o u fo r p urc ha sin g th e SB- 5645 HDM I M a trix Sw itc he r. Y o u w il l n d th is unit e a sy to in sta ll
a nd hig hly re li a b le b ut it is e sse ntia l th a t y o u re a d th is m a nua l th ro ug hly b e fo re a tte m p tin g to
use 4x 4 HDM I M a trix sw itc he r.

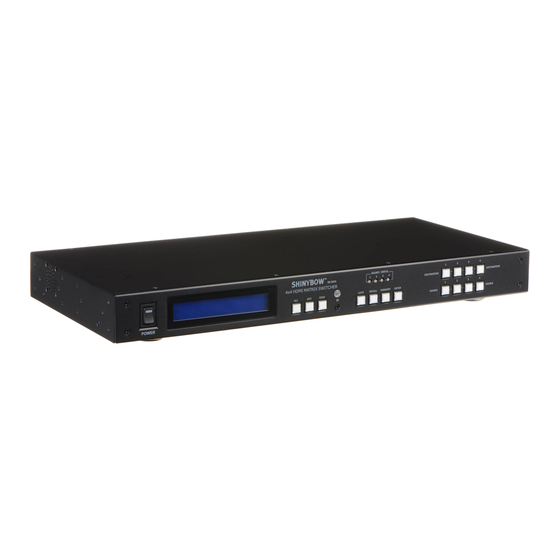

4:4 HDM I Matrix Switcher
HIGH-DEFINITION MULTIMEDIA INTERFACE
V E R S I O N L E V E L : V 1 . 3
MODEL : SB-5645
Part No.: ENCL005645P00A0
T M
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shinybow USA SB-5645
Summary of Contents for Shinybow USA SB-5645
-
Page 1: Instruction Manual
V E R S I O N L E V E L : V 1 . 3 Instruction Manual MODEL : SB-5645 4:4 HDM I Matrix Switcher H D MI M a tr ix S witc h e r S e r ie s Tha nk y o u fo r p urc ha sin g th e SB- 5645 HDM I M a trix Sw itc he r. -
Page 2: Safety Information
SAFETY INFORMATION Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit, use only the original factory packing. Read all documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. -
Page 3: Table Of Contents
1 y e a r in SHINYBOW Technology,s opinion, Prove defective within this warranty period, SHINYBOW Technology, at its option, repair this product without charge, to whatever extent it shall deem necessary to restore said product to proper operation condition. -
Page 4: Front Panel
SOURCES SELECT BUTTONS 19 INCH EAR MOUNT PAIR A separate output 1~4 source select buttons 19 inch case Ear Mount pair are provided for each destination. Select sources are 1-HDMI, 2-HDMI, 3-HDMI 4-HDMI. PAGE 4 SB-5645 INSTRUCTION & OPERATION MANUAL... -
Page 5: Rear Panel
IR E X T. DC 12V R o H S /95/E C DC POWER INLET The SB-5645 is fitted with a DC power plug-park Power Jack: input connector. Please ensure that the plug-park DC Jack - inner OD O 2.1mm (+ ) used is of an approved type and is of sufficient Ou tside OD O 5.5mm (GND) -
Page 6: Remote Control
Or through the RS 232 serial communications port. > Avoid powering equipment within a system from multiple power sources that may be separated by large distances > Upon power up the SB-5645 will return to its last used setting before Powered down. REMOTE CONTROL... -
Page 7: Ir Extender
IR Receiver : SB-100 4: 4 H DM I MATR IX S W S W-5 645p IR EXTENDER PACKAGE : HOW TO SETUP THE IR EXTENDER COMPONENTS St ep 1 St ep 2 St ep 3 PAGE 7 SB-5645 INSTRUCTION & OPERATION MANUAL... -
Page 8: Rs-232 Serial Interface
Not used RS232 The Shinybow switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC, or similar third party control system. The serial communication parameters are 9600 baud, 8 bit, No Parity and 1 stop bit - this is often referred to as 9600 8N1. -
Page 9: Rs-232 Serial Commands
- Reset every output to Input 1 Unit will respond with SBRSTACK - Unit has reset each Output to Input 1 Example : Reset all outputs to Input 1 SBALLRST -Send SBRSTACK -Rcvd PAGE 9 SB-5645 INSTRUCTION & OPERATION MANUAL... -
Page 10: Typical Application
- HDMI connector with fix screw 3. HDMI - HDMI connector with fix screw 4. HDMI - HDMI connector with fix screw SB-5645 SUPPORT FOUR HDMI INPUTS TO FOUR HDMI MATRIX OUTPUTS SUPPORT IR & IR EXTENDER PORTS. PAGE 10 SB-5645 INSTALLATION & OPERATION MANUAL... -
Page 11: Features & Specifications
DC12V / 2A (consumption 1.6A Max) Use Universal Switch Type 50/60Hz,100~230 VA C Shipping Weight : 2.25 Kgs / 3.75 lb As product improvements are continuous, specifications are subject to change and without notice. PAGE 11 SB-5645 INSTRUCTION & OPERATION MANUAL...
