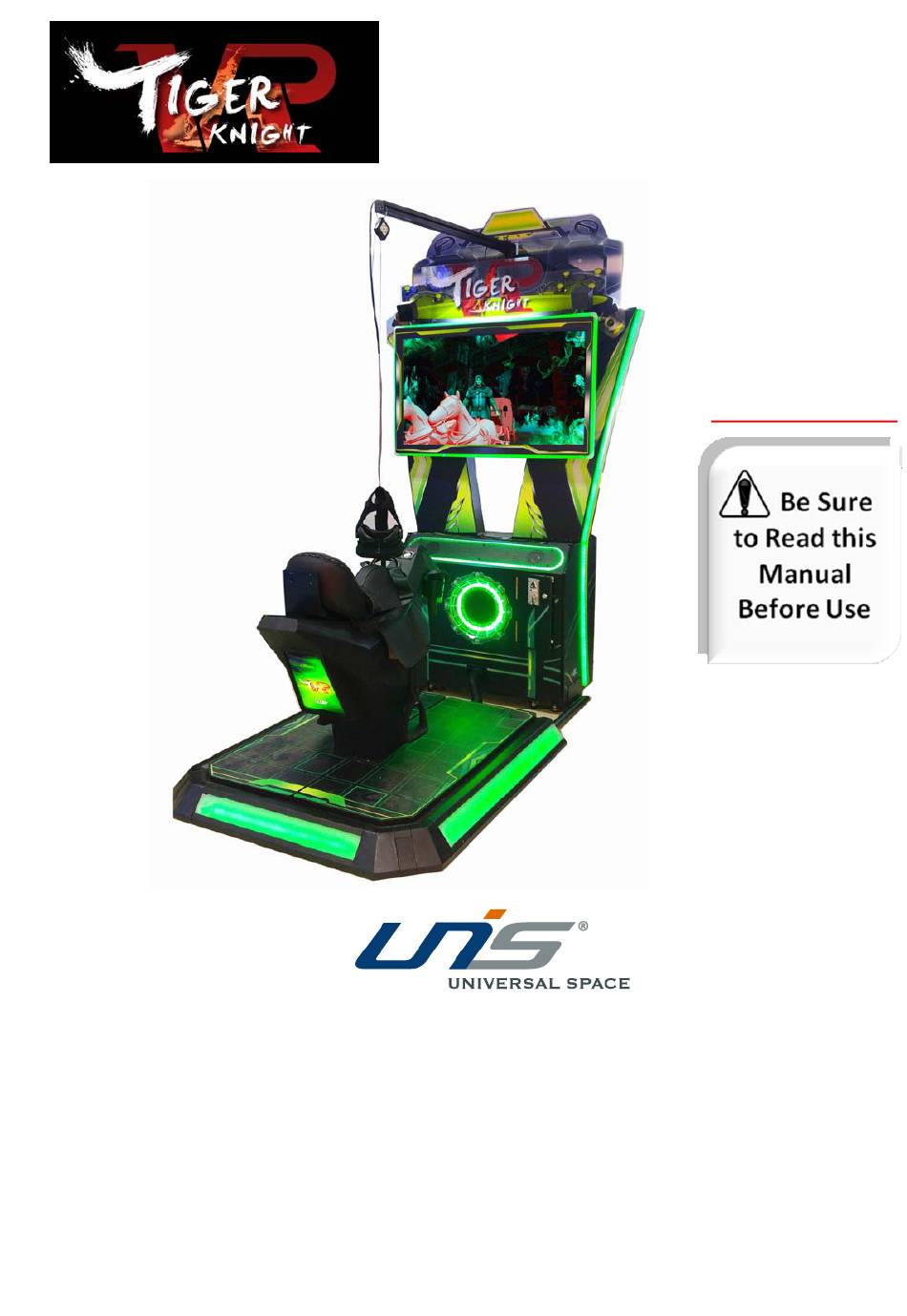

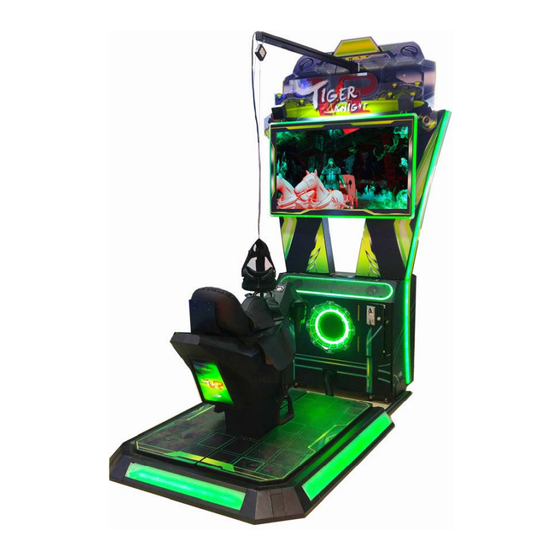

  • Page 1 IMPORTANT www.universal-space.com Operation Manual...

  • Page 2: Table Of Contents

    Tiger Knight VR Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 2 1. SPECIFICATIONS ..................... 4 2. CONTENTS OF THE ACCESSORY KIT ............5 3. PART NAME ..................... 6 4. SET UP & INSTALLATION ................7 5. HOW TO PLAY ....................16 7.

  • Page 3: Important Safety Instructions

    Tiger Knight VR Manual Thank you for purchasing Tiger Knight VR. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4 Tiger Knight VR Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 5: Specifications

    Tiger Knight VR Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz Min. Power consumption: 250W Max. Power consumption: 430W Dimension: W 52.04×D78.3 ×H 97.12 in Part No: T137 Model No: V-005 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.

  • Page 6: Contents Of The Accessory Kit

    Tiger Knight VR Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: 1. Following accessories Part No. Code Name Picture T137-801-000 41440000235 Manual T137-802-000 25300171002 T137-803-000 25300172002 T137-528-000 23301000001 Power cord...

  • Page 7: Part Name

    Tiger Knight VR Manual 3. PART NAME Key Components Marquee Assy. Display HTC Assy. Play field Stop button 12/25/2017...

  • Page 8: Set Up & Installation

    Tiger Knight VR Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid ...
  • Page 9 Tiger Knight VR Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area 12/25/2017...
  • Page 10 Tiger Knight VR Manual 4.4 Machine Installation 4.4.1 Cabinet Installation Before processing with assembly assure you have the following tools. Name Picture Use for Phillips screwdriver Step 1-2-4-5 Allen hexagon wrenches Step 6 Step 1 Place two parts as picture shown and connect all the plugs and make sure them in the black pipe.
  • Page 11 Tiger Knight VR Manual Step 2 Fix side bars with cross recessed hexagon screw kit. Part No. Code No. Name Picture Cross recessed hexagon screw T137-141-000 20104013004 Step 3 Loosen the screws to remove two back plates. Part No. Code No.
  • Page 12 Tiger Knight VR Manual Step 4 Install background bracket with cross recessed hexagon screw kit. Step 5 Open back door of the machine, guide the wiring of the HTC headset as red line, plug in three plugs in red circle. Then, reassemble two back plates.
  • Page 13 Tiger Knight VR Manual Step 6 Install the POP mounting bracket with cross recessed hexagon screw kit and install the POP plate with Hexagon flat round head screws and C washers. Part No. Code No. Name Picture Cross recessed hexagon screw...
  • Page 14 Tiger Knight VR Manual Step 7 Install the PVC plate brackets and install the front PVC. Part No. Code No. Name Picture Cross recessed pan head T137-102-000 20101010140 screw Hexagon flat round head T137-142-000 20101030006 screws T137-133-000 20113000055 C washer Hexagon flat round head screws &...
  • Page 15 Tiger Knight VR Manual Step 9 Install the base stations and set the channel. Install the base stations 12/25/2017...
  • Page 16 Tiger Knight VR Manual Setting the channel Signal light Channel button 12/25/2017...

  • Page 17: How To Play

    Tiger Knight VR Manual 5. HOW TO PLAY Look at the front and pull the right trigger. Pull the right trigger and shoot. 1. Put the right controller on the top of the left controller. 2. Pull the right trigger.
  • Page 18 Tiger Knight VR Manual Shake the left controller to speed up. 12/25/2017...

  • Page 19: Troubleshooting

    Tiger Knight VR Manual 7. TROUBLESHOOTING 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service. Turn on power SW again. If appeared...
  • Page 20 Tiger Knight VR Manual 12/25/2017...
  • Page 21 Tiger Knight VR Manual 12/25/2017...
  • Page 22 Tiger Knight VR Manual 12/25/2017...
  • Page 23 Tiger Knight VR Manual For base station: 12/25/2017...
  • Page 24 Tiger Knight VR Manual For controllers: 12/25/2017...

  • Page 25: Maintenance & Inspection

    Tiger Knight VR Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition 3.

  • Page 26: Overall Construction

    Tiger Knight VR Manual 9. OVERALL CONSTRUCTION 9.1 General Assembly Part No. Code No. Name 1 T137-001-000 29941703001 V bracket assy. 1 2 T137-002-000 29941703002 Display assy. 3 T137-003-000 29941703003 Wood case assy. 1 4 T137-004-000 29941703A001 Horse assy. 5 T137-005-000 29941703008 Bed plate assy. 1...
  • Page 27 Tiger Knight VR Manual 9.2 V bracket Assy. Part No. Code No. Name 1 T137-334-001 20241703055 Main support bar 1 2 T137-333-000 20241703035 VR bracket 3 T137-311-000 20241703034 V bracket 4 T137-336-001 20241703020A Side light plate 1 5 T137-335-001 20641703005A R side light plate 1 1...
  • Page 28 Tiger Knight VR Manual 9.3 Display Assy. Part No. Code No. Name 1 T137-304-000 20641703003 Clear plate 2 2 T137-303-000 20241703026 Pressing plate 2 3 T137-302-000 20241703001 Display cover 4 T137-301-000 20641703011 Display plastic 5 T137-306-000 20641703002 Clear plate 1...
  • Page 29 Tiger Knight VR Manual 9.4 Marquee Assy. Part No. Code No. Name 1 T137-357-000 20241703028 USB mounting plate T137-350-001 20641703008A R side light plate 02 T137-351-001 20241703024A Side light pressing plate 04 1 T137-348-000 20641108A002 Speaker plastic T137-349-000 20241703027 Bass speaker net...
  • Page 30 Tiger Knight VR Manual 9.5 Horse Assy. Part No. Code No. Name 1 T137-393-000 20241703058 Button bracket 2 T137-394-000 29941703006 Controller box 3 T137-361-000 20641703012 Saddle 4 T137-365-000 20641703019 Horse body 5 T137-372-000 20641703014 Light plate 1 6 T137-373-000 20241703029...
  • Page 31 Tiger Knight VR Manual 9.6 Bed plate Assy. Part No. Code No. Name T137-382-000 20241703056 Bed plate light box metal plate 1 2 T137-383-000 20641703009 Bed plate light box light plate 1 2 2 T137-385-000 20241703018 L corner metal T137-380-000 20241703057 Bed plate light box metal plate 2 1...
  • Page 32 Tiger Knight VR Manual 9.7 Decals Part No. Code No. Name 1 T137-714-000 20541703A001 Front light decal 2 T137-705-000 20541703012 Side light decal 3 T137-702-000 20541703007 Background decal 1 4 T137-720-000 20541703A007 Button decal 5 T137-703-000 20541703009 Base front decal...
  • Page 33 Tiger Knight VR Manual Part No. Code No. Name 1 T137-721-000 20541703A008 Meter label 2 T137-709-000 25600000037 Voltage label (L) 3 T137-722-000 20541703A009 110V nameplate 4 T137-723-000 20541703A010 220V nameplate 5 T137-724-000 20541703A011 CE 220V nameplate 1 6 T137-708-000 25600000036 Voltage label (S)
  • Page 34 Tiger Knight VR Manual 9.10 Electrical components Part No. Code No. Name T137-553-000 21201043001 43“ display T137-538-000 23307020001 DVI-DVI video cable 1 T137-529-000 23301018002 Power cord 2 T137-522-000 22801000037 Speaker T137-513-000 22002017020 Green light T137-520-000 22801000078 Bass speaker 4 T137-523-000 22002015009...
  • Page 35 Tiger Knight VR Manual Part No. Code No. Name 1 T137-556-000 22402000201 White button 2 T137-530-000 21107280003 HTC assy. 3 T137-512-000 21503020004 Pressure SW T137-550-000 22401240001 Square button T137-547-000 22604000006 Micro SW T137-544-000 22003000018 LED bulb T137-525-000 22401010001 Triangle button...
  • Page 36 Tiger Knight VR Manual Part No. Code No. Name T137-539-000 29791300001 Main board T137-516-000 23309000265 Cable set T137-536-000 23304010030 USB cable 2 T137-519-000 21602000004 Power supply box 1 3 T137-537-000 21404000059 10 ports socket T137-541-000 22702000010 Fan net T137-557-000 22702010025...
  • Page 37 Tiger Knight VR Manual PC Assy. Part No. Code No. Name T137-517-001 23303030002 Serial line T137-517-002 21107060005 Hard disk T137-517-003 21107090012 Memory T137-517-004 21107030088 video card T137-517-005 21107220009 Main board T137-517-006 21107190021 T137-517-007 21107300002 Cabinet T137-517-008 21107300003 T137-517-009 21107300004 CPU fan T137-517-010 21107300001 Power supply 1 Part No.

  • Page 38: Wiring Diagram

    Tiger Knight VR Manual 10. WIRING DIAGRAM Power SW FUSE1 SW-DPST 12/25/2017...
  • Page 39 WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Fax: 214-919-4918 Email: service@unisusasupportcenter.com...
