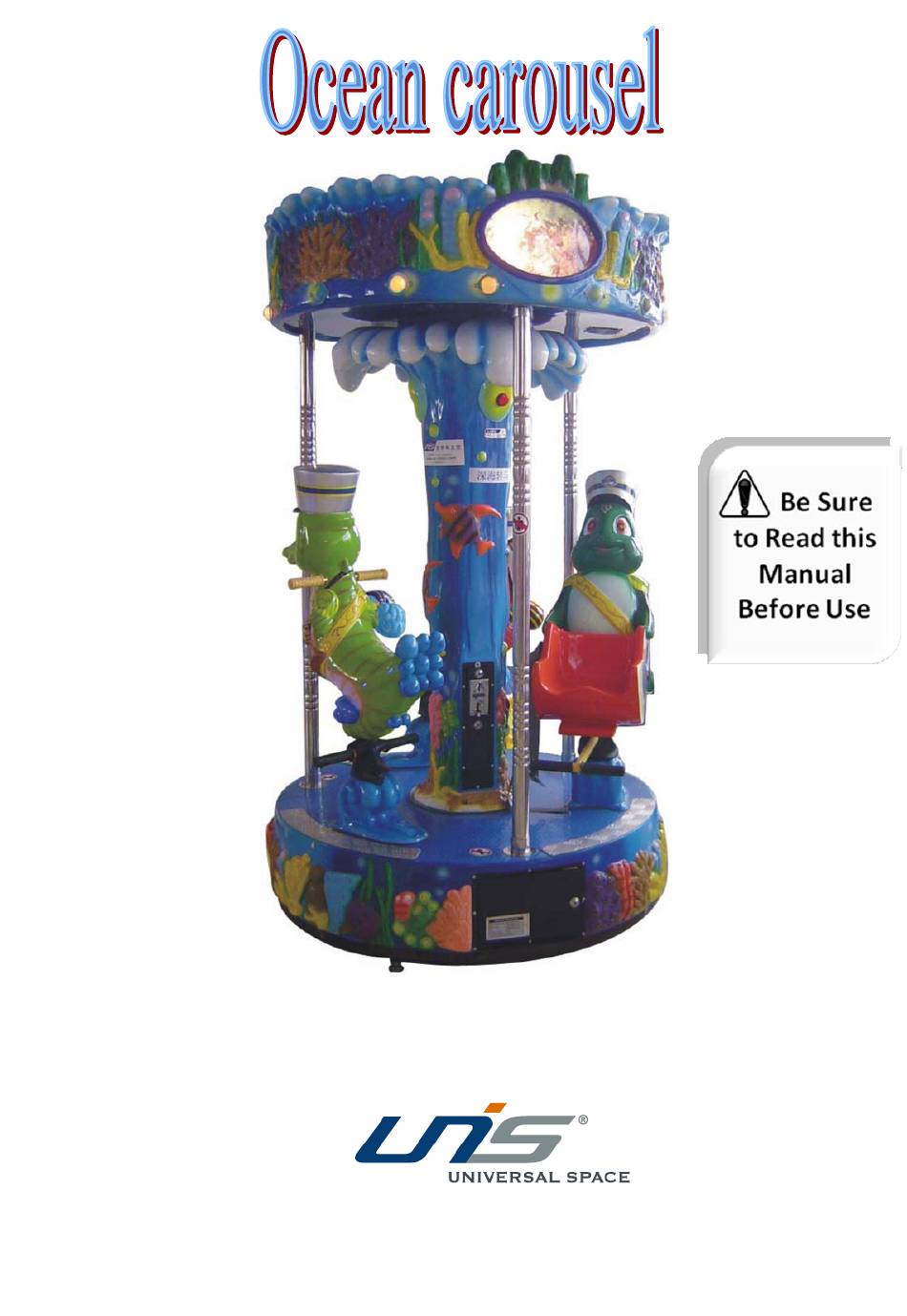

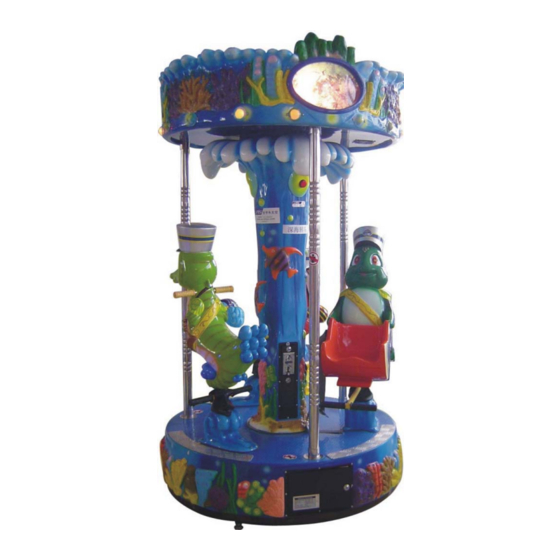

  • Page 1 Operation Manual www.universal-space.com...
  • Page 3 Have Questions? Contact us! International Support Center USA Support Center Tel: +1-905-477-2823 Tel: 972-241-4263 Fax: +1-905-477-2660 Fax: 214-919-4918 Email: service@universal-space.com Email: service@unisusasupportcenter.com...

  • Page 4: Table Of Contents

    Ocean carousel Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ..................... 4 2. PACKAGE CONTENTS ....................5 3. PART NAME ......................6 4. SET UP & INSTALLATION ..................7 5. HOW TO PLAY ......................11 6. GAME OPTION ....................... 12 7.
  • Page 5 Ocean carousel Manual Thank you for purchasing Ocean carousel. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.

  • Page 6: Important Safety Instructions

    Ocean carousel Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 7: Specifications

    Rated power supply: AC220-240V,50/60Hz Power consumption: 400W Dimension: W54×H91.2 in Weight：Approximately 551.2 lb Part No: O101 Model No: B-310 NOTICE: After turning off the game, please wait at least 1 minute before restarting again. 91.2 inches Φ 54 inches Note: Game parameters are subject to change without notice.

  • Page 8: Package Contents

    Ocean carousel Manual 2. PACKAGE CONTENTS Open the package and make sure all the items are included: 1. Following accessories Part No. Code Name Spec. Picture O101-001-000 2.19.01.000012 Fuse φ5-20mm O101-002-000 25302222002 2222 O101-003-000 25300000107 2233 O101-004-000 Manual English NOTE: Part models are subject to change without notice.

  • Page 9: Part Name

    Ocean carousel Manual 3. PART NAME Header Assy. Steel pole Pillar Coin Assy. Play field Base Assy. Service door...

  • Page 10: Set Up & Installation

    Ocean carousel Manual 4. SET UP & INSTALLATION This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid  Place the unit on a dry level surface ...
  • Page 11 Ocean carousel Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Play area: 54 in Service area: 20 in The machine Service area 4.4 Connecting Power WARNING: Check the voltage rating before you connect the equipment to an electrical outlet to ensure that the required voltage and frequency match the available power source.
  • Page 12 Ocean carousel Manual WARNING Ensure no heavy objects rest on the power cord. Check to make sure the game cabinet does not sit on the power cord as this could damage the cord and become hazardous. To disconnect the game, grip the plug and pull it from the wall outlet. Never pull by the cord.
  • Page 13 Ocean carousel Manual 2. Dismantle the header and the Pillar a. Use the Philips screwdriver to loosen 8 bolts under the header. b. Take out the header (It is recommended to have the minimum of 2 staff members available for this step).

  • Page 14: How To Play

    Ocean carousel Manual 3.Dismantle 3 steel poles. Rotate and remove them. 4. Pack up six parts with bubble-coat separately after disassembling the machine, for sand or other hard substances may scratch the surface of the machine. 5. Please assemble the game in reversed order. 6.

  • Page 15: Game Option

    Ocean carousel Manual 6. GAME OPTION 6.1 Use the service key to open the operation door. 1. Volume Adjustment: Turn it in clockwise to increase the volume, and counterclockwise to reduce. 2. Play Counter: Record the playing times. 3. Reset Button: Press it to renew the game.
  • Page 16 Ocean carousel Manual 6.2 Switches control signal and illumination 1. Refer the attached I/O chart and the schematic. 2 . To adjust DIP, please refer the I/O chart. The initial setting is in capitalization. 3．Adjust DIP：（the initial setting） The above are subject change without notice. The parameters Adjustment of the game, setting the DIP SW to change the parameters, the detail as below: ①...

  • Page 17: Error Message And Recovery

    Ocean carousel Manual 7. ERROR MESSAGE AND RECOVERY 7.1Trouble Shootings  Please confirm whether every connector connected tightly. Symptom Possible Cause Recommended action Frame assembly connector fell or Game will not Plug in connector tightly. is loose start Frame assembly fault Contact with UNIS Service.

  • Page 18: Maintenance & Inspection

    Ocean carousel Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components ensure good working condition 3.

  • Page 19: Overall Construction

    Ocean carousel Manual 9. OVERALL CONSTRUCTION 9.1 General Assembly Part No. Code Name Material & SPEC. O101-348-000 206.5.08.16.009 Marquee decal Plexi. O101-436-000 2.22.02.010003 Led light bracket MR16 O101-601-000 204.5.08.16.001 Header Fiber glass O101-355-000 206.5.08.16.003 Light cover Plexi. O101-432-000 2.20.03.000006 Light bulb O101-433-000 2.22.01.000090 Light socket 12V/3W...
  • Page 20 Ocean carousel Manual Part No. Code Name Material & SPEC. O101-434-000 2.17.04.000078 Light board seaLMP001.PCB O101-422-000 2.28.01.000022 Speaker 'MULKA/4.0"/4Ω/10W O101-349-000 202.5.08.16.036 Speaker net cover Q235 O101-431-000 2.27.02.000002 SUNON DP200A O101-602-000 204.5.08.16.002 Header plate Fiber glass Header connected O101-336-000 202.5.08.16.017 Q235 embedded part O101-603-000 204.5.08.16.003 Pillar...
  • Page 21 Ocean carousel Manual 9.2 Base assy.
  • Page 22 Ocean carousel Manual Part No. Code Name Material & SPEC. O101-301-000 202.5.08.16.001 Turnplate Q235 O101-314-000 202.5.08.16.014 Base Q235 O101-315-000 202.5.08.16.042 Brass ring Assy. O101-316-000 202.5.08.16.043 Vertical shaft Assy. O101-317-000 206.5.08.16.002 Insulation table Nylon O101-405-000 2.65.03.000008 Chain 10A/ 5/8" Gear box chain O101-318-000 202.5.08.16.044 wheel O101-319-000 202.5.08.16.015 Motor mounted plate...
  • Page 23 Ocean carousel Manual 9.3 Electrical part Part No. Code Name Material & SPEC. Motor fixed mounting O101-302-000 202.5.08.16.002 Q235 plate Reinforced pillar fixed O101-303-000 202.5.08.16.003 Q235 plate 1 Electrical box mounting O101-304-000 202.5.08.16.004 Q235 plate O101-305-000 202.5.08.16.005 Wheel fixed plate2 Q235 O101-306-000 202.5.08.16.006 Wheel fixed plate1...
  • Page 24 Ocean carousel Manual 9.4 Electrical part Part No. Code Name Material & SPEC. O101-337-000 202.5.08.16.033 Service door Q235 Electrical box mounting O101-304-000 202.5.08.16.004 Q235 plate O101-425-000 2.26.01.000004 Power SW KCD3-102N O101-426-000 2.32.0000001 Filter DL-6TH1 Coin counter COA126 O101-421-000 Play counter COA126 O101-429-000 2.25.01.000017...
  • Page 25 Ocean carousel Manual Part No. Code Name Material & SPEC. SY-YBJ02 O101-416-000 2.97.9.1100001 Main board PCB(V1.0) O101-437-000 2.16.05.000004 transducer EDS800-2S000) O101-417-000 2.16.01.000031 Transformer DK2-60VA/12V O101-439-000 2.16.01.000109 Transformer HLBB-2504-0003 O101-368-000 202.5.08.16.060 Transformer holder Q235 Ring transformer O101-365-000 202.5.08.04.042 Q235 holder...
  • Page 26 Ocean carousel Manual 10 Wiring Diagram power SW...
