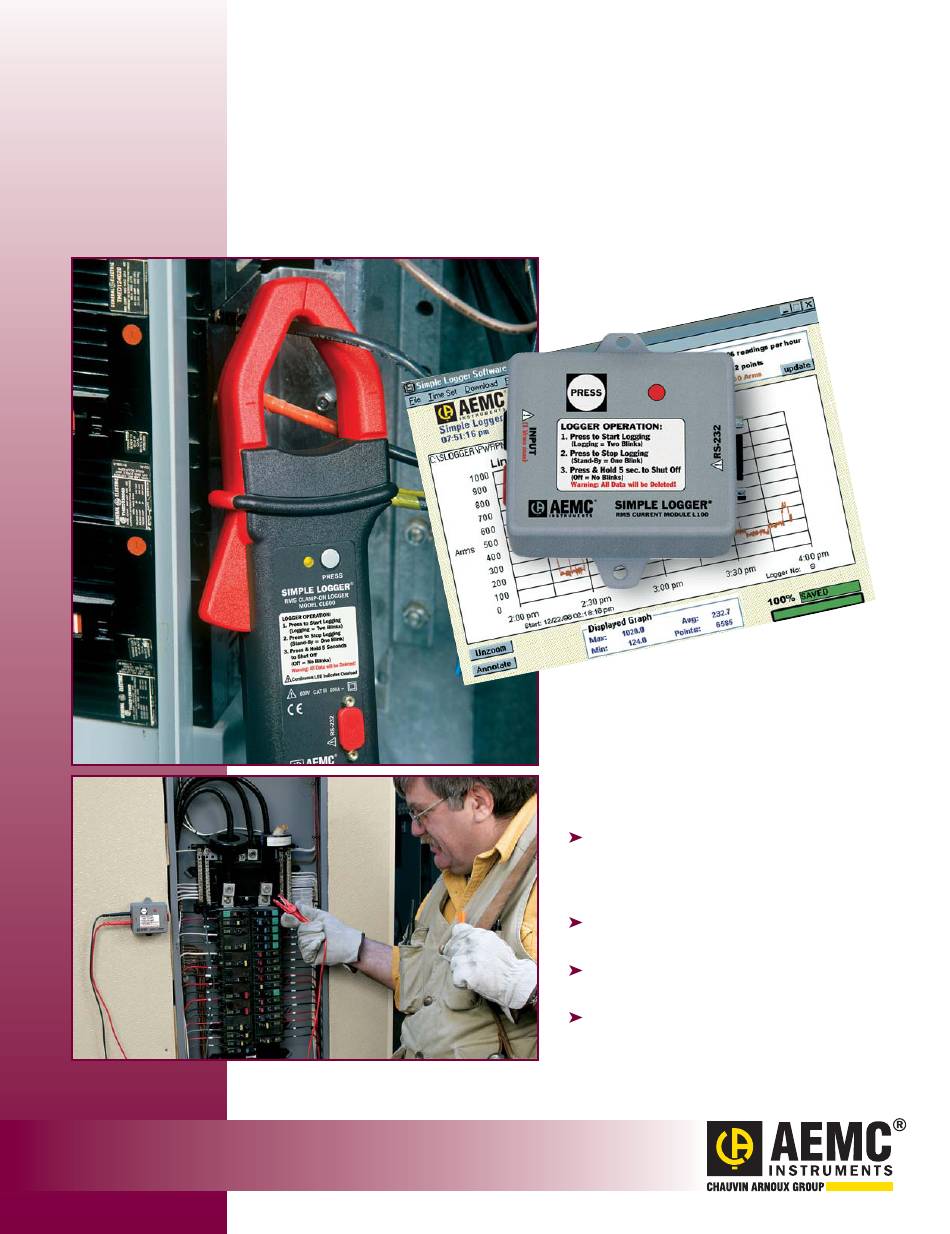

SIMPLE LOGGER
DATA LOGGERS
AC Current • AC Voltage • DC Voltage
Thermistor • Thermocouple • 4 to 20mA
®
Complete line of loggers that include
AC current, AC voltage, DC voltage,
thermistor, thermocouple and
4 to 20mA
Low cost data loggers require
no user setup
Automatically adjusts both its
scale range and sample rate
Windows
®
based software that can plot,
analyze recorded data and print graphs
and data listings
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AEMC instruments SIMPLE LOGGER L100
Summary of Contents for AEMC instruments SIMPLE LOGGER L100
- Page 1 SIMPLE LOGGER ® DATA LOGGERS AC Current • AC Voltage • DC Voltage Thermistor • Thermocouple • 4 to 20mA Complete line of loggers that include AC current, AC voltage, DC voltage, thermistor, thermocouple and 4 to 20mA Low cost data loggers require no user setup Automatically adjusts both its scale range and sample rate...
- Page 2 DATA LOGGING FEATURES MADE SIMPLE … No user setup required One button operation — start and Simple Logger ® stop recordings and turn the logger on and off Log and measure Arms, Vrms, Temperature, DC Volts, DC Amps (model dependent) Innovative Time Extension Recording ™...
-
Page 3: Minimum System Requirements
Plot graphs and view statistics quickly and Simple Logger Software ® easily when you download data from Simple Logger ® to your computer. Scale and time On-line display of data axis update automatically. Click and drag your mouse to zoom up the Automatic desired area of the graph for better viewing. -
Page 4: Specifications

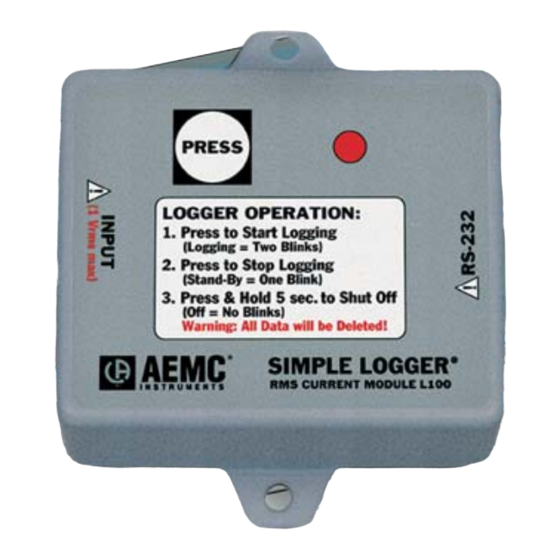

The Simple Logger ® Models L100 and L110 AC CURRENT are single channel, low cost data loggers that require no user setup. They have the SIMPLE LOGGER ® ability to automatically adjust both their scale range and their sample rate to optimize Models L100 &... - Page 5 CLAMP-ON AC CURRENT The Clamp-On Simple Logger ® Model CL600 is a self-contained data logging AC current probe. The logger requires no user SIMPLE LOGGER ® setup and has the ability to automatically adjust its scale and sample rate to optimize Model CL600 the recording.
- Page 6 AC VOLTAGE The Simple Logger ® Models L205, L230 and L260 are single channel, low cost data loggers that require no user setup. They SIMPLE LOGGER ® have the ability to automatically adjust both their scale range and their sample rate to Models L205, L230 optimize the recording session.
- Page 7 AC EXCEPTION VOLTAGE The AC Exception Voltage Simple Logger ® Model L215 is the ideal product to capture short-term events such as sags and swells. SIMPLE LOGGER ® This logger samples the input 10 times per second and only stores the data when an Model L215 alarm threshold is crossed, thus maximizing its use of memory.
- Page 8 The Simple Logger ® Models L410 and L430 DC VOLTAGE are single channel, low cost data loggers that require no user setup. They have the ability to SIMPLE LOGGER ® automatically adjust both their scale range and sample rates to optimize the recording Models L410 &...
- Page 9 The Simple Logger ® Thermistor Logger THERMISTOR Model L605 is a single channel, low cost data logger that requires no user setup. It SIMPLE LOGGER ® is directly compatible with industry standard 10kΩ thermistor probes. The Model L605 Model L605 has both an internal and external thermistor with a measurement range of -4°...
- Page 10 The Simple Logger ® Models L610, L620 THERMOCOUPLE and L630 are single channel, low cost thermocouple data loggers that require SIMPLE LOGGER ® no user setup. They have the ability to automatically adjust both their scale range Models L610, L620 & L630 and their sample rate to optimize the recording session.
- Page 11 The 4 to 20mA Simple Logger ® Model 4 to 20mA L320 is ideal for process control monitoring and troubleshooting. The measurement SIMPLE LOGGER ® range is 0 to 25mA . The unit is self- contained with no exposed connections. Model L320 The logger requires no user setup and has the ability to automatically adjust its scale...
- Page 12 FLEXIBLE CURRENT The AmpFlex ™ Flexible Current Probe Simple Loggers ® combine two technologies to become the ultimate measurement recording PROBE SIMPLE LOGGER ® device. The AmpFlex ™ flexible current probe is designed to take measurements where Models AL24-2500, standard clamp-ons cannot: in tight breaker panels, around large bus bars, around cable AL36-2500, AL24-5000 bundles and even wrapped around irregular...
- Page 13 ACCESSORIES Split Core AC and DC Current Probes Current Probe and Simple Logger Compatibility ® Probe Measurement Range Output Signal Output Catalog Logger Series Ratio Model Current Voltage Connection Model ø = 0.78" MN211 1000:1 0.5 to 240A – – Lead 2115.73 L110...
- Page 14 Flexible Current Probe and Simple Logger Compatibility ® Flexible Probes for use with Simple Logger Model L100 ® Simple Logger ® Software 24" Flexible Probes Upgrade for all models Carrying Case available for download at Catalog No. Probe Model Range Ratio Cat.
- Page 15 CONSTRUCTION Mounting tab Start/Stop/Record button Operation mode LED RS-232 output Input Mounting tab L Series Lead from sensor to module Jaw Opening: 1.65" (42mm max) Conductor Size: one conductor 1.65" (42mm) two conductors 1" (25.4mm) Safety barrier/ AmpFlex ™ anti-slip guard connector/latch Flexible sensor...
-
Page 16: Input Connections
INPUT CONNECTIONS Banana Jacks Miniature T/C Input Connector In-Line Connector • L100 • L230 • L610 (black) (J T/C) • L605 (10KΩ @ 25°C thermistor) • L110 • L260 • L620 (yellow) (K T/C) • L205 • L410 • L630 (blue) (T T/C) •...
