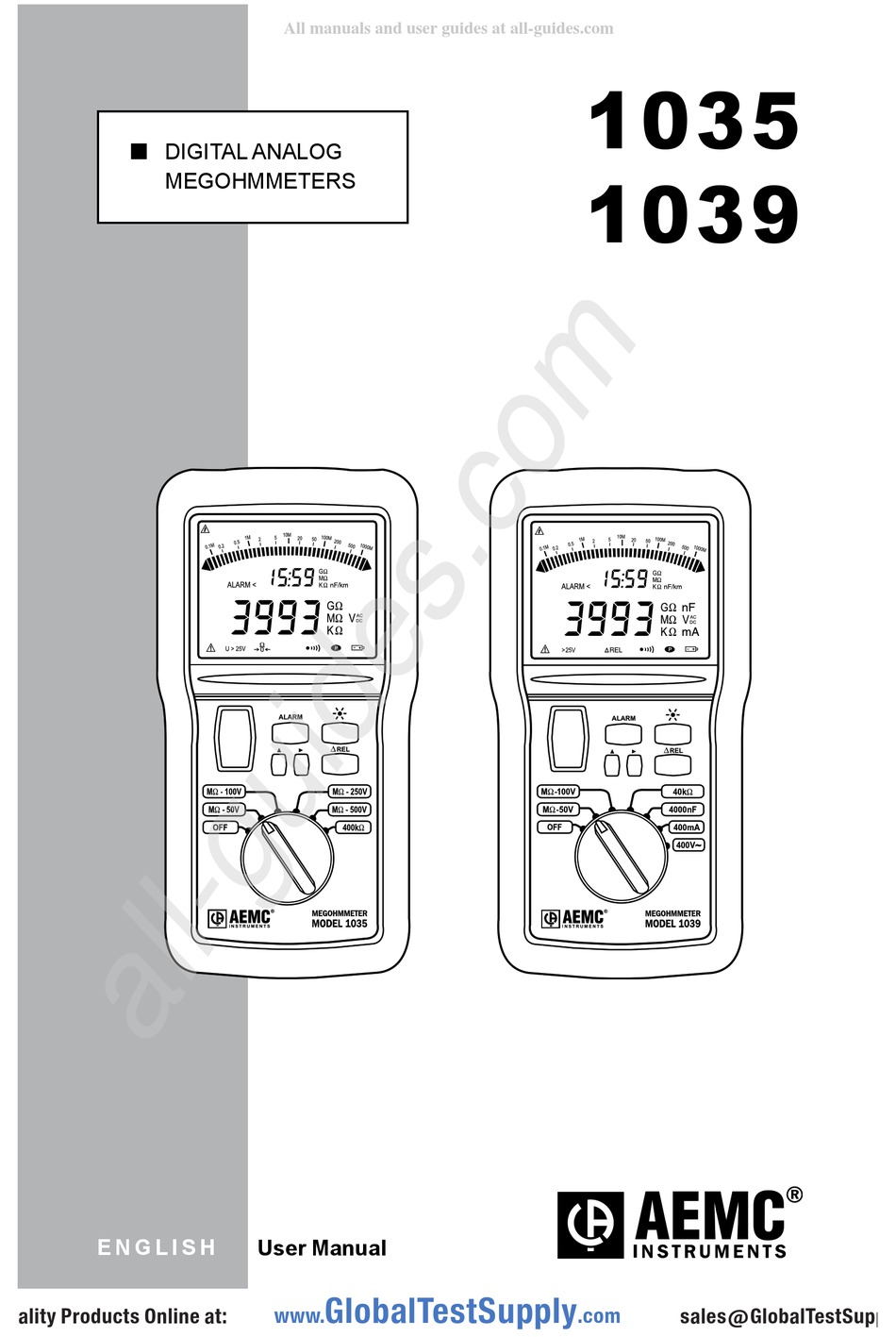

- Page 1 All manuals and user guides at all-guides.com 1035 DIGITAL ANALOG 1039 MEGOHMMETERS E N G L I S H User Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 2 Refer to our repair and calibration section at www.aemc.com. Serial #: ________________________________ Catalog #: 2116.90 /2116.91 Model #: 1035 /1039 Please fill in the appropriate date as indicated: Date Received: _________________________________ _______________________ Date Calibration Due: Chauvin Arnoux , Inc.
-
Page 3: Table Of Contents
1.2 Definition of Measurement Categories ........4 1.3 Receiving Your Shipment ............4 1.4 Ordering Information ..............5 1.4.1 Accessories and Replacement Parts ......5 2. PRODUCT FEATURES ..............6 2.1 Description ................6 2.2 Model 1035 Control Features ...........7 2.3 Model 1039 Control Features ...........8 2.4 LCD Display Symbols ...............9 2.4.1 Digital Display Symbols ..........9 2.4.2 Analog Bargraph ............9 2.5 Button Functions ..............10 2.5.1 Yellow Push Button .............10 2.5.2 ALARM Button ............10... - Page 4 All manuals and user guides at all-guides.com 2.7.7 Relative Measurements ( REL) .........19 2.7.8 Programming the Capacitance per Unit Length (1039) ..19 3. SPECIFICATIONS................20 3.1 Electrical Specifications ............20 3.1.1 Voltage ................20 3.1.2 Insulation ..............20 3.1.3 Resistance ..............21 3.1.4 Capacitance (1039) ............21 3.1.5 Distance (1039) ............22 3.1.6 AC/DC Current (1039) ..........22 3.1.7 AC Voltage (1039) ............22 3.1.8 Power Supply ..............22 3.2 Mechanical Specifications ............23 3.3 Environmental Conditions ............23...
-
Page 5: Introduction
• Tests are to be carried out only on non-energized circuits! Check for live circuits before making resistance measure- ments (safety check). • The Megohmmeter Models 1035 and 1039 are sources of high voltage, as is the sample connected to them. All persons performing or assisting in the tests must employ all safety precautions to prevent electrical shock to themselves and to others. -
Page 6: International Electrical Symbols
(<1000V) such as on primary overcurrent protection devices, ripple control units, or meters. Receiving Your Shipment Upon receiving your shipment, make sure that the contents are consistent with the packing list. Notify your distributor of any missing items. If the equipment appears to be damaged, file a claim immediately with the car- rier and notify your distributor at once, giving a detailed description of any damage. Save the damaged packing container to substantiate your claim. Do not use an instrument that appears to be damaged. Digital Analog Megohmmeter Models 1035/1039 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 7: Ordering Information
Includes soft carrying case, 2 color-coded leads, 1 black test probe, 2 alligator clips, 2 grip probes, batteries and user manual. Model 1035 Field Kit ............Cat. #2115.42 Includes meter, field case, 3 color-coded leads, black test probe, 3 alligator clips, 2 grip probes, remote test probe, batteries and user manual. -
Page 8: Product Features
• protection of the instrument against external voltage surges • operator safety by means of automatic discharge of the high voltage on the equipment tested • display of the difference compared to a measurement value in memory • measurement of the length of a telephone line according to its capacitance per km unit length (1039) • automatic shutdown of the instrument to save the batteries and indication of the battery charge • fuse testing by periodic checks during current measurement (1039) • a large backlit LCD screen with a wide range of indicators making it very easy for the user to read Digital Analog Megohmmeter Models 1035/1039 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -

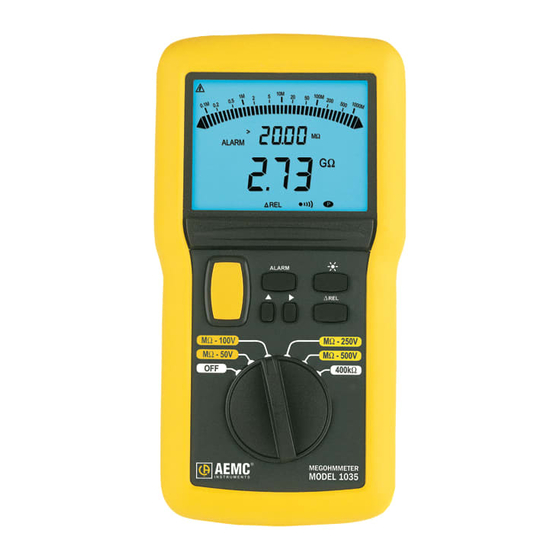

Page 9: Model 1035 Control Features
All manuals and user guides at all-guides.com Model 1035 Control Features Figure 1 1. Safety terminals - Ø 4mm (marked “+” and “G”) and a 3-Point socket for connecting the remote control 2. Backlight liquid crystal display 3. Buttons: Yellow (to activate insulation measurement) ALARM, and ΔREL (see § 2.7) 4. 6-position switch: OFF, MΩ - 50V, MΩ - 100V, MΩ - 250V, MΩ - 500V, 400kΩ 5. Battery compartment and stand (not shown in drawing) Digital Analog Megohmmeter Models 1035/1039 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 10: Model 1039 Control Features
All manuals and user guides at all-guides.com Model 1039 Control Features Figure 2 1. Safety terminals - Ø 4mm (marked “mA”, “+” and “-”). Next to the “-” terminal, there are two additional contacts for connecting the remote control probe (3-Point connector). 2. Backlight liquid crystal display 3. Buttons: Yellow (to activate insulation measurement) ALARM, , and ΔREL (see § 2.7) 4. 7-position switch: OFF, MΩ - 50V, MΩ - 100V, 40kΩ, 4000nF, 400mA, 400V~ 5. Battery compartment and stand (not shown in the drawing) Digital Analog Megohmmeter Models 1035/1039 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 11: Lcd Display Symbols
Low Limit Trigger Test Voltage On – Negative Value Refer to User Manual Fuse Open >25V Measured Voltage >25V Lead, Resistance Zeroing Active Buzzer Permanent Run – Auto-Off Disabled Low Battery nanoFarad Kilometers REL Relative Position BAT Batteries low – must be replaced Over Range - Over Load - - - Insulation < 10kΩ at 50V, < 20kΩ at 100V, < 50kΩ at 250V, < 100kΩ at 500V 2.4.2 Analog Bargraph Insulation > 1.1GΩ Insulation < 70kΩ Digital Analog Megohmmeter Models 1035/1039 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 12: Button Functions
- the tens digit, - the units digit, - the decimal point, - the alarm trigger (above or below the setting) - and it then returns to the measurement units. The capacitance per unit length in nF/km (with the button on the 1039). By pressing the ► button, you can make the following elements flash successively: the tens digit, - the units digit, - and it then returns to the tens digit. Digital Analog Megohmmeter Models 1035/1039 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 13: Scroll Cursor Button
0, 1, 2, 3, 4, 5, 6, 7, 8 and 9 for the hundreds, tens and units, “-.- - -” or “- -.- -” or “- - -.-” or “- - - -” for the decimal separator, > or < for above or below threshold trigger. When programming the capacitance per unit length in nF/km, the ▲ button can be used to change the values of the flashing digits to 0, 1, 2, 3, 4, 5, 6, 7, 8 or 9. 2.5.5 Backlight Button 1035 and 1039: When this button is pressed, the backlighting of the dis- play comes on. It will be turned off automatically one minute later. When it is lit, you can turn the backlighting off by pressing this button again. 1039: When the switch is on 4000nF, a long press on this button enables you to program the unit length value (see § 2.7.8). 2.5.6 REL Button A long press on this button enables you to memorize a value. The measurements that follow will be the positive or negative deviation compared with the value memorized (does not function for voltage on the MΩ positions). -
Page 14: Measurement Functions
The instrument indicates if the value measured is outside its mea- surement range. If the measured insulation resistance is greater than 400MΩ (1039), 2 or 20GΩ (1035), the OL symbol is displayed on the dig- ital display instead of a value. When the measurement is greater than 1.1GΩ, the ► symbol lights up on the right-hand side of the bargraph. -
Page 15: Resistance
All manuals and user guides at all-guides.com Model 1039: 10kΩ at 50V; 20kΩ at 100V Model 1035: 10kΩ at 50V; 20kΩ at 100V; 50kΩ at 250V; 100kΩ at 500V When the measurement is less than 70kΩ, only the ◄ symbol lights up on the left-hand side of the bargraph. To measure high insulation values, you are advised to use the “G” guard terminal to remove the influence of superficial leak currents and “hand capacitance”. -
Page 16: Ac/Dc Current (1039)
If the current measurement is greater than 400mA , the OL symbol is displayed on the display. The MN211 Current Probe may be used to extend the measurement range to 200A 2.6.6 AC Voltage (1039) AC voltage measurement corresponds to the V~ position of the switch. The measurement is shown on the display accompanied by the V symbol. In this function, the DC component is not measured. If the voltage measurement is greater than 400V , the OL symbol is displayed on the digital measurement display. Digital Analog Megohmmeter Models 1035/1039 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 17: Special Functions
Battery Auto Test The battery supply voltage is measured automatically every second. The battery voltage range for correct operation is 7V to 10V. There are four possible cases: • The voltage is correct: Nothing is displayed. • The voltage is < 7.1V: the symbol flashes. Remaining battery life is limited. • The voltage is < 6.9V: the symbol remains lit. Measurement accuracy is no longer assured. Replace the batteries. • The voltage is close to 6.7V: the digital display indicates BAT and then, after 5 seconds, the shutdown buzzer sounds, and the Auto OFF function is activated. The instrument shuts down. Digital Analog Megohmmeter Models 1035/1039 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 18: Fuse (1039)
THE DIFFERENT SOUNDS When the symbol is displayed, the buzzer is active. It gives out differ- ent sounds, depending on the operation or warning. • Short buzz (65 ms at 2kHz): - push on a button - auto OFF • Continuous buzz (at 2kHz): - measurement is lower than the minimum setpoint - measurement is higher than the maximum setpoint • Short, higher buzz (65ms at 4kHz): - when a disabled (inactive) button is pressed (except the yellow test button) • Repeated high buzzes (at 4kHz): - the detected voltage (safety check) at the sample is greater than 25V and the yellow button is pushed Digital Analog Megohmmeter Models 1035/1039 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 19: Alarm Setpoints
To program the setpoint press the ALARM button until the ALARM symbol is displayed and beeps a second time (the setpoint unit will blink, e.g. MΩ). The value of the setpoint corresponding to the selected range is indicated on the small digital display. If no value was previously programmed, the display indicates a default setpoints: • On the 1039: > 0.050MΩ for the MΩ - 50V position > 0.100MΩ for the MΩ - 100V position < 20.00kΩ for the 40kΩ position • On the 1035: > 0.05MΩ for the MΩ - 50V position > 0.10MΩ for the MΩ - 100V position > 0.25MΩ for the MΩ - 250V position > 0.50MΩ for the MΩ - 500V position < 20.00kΩ for the 400kΩ position At this moment, it is possible to program the threshold using the ► and ▲ buttons. During this programming, if you change the switch position, you lose what you have just done. - Page 20 Examples in insulation measurement: • If an upper setpoint of 100MΩ is active, the display indicates “ALARM > 100.0MΩ”. • If the measurement exceeds this value, a continuous beep will be triggered and the whole digital threshold display will flash. • If a lower setpoint of 100MΩ is active, the display indicates “ALARM < 100.0MΩ”. • If the measurement falls below this value, a continuous beep will be triggered and the whole digital threshold display will flash. Digital Analog Megohmmeter Models 1035/1039 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 21: Relative Measurements ( Rel)
WARNING: During programming, if you change the switch position, you lose what you have just done. You can quit the programming mode and record the value by another long press on the button. Digital Analog Megohmmeter Models 1035/1039 GlobalTestSupply www. .com Find Quality Products Online at:... -
Page 22: Specifications
0.0 to 399.9V 400 to 600V AC/DC AC/DC Resolution 0.1V Accuracy ±3% R ± 1ct Input Impedance 6MΩ (1039) - 300kΩ (1035) 3.1.2 Insulation Measurement Range: Model 1039: 50V 10kΩ to 400MΩ 100V 20kΩ to 400MΩ Model 1035: 50V 10kΩ to 2GΩ... -
Page 23: Resistance
All manuals and user guides at all-guides.com Analog Bargraph 80kΩ to 1.1GΩ Resolution 10 segments per 10-unit interval Accuracy 5% R ± 1 segment Model 1039 and 1035 1035 Display 0.01 to 39.99MΩ 40.0 to 399.9MΩ 400 to 3999MΩ 4.00 to 20GΩ Resolution 10kΩ... -
Page 24: Distance (1039)
Measurement Range: 0 to 399.9V Frequency: 10Hz to 1MHz Resolution: 0.1V Accuracy: ±3% ± 1ct Internal Impedance: 5MΩ 3.1.8 Power Supply The instrument is powered by 6 x 1.5V AA alkaline batteries, type NEDA 15A, or LR6. Measurement Consumption* Average Battery Life Voltmeter (1039/1035) Ammeter 25mA 57,600 5-second measurements (1039) Capacitance Meter (1039) Resistance 50mA 28,800 5-second measurements (1039/1035) Insulation (1039/1035) -
Page 25: Mechanical Specifications
1% ± 1ct/V 2% ± 2cts/V Frequency (voltmeter DC and >10V) 15 to 400Hz Capacity in parallel to 0 to 5µF at nominal current 5% ± 1ct 10% ± 2cts the resistance Digital Analog Megohmmeter Models 1035/1039 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 26: Safety Specifications
All manuals and user guides at all-guides.com Limitation The megohmmeters are protected on all ranges against a voltage of 600V , applied permanently between any two terminals. AC/DC The current input of the 1039 accepts 0.63A and is protected by the fuse above this value. Safety Specifications Electrical Safety (according to IEC 1010-1 +A2 (Nov. ‘95), IEC 61557 (Feb. ‘97), VDE 413) Double Insulation 600Vrms, Cat. III, Pollution Degree 2 Electromagnetic Compatibility: Emissivity: NF EN 55 081-1 (June ‘92) Immunity: NF EN 55 082-1 (Jan. ‘98) IP44 according to NF EN 60529 (Oct. ‘92) IK04 according to NF EN 50102 (June ‘95) Digital Analog Megohmmeter Models 1035/1039 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 27: Operation
• Before the yellow test button is pressed, the instrument operates as a voltmeter (safety check) to ensure that there is no dangerous voltage at the sample. • Press the yellow test button. Keep it pressed down until the measure- ment is displayed, or as long as needed. If released, the insulation test will stop. The yellow button on the remote control probe works the same way as the yellow test button on the megohmmeter. • To measure high insulation values (> 1GΩ), you are advised to use the “G” guard terminal to remove the influence of superficial leak cur- rents and a hands free carrying case. In this case, it is preferable to Digital Analog Megohmmeter Models 1035/1039 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 28: Resistance Measurement
(voltage < 25V) before disconnecting the leads. A programmed alarm threshold may be activated with the ALARM button. Resistance Measurement • Turn the megohmmeter ON by setting the switch to 40kΩ (1039) or 400kΩ (1035). • Connect the + and - leads to the measurement points. • Record the resistance value. • The megohmmeter will continue generating a test current until it is switched out of the resistance range. Turn the megohmmeter OFF when done. -
Page 29: Ac Voltage Measurement (1039)
All manuals and user guides at all-guides.com • Record the current value displayed. Connecting the MN211 current probe accessory to the mA Amp terminals will extend the measurement range to 200A AC Voltage Measurement (1039) • Turn the megohmmeter ON by setting the switch to V~. • Connect the + and - leads to the measurement points. • Note the voltage value displayed. Digital Analog Megohmmeter Models 1035/1039 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 30: Application Examples
All manuals and user guides at all-guides.com Application Examples 4.7.1 Insulation Measurements on Installations – – Figure 3 4.7.2 Insulation Measurements on Cables Figure 4 Digital Analog Megohmmeter Models 1035/1039 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 31: Insulation Measurements On Motors
All manuals and user guides at all-guides.com 4.7.3 Insulation Measurements on Motors – Motor Figure 5 Motor Windings – – Figure 6 Digital Analog Megohmmeter Models 1035/1039 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 32: Maintenance
Disconnect the instrument from any power source. Use a soft cloth slightly moistened with soapy water. Rinse with a damp cloth and quickly dry with a dry cloth or forced dry air. Do not use alcohol, solvents or any hydrocarbon material. Storage If the instrument is to be unused for an extended period (more than 2 months), remove the batteries and store them separately. Digital Analog Megohmmeter Models 1035/1039 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 33: Repair And Calibration
Technical and Sales Assistance If you are experiencing any technical problems, or require any assistance with the proper operation or application of your instrument, please call, mail, fax or e-mail our technical support team: Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 200 Foxborough Boulevard Foxborough, MA 02035 USA Phone: (800) 343-1391 (508) 698-2115 Fax: (508) 698-2118 E-mail: techsupport@aemc.com www.aemc.com NOTE: Do not ship instruments to our Foxborough, MA address. Digital Analog Megohmmeter Models 1035/1039 GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 34: Limited Warranty
All manuals and user guides at all-guides.com Limited Warranty The Models 1035 and 1039 are warranted to the owner for a period of one year from the date of original purchase against defects in manufacture. This limited warranty is given by AEMC Instruments, not by the distributor from ® whom it was purchased. This warranty is void if the unit has been tampered with, abused or if the defect is related to service not performed by AEMC ® Instruments. For full and detailed warranty coverage, please read the Warranty Coverage Information, which is attached to the Warranty Registration Card (if enclosed) or is available at www.aemc.com. - Page 35 All manuals and user guides at all-guides.com GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
- Page 36 All manuals and user guides at all-guides.com 03/09 99-MAN 100222 v13 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive • Dover, NH 03820 USA • Phone: (603) 749-6434 • Fax: (603) 742-2346 www.aemc.com GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
